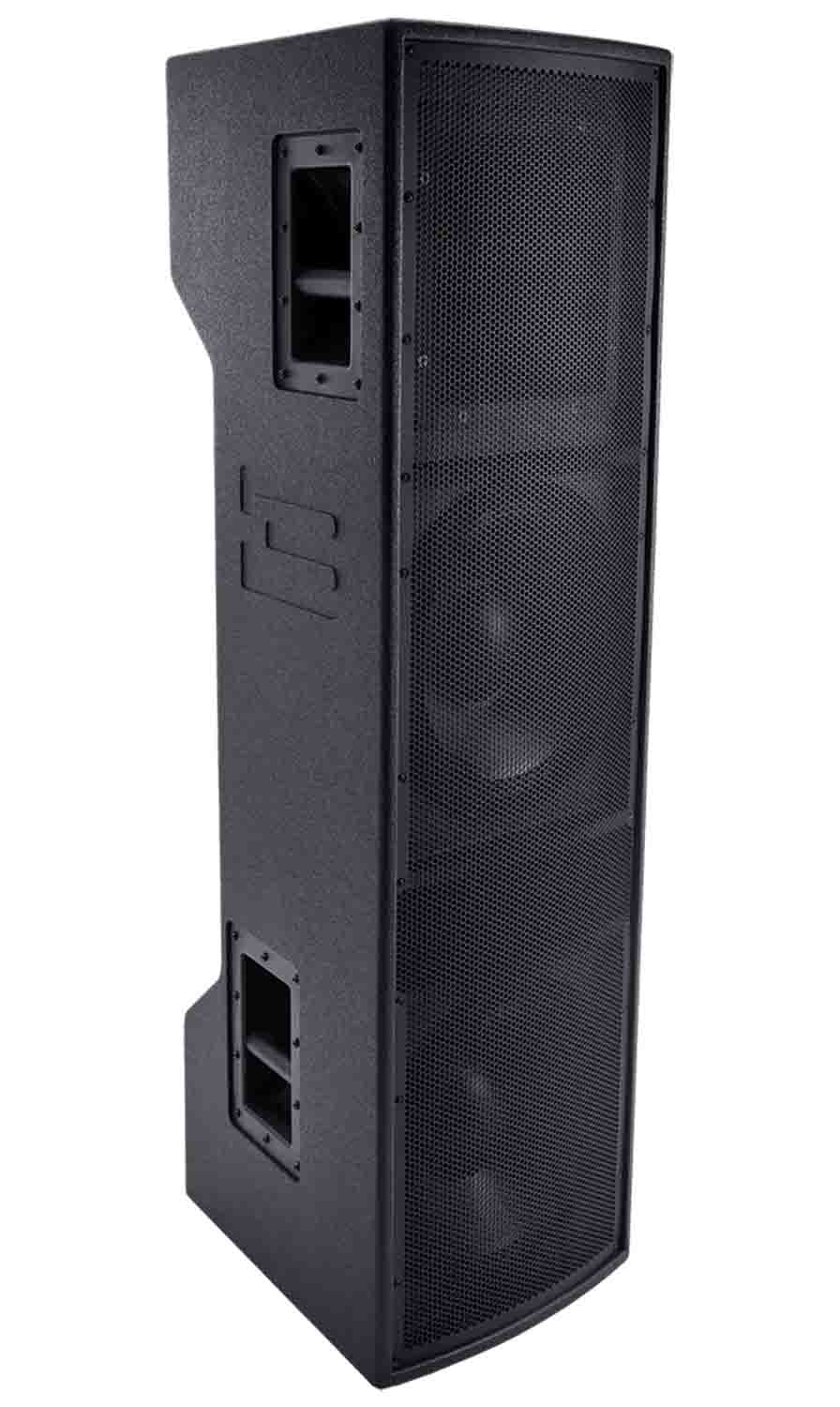

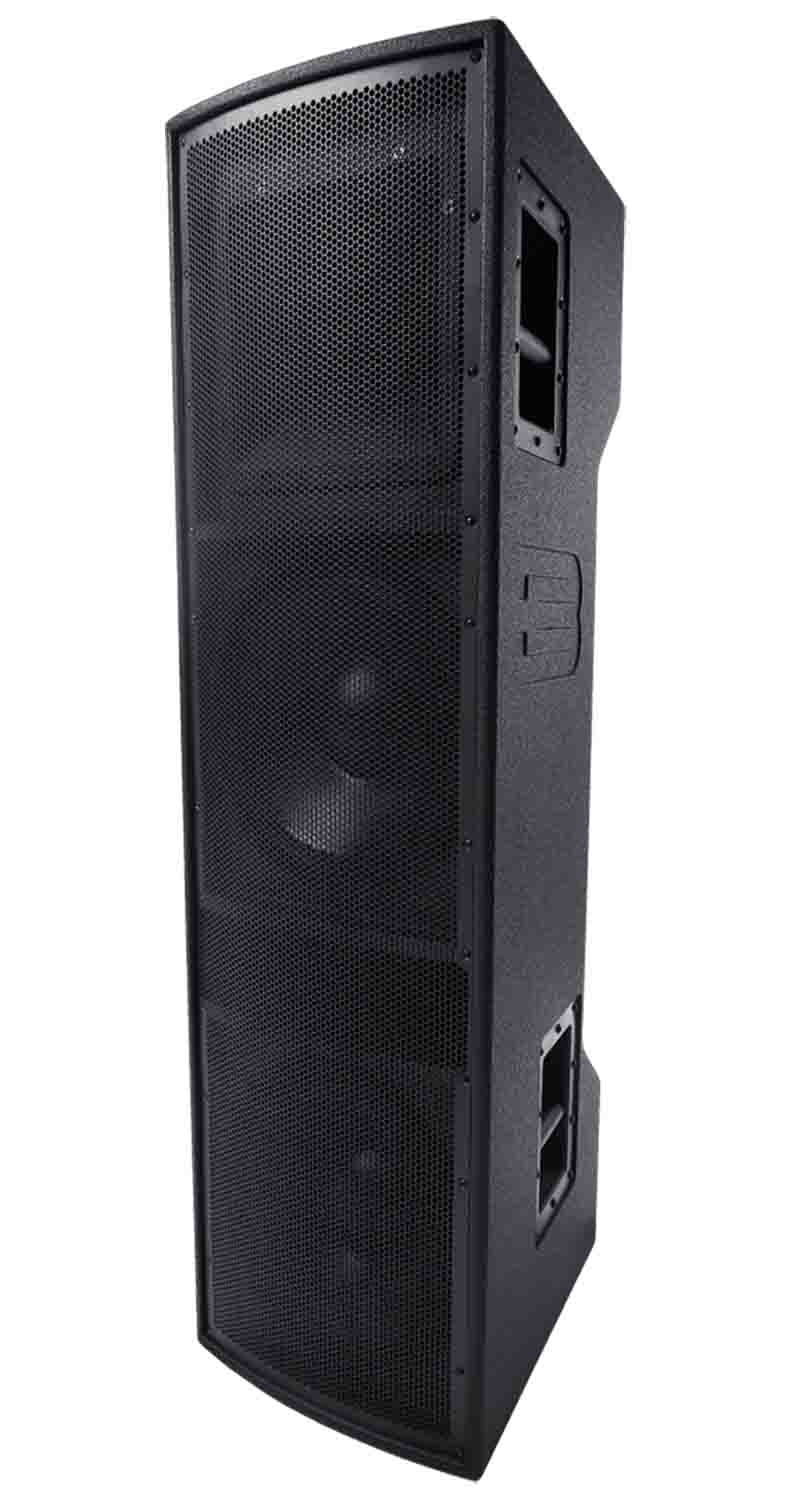

BASSBOSS AT212-3K Dual 12″ Powered Top

Power Tool

The AT212-3K Top is a 2-way, self-powered, bi-amplified loudspeaker for short to medium distance coverage. Simple to use, with high output, smooth sound and natural musical character. The light weight, power and efficiency of the AT212-3K make it ideal for providers who want to deliver high output but prefer not to move heavy cabinets.

Just Add Subs

Intended for use with a subwoofer system to complete a 3-way active full-range system. The AT212-3K has a tall, slim design allows the HF horn to stand above crowds when the cabinet is stacked on subwoofers and the light weight of the cabinet makes stacking easy for one person. One-man set up of a substantial system is made easy because the AT212-3K cabinets weigh only 89 lbs.

Cabinets

The cabinet is built of 15mm Baltic Birch plywood. It features an 18mm baffle, with dado joinery, 4 steel bar handles, and a 15-degree side angle trapezoid shape. The cabinet features 5 handles and 8 fly points, with 80 x 60-degree rotatable coverage for multiple applications including ground stack and horizontal or vertical flying.

The AT212-3K cabinets can be combined in arrays of 3 or more cabinets. The horn can be rotated and the boxes packed side-by-side to form arrays that cover 90, 120, 150, 180 degrees and more.

Durable & Intense

Created to stand up to intense usage. The cabinet is finished in an extremely rugged, black polyurethane coating. Drivers are protected by a black powder coated, perforated steel grill, and the amp is recessed into the back of the cabinet for protection from damage in transit.

Power Galore

The amplifier consists of 2 channels with a total of 3,000W. The amplifier features extremely high dynamic power capacity, with 150 Volts peak output per channel, along with high damping of >10000:1 Efficient, PFC power supply and class D output topology.

Exceptional dynamic resolution and detail along with precise control. It offers low current draw and light weight relative to the output capacity.

Virtually Indestructible

All the processing necessary for linear frequency response and phase coherent operation are pre-programmed into the DSP. With the comprehensive processing built in, BASSBOSS loudspeakers provide the ease of plug-and-play operation and the peace of mind that comes from knowing that the multiple limiter systems make to system virtually indestructible.

Driver Tech

The AT212-3K is a vented cabinet that features two 12” woofers and a 1.4” throat, horn-loaded compression driver. The woofers feature 4” voice coils, Neodymium magnets, cast aluminum baskets and ultra-light carbon-impregnated cones. The compression driver also features a Neodymium motor structure with a 2.5” voice coil diaphragm.

Product Specifications:

Frequency Response: (±3 dB)     45 – 18,000 Hz

Sensitivity: LF: 107dB; HF:107dB

Maximum Sustained Output: 136 dB

Max SPL (Peak): 139 dB

Nominal Dispersion (H° x V°): 80 x 60 (Rotatable)

Amplification: 3000-Watt 2 Channel Power soft Class D Amplifier

Processing: Integrated comprehensive DSP provides high pass, low pass, equalization, phase alignment and limiting

Enclosure Type: 2-way, Active, Full Range. Direct radiating vented LF section, horn-loaded HF section

Transducer (Low Frequency: 2 x 12 in. diameter (300 mm) neodymium motor woofer with 4 in. (101.6 mm) voice coil, waterproof cone

Transducer (High Frequency: 1 x 1.4 in. exit 3 in. (76.2 mm) voice coil compression driver mounted to 80 by 60-degree constant directivity horn

Cabinet Construction: 18 mm Baltic Birch plywood, 15mm braced sides, dado joinery, 4 steel bar handles, 30-degree trapezoid

Dimensions (HxWxD): 47.75 in. x 14.3 in. x 17.75 in. with 5.3 in. wide rear

Net Weight: 89 lbs

Shipping Weight: 99 lbs
