Description

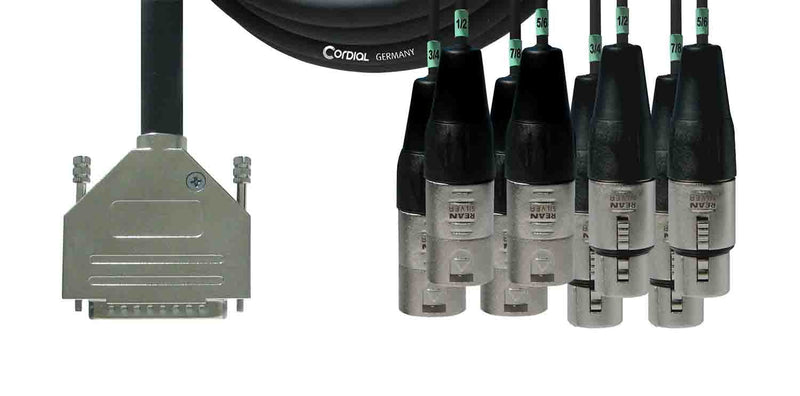

The Cordial CFD DFMT is a Professional Multicore Cable for the Stage and Studio. Our CFD DFMT is a professional digital multicore cable (AES/EBU) for LIVE and studio use. The pin configuration complies with the analog Tascam D-Sub 25 specification (DA 88), i.e., D-Sub 25 pin connector male to 4 XLR male/4 XLR female. The XLR connectors have a 3-pin configuration and a nickel-plated metal housing. The corresponding bulk cable is the CMD 8, which transmits analog as well as DMX signals excellently and features a spiral wound tinned copper pair screen and an additional tinned overall shield.
Product Specifications:
Cable: CMD 8
Jacket: PVC
Cable Assign: DFMT
Connector Brand: REAN SILVER
Plugs:
1 D-Sub
4 XLR male 3-pole
4 XLR female 3-pole
Conductor Area: 0.14 mm²
AWG: AWG 26
Composition of Conductor: 18 x 0.10 mm
Material: Tinned Copper
Conductor Resistance: 140 Ω/km
Shielding: Tinned Copper Braided Screen (>80% covering)
Capacity cond.-cond. (pF/m): 45 pF / m
Category: DMX-AES/EBU-110 Ohm
Diameter: 12.5 ± 0.5 mm
Conductor Isolation: PE
