dB Technologies DVA M2P, 2-Way Passive Line Array Module System

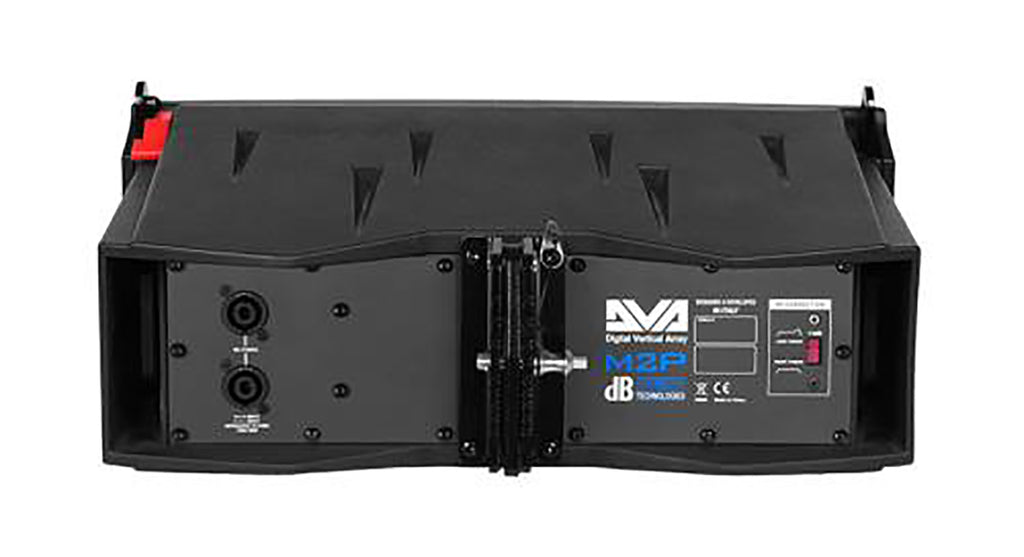

The dB Technologies DVA M2P features two 6,5” neodymium woofers, whose disposition and efficiency is extremely optimized thanks to a custom dual phase-plug. This technology significantly improves the mid-range efficiency of the speaker and, most of all, makes the horizontal coverage really homogeneous and consistent. The two 1” drivers, finely tuned for the DVA M2P custom designed array horns, deliver a crystalline clear sound in high frequency, in order to provide the audience the same intelligibility of the DVA line array systems. It is possible to change the top end response (+ 3dB) through a switch located on the rear panel, in order to compensate the attenuation on high frequencies when using as long throw system. The high quality reinforced Polypropylene enclosure, and the internal hardwearing anti-vibration structure, makes the DVA M2P box very tough and able to work as heavy-duty professional tools. These features, together with neodymium transducers, contribute to realize an exceptionally light, durable and powerful line array module. The choice of neodymium magnets ensures even more value to the module, as they are synonym of reliability, performance and lightness.

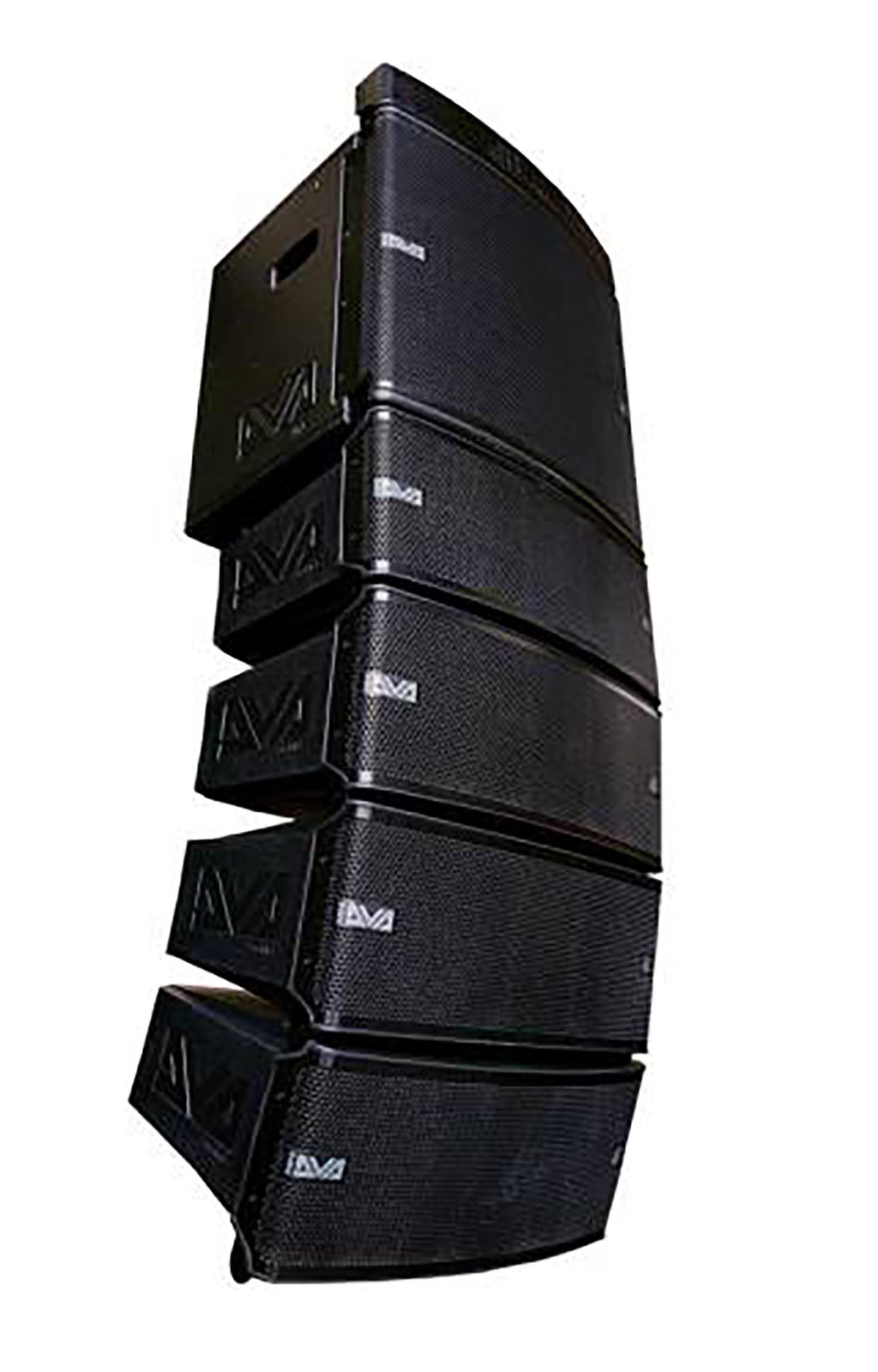

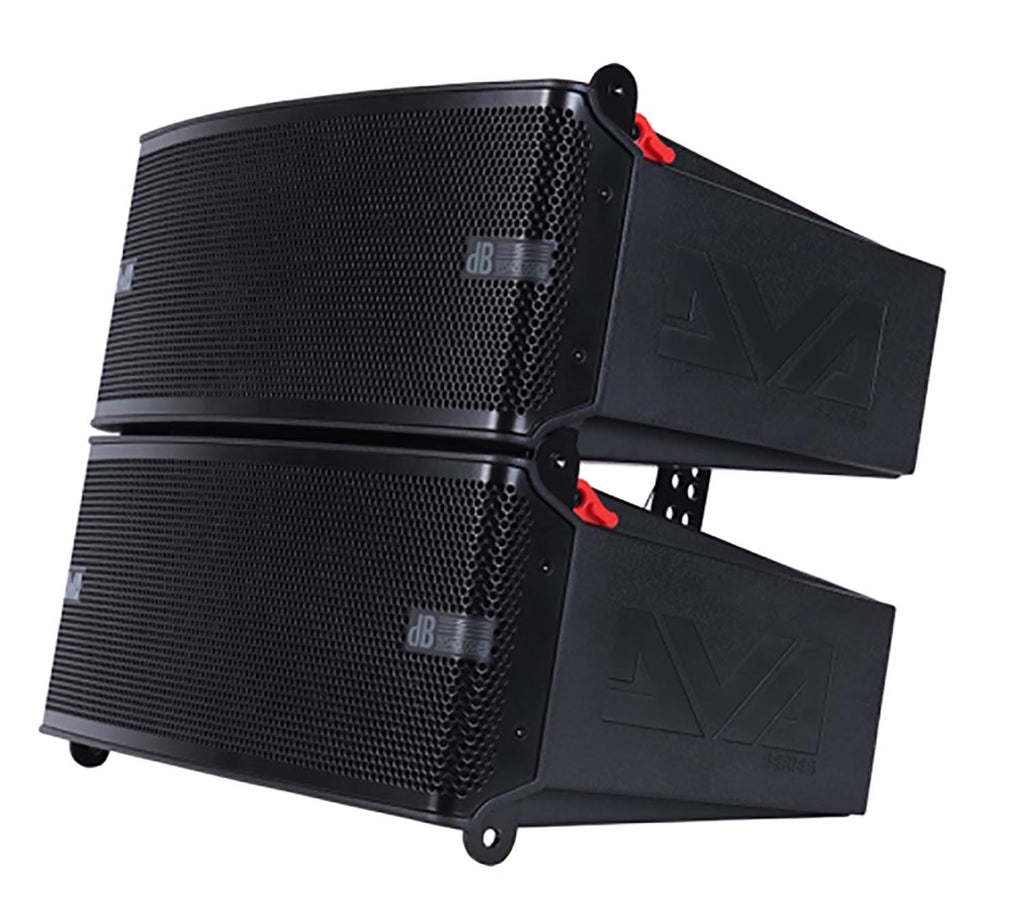

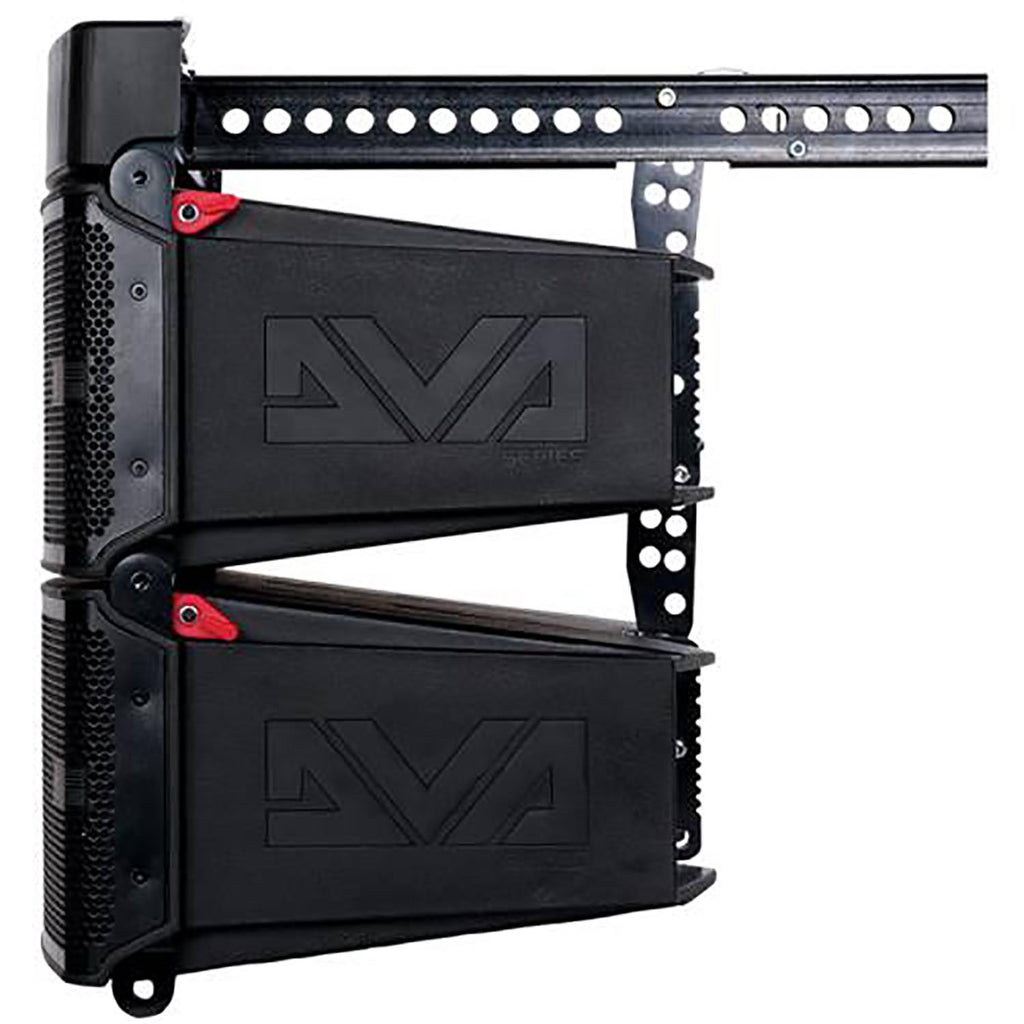

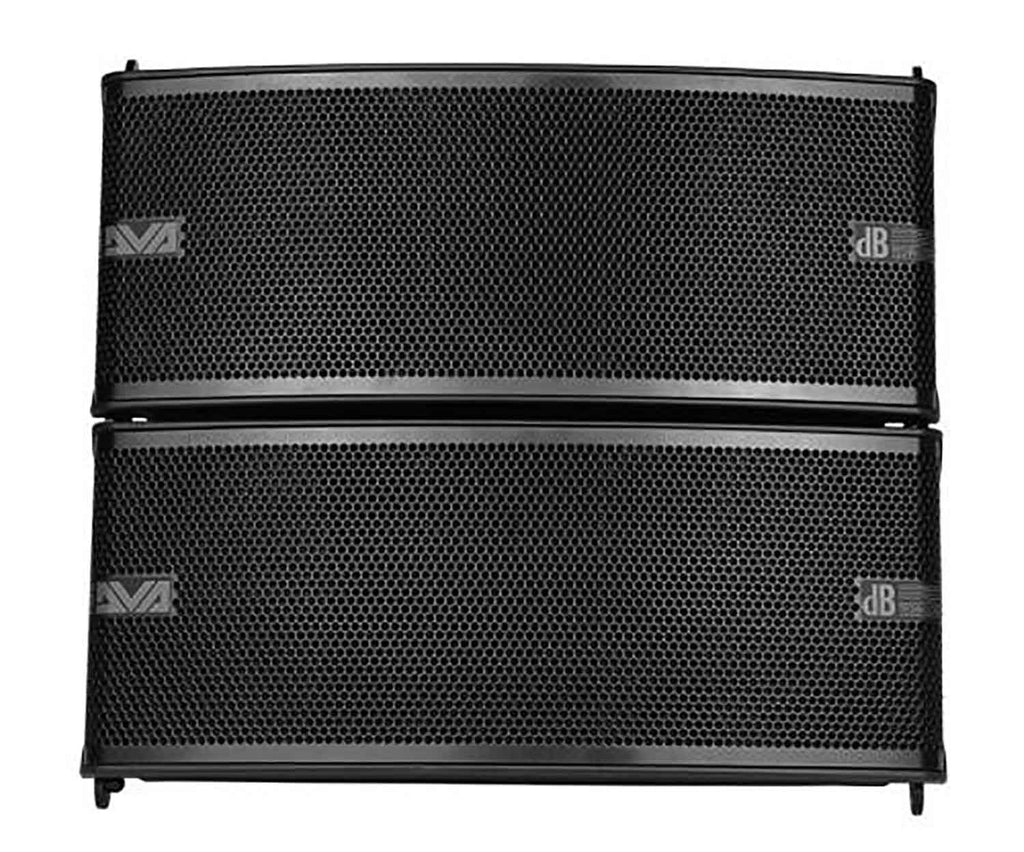

The DVA M2P features the same “fast lock mechanics”, which made the DVA MINI incredibly easy to assemble and rig, by completely removing pins and complex mechanics in favour of a quick-locking system. Even the single mechanic on the rear of the box is the same system to regulate the aiming of each module with the same accuracy of DVA MINI line arrays. The modules' mechanics are hidden behind the frontal panel, and the elegant curvature of the frontal hexagonal grille contributes to create a very nice looking system for any kind of fixed installation purposes or live music events where the system should be totally invisible. The DVA M2P allows the same suspended or ground stack configurations, and shares all the accessories of the DVA MINI, ensuring the same versatility in permanent installations, live music and all those events that require medium-high sound pressures cmbined with limited weight and footprint.

Product Specification:

Technical Data

Speaker Type 2-Way Passive Line Array Module

Acoustical data

Nominal Power Rating 150W / RMS

Peak Power Rating 300W

Impedance 16 Ohms

Frequency Response [-6dB] 78 - 19.000 Hz

Frequency Response [-10dB] 68 - 20.000 Hz

Max SPL 126 dB per unit

HF 2x1"

Type HF Neodymium

Voice Coil HF 1"

LF 2x6.5"

Type LF Neodymium

Voice Coil LF 1.5"

Directivity 90x15° Single Unit

Input

Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)

Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics

Housing Polypropylen PP

Handles 2x back side

Fittings Integrated hardware with fast lock mechanics

Splay Angles 0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
