Description

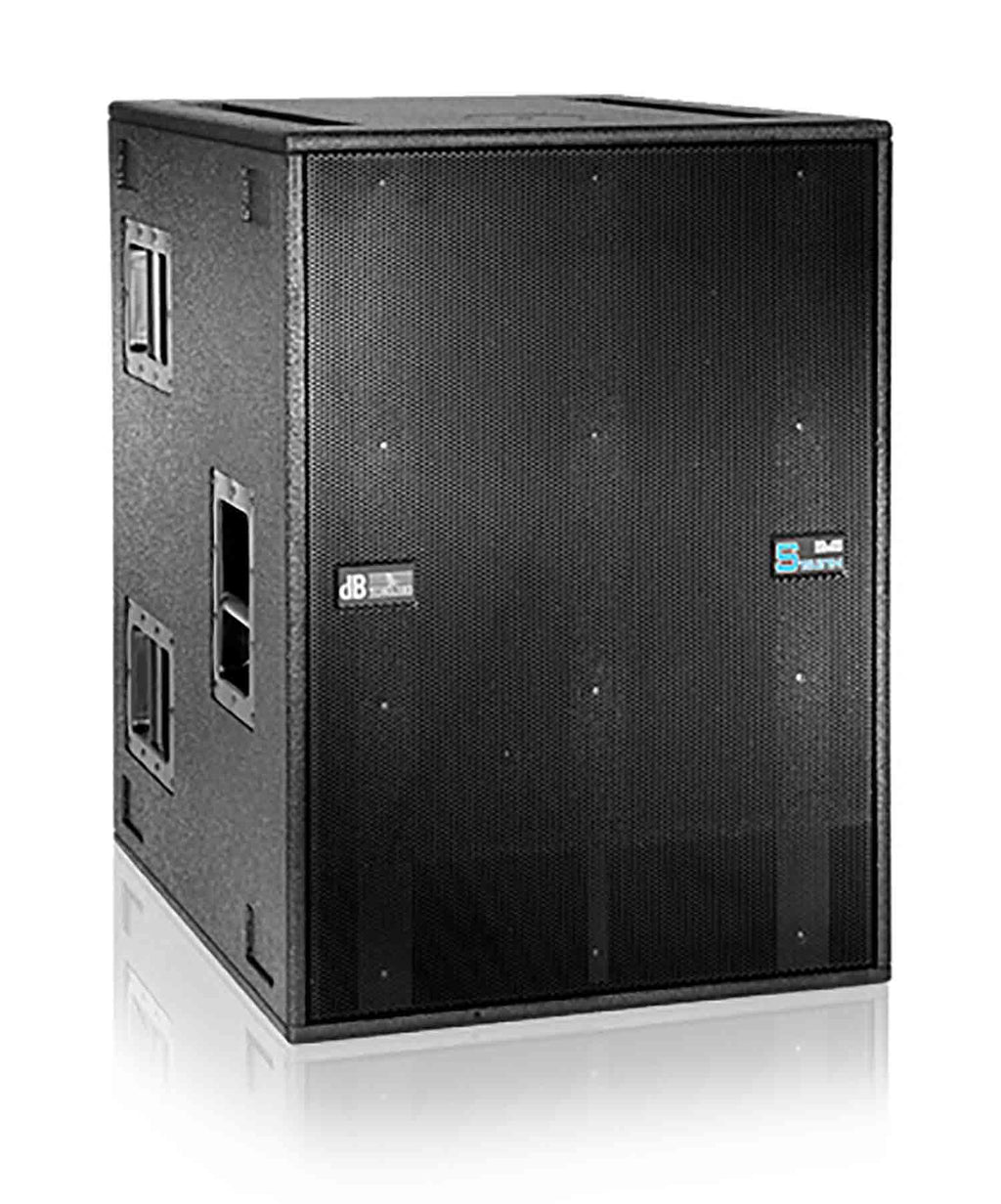

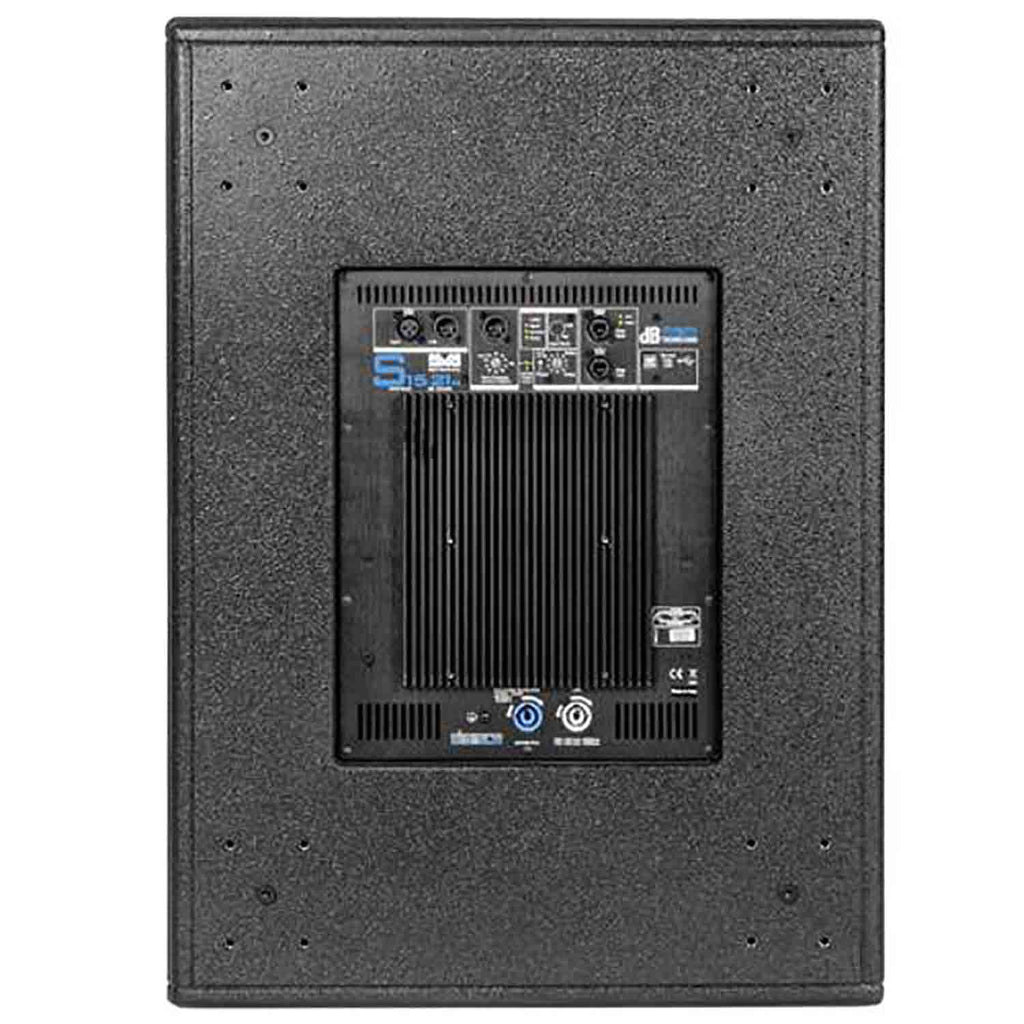

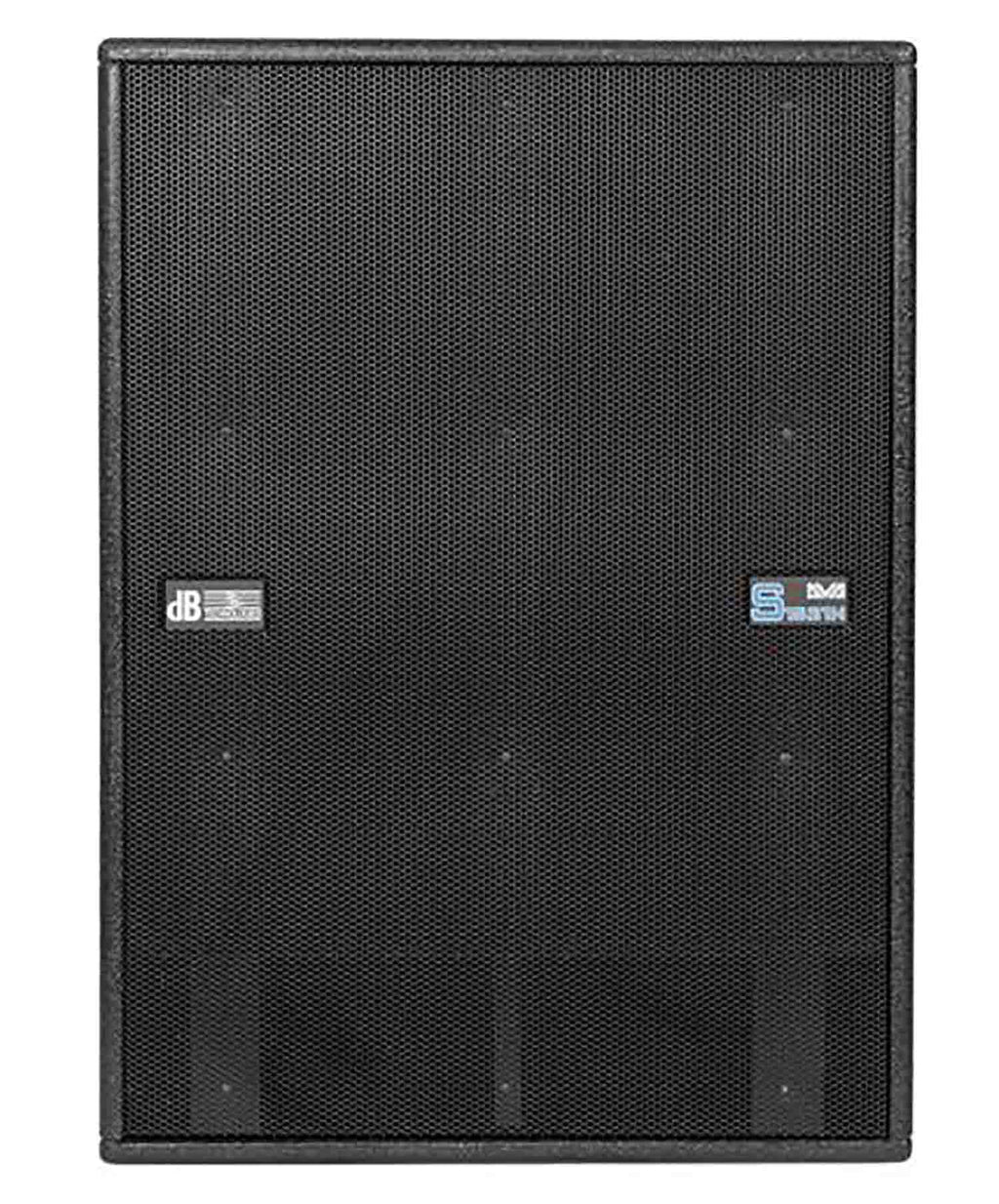

The dB Technologies DVA S1521N is a powered 21" subwoofer housed in a bass reflex enclosure that we tuned for accurate, ultra low-frequency response. It readily integrates into large DVA and DVX Series PA systems as a sub-bass unit or as a stacked subwoofer. Made of durable birch multiplex covered in robust black textured lacquer, the high-quality housing provides six carrying handles, an M20 pole mount, and bushings on the rear panel that accept casters. Pick-points for attaching DRK-10 and DRK-20 harnesses are built into the top panel to enable easy, safe stacking.
Product Specification:
Technical Data
Speaker Type Active Bassre flex-Subwoofer
Acoustical data
Frequency Response [+/- 3dB 30 - 105 Hz
Max SPL 139 dB
Directivity Omni directional, Cardiod Option with DSP setup
LF 21 "
Voice Coil LF 4.5 "
Amplifier
Amp Technology Digipro G2
Amp Class Class D
Power Supply 1.5 kW SMPS
LF Amp 1500 W RMS
Cooling Convection
Processor
Controller DSP 56 bit
AD/DA Converter 24bit / 96 kHz
System Presets X-Over, Delay
Phase 0, 180 °
Limiter RMS, Peak, Thermal
Delay Option0-4.5 ms internal
Crossover Frequency LF-MF60-105Hz | steps of 5Hz
LF-X over out slope 24 dB/Octave
Mechanics
Housing Multiplex plywood
Housing Design Rectangular
Handles3x Per Side
Accessory Dolly, Wheels 100mm,
Dust Cover, Rain Cover
Pole MountM20
Rigging Points2xPick Points on top to fix
DRK10/20 rigging frames
