Description

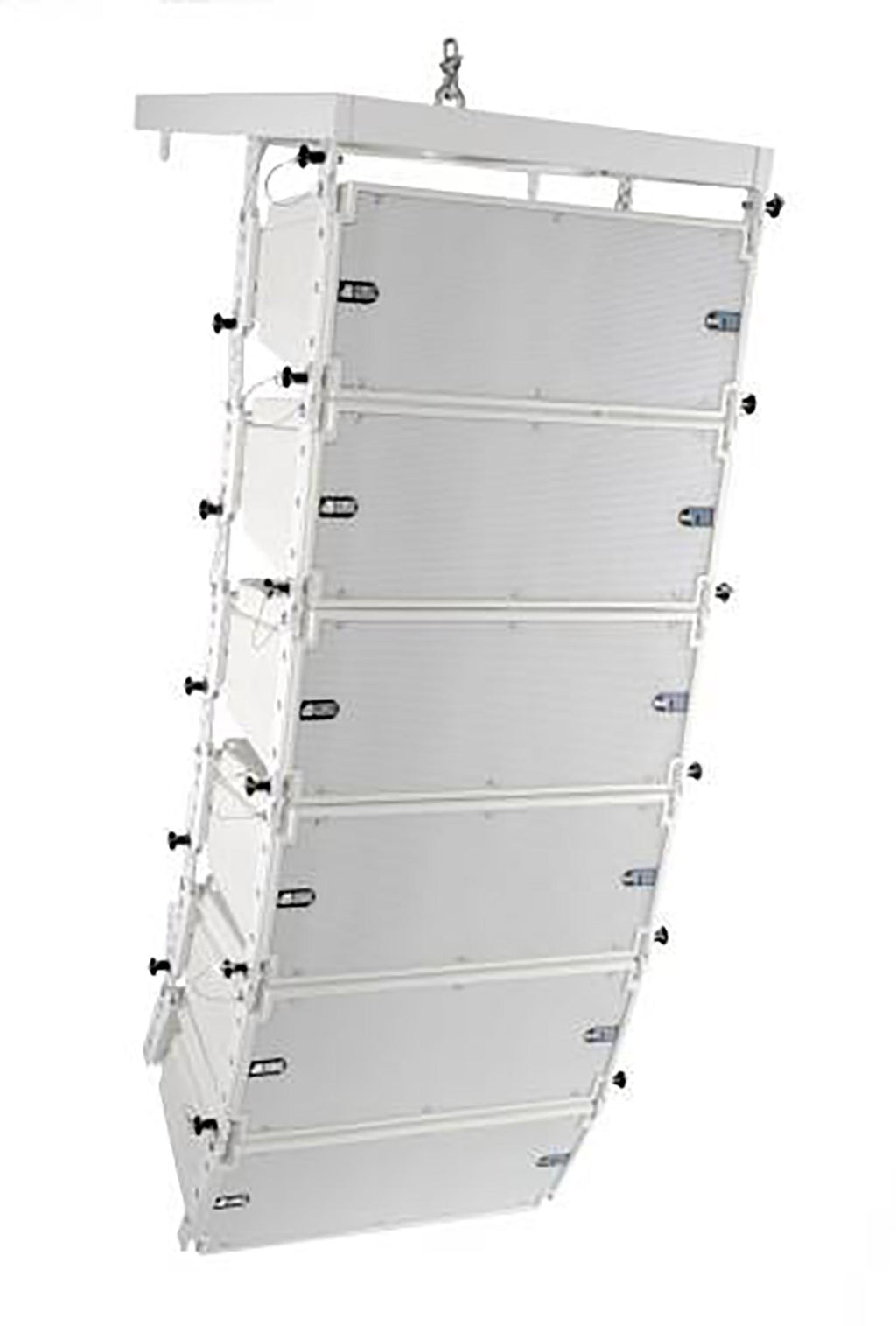

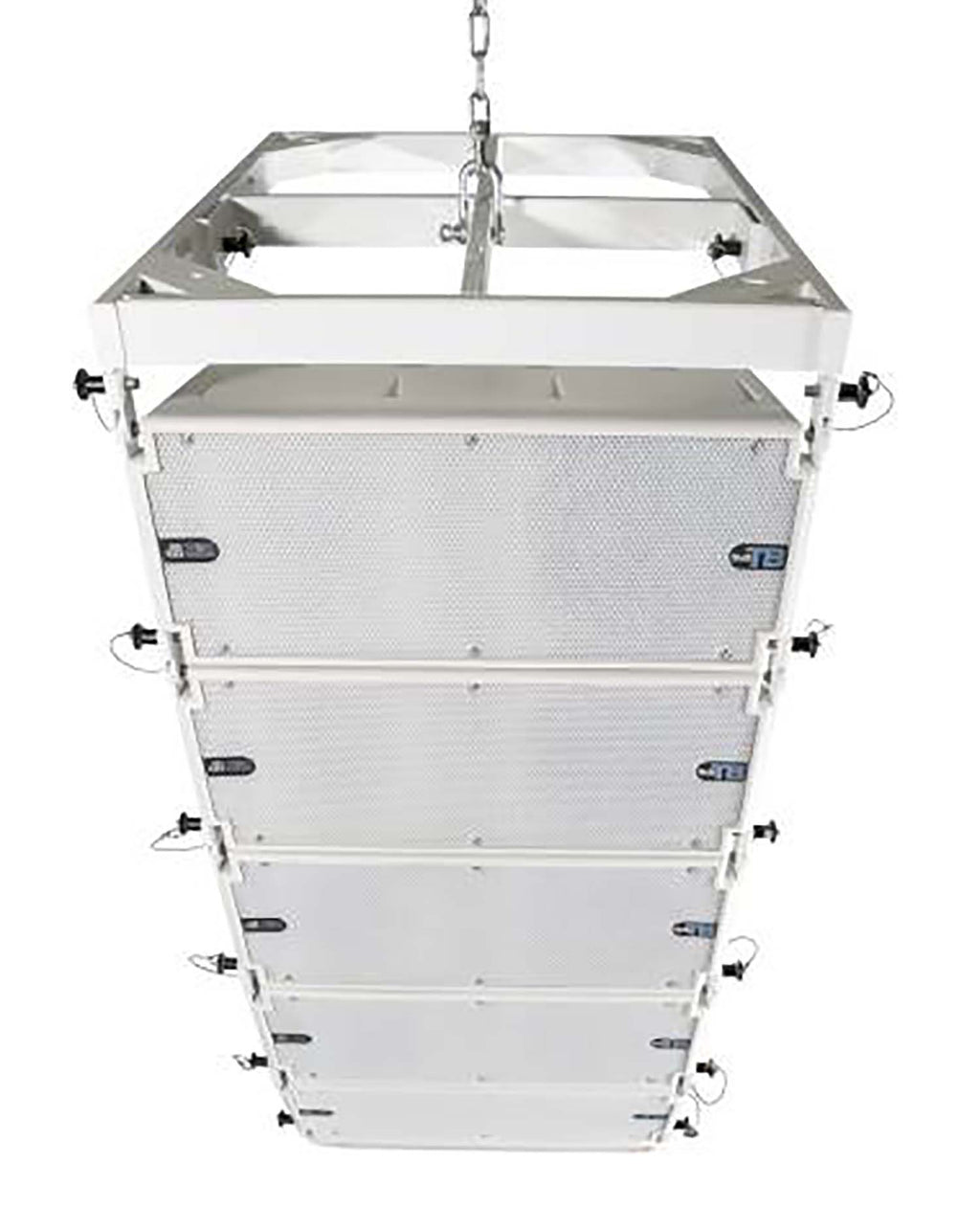

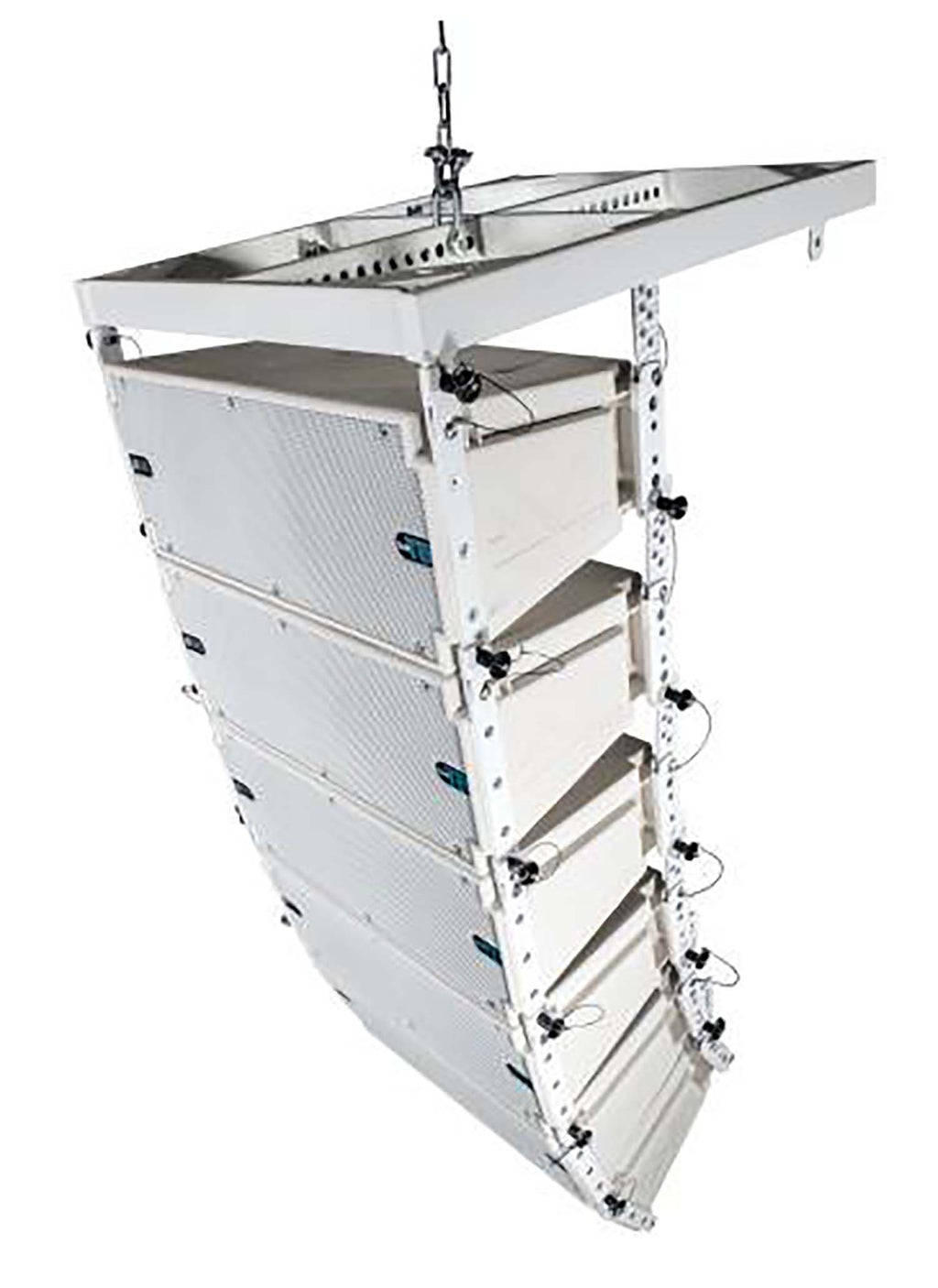

The dB Technologies DVA T8 white is a 3-way module equipped with a 8” bass reflex neodymium woofer, 1 horn loaded 6.5” midrange with a 2” voice coil and phase plug device, and two 1”drivers with constant directivity horn. These components have been optimally arranged to obtain a uniform 100° by 15° coverage per module. DVA T8 features a Class D 700 W RMS Digipro G2 digital amplifier and is capable to reach up to 132 dB SPL. The system is equipped with a RDNET port which allows the system to be controlled and monitored remotely in real-time through the use of dBTechnologies Network control software.
Thanks to a rotary on the module’s rear panel, it is possible to select one among 9 different preset options plus a personal setting which can be saved. This way, users adapt the module’s frequency response to aiming distance and to coupling with other modules within the same array, thus optimizing the sound in a consistent and balanced way, without the use of any external processors.
The module’s electronics and components are housed in a sturdy polypropylene box, reinforced with an internal anti-vibration metal structure which drastically reduces any resonance, allowing the cabinet to achieve an excellent acoustic response.
The reinforced polypropylene box, the selected components and a state of the art amplifying technology come together to deliver an exceptional weight-performance ratio: in facts, each module of DVA T8 weights a mere 14,2 kg (31,3 lbs). The unique feature of the DVA T series is the mechanical and acoustic compatibility between line array modules of the same family. This feature guarantees a great versatility in terms of both using and configuring the products.
Product Specification:
Speaker Type: 3-Way Active Line Array Module
Frequency Response [-6dB]: 66 - 18.000 Hz
Max SPL: One Unit: 132 dB
HF: 2x1 "
Voice Coil HF: 1.4 "
Directivity: 100x15 ° Single unit
Horn: Integrated CD Horn
MF: 1x 6.5 "
Voice Coil MF: 2 "
LF: 8 "
Voice Coil LF: 2.5 "
Amp Class: Class D
HF Amp: 175 W RMS
MF Amp: 175 W RMS
LF Amp: 350 W RMS
Cooling: Convection
Controller: DSP 56 bit with double precision filters
AD/DA Converter: 24 bit/96 kHz
Crossover Frequency MF-HF: 1900 Hz
Slope MF-HF: 24 dB/Octave
Crossover Frequency LF-MF: 400 Hz
Slope LF-MF: 24 dB/Octave
Signal Input: 1x XLR fem, Bal.
Signal Output: 1x XLR male, Bal.
Power Socket: 1x Powercon In
1x Powercon Out
Voltage Range: 90 - 240 V
Housing: Polypropylen PP
Metal reinforced
Housing Design: Trapezoidal 15°
Rain Cover: Included
Rigging Points: Integrated rigging hardware
