Description

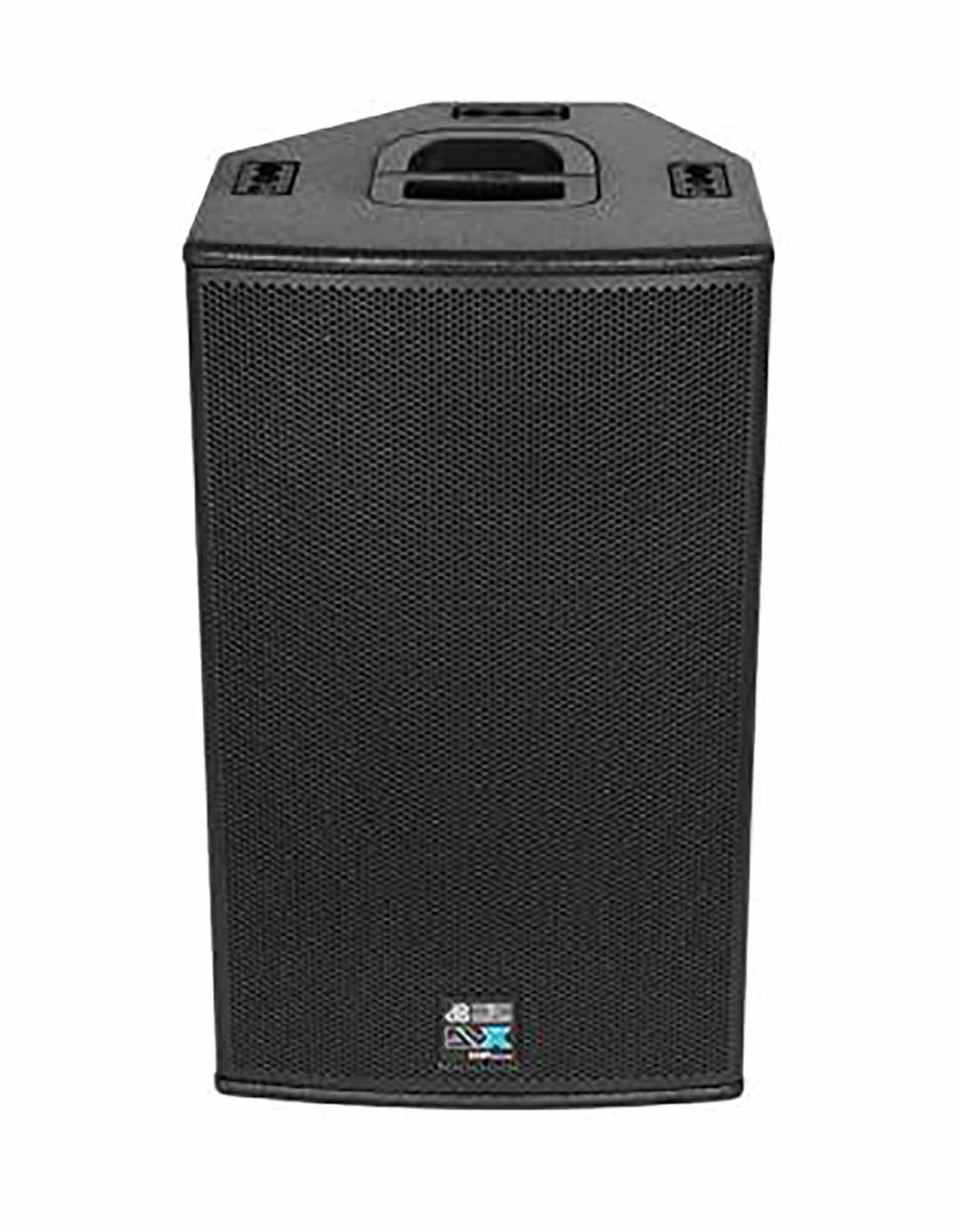

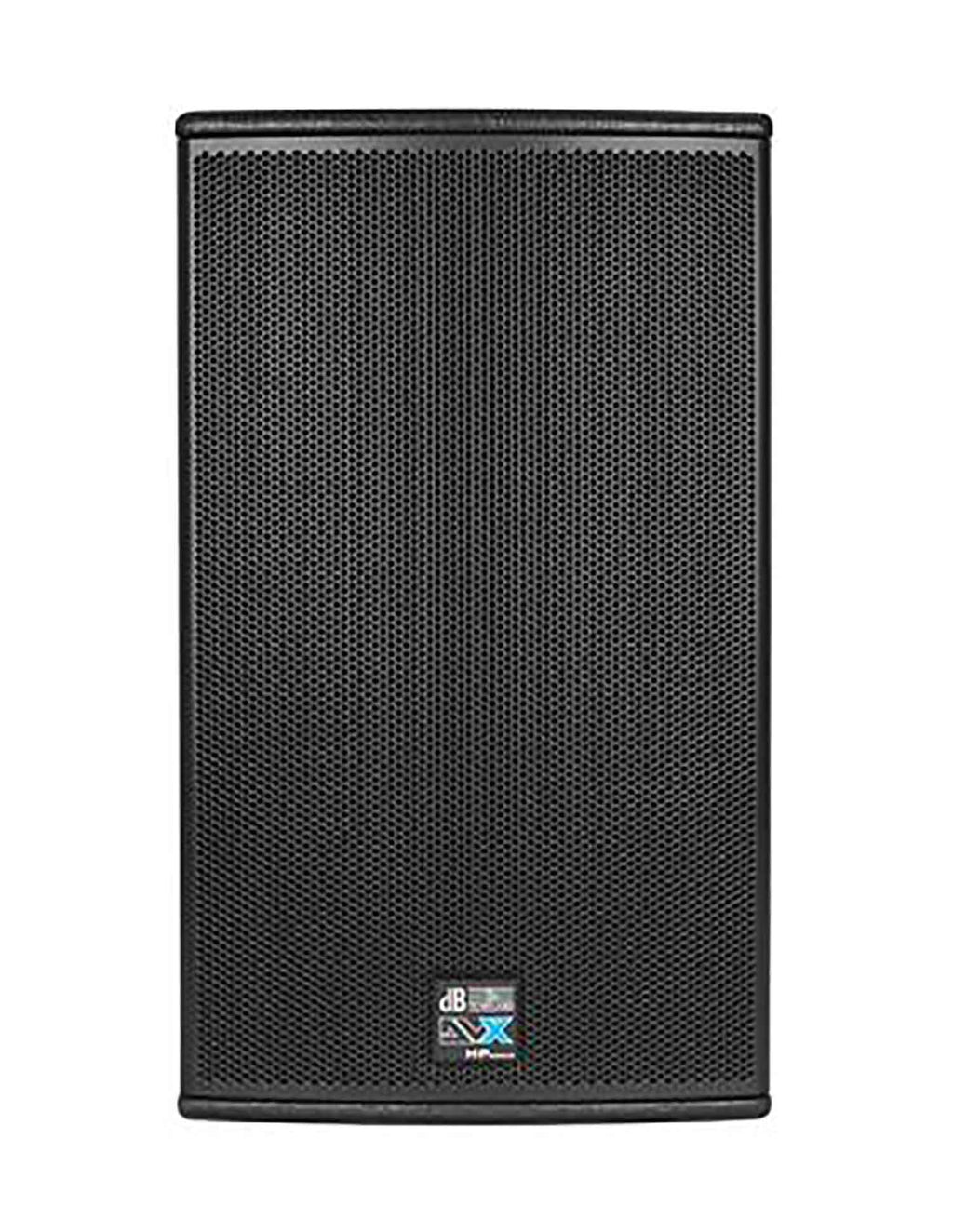

The dBTechnologies DVX-D15-HP delivers punchy, assertive bass response without requiring an added subwoofer. Its integrated, high-performance digipro G2 digital power amp delivers very high sound pressure levels, exceedingly dynamic response, and tight, clean low-end response. Loaded with high quality speakers, it provides premium audio performance with maximum reliability and minimum power compression. A 1.4” driver with a 2,5” voice coil designed to handle highest loads renders vocals with a powerful, assertive punch, easily throwing signals across medium-to-longer distances.

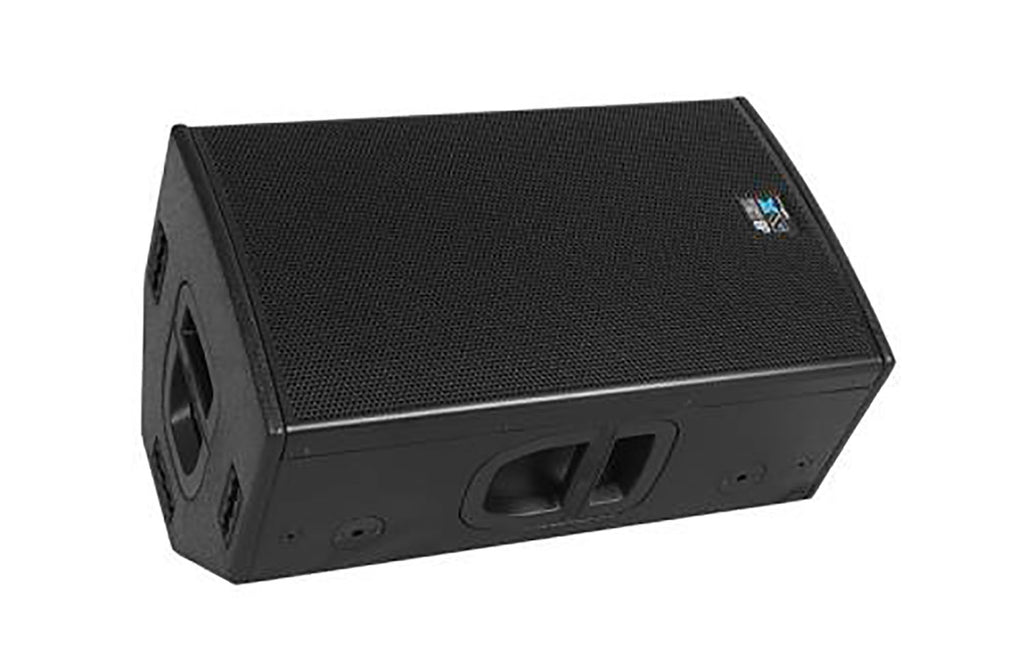

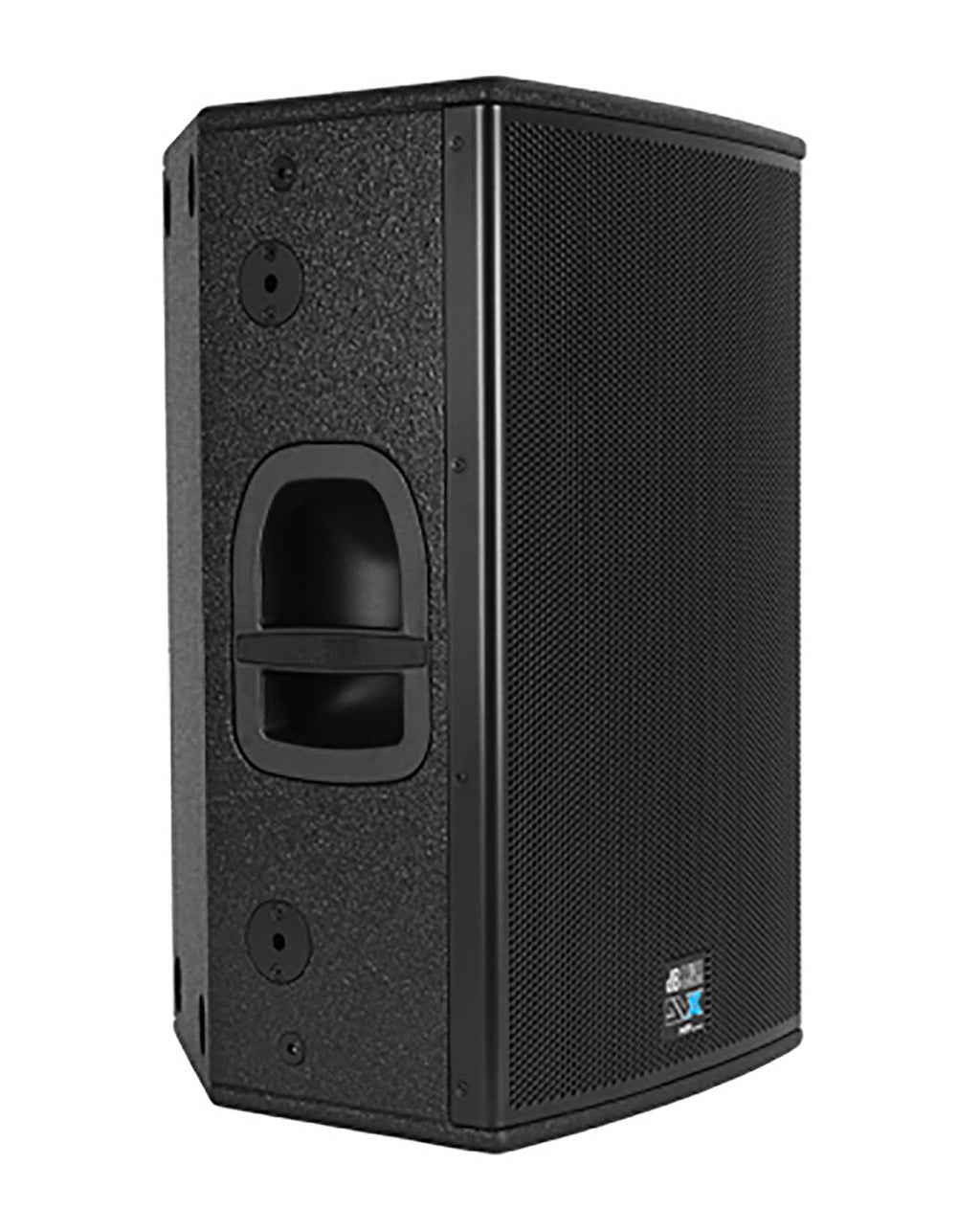

The housing’s multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes. The onboard controller even provides a special monitor setup that specifically adapts the enclosure’s performance for use as a monitor. It also serves as a controller for an active equalizer, x-over, limiter, and phase and delay time alignment.
Product Specification
| Category | Specification | Value |
|---|---|---|
| Technical Data | Speaker Type | 2-Way Active Speaker |
| Acoustical Data | ||
| Frequency Response [-10dB] | 49 - 20,000 Hz | |
| Frequency Response [+/- 3dB] | 57 - 19,000 Hz | |
| Max SPL | 132 dB | |
| HF | 1.4 " | |
| Voice Coil HF | Titanium 2.5 " | |
| Directivity | 60x40 ° | |
| Horn | CD Horn Aluminium | |
| Rotatable Horn | YES | |
| LF | 15 " | |
| Voice Coil LF | 3.5 " | |
| Amplifier | Amp Technology | Digipro G2 |
| Amp Class | Class D | |
| Power RMS | 700 W | |
| Peak Power | 1400 W | |
| Cooling | Convection | |
| Processor | Controller | DSP 24 Bit/48 kHz |
| System Presets | FOH, Monitor | |
| Limiter | RMS, Peak. Thermal, Multiband | |
| Crossover Frequency MF-HF | 1320 Hz | |
| Slope MF-HF | 24 dB/Octave | |
| Mechanics | Housing | Multiplex plywood |
| Housing Design | Multifunctional | |
| Angles Up Monitor use | 45 ° | |
| Rigging Points | 6x M10 | |
| 4x Quick-Relase Pins | ||
| Flytracks | 3x on top |
