Description

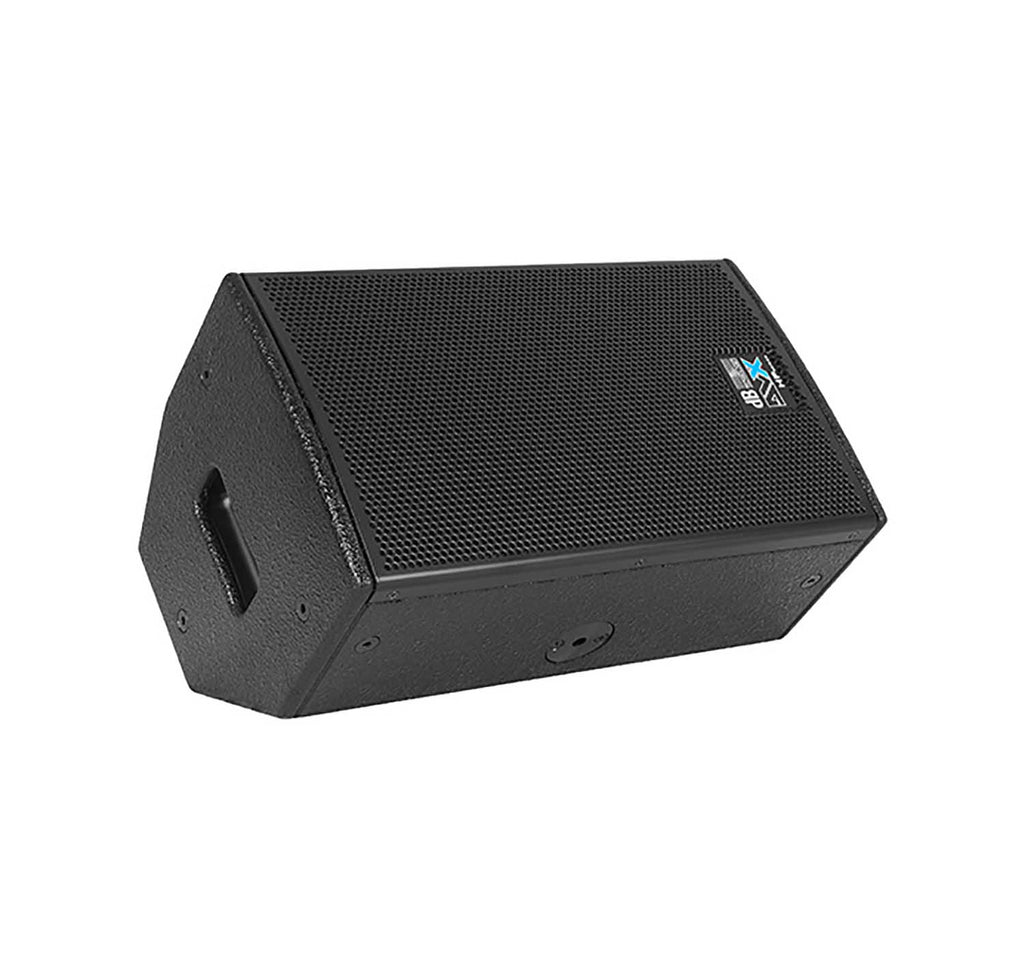

The dB Technologies DVX D8 HP is an active 8"/1" 2-way speaker cabinet designed to render speech and music. Equipped with a high-quality 8" woofer and a 1" compression driver with a rotatable CD horn, it offers articulate speech intelligibility and an accurate response. Equipped with an integrated Digipro G2 digital power amp, this powered enclosure offers high performance in a compact package. The housing's multi-functional design incorporates a slanted panel for monitoring, rigging points, and even a special monitor setup controlled by the on-board DSP, which also acts as a controller, providing active equalizer, x-over, limiter, and phase and time alignment functions.
Product Specification
| Technical Data | |
|---|---|
| Speaker Type | 2-Way Active Speaker |
| Acoustical data | |
| Frequency Response [-10dB] | 75 - 20,000 Hz |
| Frequency Response [+/- 3dB] | 100 - 19,000 Hz |
| Max SPL | 125 dB |
| HF | 1 " |
| Voice Coil HF | Titanium 1.7 " |
| Directivity | 90x70 ° |
| Horn | CD Horn Aluminium |
| Rotatable Horn | YES |
| LF | 8 " |
| Voice Coil LF | 2 " |
| Amplifier | |
| Amp Technology | Digipro G2 |
| Amp Class | Class D |
| Power RMS | 400 W |
| Peak Power | 800 W |
| Cooling | Convection |
| Processor | |
| Controller | DSP 24 Bit/48 kHz |
| System Presets | Flat, Monitor |
| Limiter | RMS, Peak. Thermal, Multiband |
| Crossover Frequency MF-HF | 1800 Hz |
| Slope MF-HF | 24 dB/Octave |
| Mechanics | |
| Housing | Multiplex plywood |
| Housing Design | Multifunctional |
| Angles Up Monitor use | 45 ° |
| Rigging Points | 6x M8 |
| Quick Release for DTF-bracket | 2x 10mm |
