Description

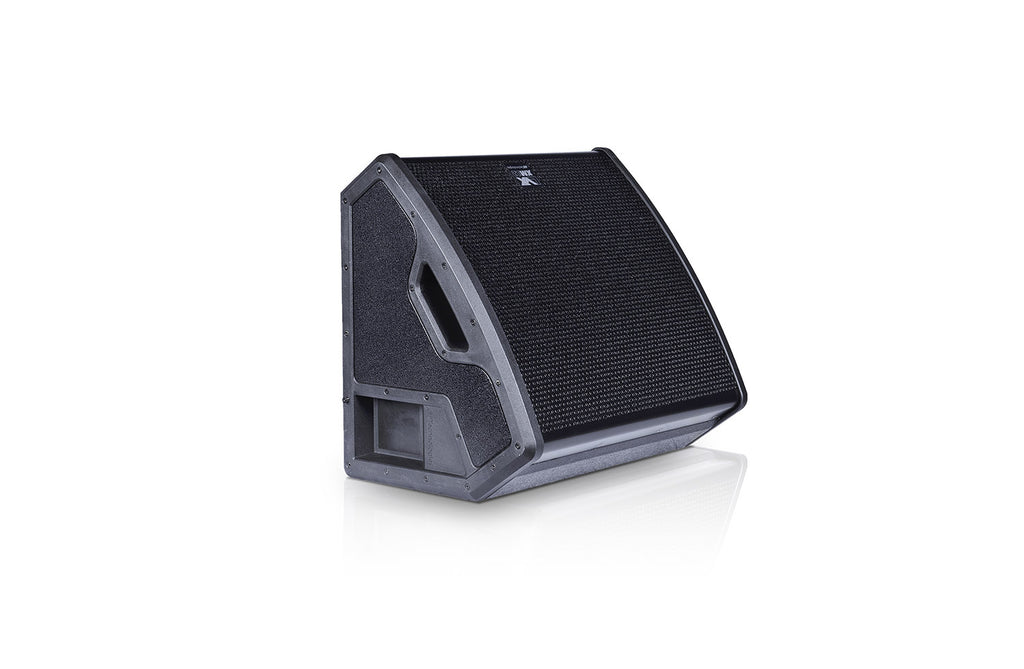

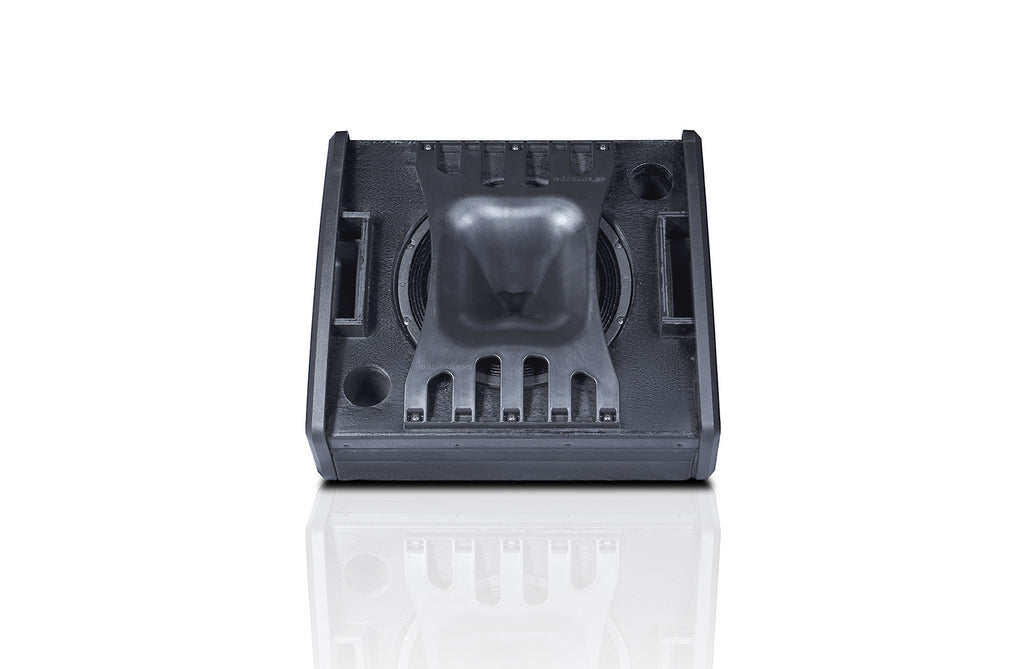

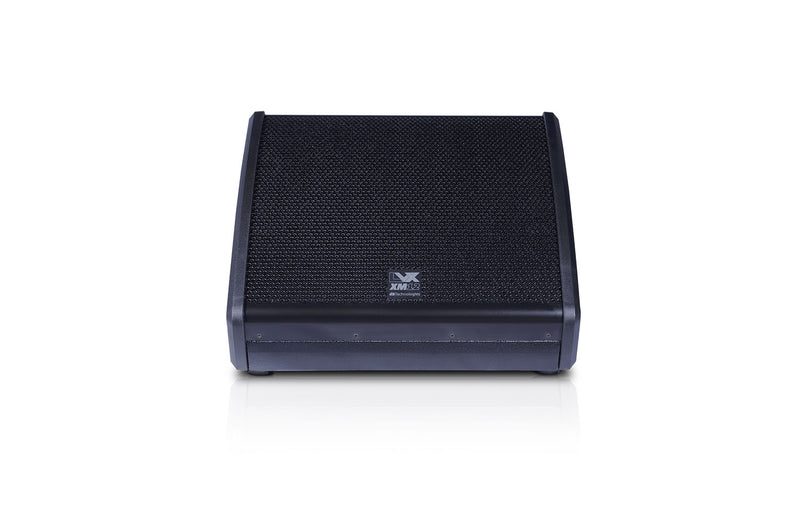

The dB Technologies LVX XM12 design enhance the benefits of coaxial horn wedges concept. Db Technologies designed a horn that not only shape high frequencies’ directivity, but also acts as a phase plug for the woofer, boosting and lighting up the vocal band, thanks also to the advanced DSP featuring FIR filters processing. As a result, not only the horn contributes to deliver a bright audio performance with a uniform throw pattern, but also contributes to reduce the overall dimensions of the system and protect the internal components, reinforcing the cabinet structure.

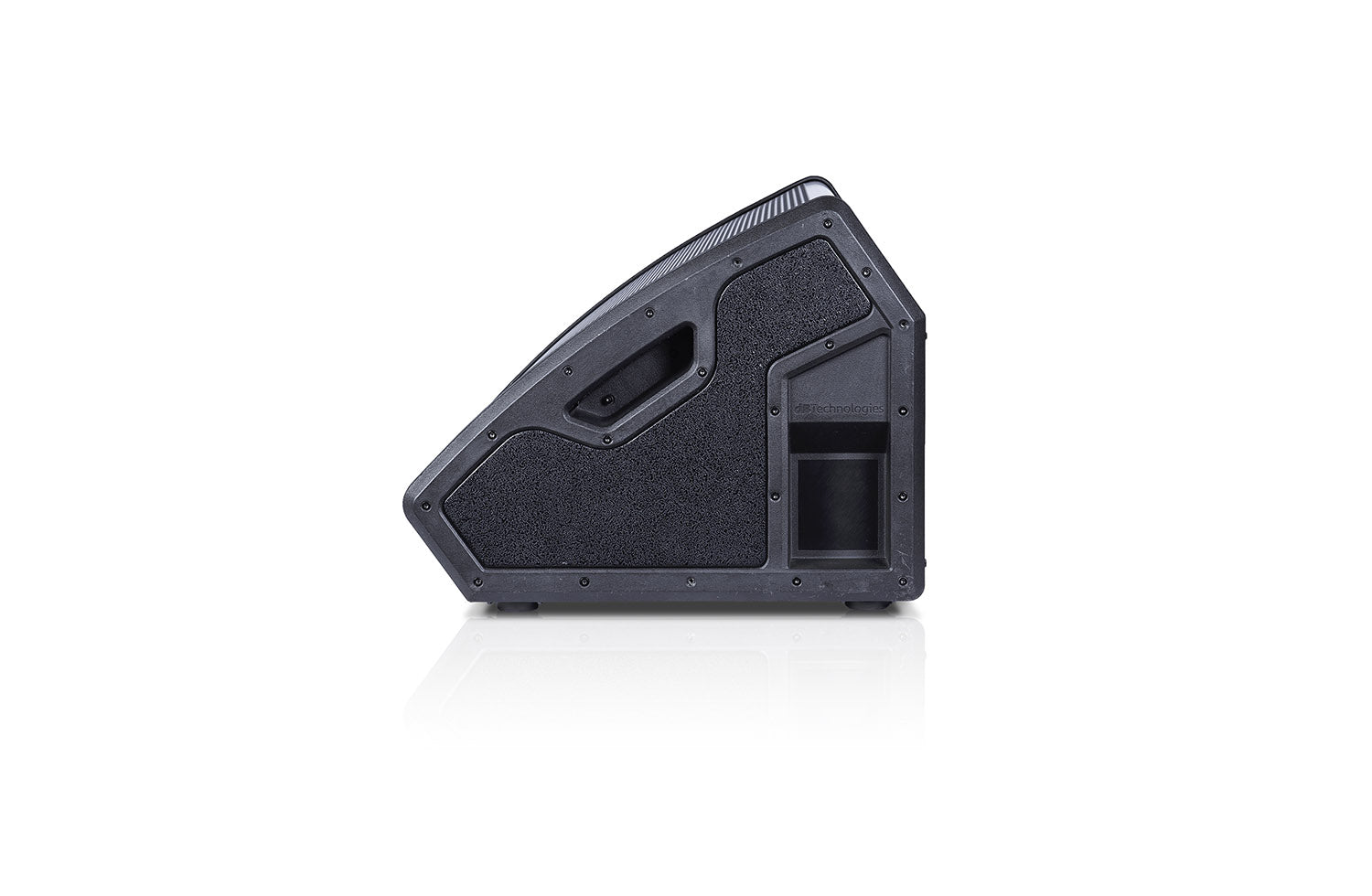

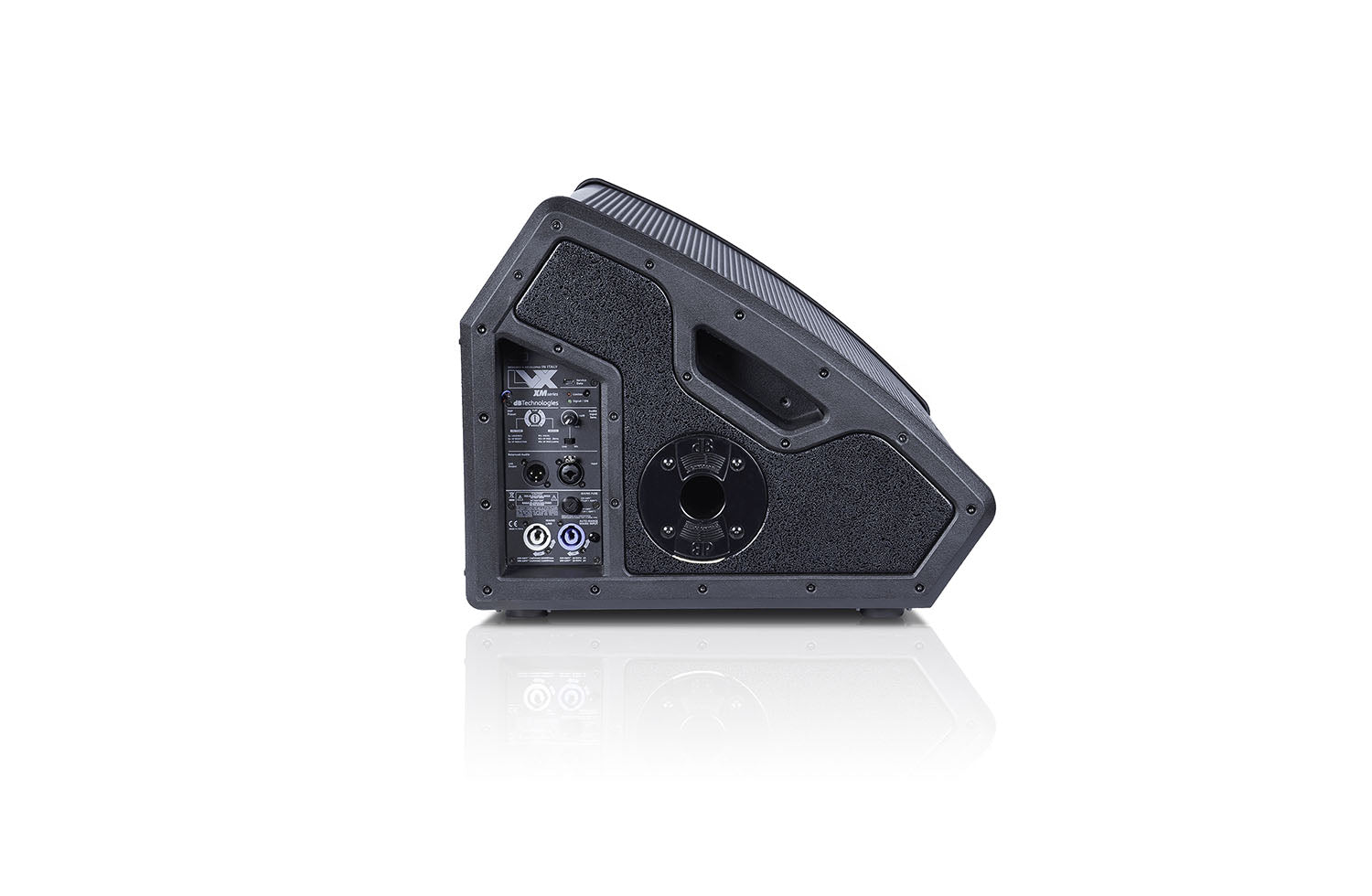

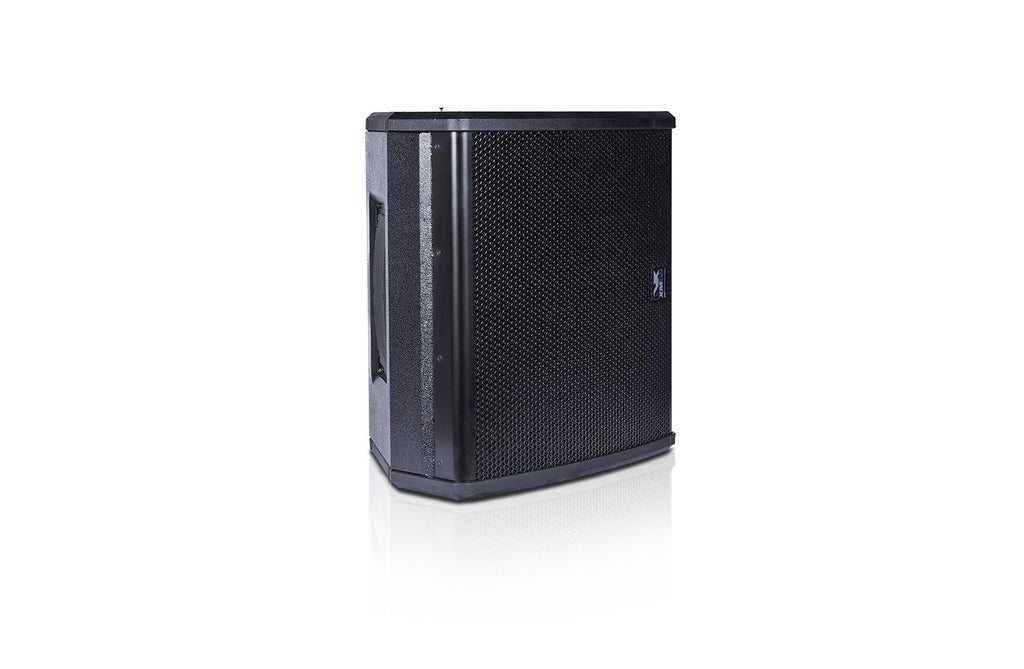

LVX XM monitors feature an advanced DSP offering eight variable presets in order to easily adapt to different stage requirements and to the varying demands of vocalists, instrumentalists as well as audio playback applications. The cabinets are constructed in sturdy plywood and comes with 2 integrated side handles allowing easy transport and stage set up operations. A pole mount cup on one side allow to put the system on a pole for vertical use (eg. as drummer monitorning or for audio playback applications).
Product Specification:
Technical Data
Speaker Type2-Way Active Coaxial Stage Monitor
Acoustical data
Frequency Response [- 6 dB] 69 - 17,800 Hz
Max SPL 127 dB
HF 1 " Exit 1,4" v.c.
Directivity (HxV) 90° x 70°
LF 12", 2,5 v.c.
Amplifier
Amp Technology Digipro G3
Amp Class Class D
Power RMS 600 W
Peak Power 1200 W
Power Supply SMPS with PSU Auto-range
Power Connection PowerCon In/Link
Cooling Convection
Processor
Controller DSP 56 bit
Converter AD/DA 24 bit/48 kHz
System Presets 8 presets
Limiter Peak, RMS, Thermal
Processing (filters) Linear Phase FIR Filters
Controls Rotary 8 positions,
MIC/LINE switch
Input
Mains Connections PowerCON in/link
Signal Input 1xCombo IN (XLR/Jack)
Signal Output 1xXLR link OUT
USB connector Mini USB B-Type (service only)
Mechanics
Housing Plywood with black PVC Cover
Grille Metal, black painted
Handles 2, chassis integrated
Pole Mount D36 mm
