Description

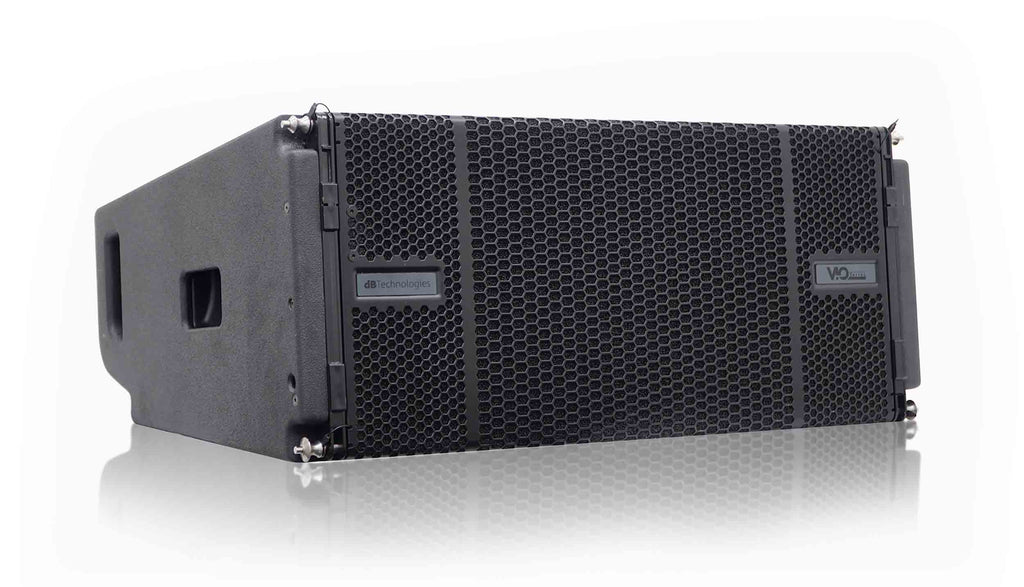

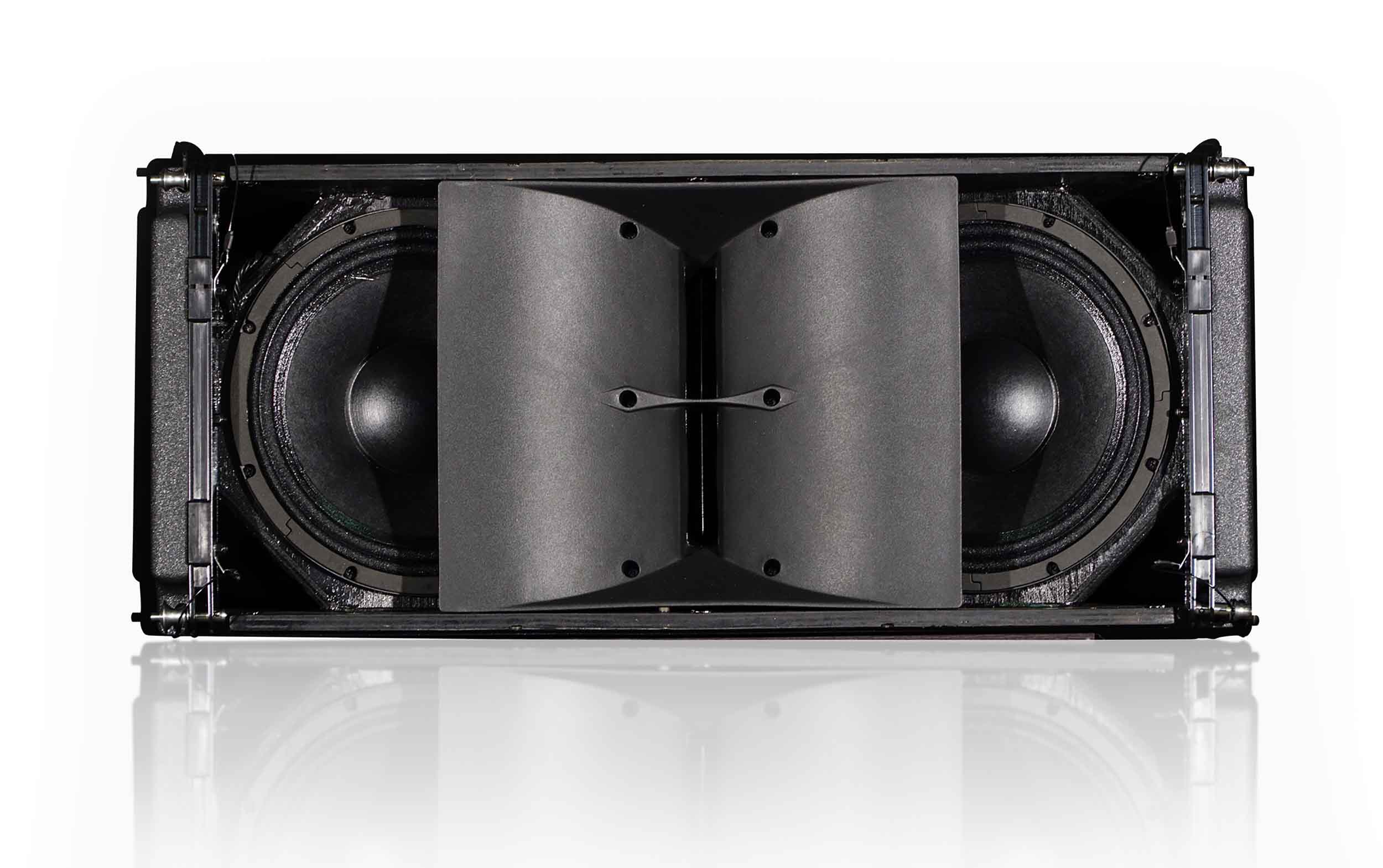

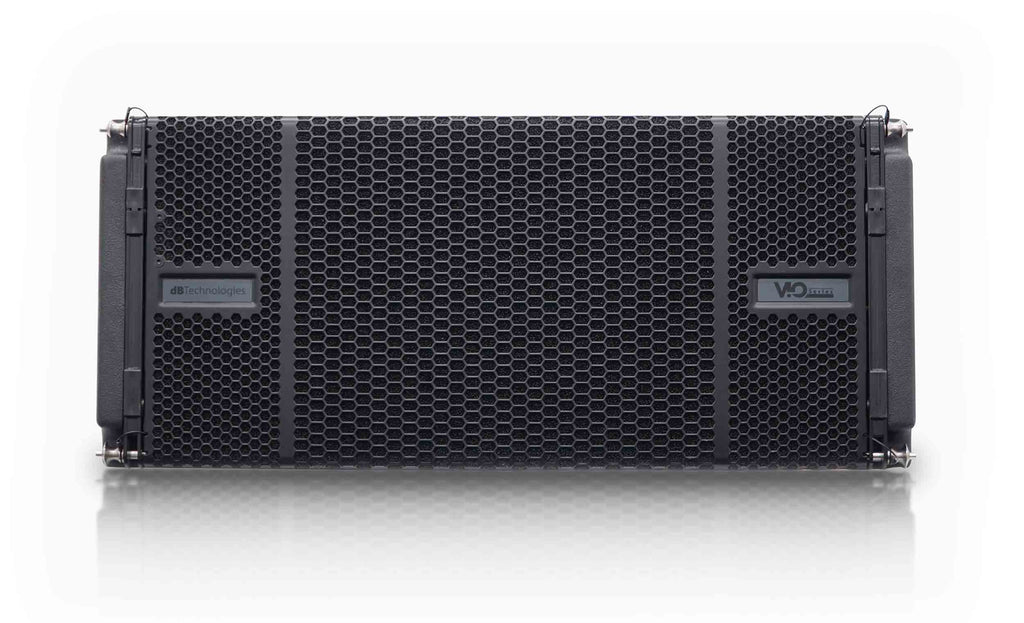

The dB Technologies VIO L1610 is a three-way active line array system, entirely equipped with neodymium components:2x10" woofers (2.5" v.c.), providing an extended LF reproduction, interact with a coaxial neodymium component (4" MF plus a 2,5" v.c. HF compression driver) mounted on an exclusively designed waveguide.This unique coaxial symmetric acoustic design results into the most accurate transient reproduction, which enables VIO L1610 to deliver the most detailed and homogeneous audio performance.In facts, the coaxial component not only allows an extended low end reproduction of the MF, but guarantees a perfect off-axis coherence alongside with all the benefits coming from woofers' direct radiation, much to the advantage of the system's headroom.
Vio Series' Compatibility
Just like any member of VIO family, VIO L1610 has been designed keeping in mind complete compatibility among VIO systems.Although its remarkable audio performance makes VIO L1610 a powerful yet compact main PA system, both its acoustic and mechanical design makes it the perfect downfill for large VIO L212 systems.TF-VIO2 adaptor allows to easily rig VIO L1610 modules under a VIO L212 array.
Complete Networkability
VIO L1610's amp module Digipro G4 comes with a modular slot for expansion cards: as a default, VIO L1610 is equipped with dBTechnologies RD-Net card for real time remote control via Aurora Net software. Nevertheless, the system is ready for upgrades with Audinate Dante™ protocol for digital audio stream as well as well as real time control purposes. As a support for networking purposes, each VIO L1610 cabinet is equipped with Near Field Communication (NFC) system and a frontal LED used to recognise each single module within the remote control software Aurora Net.
Ultimate Amp Technology
Each VIO L1610 acoustic engine is driven by a Digipro G4 Class-D amplifier module featuring 1600 W RMS along with the utmost acquisitions in dBT's amp technology.The system takes advantage of a one-of-a-kind low latency processing resulting from its powerful DSP featuring linear phase FIR filters.On-board controls (2 rotary encoders) allows DSP presets for Speaker Coupling and High Frequencies compensation.The amp also allows users to run a test on electronics and transducers before, during and after use: the most useful system test ensuring real time control over the entire PA's health and tour-grade reliability.
Vio's Smart Rigging System

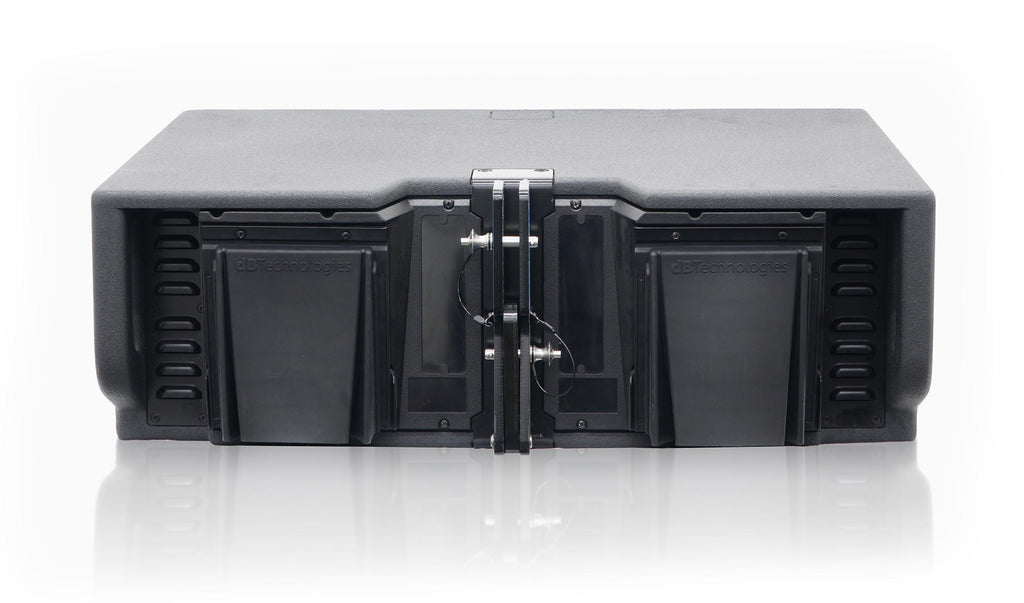

VIO L1610 comes with VIO series' peculiar 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules.The back central rigging strand is equipped with a ring type link allowing user to set the relative splay angles ranging from 1 to 10 thanks to 1 single pin."¯ Splay angles can be set directly in the dedicated transport cart DT-VIOL210L which houses 4 modules. While lifting up the array, the rigging strand will automatically block the preset angles with no heavy lifting required. The flying frame DRK-210 allows smooth flying operations and system lifting.
Product Specification:
Technical Data
Speaker Type: Symmetric 3-way Active Line Array Module
Acoustical Data
Usable Bandwidth [-10 dB]: 56Hz - 20KHz
Frequency Response [-6 dB]: 60Hz - 17KHZ
Max SPL: 141 dB
MF/HF (coaxial): 1x1.4" exit
Voice Coil MF: 4"
Voice Coil HF: 2.5
Type MF/HF: Neodymium
LF: 2x10"
Voice Coil LF: 2.5"
Type LF: Neodymium
Horizontal Directivity: 100°
Vertical Directivity: Depends on array size and configuration
Amplifier
Amp Technology: Digipro G4 full range
Amp Class: Class-D
Power RMS: 1600 W
Peak Power: 3200 W
Cooling: Passive convection + internal fan
Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
Preamp technology: Floating Audio input with digital optical isolation
Processor
DSP: 32 bit 96 KHz audio processor
AD/DA converter: 24bit / 96KHz
Limiter: Dual Active Peak, RMS, Thermal
Advanced DSP Functions: Linear Phase FIR filters, manual test, real time impedance test
Crossover Frequency: 500Hz - 3300 Hz

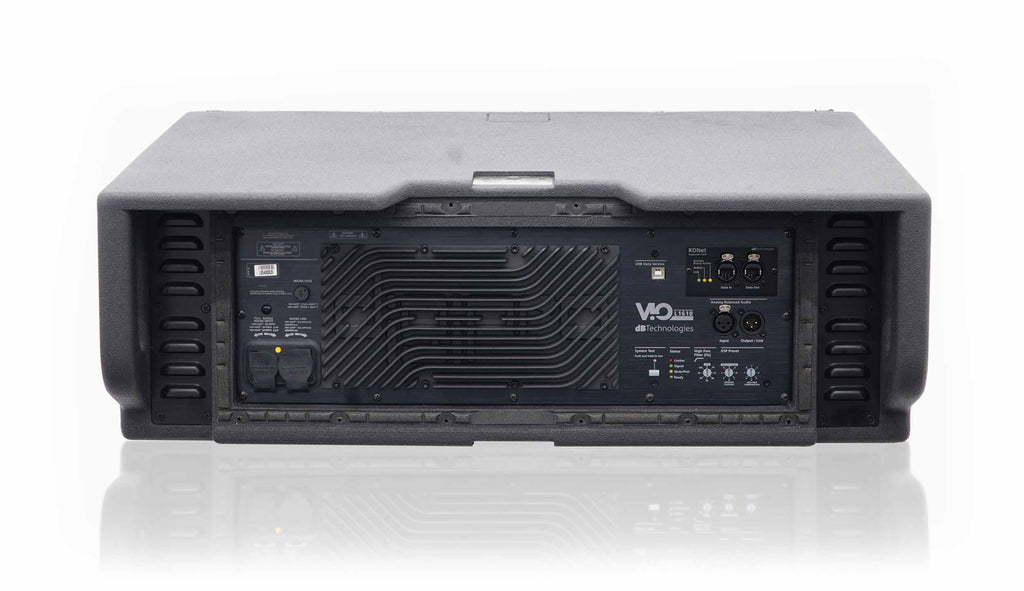

Input
Signal Input: 1xXLR fem, Bal.
Signal Output: 1xXLR male, Bal.
Network: RDNet Card (1x RJ45 IN 1x RJ45 Link)Dante Card [Optional]
Power Socket: 1x PowerCon TRUE1 IN,1x PowerCon TRUE1 Out
Controls: 1x Speaker Coupling (7 presets)1x High pass filter Rotary Encoder (8 presets)1x HF Compensation (8 presets) 1x System Test Button
Mechanics
Housing: Multiplex Plywood, Polyurea painted

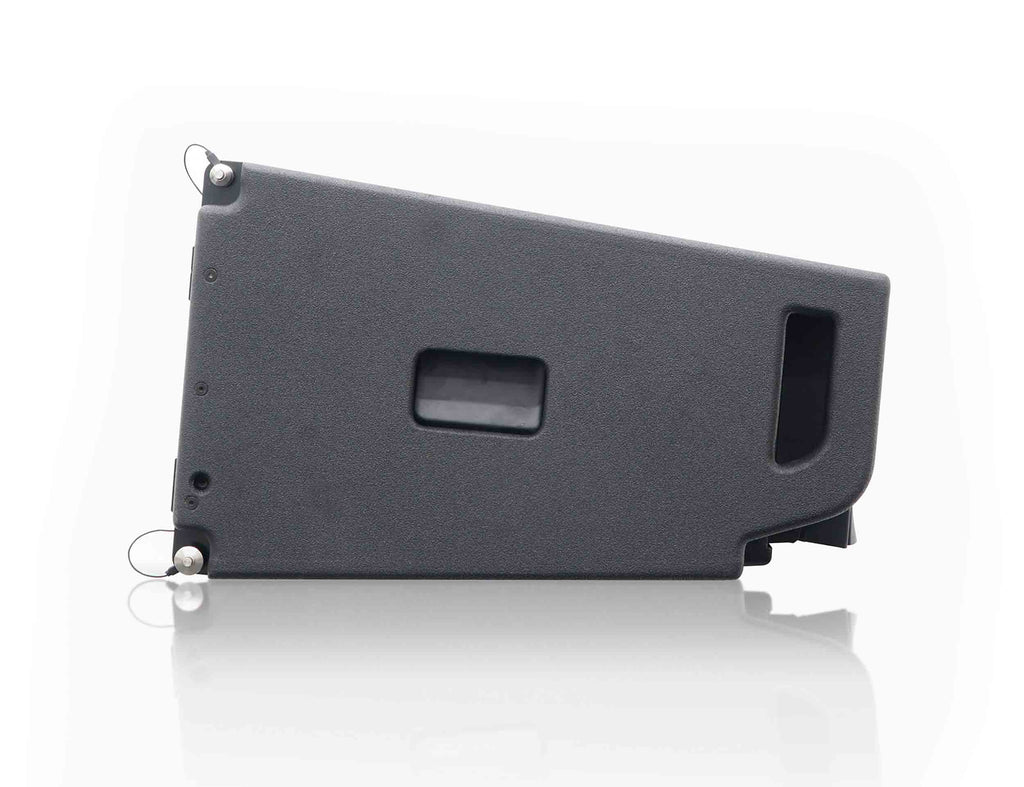

Handles: 1x side, 2 on back
Rain Cover: Magnetic rubber (included)
Rigging Points: Integrated 3 point rigging hardware
Width: 720 mm (28.35 in)
Height: 320 mm (12.6 in)
Depth: 520 mm (20.47 in)
Weight: 31.3 Kg (69.00 lbs)
