Description

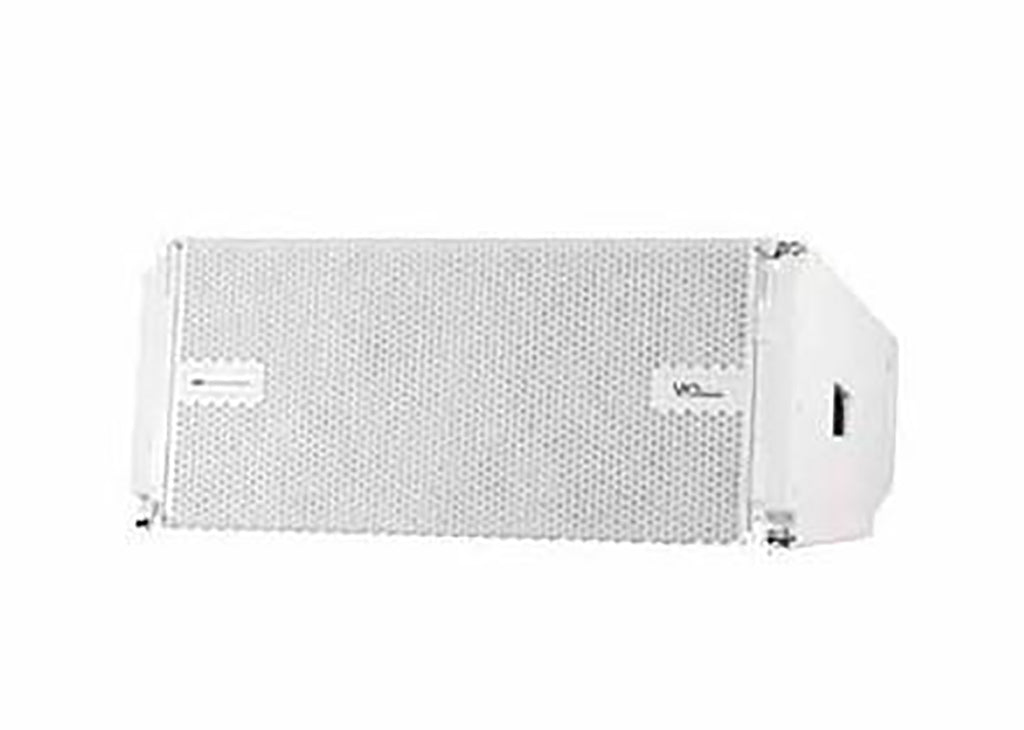

The dB Technologies VIO L208 WHITE is a 2-way active line array system equipped with 2x 8” neodymium woofers and 1x 1.4” neodymium compression driver (3” voice coil). The transducers are positioned behind an all-in-one panel which acts as a phase-plug and a HF horn. The waveguide behind this panel contributes to the creation of a cylindrical wavefront, much to the advantage of hi-freq throw distance. Each module of VIO L208 is driven by a Class-D Digipro G3 900W amp module with auto-range PSU. A perfectly coherent emission is granted thanks to advanced sound processing with FIR filters. The pre-amp module is also equipped with a digital optical isolation, guaranteeing interference-free input signal. VIO L208 is a 2-way active line array system equipped with 2x 8” neodymium woofers and 1x 1.4” neodymium compression driver (3” voice coil).
Just like larger VIO L210 system, VIO 208’s wooden enclosure comes with a built-in rigging system made for simplicity and speed: a back central rigging strand allows to set the relative splay angles, directly in the dedicated transport cart DT-VIOL208, able to house 4 modules plus 1 flying bar. While lifting up the array, the rigging strand will automatically block the systems at the preset angles with no need of heavy lifting. The dedicated 3-point flying frame DRK 208 allows to set a precise inclination of the array and is ready to carry an optional inclinometer laser pointer. When not in use, the flybar can be easily stored in the transport cart. VIO L208 is designed for optimized acoustic and mechanical compatibility with VIO L210. AF-VIO1 accessory allows you to rig the module under a VIO S118 flyable subwoofer or, alternatively, to use VIO 208 as downfill in larger VIO L210 systems. The same accessory also serves as safety interface in stacked configuration on VIO subs. A lighter accessory transition frame TF-VIO1 allows the installation of VIO L208 under flown VIO L210 only.
Product Specification:
Technical data
Speaker Type 2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB] 75 Hz - 20 KHz
Frequency Response [+/- 3dB] 85 Hz -18,1 KHz
Max SPL 133.5 dB
HF 1x1.4"
Voice Coil HF 3"
Type HF Neodymium
LF 2x8"
Voice Coil LF 2"
Type LF Neodymium
Horizontal Directivity 100°
Vertical Directivity depends on array size and configuration
Amplifier
Amp Technology Digipro G3 [bi-amped]
Amp Class Class-D
Power RMS 900 W
Peak Power 1800 W
Cooling Convection
Power Supply 900 W SMPS with Auto-range PSU
Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 KHz
Limiter Dual Active Peak, RMS, Thermal
Processing (filters) FIR Linear Phase Filters
Crossover Frequency LF-HF 1000 Hz
Input
Signal Input 1xXLR fem, Bal.
Signal Output a1xXLR male, Bal.
Network RD Net remote control RJ45 connector IN/OUT
Mains Connections 1x PowerCON TRUE1 In
1x Power CON TRUE 1 Out
Controls 1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1X Input Attenuation Rotary Switch
Mechanics
Housing Multiplex Plywood
Polyurea painted
Handles 1 x Side, 2 on back
Rain Cover Included
Rigging Points Integrated 3-point flying hardware
Width 600 mm (25.98 in)
Height 260 mm (10.23 in)
Depth 390 mm (15.35 in)
Weight 18.1 Kg (39.9 lbs)
