Description

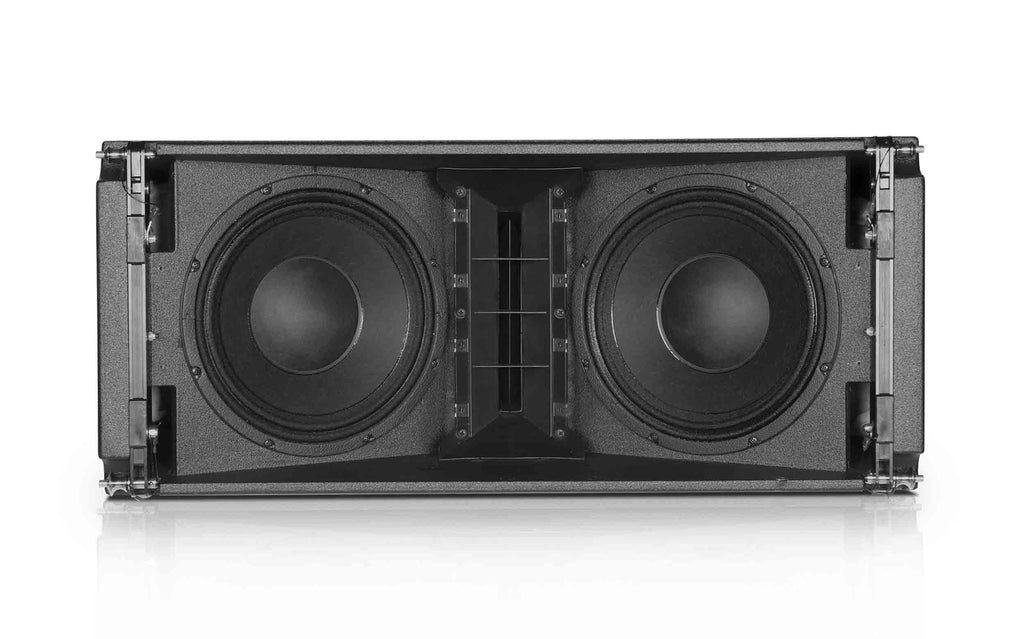

The dB Technologies VIO L210 premium low-freq transducers, positioned in a V form and sealed in a bass reflex wooden enclosure, have been custom designed to improve efficiency and to last in high stress conditions, providing an accurate transient response and an extended low-end reproduction. One single 3” voice coil compression driver (1.4” exit throat) accurately delivers high frequencies. A brand new waveguide contributes to create a cylindrical wavefront, allowing a very precise high-frequency directivity control, much to the advantage of the system’s throw distance. The acoustic enclosure is completed by two massive aluminium phase plugs located in front of both woofers which acts as a prosecution of the constant directivity high-frequency waveguide. Each phase plug features 26 diamond-shaped holes aimed at reducing any interference within the crossover zone while improving frequency and transient response.
ADVANCED DSP PAIRED WITH NOTABLE EFFICIENCY
The module features a highly efficient Class D Digipro G3 900 W RMS amplifier which is perfectly capable of achieving 135 dB SPL. A perfectly coherent coverage is granted even at a long distance thanks to advanced sound processing with FIR filters. The pre-amp module is also equipped with a digital optical isolation which avoids audio coupling, preventing any noise created by potential differences.
SMART RIGGING HARDWARE & ACCESSORIES TO SPEED UP SET UP OPERATIONS

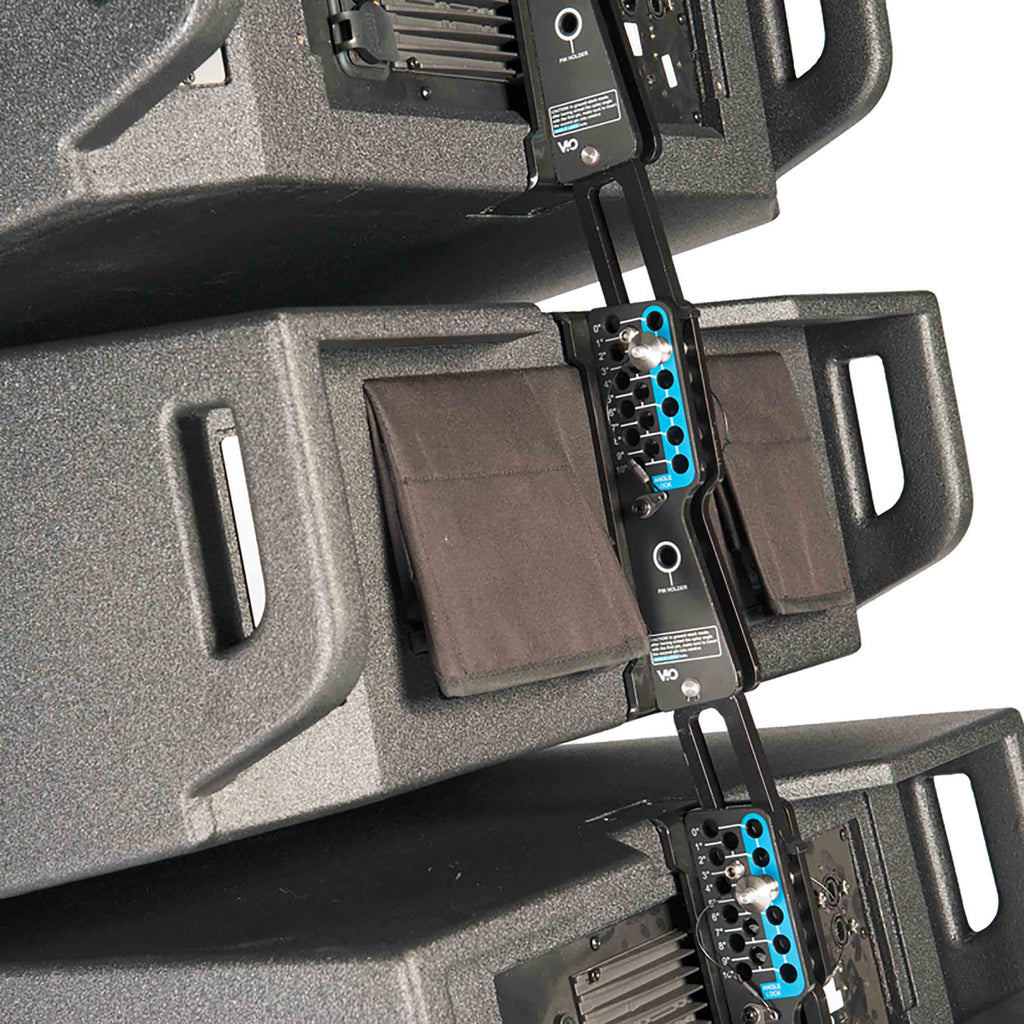

The VIO L210 comes with a built-in 3-point rigging system allowing a smooth and fast set up of the system. The 2 front links easily connect the modules from every angle. The back central rigging strand is equipped with a hook type link to set the relative splay angles determined via the prediction software dBTechnologies Composer. While lifting up the array, the rigging strand will automatically block the systems at the preset angles.
Product Specification:
Technical Data
Speaker Type 2-way Active Line Array Module
Acoustical data
Usable Bandwidth [- 6 dB] 67-20,000 Hz
Frequency Response [+/- 3dB] 78-18,100 Hz
Max SPL 135 dB
HF 1x1.4"
Voice Coil HF 3"
Type HF Neodymium, Titanium Diaphragm
LF 2x10"
Voice Coil LF 2.5"
Type LF Neodymium Aluminium Phase Plug
Horizontal Directivity 100°
Vertical Directivity depends on array size and configuration
Amplifier
Amp Technology Digipro G3 [bi-amped]
Amp Class Class-D
Power RMS 900 W
Peak Power 1800 W
Cooling Convection
Power Supply 900 W SMPS with Auto-range PSU
Processor
Controller DSP 56 bit
AD/DA Converter 24 bit/48 KHz
Limiter Dual Active Multiband Peak, RMS, Thermal
Processing (filters) FIR Linear Phase
Crossover Frequency LF-HF 950 Hz
Slope LF-HF 24 dB/Octave

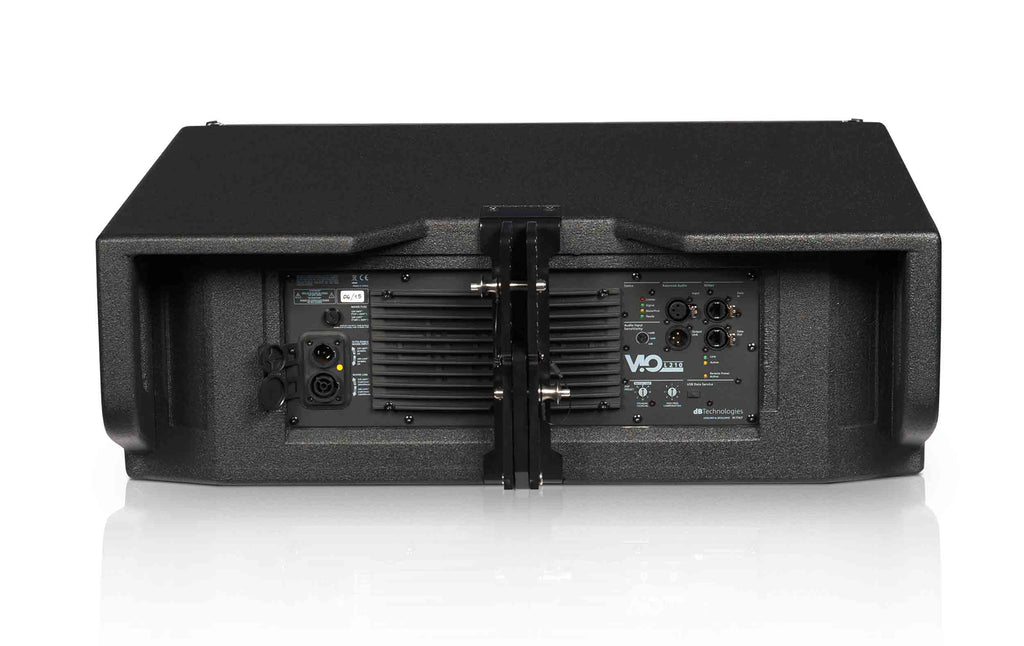

Input
Signal Input 1xXLR fem, Bal.
Signal Output 1xXLR male, Bal.
Network RD Net remote control RJ45 connector IN/OUT
Power Socket 1xPowerCon TRUE1 IN
1xPowerCon TRUE 1 Out
Controls 1xSpeakers Coupling (7 presets)
1x HF Compensation (8 presets)
1XInput Attenuation Rotary Switch
Mechanics
Housing Multiplex Plywood
Polyurea painted

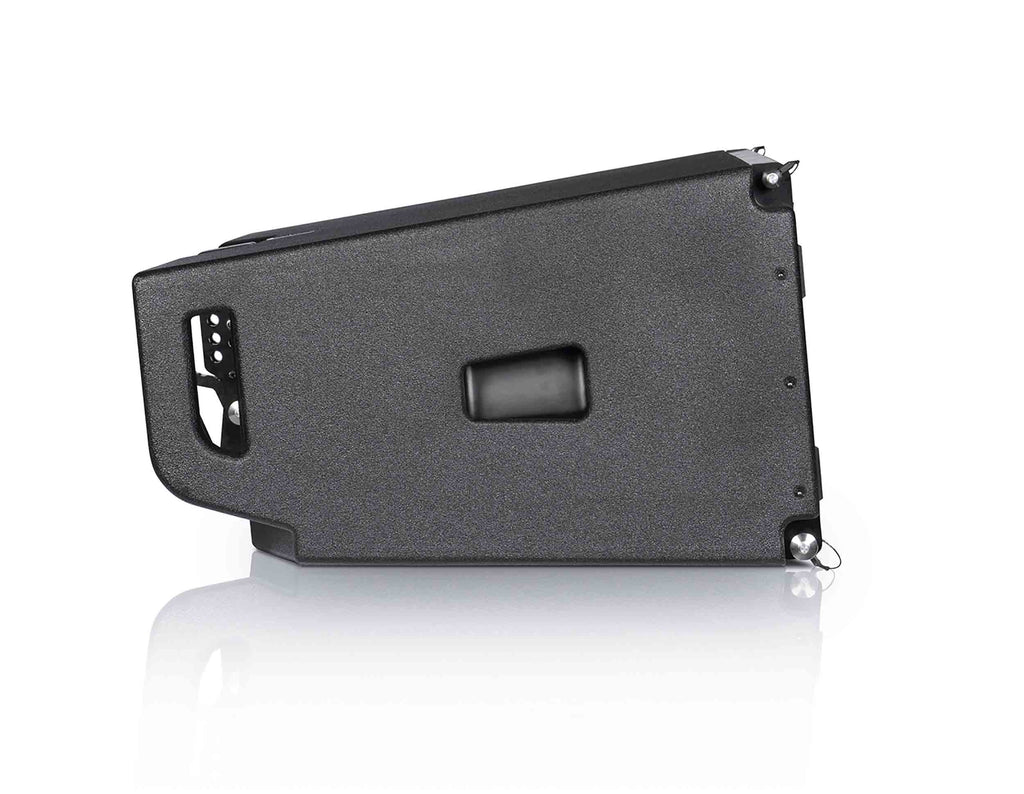

Housing DesignTrapezoidal 10°
Handles 2x side
Rain Cover Included
Rigging Points Integrated rigging hardware
Width 720 mm (28.35 in)
Height 320 mm (12.6 in)
Depth 520 mm (20.47 in)
Weight 28.6 Kg (63.00 lbs)
