Description

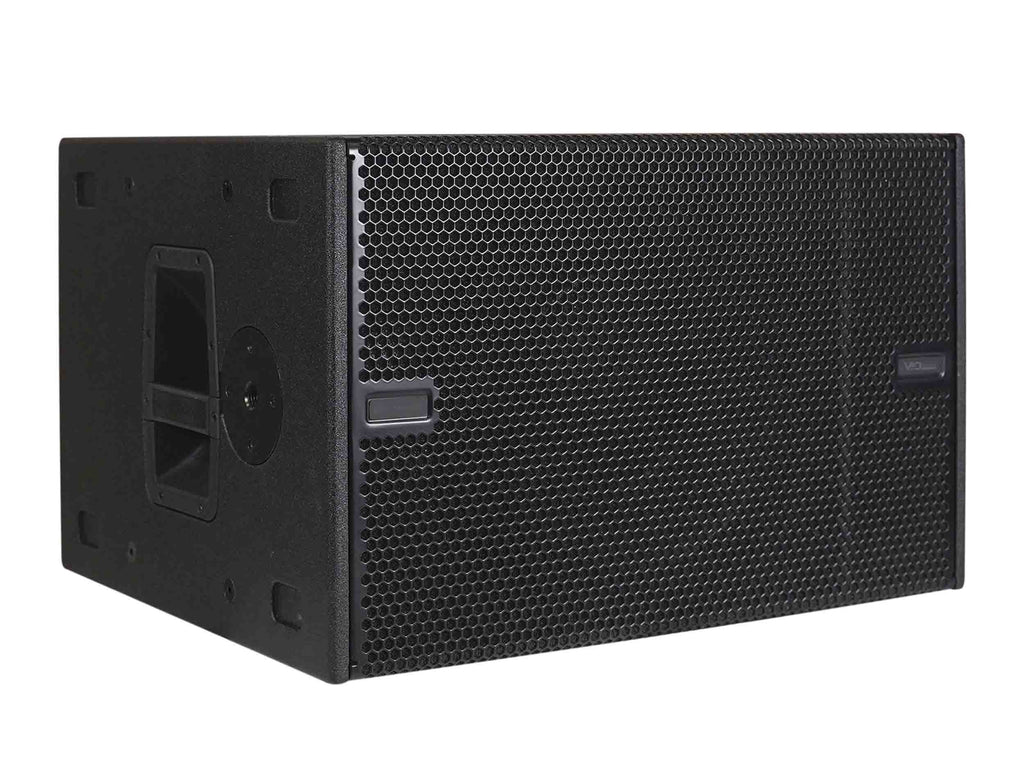

The dB Technologies VIO S115 is anactive active bass reflex flyable subwoofer equipped with a single 15" woofer. VIO S115 is a self-powered, flyable, single 15" subwoofer, with a standard frontal bass reflex acoustic configuration. It is definitely inspired by dBTechnologies popular VIO S118R subwoofer, with the advantages of being flyable. This is the most compact VIO sub, just perfect as a complement for all VIO X full range series. The system is loaded with a 15" neodymium woofer, driven by a 900 W RMS Digipro G3 amp, which allows for complete networkability with all other speakers in VIO family. The cabinet is provided with M10 flying points and M20 pole mounts on both top and side of the box, so the sub allows for horizontal or vertical use, when flown or ground stacked. Two different flybars and sub brackets open for tons of possible configurations with VIO X206 boxes when in line array mode, a single flybar allowing for a simple set up, and a double flybar, which allows to fly multiple sub arrays and top arrays together, and many more configurations that will suit any installation requirements.
Product Specification:
Technical Data
Speaker Type Active Bassreflex Subwoofer
Acoustical data
Frequency Response [- 6 dB] 40 Hz - (user frequency LPF)
Frequency Response [- 10 dB] 36 Hz - (user frequency LPF)
Max SPL 134 dB
LF 1x 15"
Voice Coil LF 4"
Directivity Omnidirectional
Amplifier
Amp Technology Digipro G3
Amp Class Class D
RMS Power 900 W
Peak Power 1800 W
Cooling Convection
Processor
Controller DSP 32 bit
AD/DA Converter 24 bit/96 KHz
Limiter RMS, Peak, Thermal

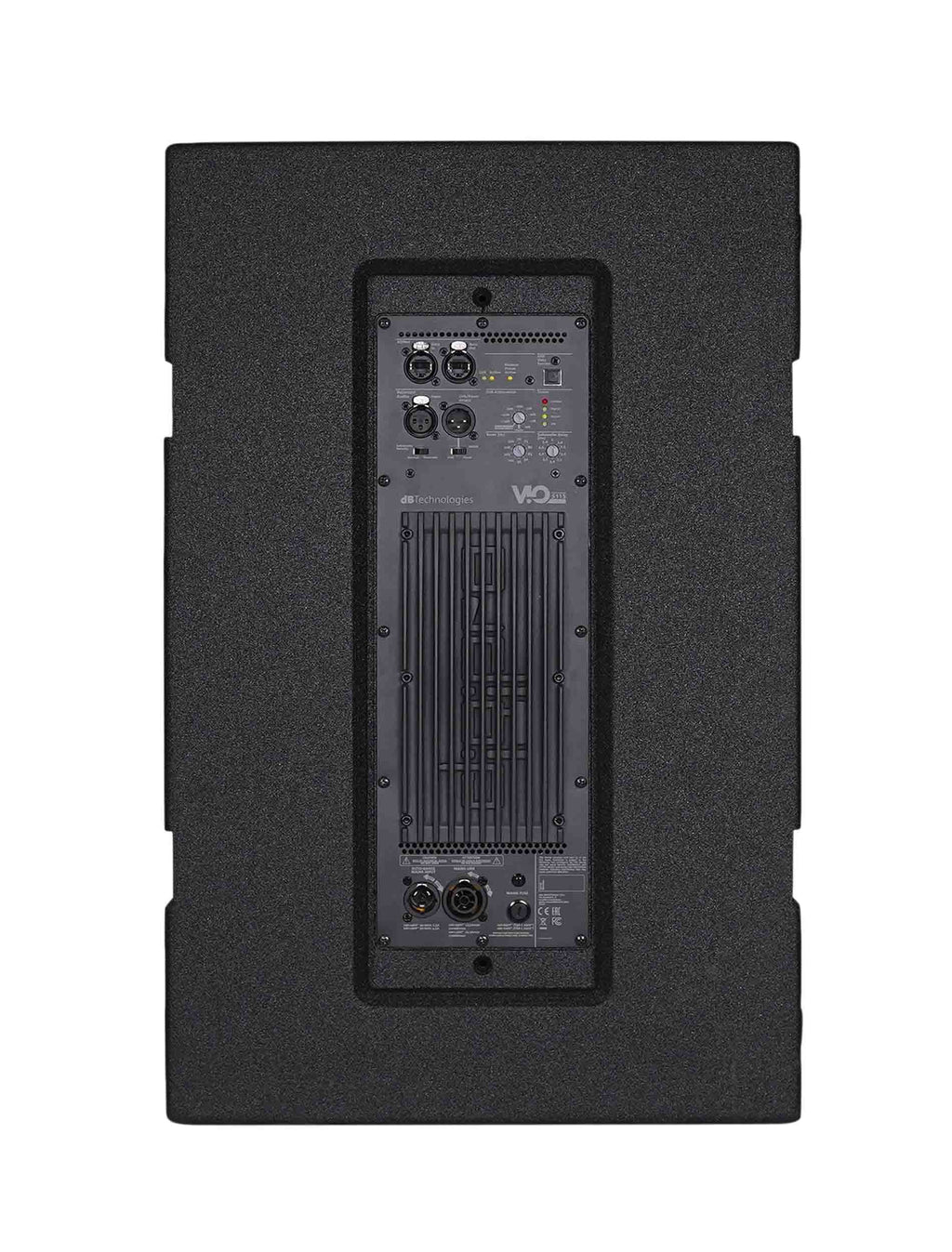

Input
Signal Input 1xXLR balanced
1xRJ45 LINK (RDNet)
Signal Output 1x XLR balanced
1xRJ45 LINK (RDNet)
Power Socket 1xPowerCON TRUE1 IN
1xPowerCON TRUE1 OUT
Controls 1x Input Sensitivity Rotary Encoder
1x X-Over Selection Encoder
1x Delay Selection Encoder
1x Polarity Selection Switch
1x X-Out Mode Selection Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
3x RD Net Status LED
Mechanics
Housing Multiplex plywood
Polyurea painted
Pole Mount 1x M20 on Top, 1x M20 on Right Side
Handles 1x Side
Aluminium
Rigging Points 16x M10
Width 650 mm (25.6 in)
Height 420 mm (16.5 in)
Depth 550 mm (21.7 in)
Weight 32.8 kg (72.3 lbs)
