Description

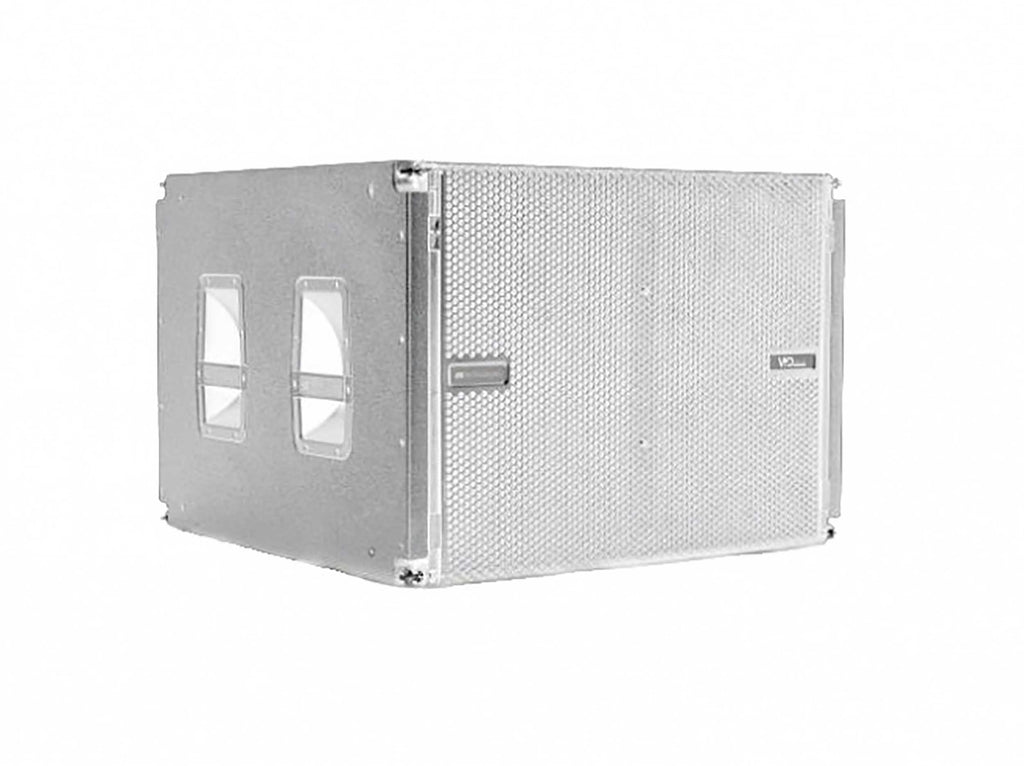

The dB Technologies developed a horn loaded design, while maintaining the size of a front-loaded sub cabinet, resulting in a double advantage: smaller dimension (and weight – only 45.1 kg) and a remarkable lower frequencies response even at a long distance. This makes this sub the perfect low-end extension of VIO arrays whenever a particularly long-throw is needed. The system’s acoustical plus points are boosted by Digipro G4 1600W Class D amplifier, the last generation of the Digipro amp technology which strongly contributed to the success of many dBTechnologies’ professional powered series. Equipped with PFC (Power Factor Correction) and SMPS , VIO S118 is highly resistant to line voltage fluctuations. Digipro G4 pre-amp features a slot module allowing system monitoring and control via RDNet. Furthermore, the system is ready for future upgrades with DanteTM digital audio transmission network: in facts, VIO S118 also features a NFC system and a LED on the front grille.
The amps also allows users to run auto-test on electronics and transducers before and after use. The amp module features an on board attenuation control and a delay module allowing to reach a max 9.9 ms delay with 0.1 ms steps. The on board cardioid preset process the sound of the backward sub in cardioid configurations (both flown or groundstacked). S118’s cabinet is made of sturdy Multiplex plywood covered with a black polyuria finish and equipped with integrated hardware allowing 1 or more subs to be flown in a sub array or on the top of a VIO L210 array. The system can be flown via DRK-210 flybar plus FSA-VIO L210 adapter for attaching VIO L210. GSA VIO L210 is necessary for stacked configurations with VIO L210. The dedicated DO-VIOS118 trolley can be hooked directly on flown subs easing dismantling and transport operations.
Product Specification:
Technical Data
Speaker Type Active Horn-Loaded Flyable Subwoofer
Acoustical data
Frequency Response [- 6 dB] 39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB] 36 Hz (HPF)
Max SPL 139 dB
LF 1x18", Neodymium
Voice Coil LF 4 "
Directivity Omnidirectional
Amplifier
Amp Technology Digipro G4
Amp Class Class D
RMS Power 1600 W
Peak Power 3200 W
Cooling Convection
Power Supply 1600 W with PFC
Processor
Controller DSP 32
AD/DA Converter 24 bit 96 kHz
Limiter RMS, Peak, Thermal
Delay Option 0-9.9 ms internal
Steps of 0.1 ms
Crossover Frequency LF-HF 60-110Hz + Full range
LF-Xover out slope24 dB/Octave
Input
Signal Input 1xXLR balanced
Signal Output 1x XLR balanced (link or X-over)
1xRJ45 LINK (RDNet)
Expansion Card 1xRJ45 IN (RDNet)
1xRJ45 LINK (RDNet)
Power Socket 1xPowerCON TRUE1 IN
1xPowerCON TRUE 1 OUT
Controls 1x Input Attenuation Rotary Switch
1x Rotary Encoder (Delay 9.9 ms)
1XPolarity Inversion Switch (0° or 180°)
1xCardioid Mode Switch
1x X-Over Freq Switch (60-110 Hz + Full Range
1x System Auto-test
Mechanics
Housing Multiplex plywood
Polyurea painted
Handles 2x Per Side
Aluminium
Pole Mount M20 Thread
Raincover Included
Rigging Points 2xPick Points on top to fix DRK-210 rigging frame (stack use)
4x Pick Points on top and 4x on bottom for rigging
Width 720 mm (28.34 in)
Height 520 mm (20.47 in)
Depth 695 mm (27.36 in)
Weight 45.1 kg (99.42 lbs)
