Description

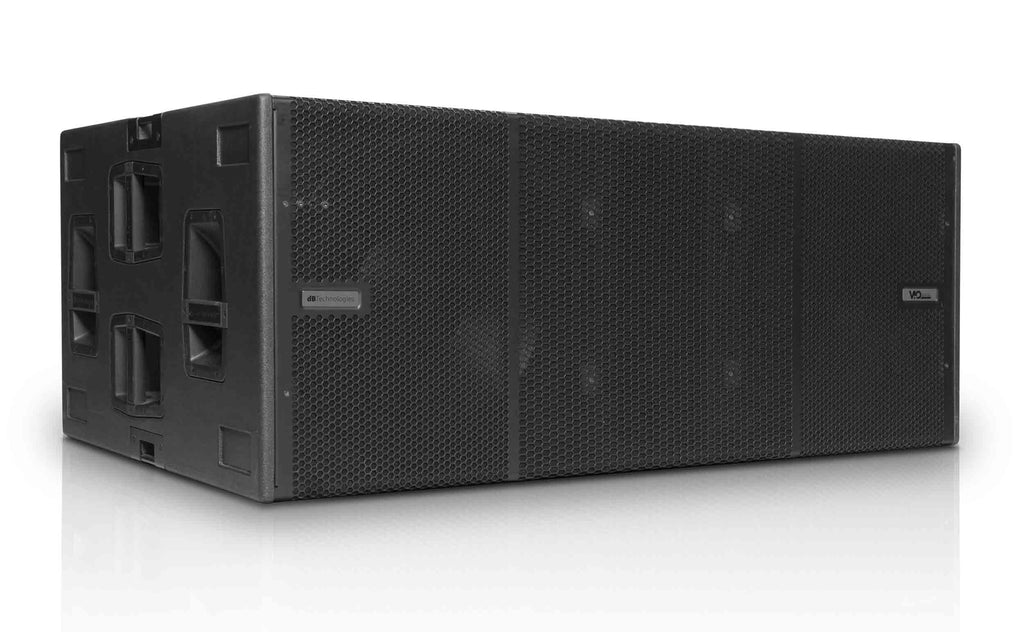

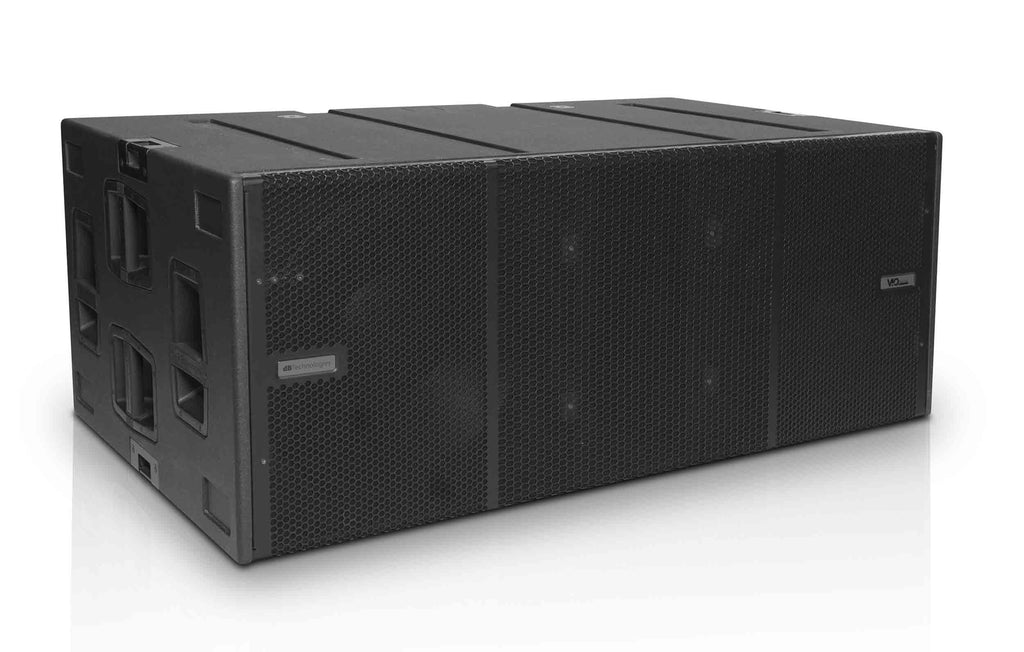

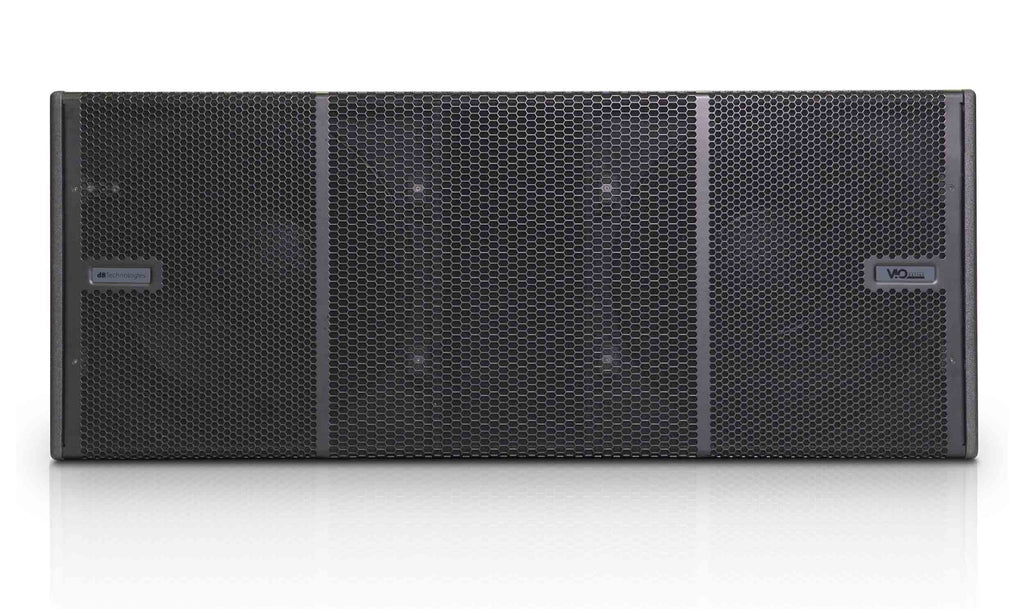

The dB Technologies VIO S218, 2x18" Powered Subwoofer in larger sound reinforcement applications, VIO S218 is a simple, effective dual sub configuration designed to enhance the reproduction of the lowest frequencies, boosted by an advanced DSP control and complete network capability. Featuring a dual 18" subwoofer pairing in a voluminous bass-reflex housing, VIO S218 encompasses a vigorous audio performance and a ultra low frequency punch, extending down to 28 Hz: the perfect bottom-end addition to large VIO L212 sound reinforcement systems.
As a default, VIO S218 is equipped with dBTechnologies RD-Net card, for real time remote control via Aurora Net software. Furthermore, the preamplifier is ready for future upgrades with Audinate DanteTM AoIP protocol. To help users in this configuration, S218 comes with built-in technologies: Near Field Communication (NFC) proximity sensors are used to determine the position of each box within an array. This technology, together with a hi-brightness LED bulb on the front of the enclosure, contributes to help the user to recognize, identify and match each box physical position on the remote control software Aurora Net. The amp also allows users to run auto-test on electronics and transducers before and after use and a real time impedance control. This unique system ensure tour-grade reliability and remote control over your entire PA’s health. A cardioid stack preset button automatically process the sound of the backward sub in gradient inverted stack configurations, in order to reach maximum cancellation of the rear side. The on-board delay module allows VIO S218 to reach a max 9.9ms delay with 0.1 ms steps.
Product Specification:
Speaker Type
Active bassreflex subwoofer
Acoustical Data
Frequency Response (-10dB): 27 Hz (HPF)
Frequency Response (-6dB): 28 Hz to cut frequency (Xover dependent)
Max. SPL: 143 dB

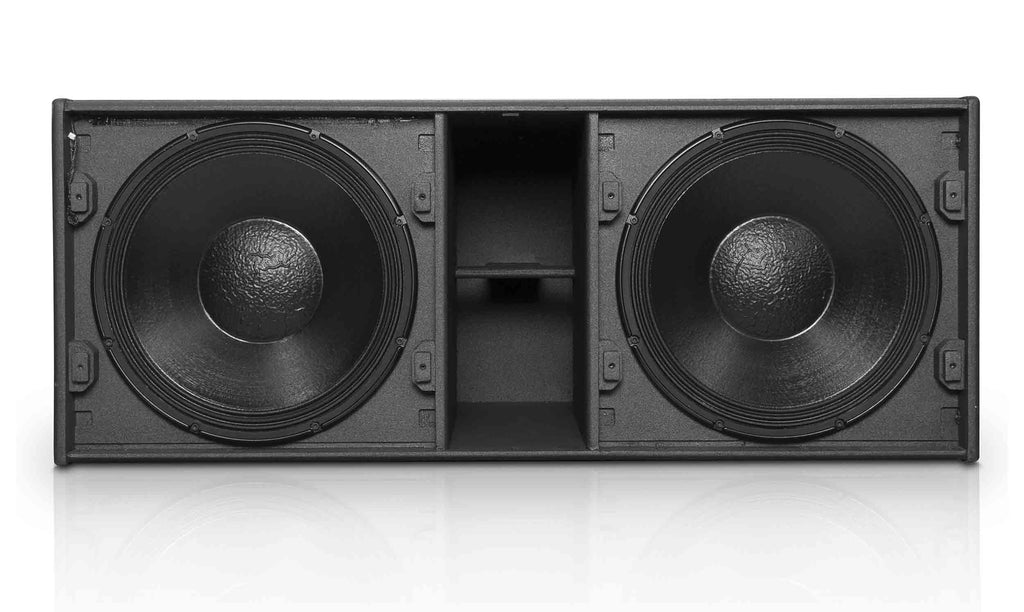

LF: 2x18" neodymium
Voice Coil LF: 4"
Directivity: omnidirectional

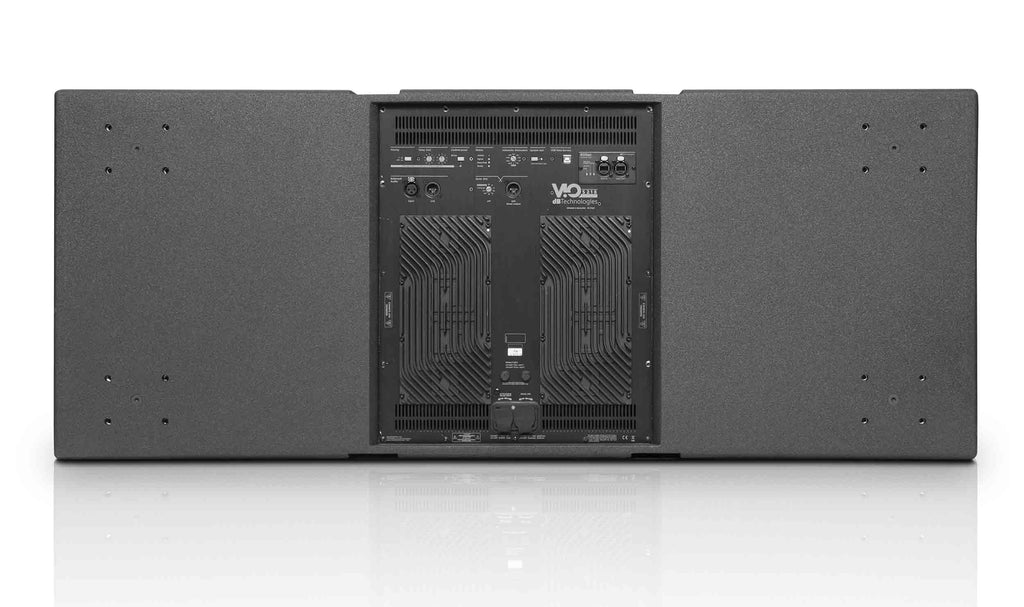

Amplifier
Amplifier: 3200 W RMS [2x 1600 W RMS Class-D Digipro G4]
Cooling: passive convection, internal fan
Power Supply: Full-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit / 96 kHz
Limiter: Peak, RMS, Thermal
Delay Option: 0 - 9.9 ms internal | steps of 0.1 ms [on-board]
Crossover Frequency LF - HF: Selectable 60-110 Hz + Full Range (8 steps)
LF-Xover Out Slope: 24dB/octave
Signal Input
1x XLR balanced
1x USB Data Service
Signal Output: 1x XLR balanced
Network
RDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x Input Attenuation Rotary Encoder
2x Delay Rotary Encoder (0-9.9 ms)
1x Polarity Inversion Switch (0° or 180°)
1x Cardioid mode Switch
1x X-Over Frequency Rotary Encoder (8 steps)
Special Features
NFCTM and Frontal LED Identification System
380V Resistant SMPS
IPOS Intelligent Power-On Sequence
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
Mechanics
Housing: multiplex plywood - polyurea painting

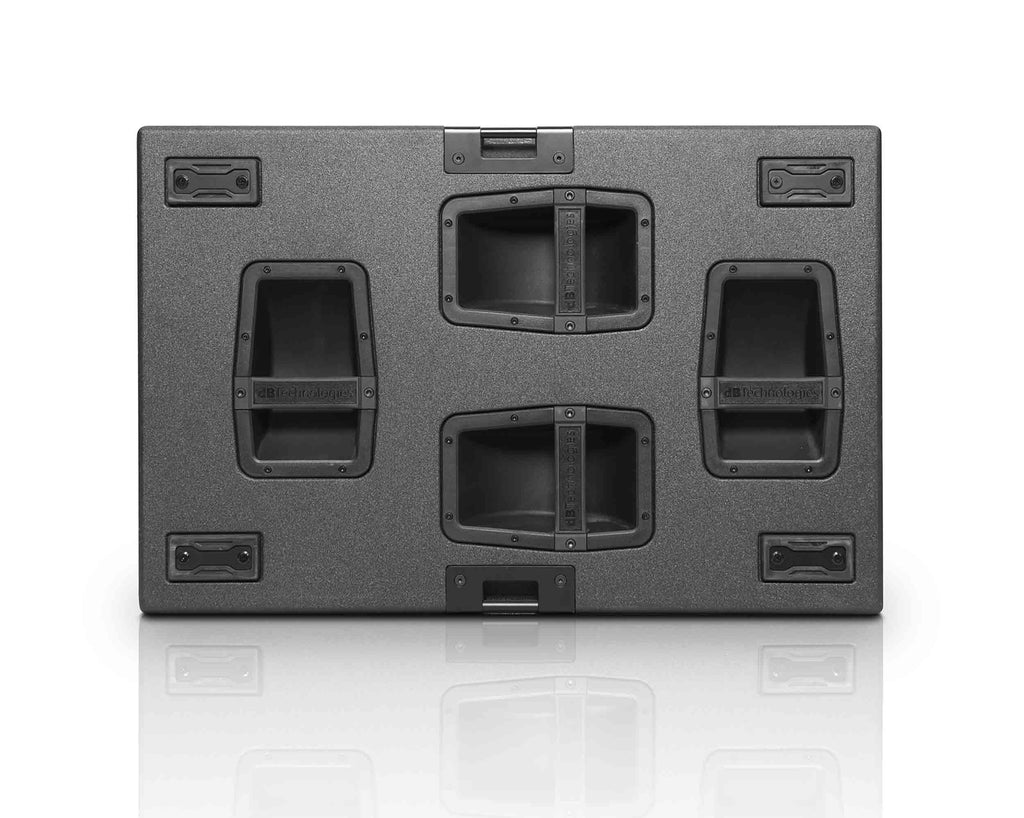

Handles: 4x side. Aluminum
Raincover: included
Rigging Points: 2x pick points on top for DRK-210 rigging frame
Dimensions (WxHxD): 51.18" x 20.47" x 31.5"
Weight: 188.72 pounds
