Description

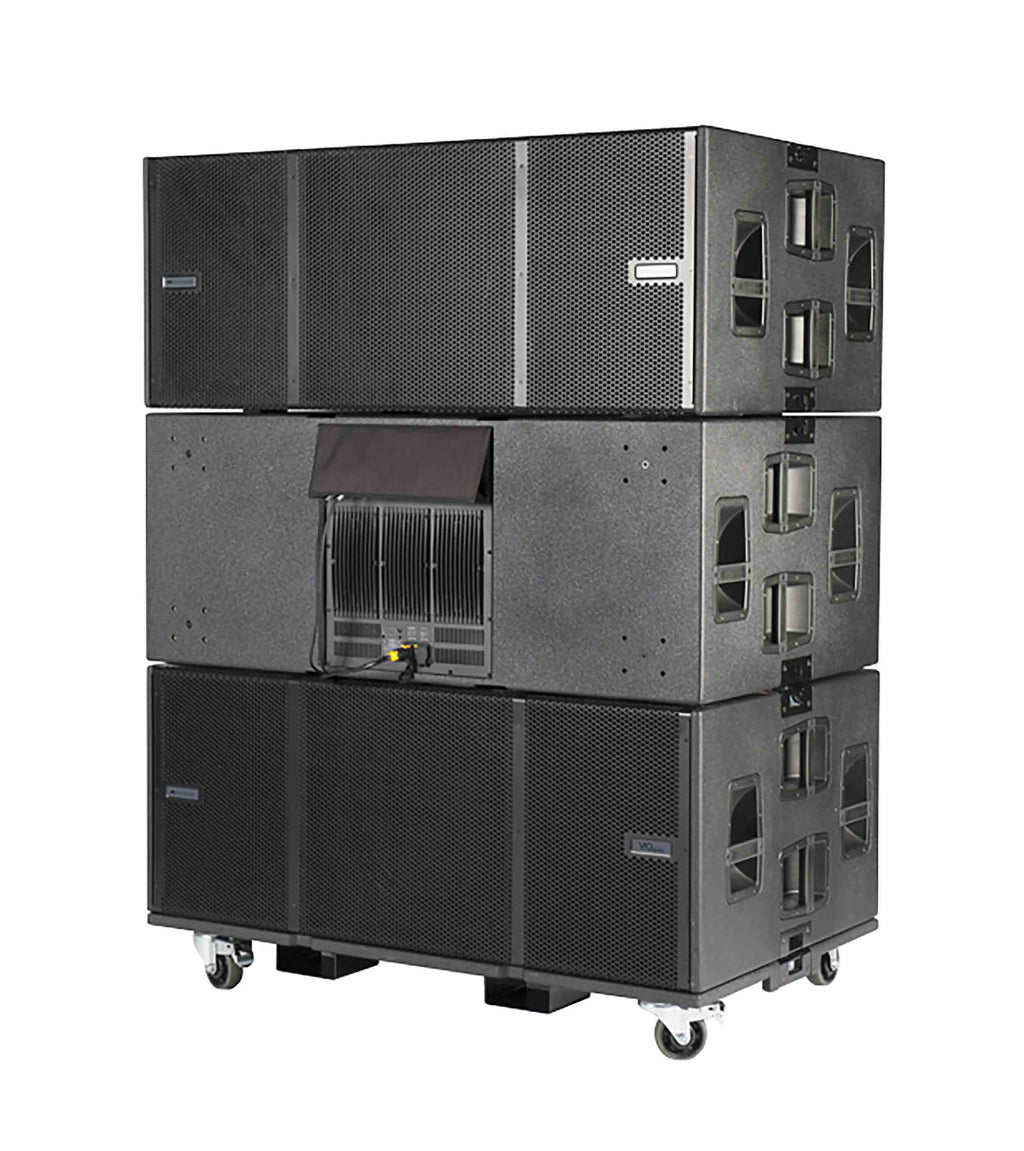

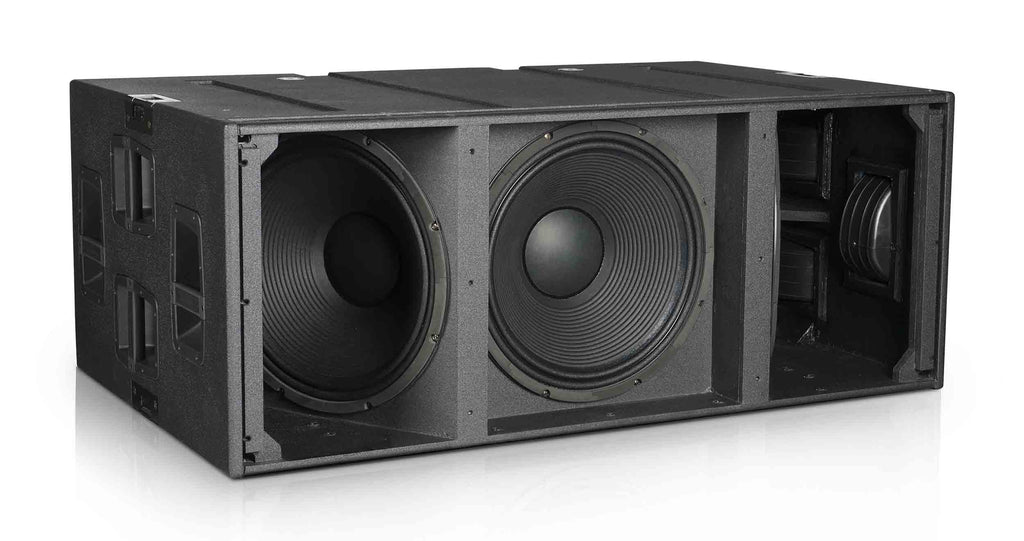

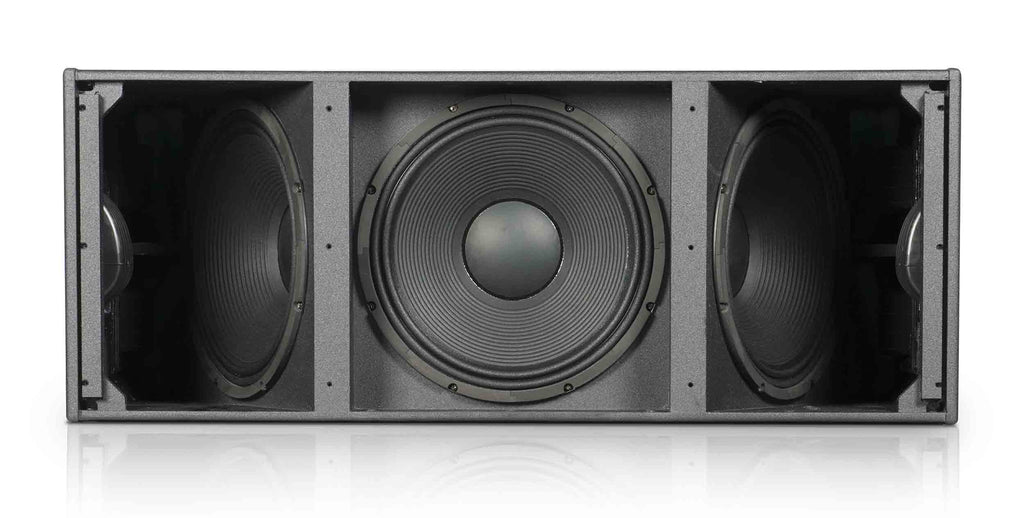

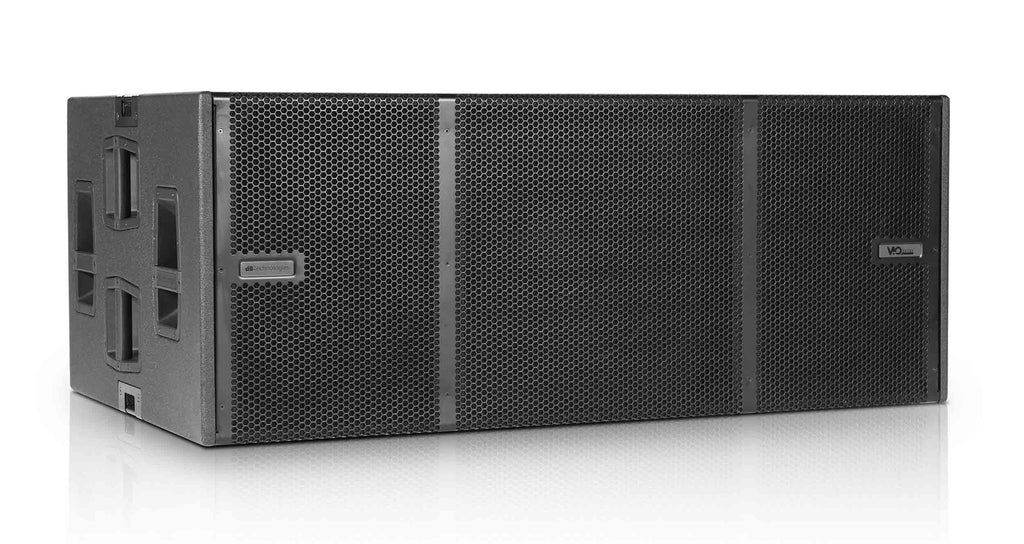

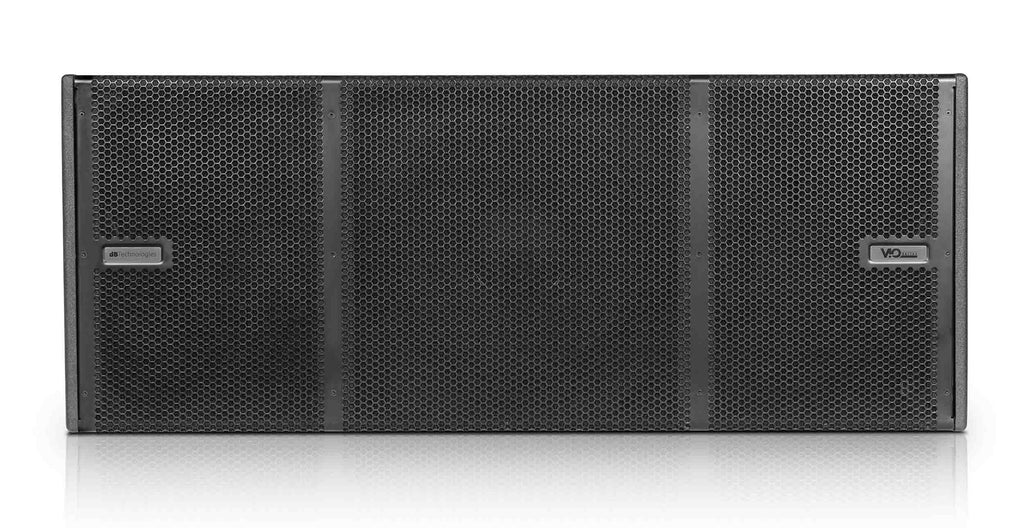

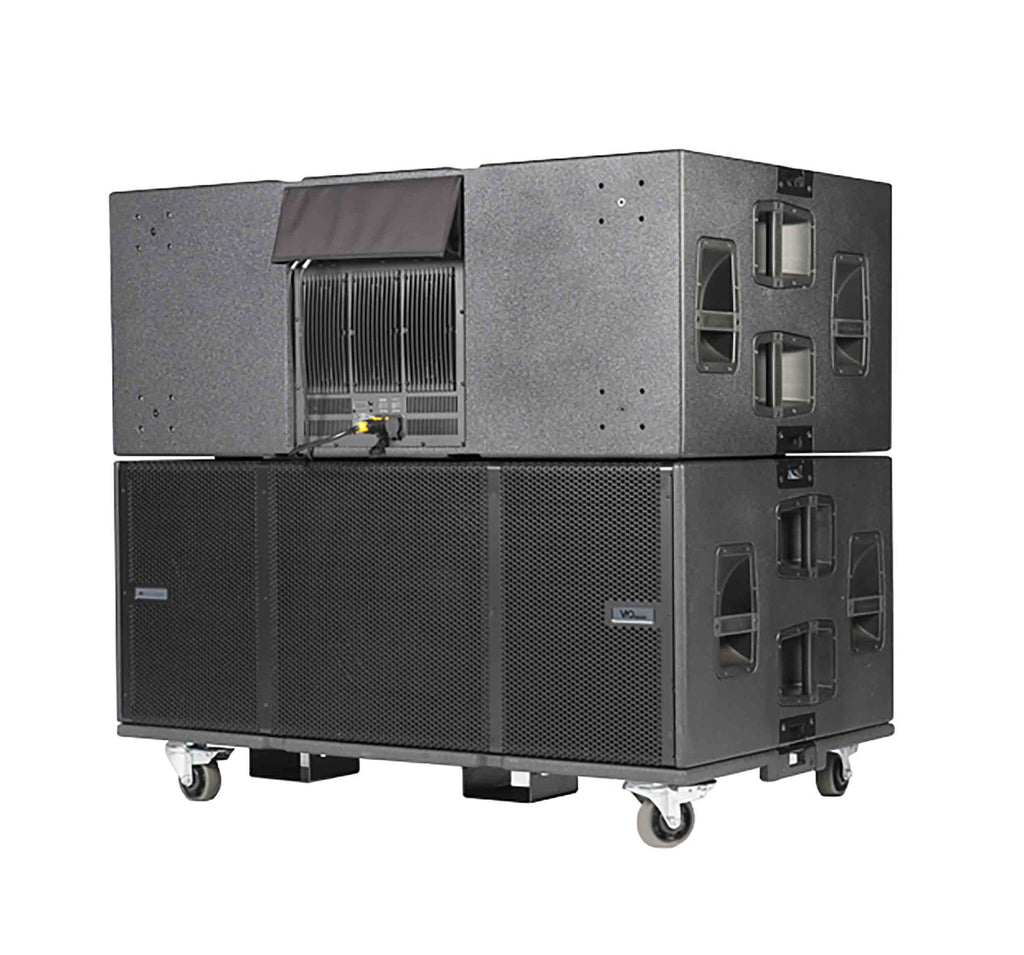

The dB Technologies VIO S318 is equipped with 3x18” bassreflex half-horn loaded woofers, configured in order to maximize frontal emission. The 3 voice coils are in facts mechanically aligned in order to achieve a perfect phase response. The 3 DIGIPRO G3 amplifiers deliver a total 2700 W RMS power, allowing the system to reach up to 143dB SPL. The system features an integrated delay module achieving up to 9.9 ms delay with 0,5 ms steps. The crossover module sets the low pass filter alongside with the highpass filter for the integrated crossover output. The system also features an attenuation control, a polarity switch and a RDNet port for remote control. The high quality multiplex housing is reinforced with a robust polyurea finishing and equipped with 5 aluminium handles per side. The dolly transport DO-VIOS318 allows to transport up to 3 subs simoultaneously, both on wheels or on lift track. As an alternative to the dolly, wheels can be mounted on the rear side of the cabinet.
Product Specification:
Technical Data
Speaker Type: Active Bassreflex Semi-Horn-Loaded Subwoofer
Acoustic data
Frequency Response [- 6 dB]: 39 Hz to Cut Freq (X-Over Dependent)
Frequency Response [- 10 dB]: 35 Hz (HPF)
Max SPL: 143 dB
LF: 3 x 18"
Voice Coil LF: 4"
Directivity: Omnidirectional
Amplifier
Amp Technology: Digipro G3
Amp Class: Class D
RMS Power: 2700 W
Peak Power: 5400 W
Cooling: Convection
Power Supply: 2700 W SMPS with Auto Range PSU
Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 KHz
Limiter: RMS, Peak, Thermal
Delay Option: 0-9.9 ms internal, Steps of 0.1 ms
Crossover Frequency LF-HF: 70-105 Hz + Full range
LF-Xover out slope: 24 dB/Octave
Input
Signal Input: 1 x XLR balanced, 1 x RJ45 LINK (RDNet)
Signal Output: 1 x XLR balanced, 1 x RJ45 LINK (RDNet)
Power Socket: 1 x PowerCON TRUE1 IN, 1 x PowerCON TRUE1 OUT

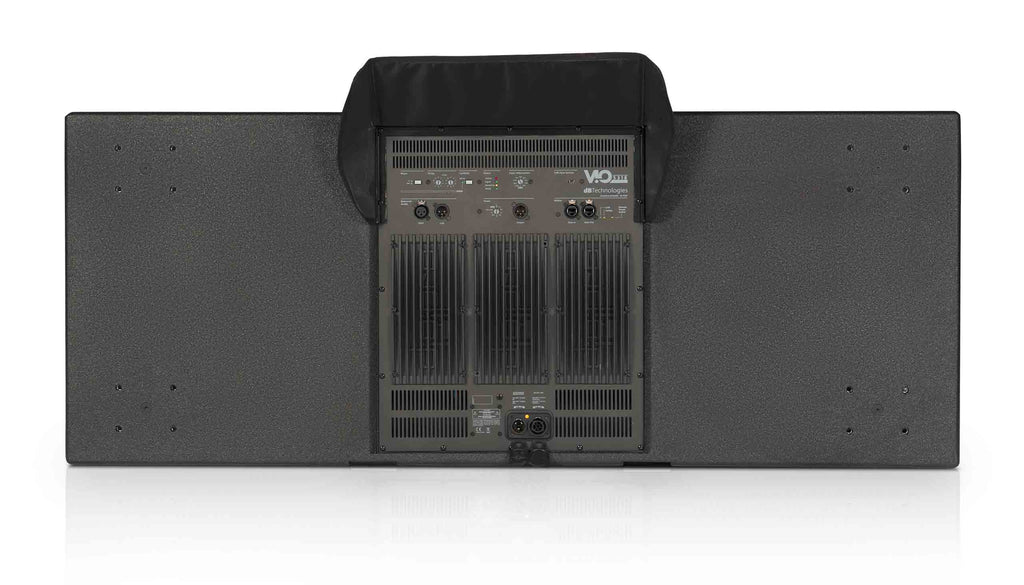

Controls
1 x Input Attenuation Rotary Switch
2 x Rotary Encoder (Delay 9.9 ms)
1 x Polarity Inversion Switch (0° or 180°)
1 x Cardioid Mode Switch
1 x X-Over Freq Switch (70-105 Hz + Full Range (steps of 5 Hz)
Mechanics
Housing: Multiplex plywood, Polyurea painted

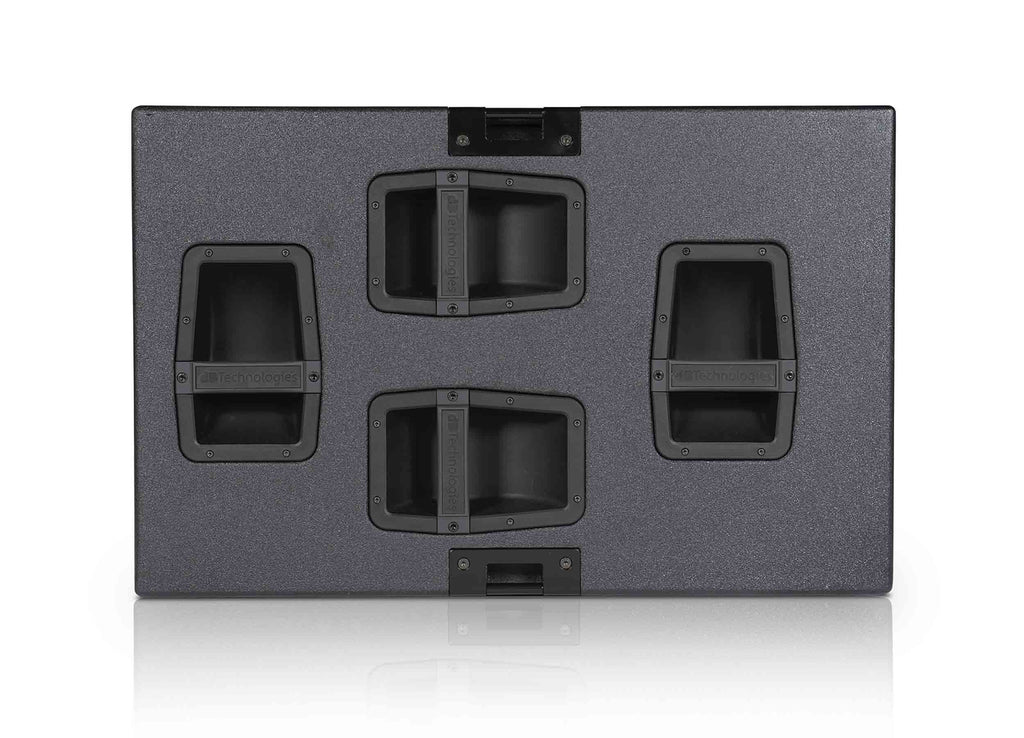

Handles: 4 x Per Side, Aluminium
Raincover: Included
Rigging Points: 2 x Pick Points on top to fix DRK-210 rigging frame
Width: 1300 mm (51.18 in)
Height: 520 mm (20.47 in)
Depth: 800 mm (31.5 in)
Weight: 103.9 kg (229.06 lbs)
