Description

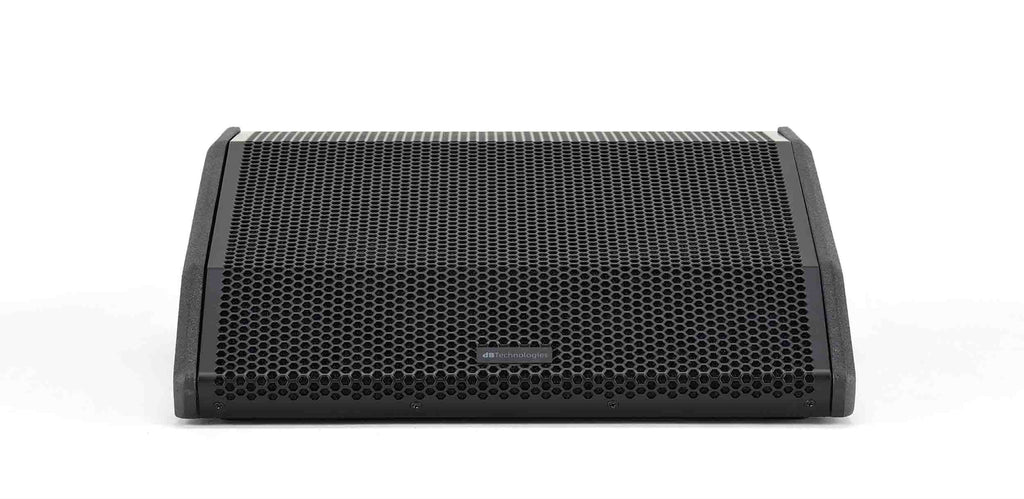

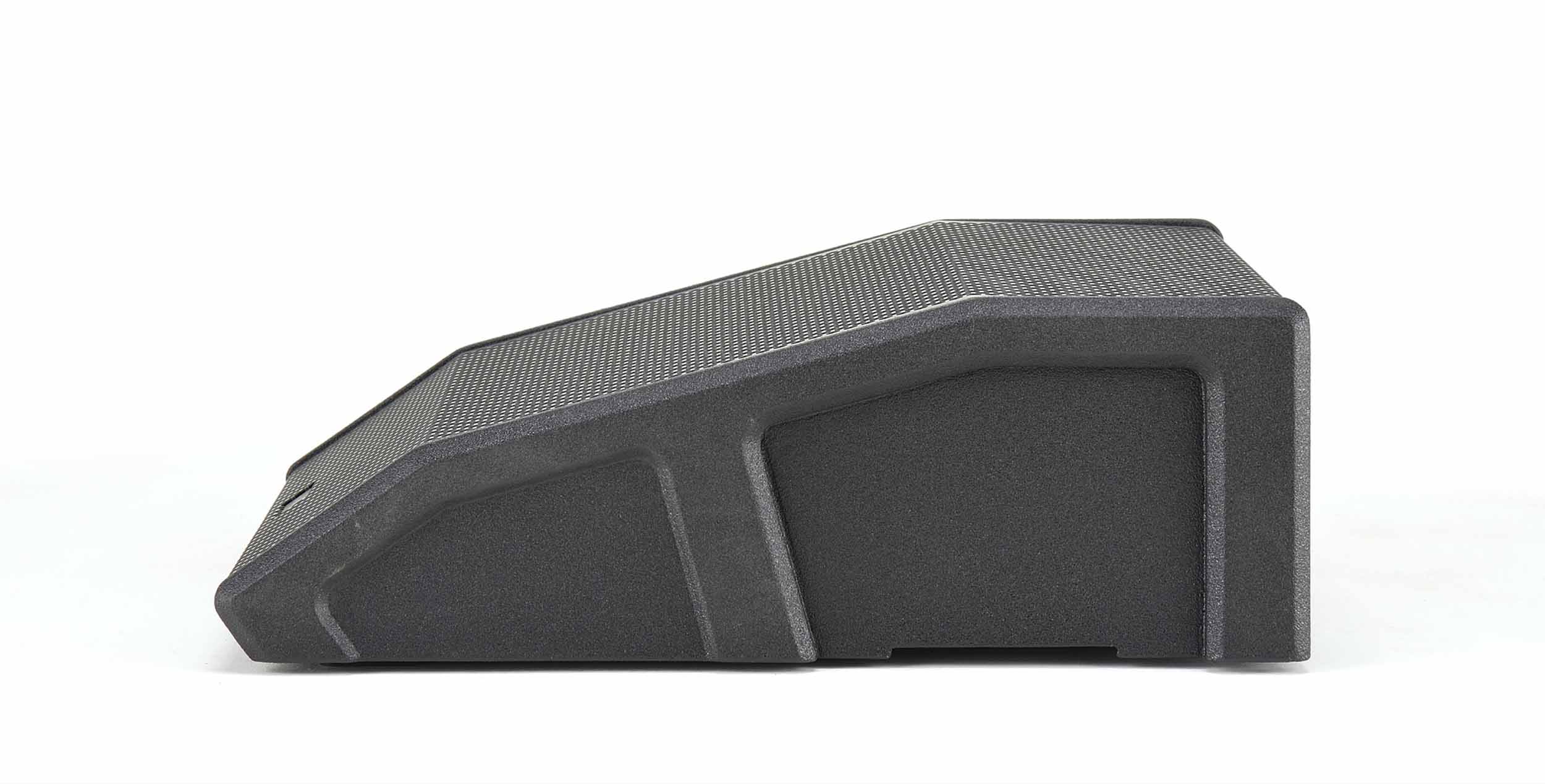

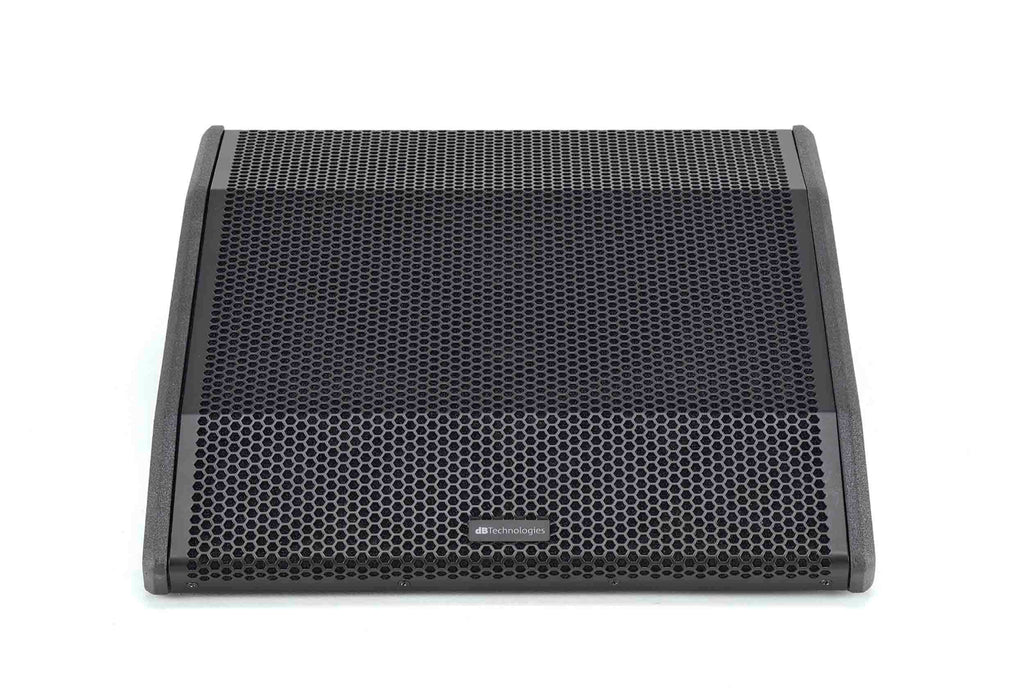

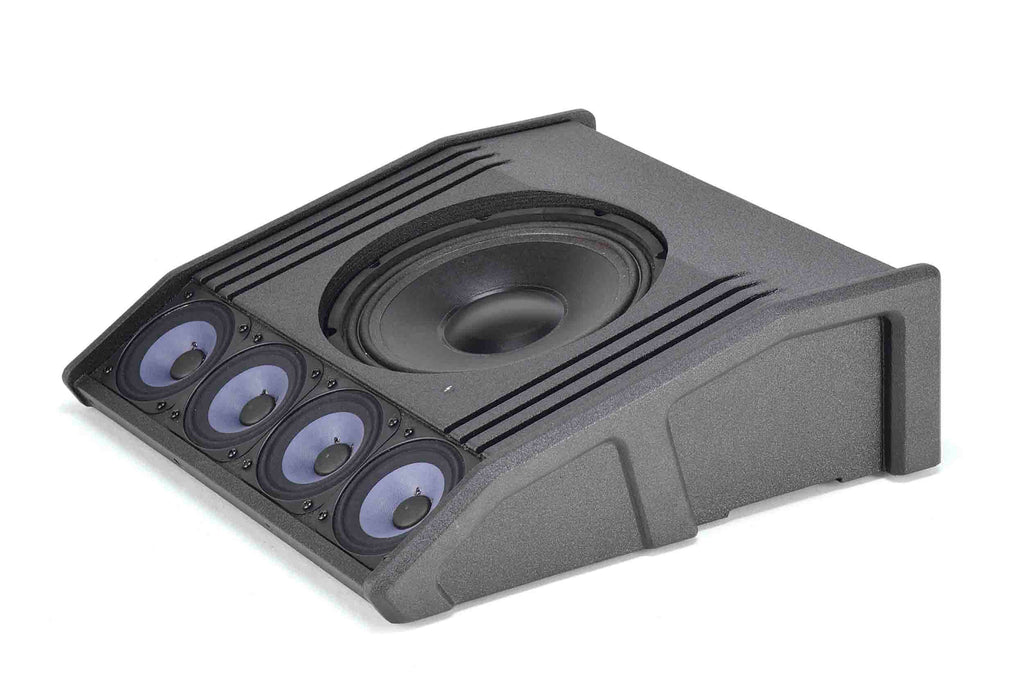

The dB Technologies VIO W10 2-way wedge is equipped with 4x4” neodymium HF speakers and 1x10” woofer, placed in an exclusive anti-feedback acoustic configuration. The cabinet is driven by a 400 W RMS Digipro G3 amplifier and full remote control is enabled via RD-Net and Aurora Net software. Digital Sound Processing allows a variable acoustic focus via on-board presets or via software. As a matter of facts, user can easily adapt the wedge performance to the application in use and to the speakers’ needs, choosing among 4 different options: default, close narrow, close wide, far. VIO W10’s wooden cabinet comes with a black polyurea finish and an exclusive front-rear-grille design which contributes to a peculiar yet discreet look, with a special attention to details. In facts, an integrated handle is hidden on left side to ease transport and a special groove carved on bottom side facilitates the passage of cables under the cabinet, allowing a clean and tidy look on stage.
Product Specification:
Technical Data
Speaker Type 2-Way Active Wedge Monitor
Acoustical data
Usable Band with [- 10 dB] 58 - 15,000 Hz
Frequency Response [- 6 dB] 68 - 14,000 Hz
Max SPL 126 dB
HF 4x 4" - 1" v.c. Neodymium
LF 1x 10" - 2.5" v.c.
Horizontal Directivity Dependent on Focus Preset
Vertical Directivity Dependent on Focus Preset
Amplifier
Amplifier 400 W RMS Class D Digipro G3
Cooling Convection
Power Supply Auto-range SMPS
Processor
Controller DSP 28/56 bit
Converter AD/DA 24 bit/48 kHz
Limiter Peak, RMS, Thermal
Processing (filters) Linear Phase FIR Filters

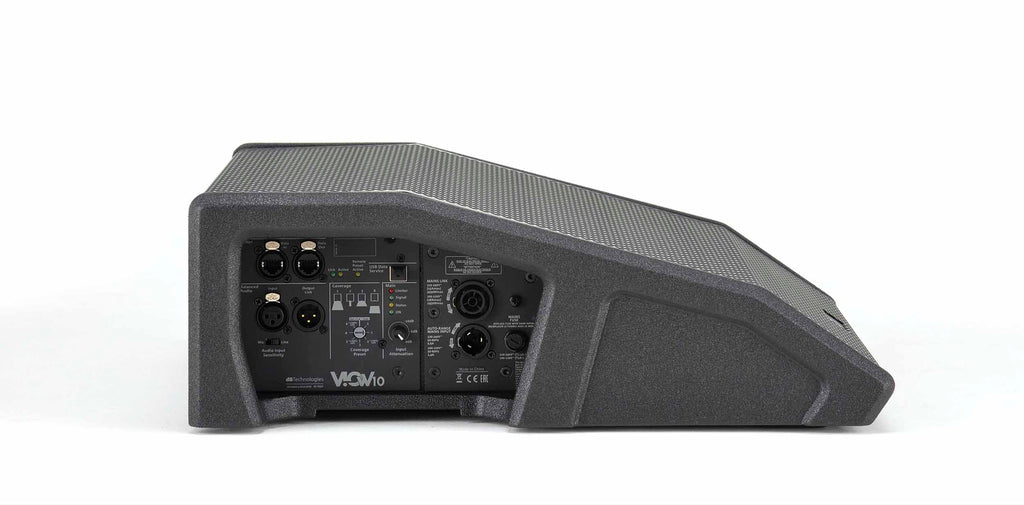

Input
Signal Input 1x XLR female, 1x RJ45 Link (RDNet) , 1 x USB (Data Service)
Signal Output 1xXLR male, 1x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In
1xPowerCON TRUE 1 Out
Controls 1x Rotary Encoder (8 presets)
1 x Input Sensitivity Encoder
1xMic /line switch
1x On LED
1x Status -LED
1x Signal LED
1x Limiter LED
Mechanics
Housing Wooden cabinet, Polyurea painting
Handles 1 on left side
Width 450 mm (17.71 in)
Height 165 mm (6.49 in)
Depth 480 mm (18.89 in)
Weight 13.7 kg (30.20 lbs)
