Description

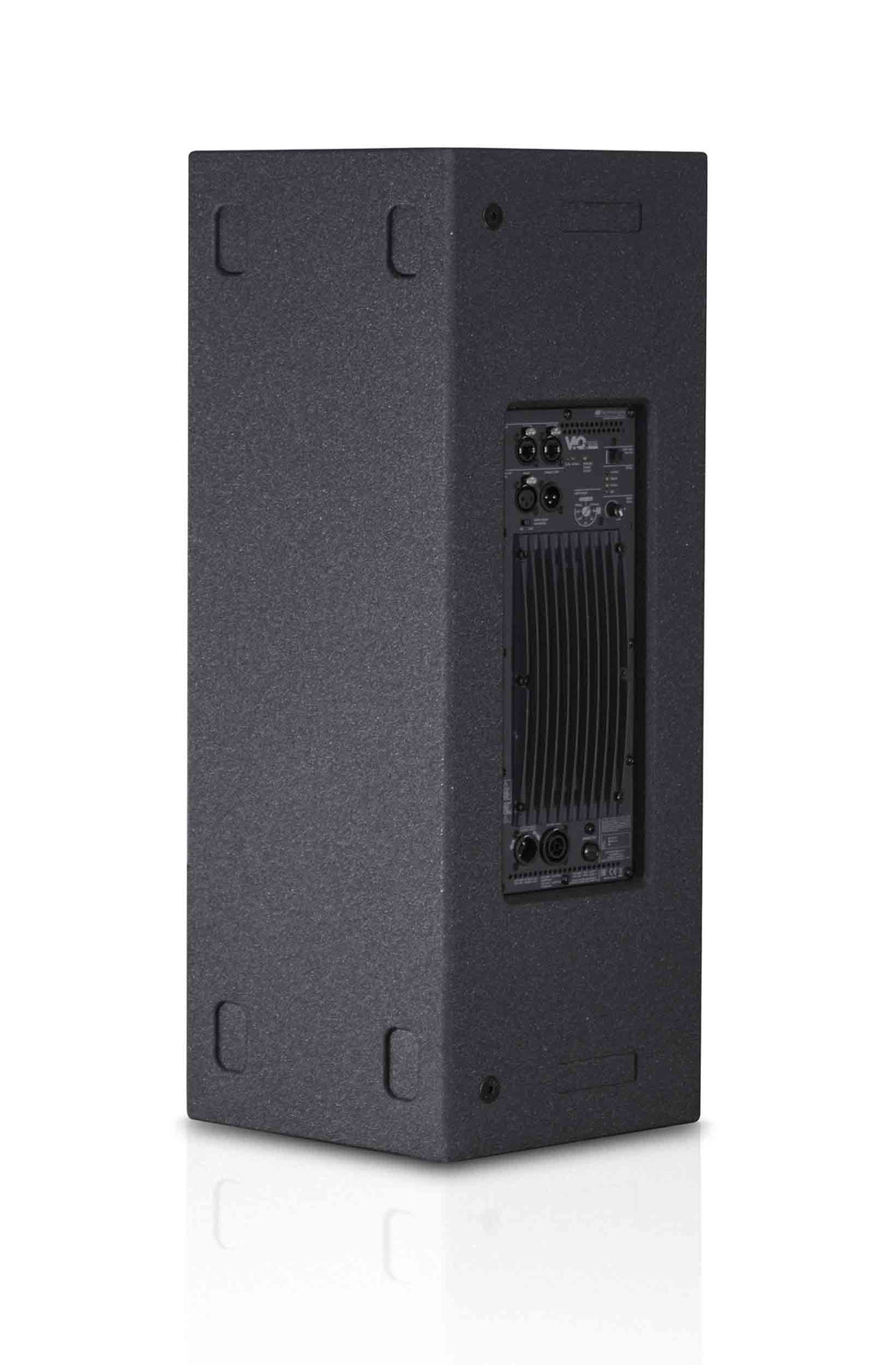

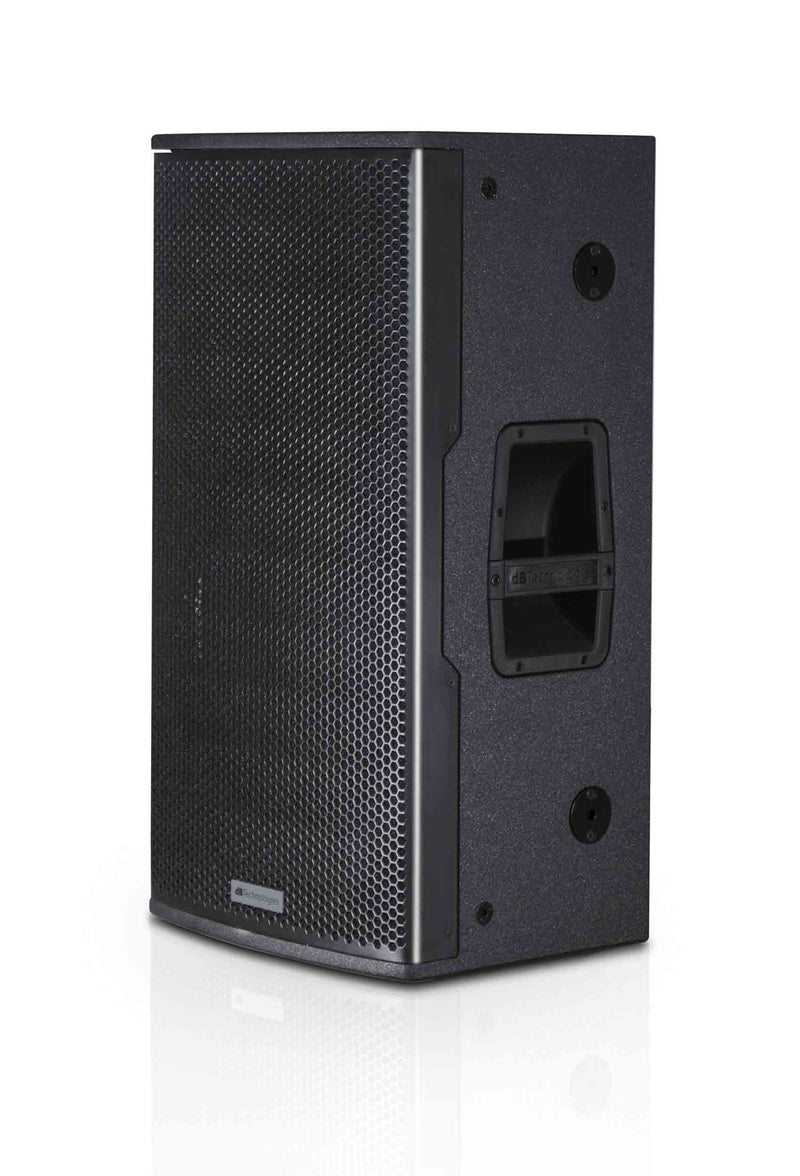

The dB Technologies VIO X15 is an original series of professional active 2-way speakers. A point-source completion for the VIO family, combining impressive output, advanced DSP features and complete networkability via Aurora Net software. A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.
The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets. All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).
Product Specification:
Technical Data
Speaker Type 2 Way Active Loudspeaker
Acoustical data
Frequency Response [-10dB] 55 - 22.000 Hz
Frequency Response [-6dB] 72 - 21.000 Hz
Max SPL 133.5 dB
HF 1x 1.4”, 2.5" Neodymium
LF 1x 15”, 3" Neodymium
Directivity 60° x 40°
Horn Rotatable Horn
Amplifier
Amplifier 900 W RMS Class-D Digipro G3
Cooling Class-D Convection
Power Supply Auto-range SMPS
Processor
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 kHz
Limiter Peak, RMS, Thermal
Processing FIR Linear Phase Filters
Input
Signal Input 1 x XLR balanced, 1 x RJ45 Link (RDNet)
Signal Output 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In
1x Power CON TRUE1 Out
Controles 1x Rotary Encoder (8x EQ, HPF presets)
1x Input sensitivity potentiometer
1x Mic / line switch
Special Features Opto-isolated floating pre-amp
Mechanics
Housing Wooden Cabinet, Polyurea painting
Handles 1x (top), 2x (side)
Wedge Angle Monitor Use 50°
Rigging points 12x M10 Thread + 4x Fast lock pins
Pole Mount Ø36 mm
Width 400 mm (15.74 in)
Height 750 mm (29.52 in)
Depth 475 mm (18.7 in)
Weight 25.4 kg (55.99 lbs)
