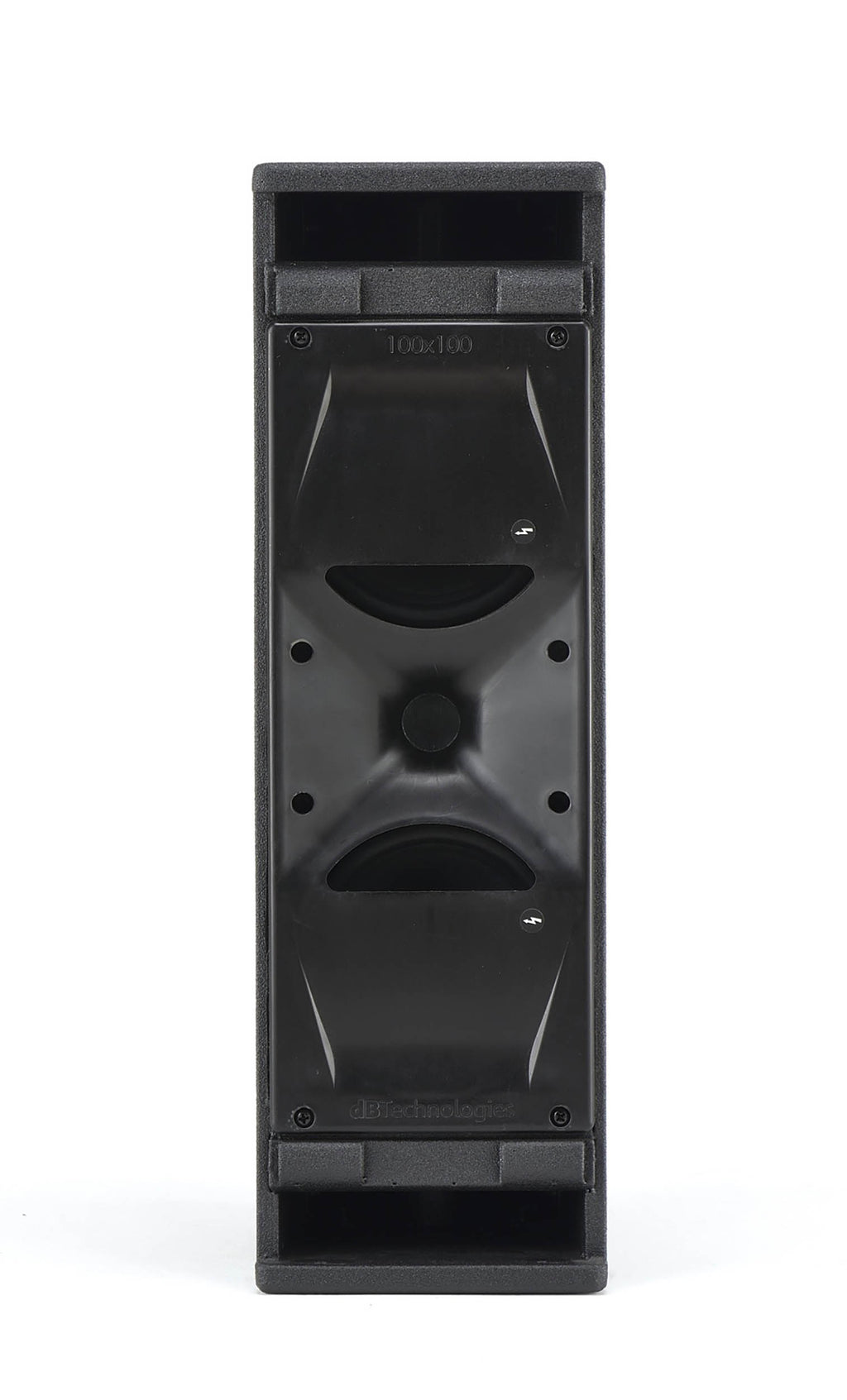

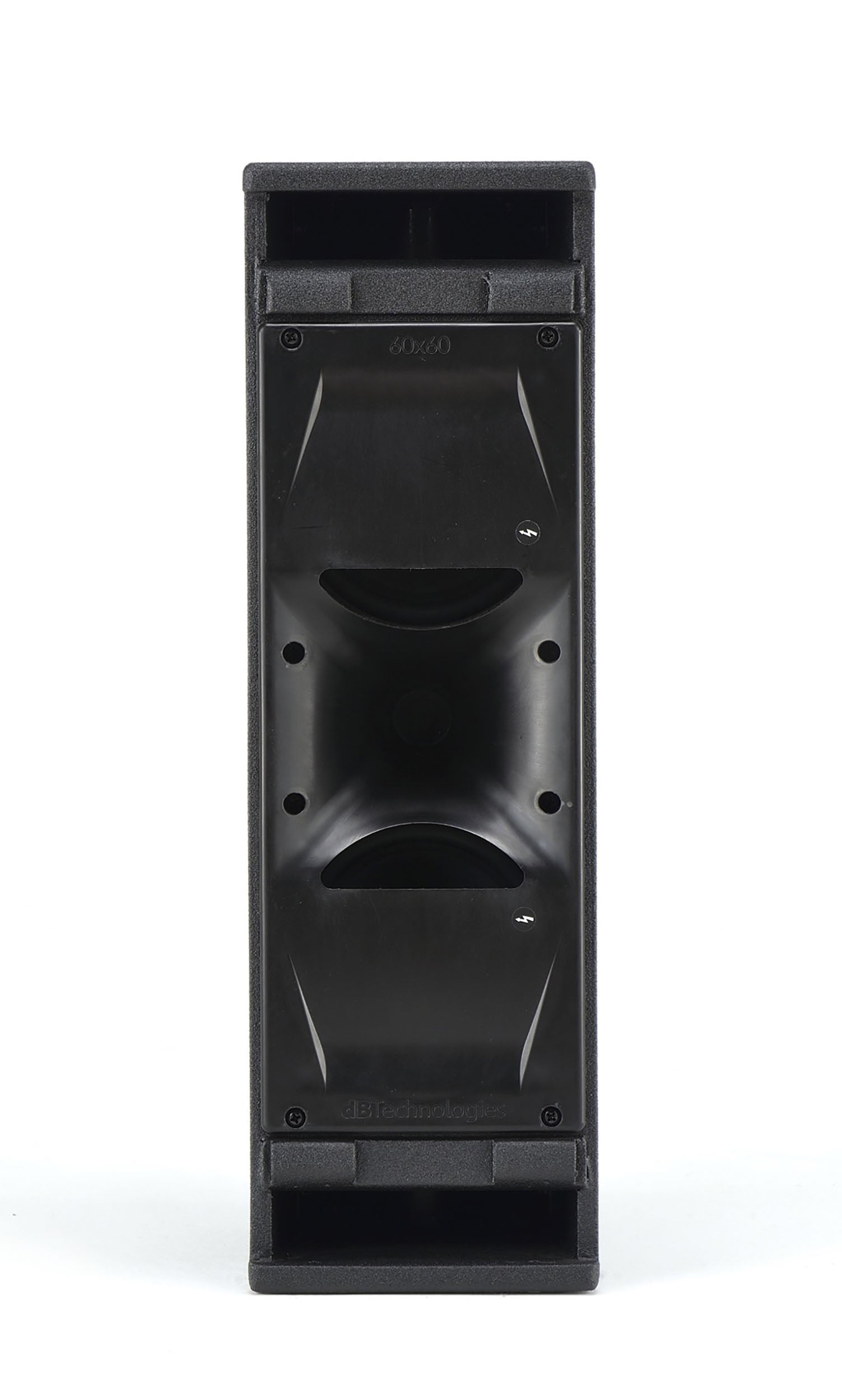

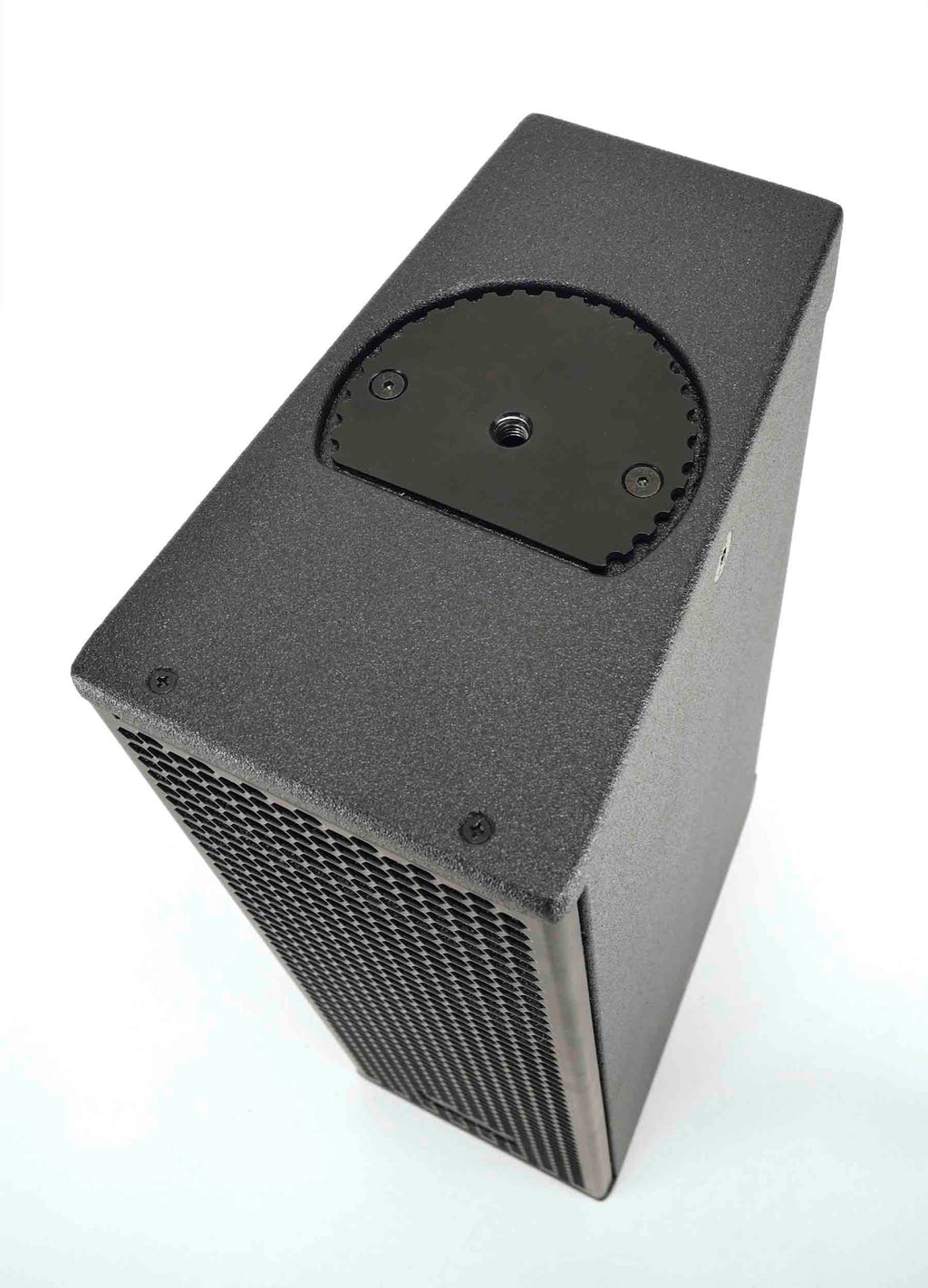

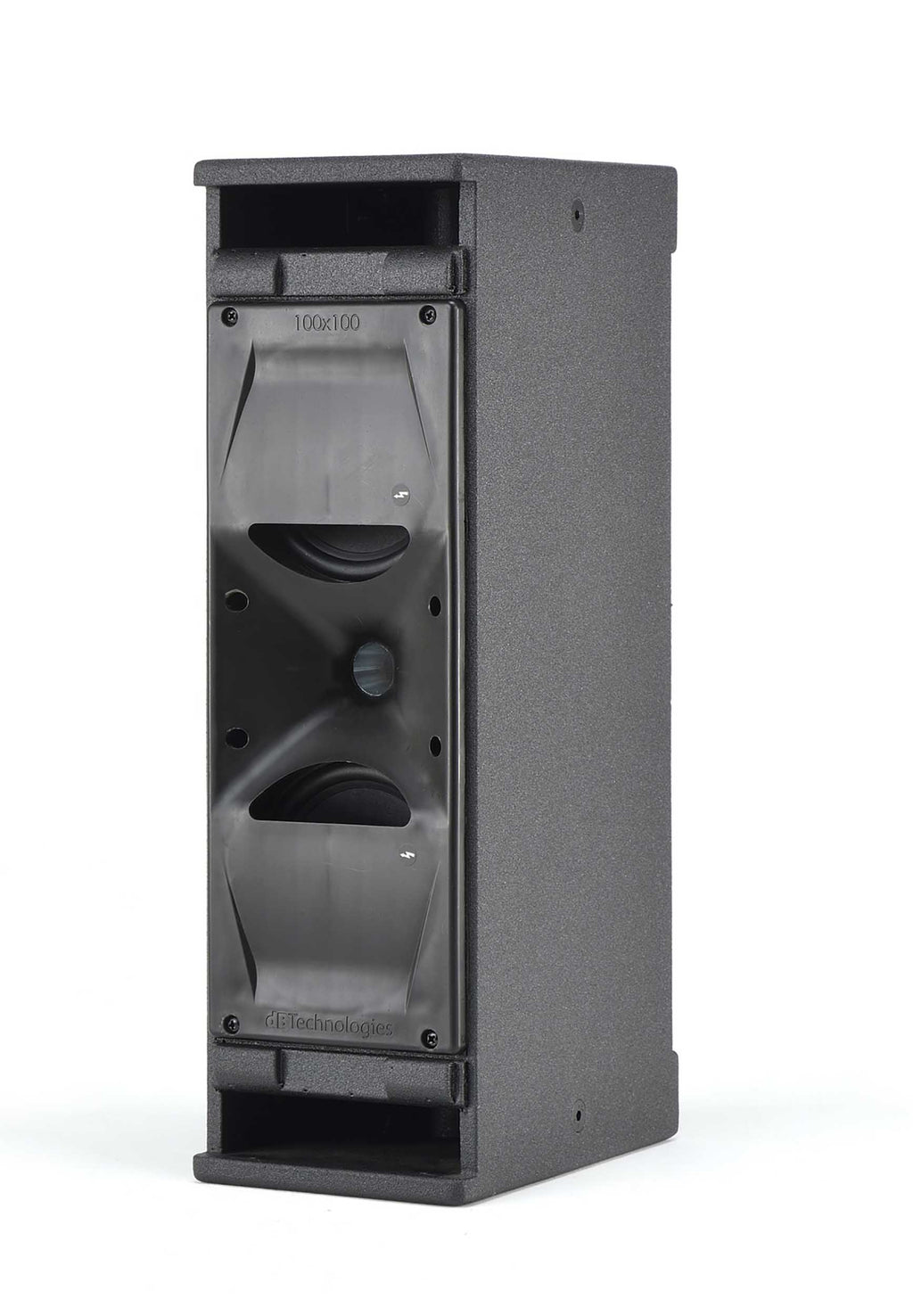

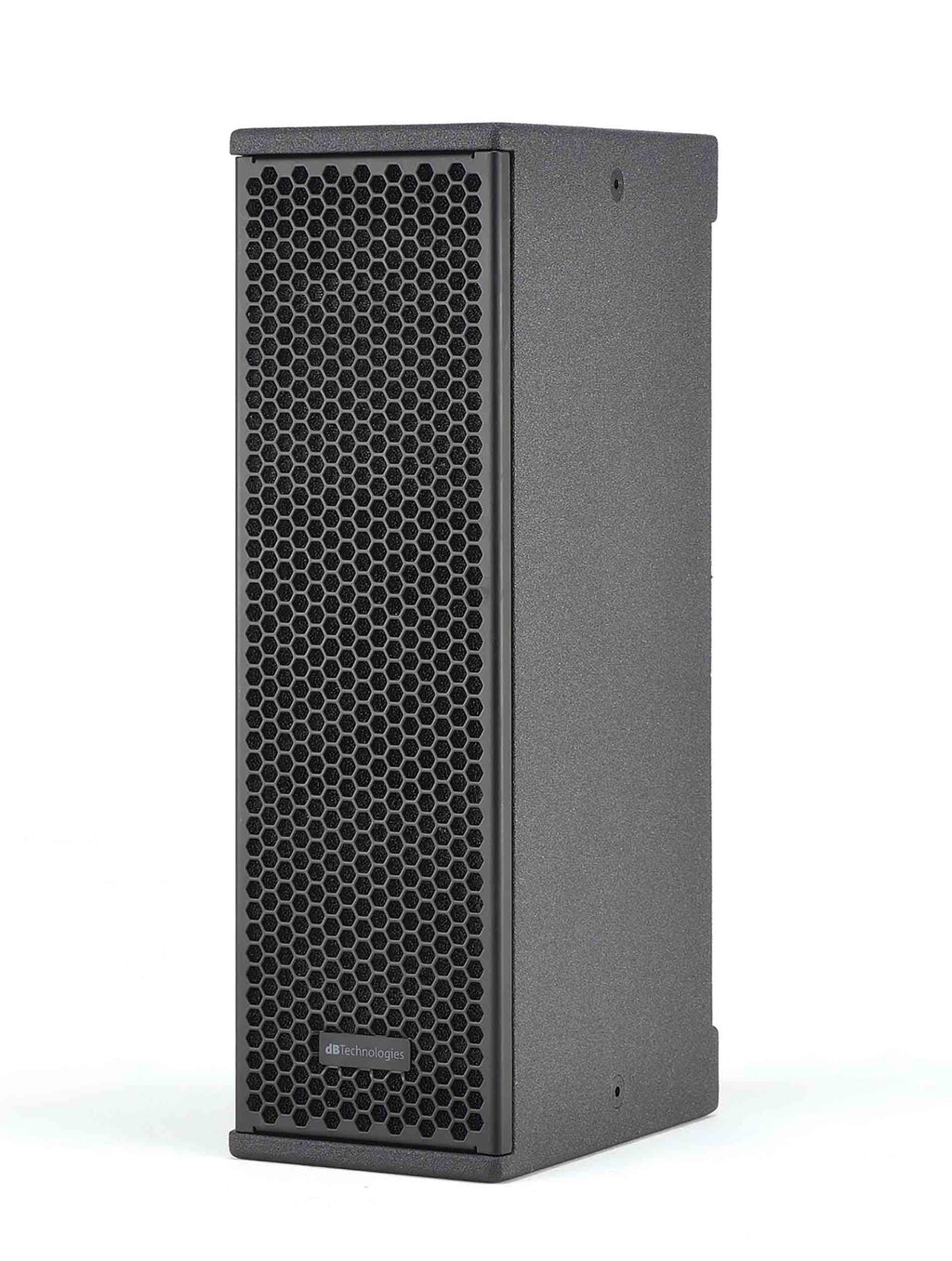

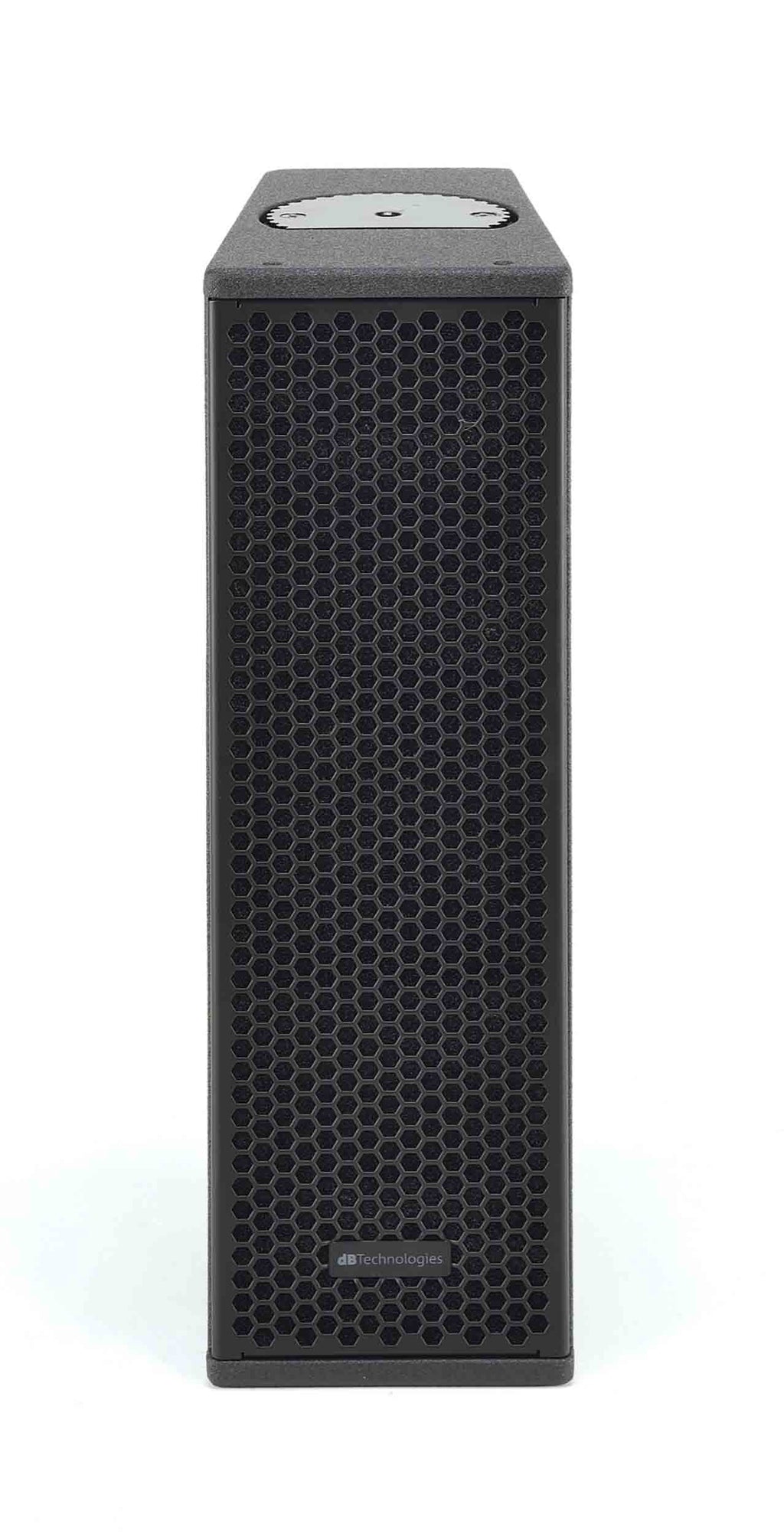

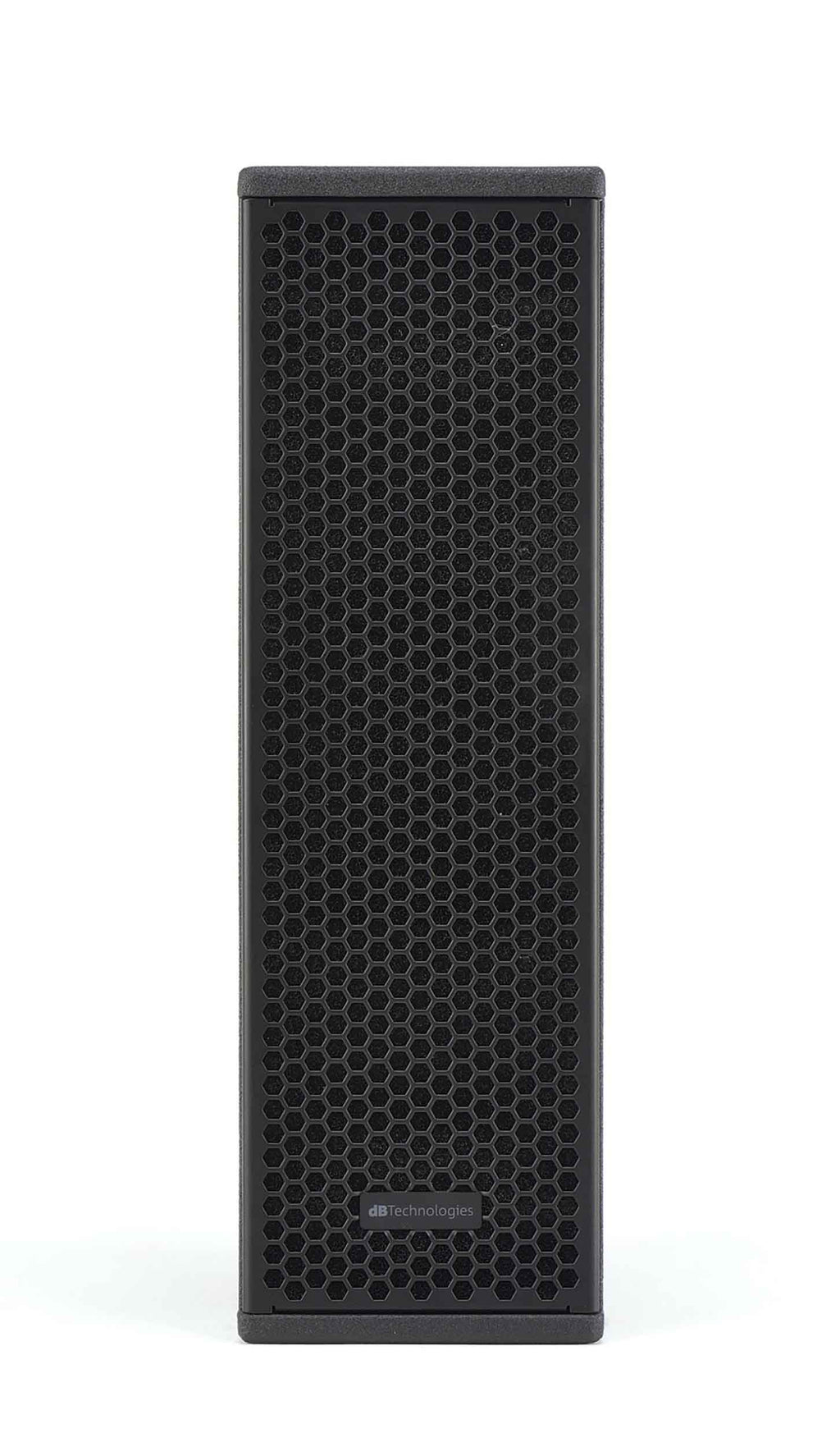

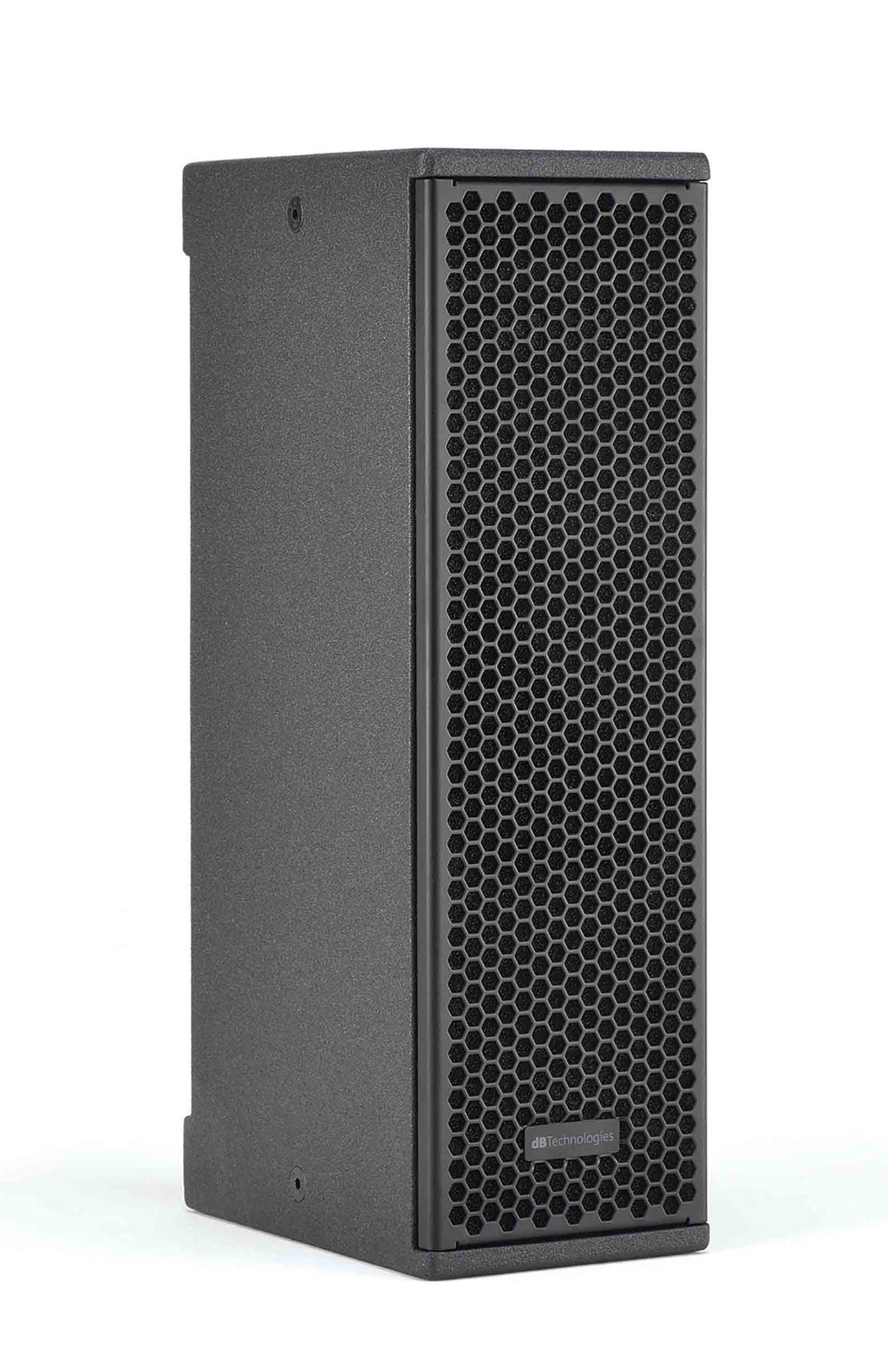

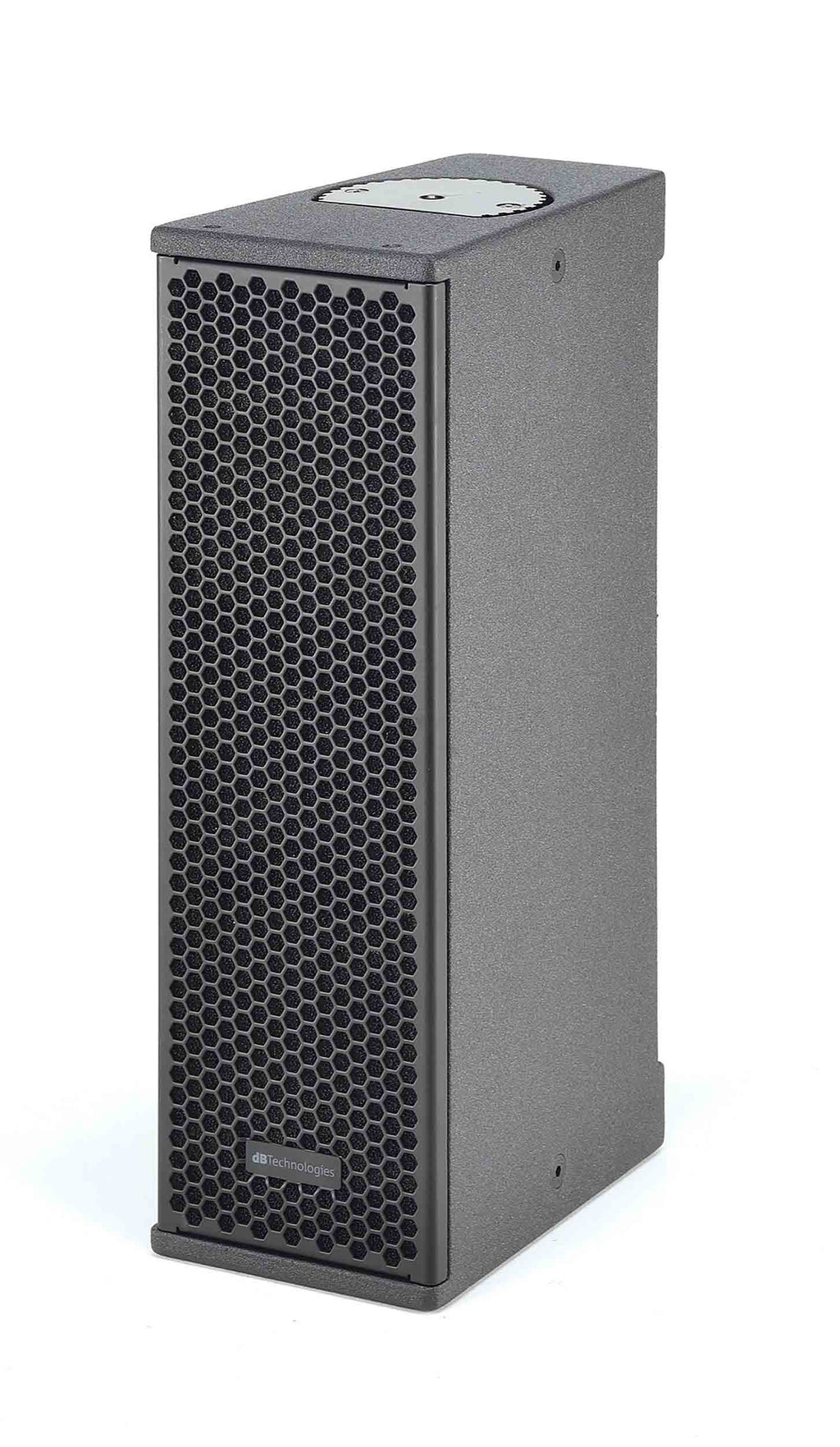

The dB Technologies VIO X205 condenses the powerful and detailed sound of the ultimate dBTechnologies point source series into a small, ultra-performing cabinet. VIO X205 acts as the most precise and versatile unit in any tour-grade application as well as in fixed installations. VIO X205 fits any project as full-range PA, fixed installation, FOH monitoring, front-fill in large sound reinforcement systems, and more. This solid wooden cabinet is reinforced with a polyurea finish and features M10 threaded nuts on top and bottom allowing installation with accessories WB-VIOX205 H (horizontal bracket) or WB-VIOX205 V (vertical bracket). The cabinet can be easily installed on pole thanks to SA-VIOX205 pole mount adaptor (35mm) allowing 2 tilt options. Keeping in mind the needs of the most demanding professionals, VIO X205 is available in 2 models featuring 2 different constant directivity horns allowing a 60°x60° (for VIO X205-60) or 100°x100° (for VIO X205-100) dispersion pattern (both horizontal & vertical).
VIO X205 is a 2-way speaker equipped with 2x5" (1" voice coil) and 1x1" driver (1.4" voice coil). The 400 W RMS DigiproG3 amplifier powers a cabinet able to deliver up to 126 dB despite its very compact dimensions. Advanced sound processing featuring Linear Phase FIR Filters allows VIO X205 to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position. Just like other cabinets in the VIO X family, 205 is enabled for real time monitoring and remote control via RDNet protocol and Aurora Net software (Windows and Mac). The cabinet is also provided with on board controls to set High Pass Filters as well as INPUT sensitivity. On board presets let users adapt High Pass Filters to the chosen application.
Speaker Type 2 Way Active Loudspeaker
Usable bandwidth [-10dB] 75 - 21.000 Hz
Frequency Response [-6dB] 80 - 20.000 Hz
Max SPL 126 dB
HF 1x 1”, 1.4 v.c.
LF 2x 5”, 1" v.c
VIO X 205-60 Directivity60° x 60°
VIO X 205-100 Directivity100° x 100°
Amplifier 400 W RMS Class-D Digipro G3
Power Supply Auto-range SMPS
Controller DSP 28/56 bit
AD/DA Converter 24 bit/48 kHz
Limiter Peak, RMS, Thermal
Processing FIR Linear Phase Filters

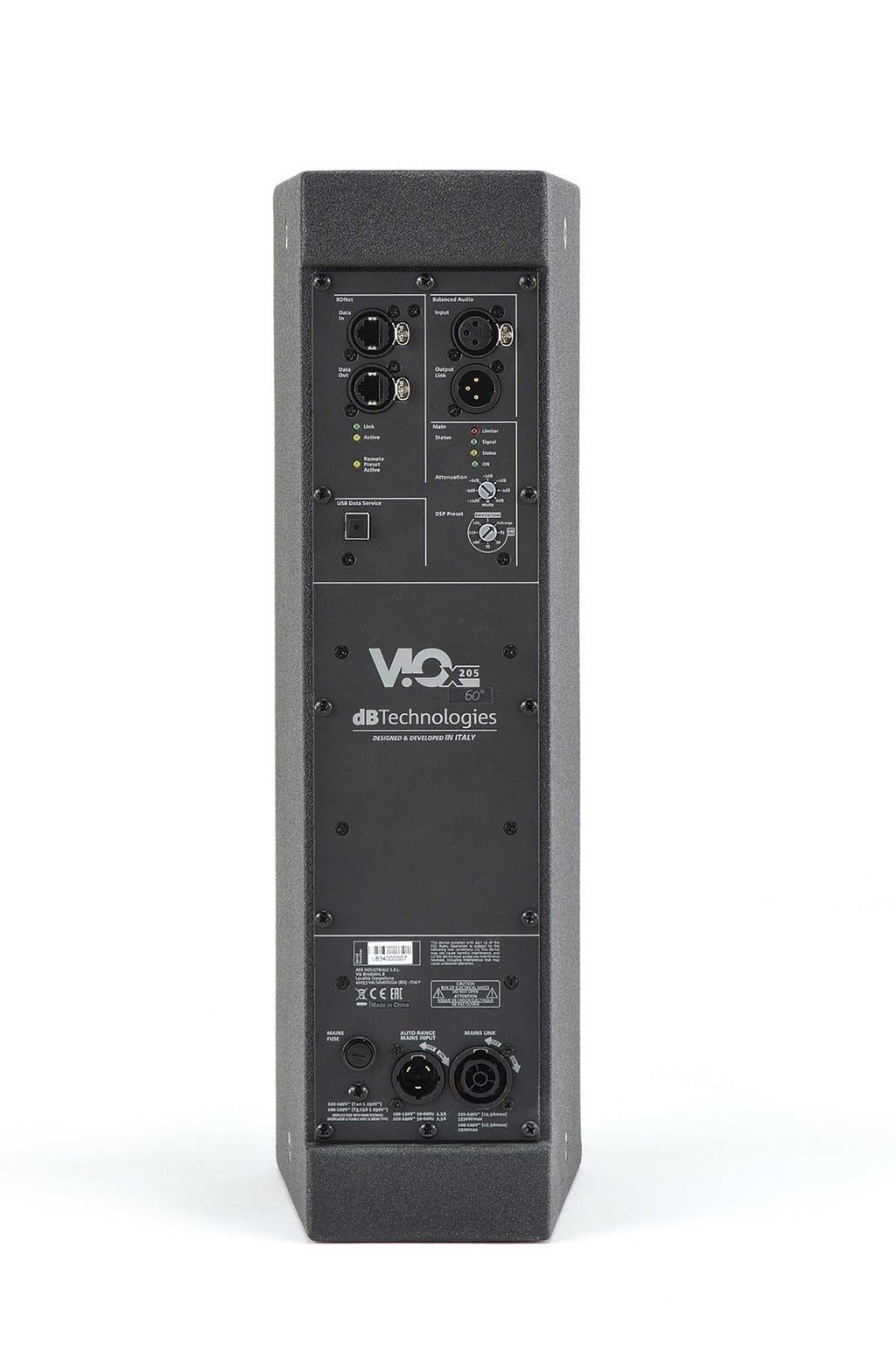

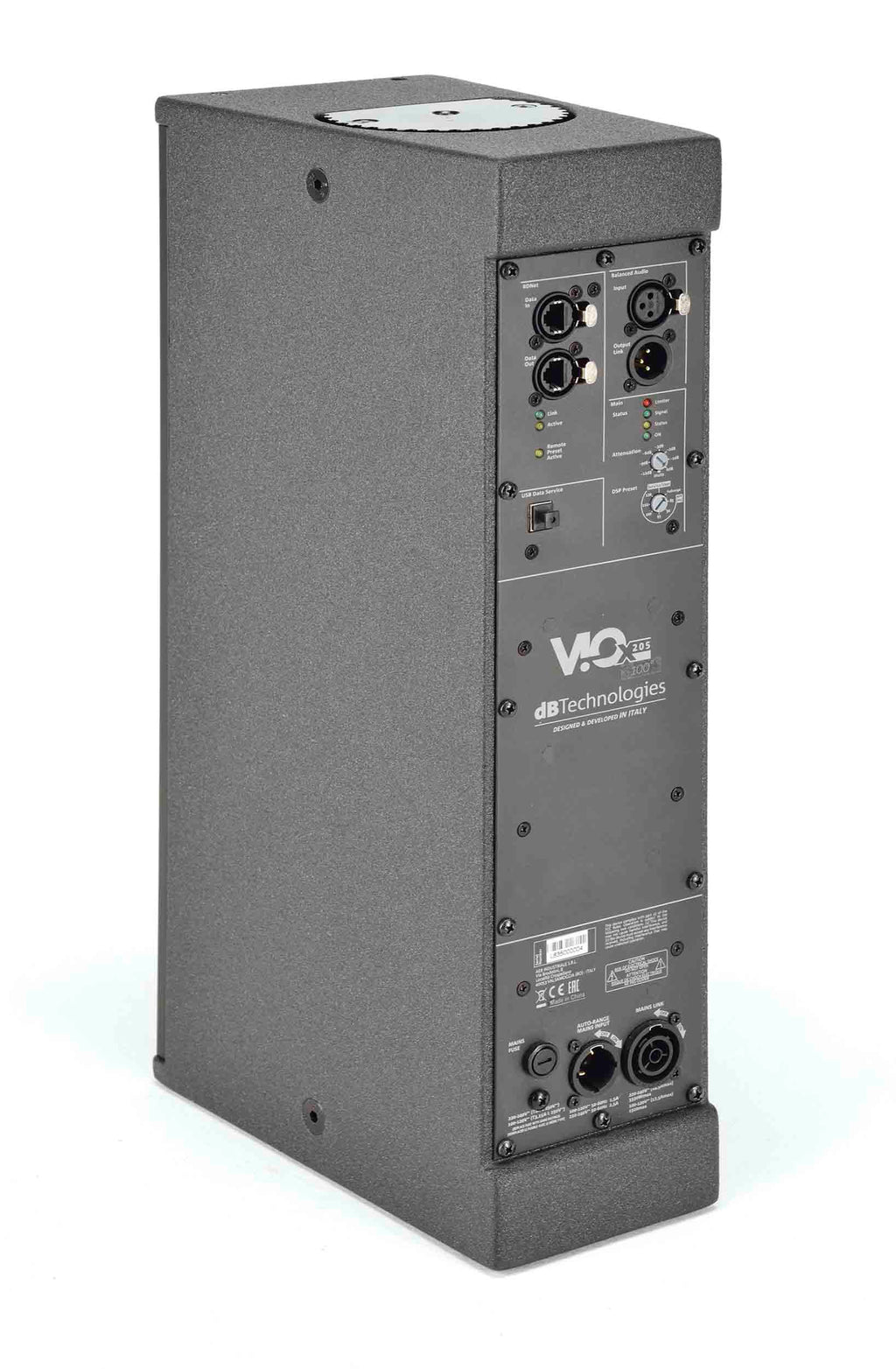

Signal Input 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls 1x Rotary Encoder (8x EQ presets)
1x Input Attenuation Rotary Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
Housing Wooden Cabinet, Polyurea painting
Handles 1x (top)
Wedge Angle Monitor Use 5°
Rigging points 2x M10 Threaded Nuts (top and bottom)
Width 150 mm (5.9 in)
Height 485 mm (19 in)
Depth 240 mm (9.4 in)
Weight 7.8 kg (17.2 lbs)
