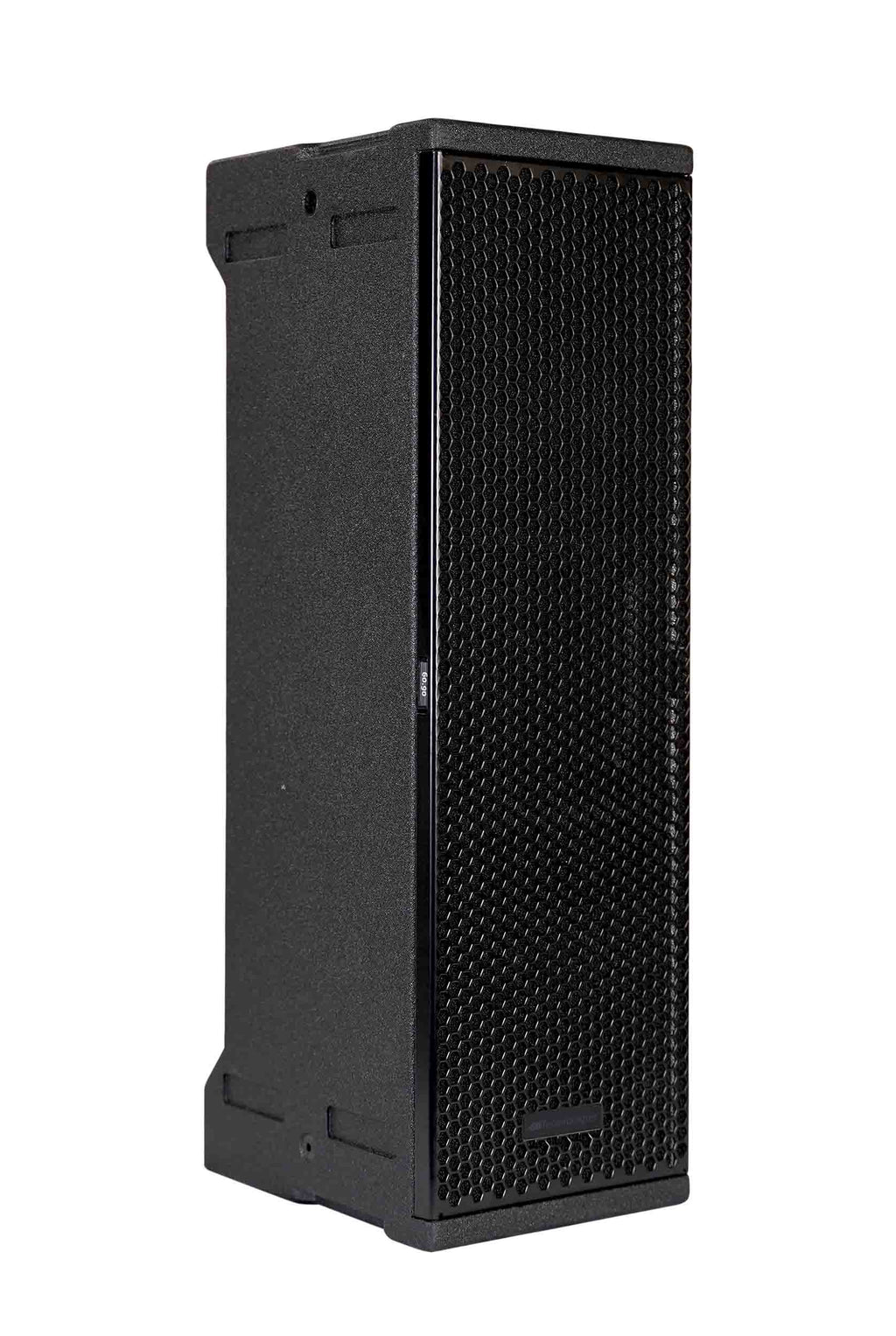

Description
The dB Technologies VIO X206 60x90 is an ultra-compact active professional speaker that delivers sound pressure and linear response to the highest level. Available in 2 versions with a standard 90x60° coverage or a 100x15" dispersion pattern wich basically turns the full range speaker into a line array module. VIO X206 not only packs the best of the VIO X line’s sonic performance into an ultra-compact cabinet but also brings versatility to a new level by serving as both a point source speaker and a line array system. The ultimate solution for complementing VIO PA systems and setting up compact high-performance stand-alone systems, meeting the requirements of both the production and integration world.

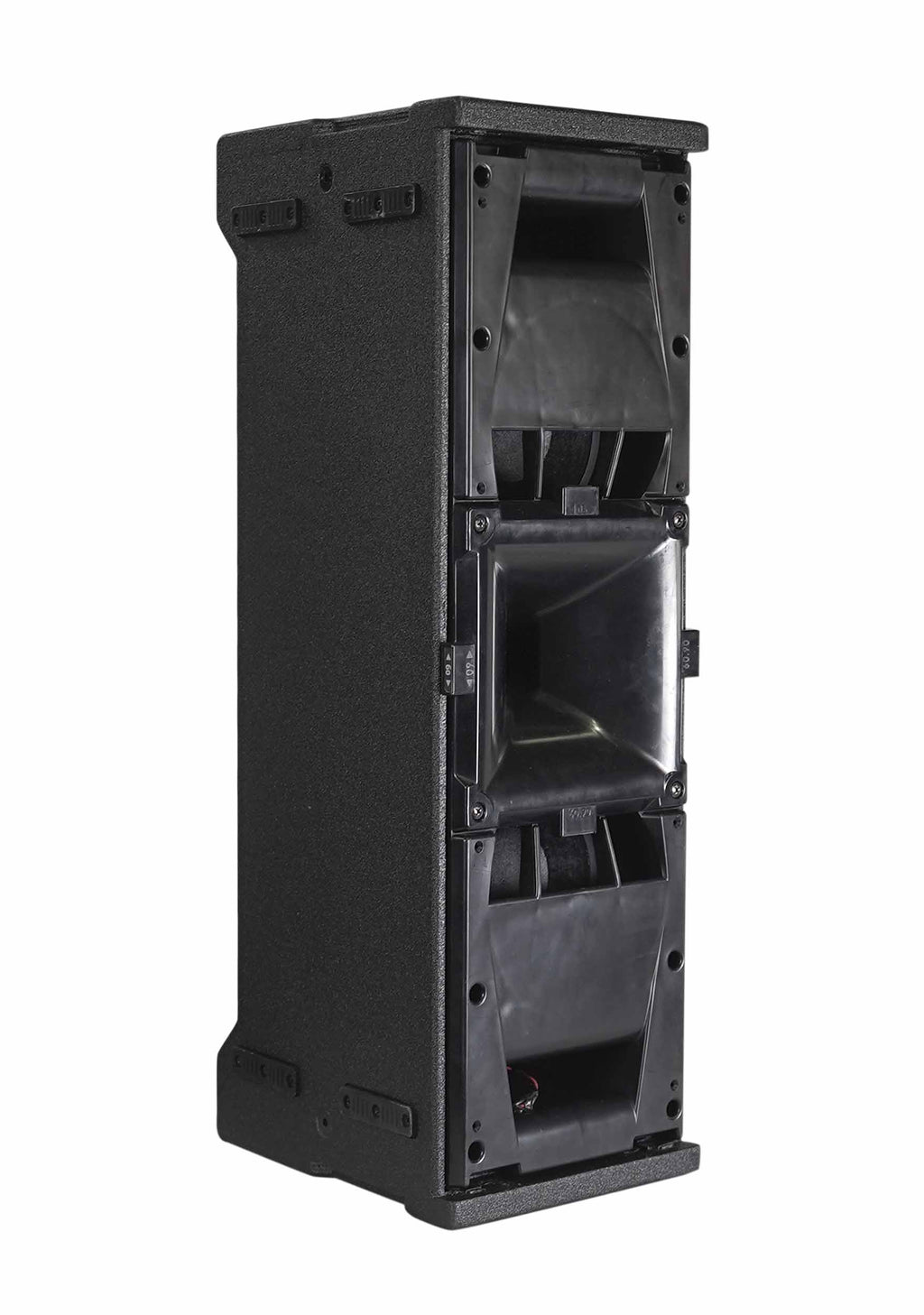

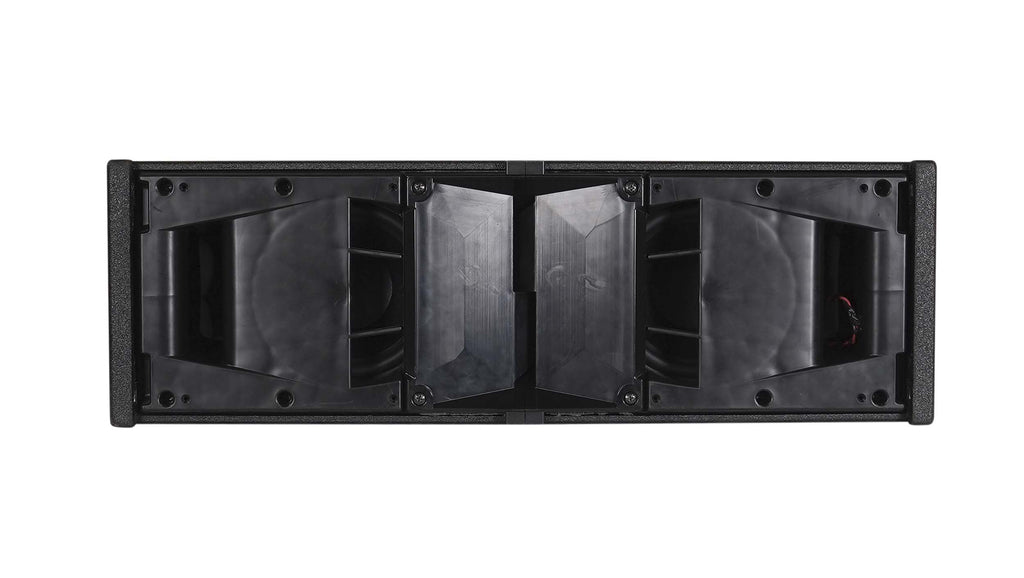

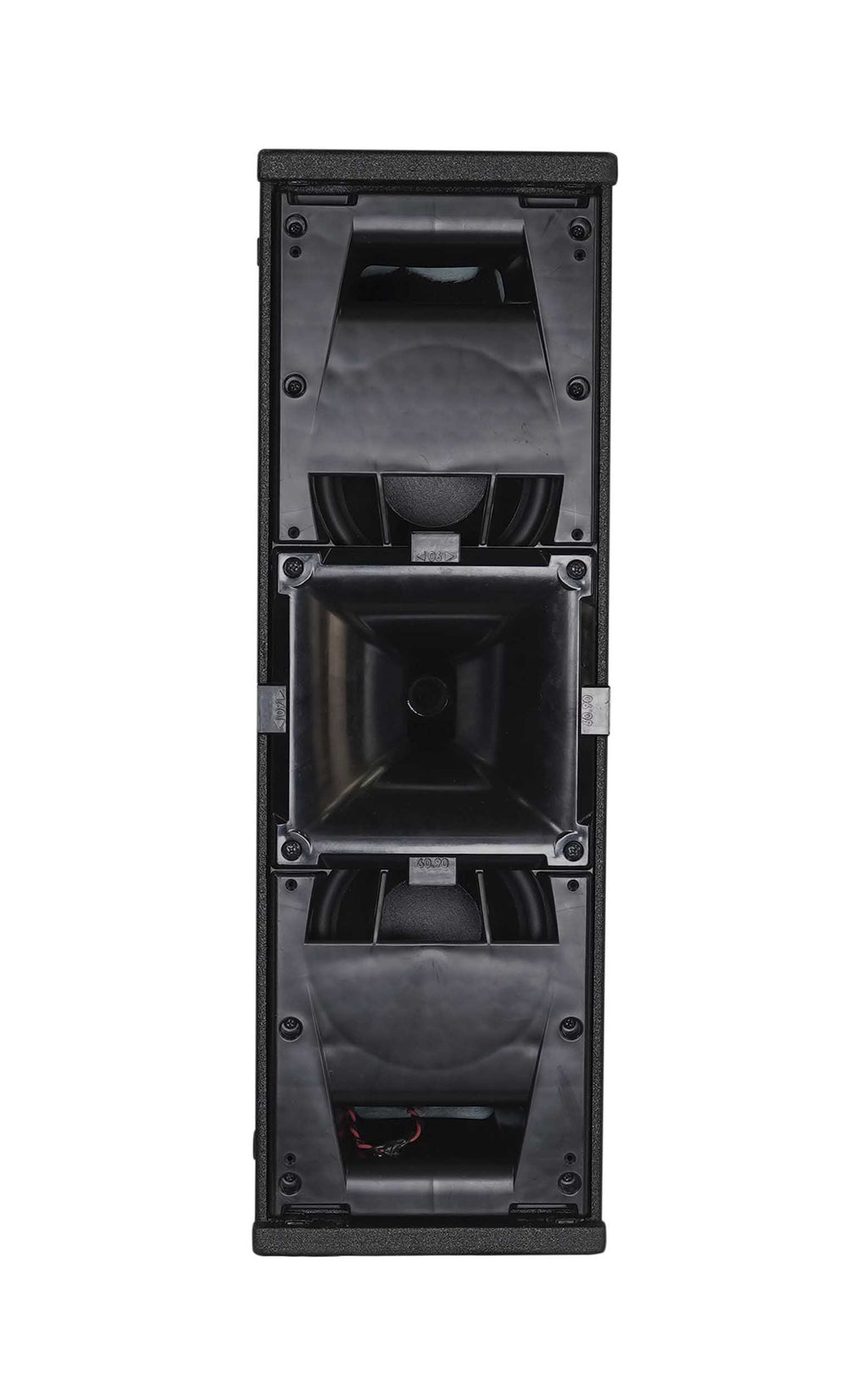

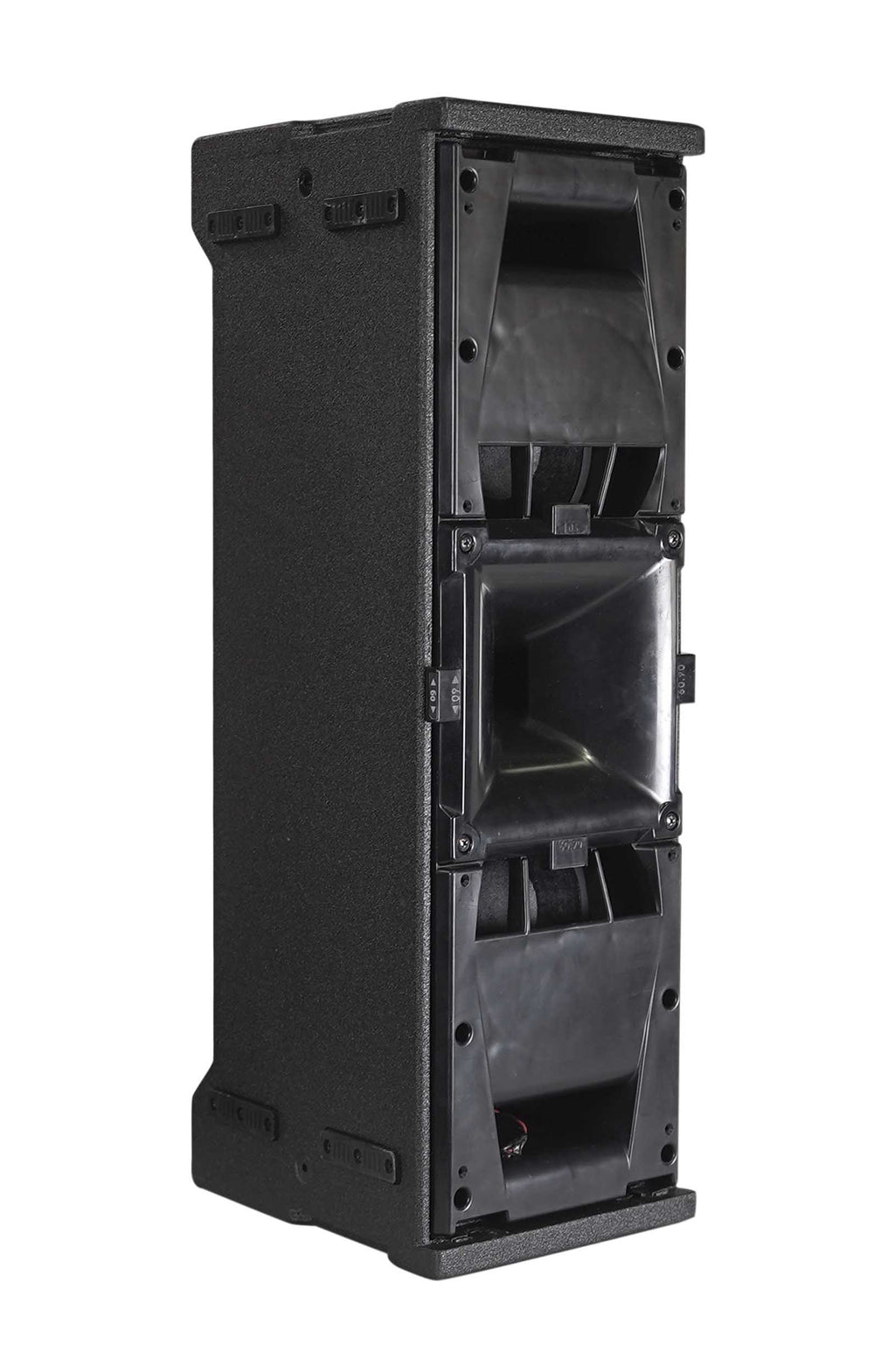

VIO X206 is equipped with 2x 6.5” neodymium transducers, and a 1” compression driver, driven by a Digipro class D 900 Watts RMS power amplifier, which, just like any other product in the VIO family, is equipped with RDNet, allowing for remote control with Aurora net software. The system is available in 2 models providing different coverage patterns. VIO X206 features a horn allowing for a 60x90° dispersion. VIO X206-100, instead, features a waveguide providing a 100x15°dispersion, allowing the system to operate in line array mode. Both VIO X206 horn and VIO X206-100 waveguide are removable, meaning that users can easily replace them, adapting their VIO X206 systems to the venue and application in use. A firmware preset button on board optimizes the behavior of the DSP to the application in use. Thanks to the two variants it cover a wide range of applications, meeting the requirements of both production and integration. This sleek, slim cabinet can easily fits onto a live stage, a corporate event facility, as well as a meeting room or a bar.
Product Specification:
Technical data
Speaker Type 2 Way Active Loudspeaker
Acoustical data
Usable bandwidth [-10dB] 66 - 19.500 Hz / 66 - 18.000 Hz [VIO X206-100]
Frequency Response [-6dB] 70 - 18.000 Hz / 70 - 17.500 Hz [VIO X206-100]
Max SPL 131 dB
HF 1x 1”, 1.75 v.c.
LF 2x 6.5”, 1.75" v.c
VIO X206 Directivity 60° x 90° [rotatable]
VIO X206-100 Directivity 100° x 15° [H x V]
Amplifier
Amplifier 900 W RMS Class-D Digipro G3
Cooling Convection
Power Supply Auto-range SMPS
Processor
Controller DSP 32 bit
AD/DA Converter 24 bit/96 kHz
Limiter Peak, RMS, Thermal
Processing FIR Linear Phase Filters
Input
Signal Input 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket 1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls 1x input Sensitivity Rotary Encoder (10x presets)
1x Horn Model Selection Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
3x RDNet Status LED
Mechanics
Housing Wooden Cabinet, Polyurea painting
Handles 2 Integrated
Rigging points 2x M10 Threaded Nuts (top and bottom)
Width 210 mm (8.3 in)
Height 650 mm (25.6 in)
Depth 270 mm (10.6 in)
Weight 17.3 kg (38.14 lbs)
