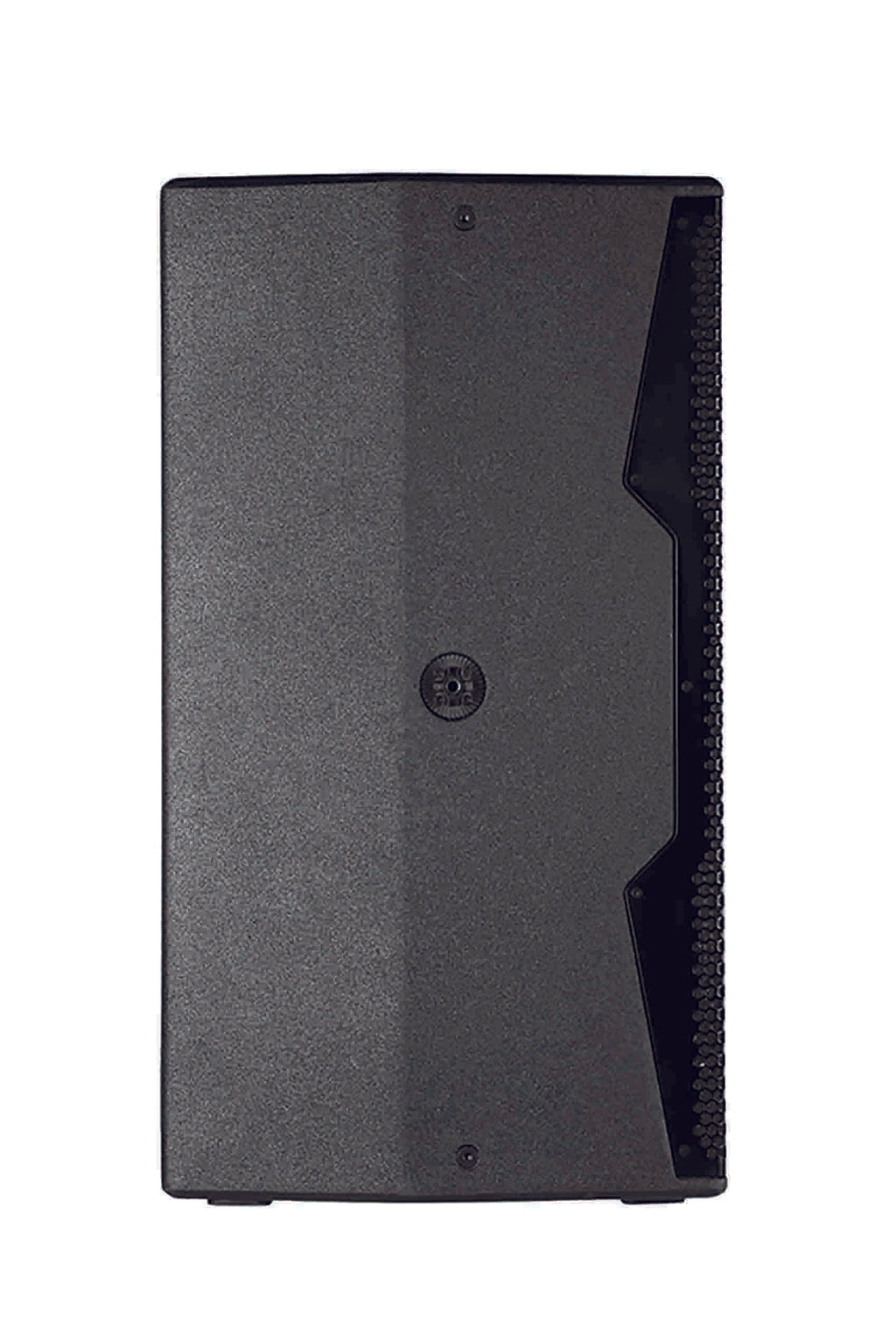

dB Technologies ViO X310, 2x10" 3-Way Active Loudspeaker - 1400W

Save 23%
DB TechnologiesSKU: H-DBTE-VIOX310

Sale price$7,299.00 Regular price$9,488.70
Sold out

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.


The dB Technologies VIO X300 series, the evolution of the VIO X premium line: powerful, tour-grade, three-way tri-amped point source speakers for public address in large venues. VIO X310 is a self-powered point source speakers delivering outstanding sound pressure levels for the size, thanks to premium components, a three-way tri-amplified design and state of the art electronics.

The 3-way tri-amped design

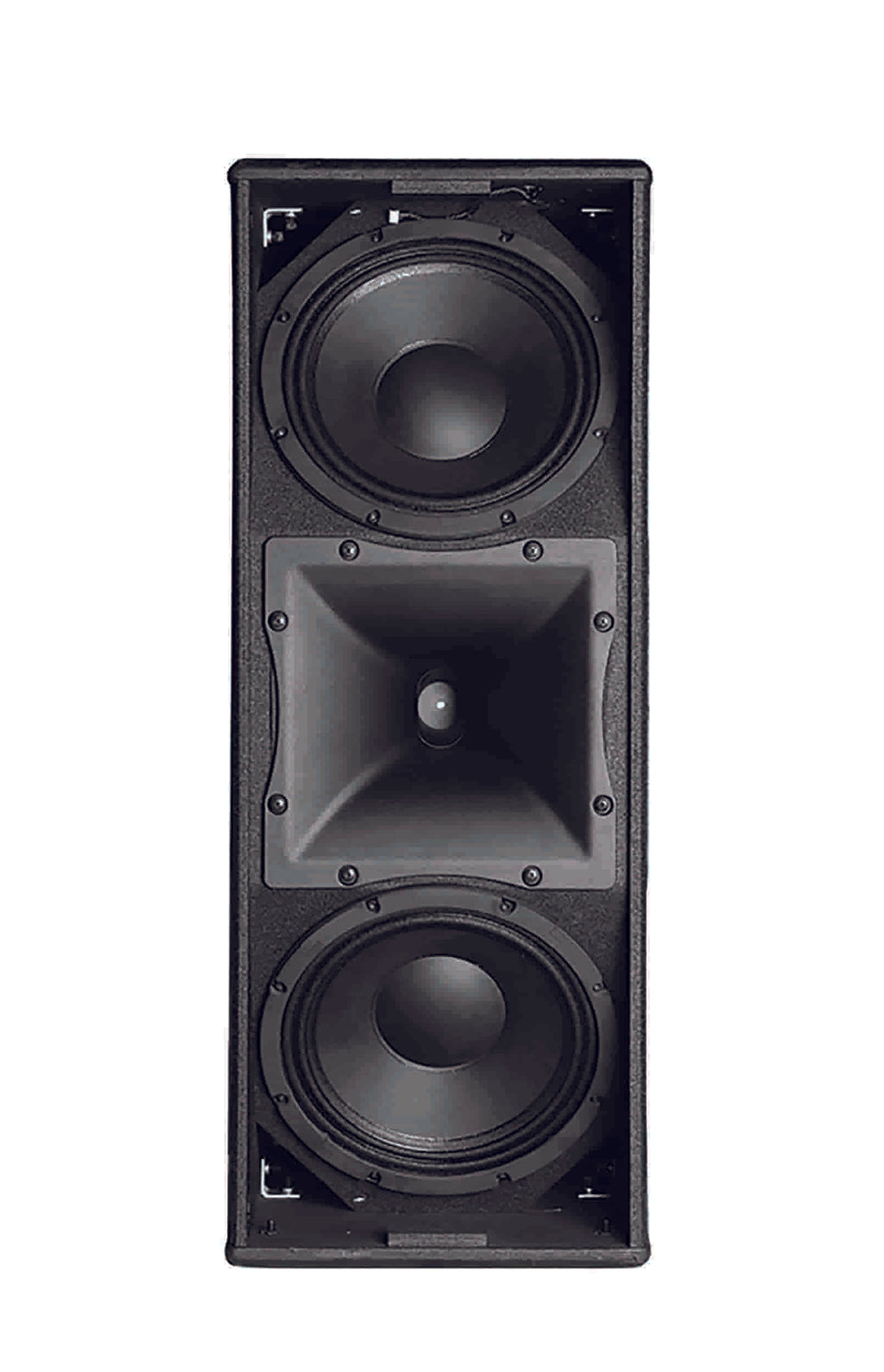

The MF-HF coaxial component mounted in both VIO X310 and VIO X315 utilize the same transducer used in the VIO L1610 line array module: it's a 4” voice coil plus 2.5” voice coil coaxial driver, an heavy-duty and high-fidelity transducer reproducing from 500Hz up. When it comes down to detailed mid-range reproduction, a compression driver diaphragm is much quicker and more accurate than a similar sized woofer. Furthermore, because of the compact dimensions, this content can be easily dispersed through a horn, just like you would do with an HF driver, for improved control over the sonic pattern. These characteristics result in an incredibly faithful and meticulous reproduction of the most critical frequency range, essential for clear-cut intelligible vocals and instrument separation in your mix. Since a great portion of the frequency content is horn loaded, not only is the sound pressure level impressive due to the acoustic loading, but also directivity control is maximized. Last but not least, the sum of all these acoustic design choices combined with cutting edge class-D amplifiers and DSP processing result in remarkable sound pressure levels, as high as 137dB. The two speakers share the same coaxial MF-HF transducer but differ in size due to the different components handling the low-end reproduction. VIO X310 is equipped with 2x 10" neodymium woofers in a dipole configuration, so the speaker benefits from all the advantages of this arrangement such as a very prominent directivity control for low-mids and a precise, fast, and extended response of the bottom end. The Coaxial mid-high frequency compression driver is mounted behind a 90° by 40° rotatable horn, and all the components are arranged around the center of this point source, resulting in a symmetrical dispersion.

Electronics and processing.

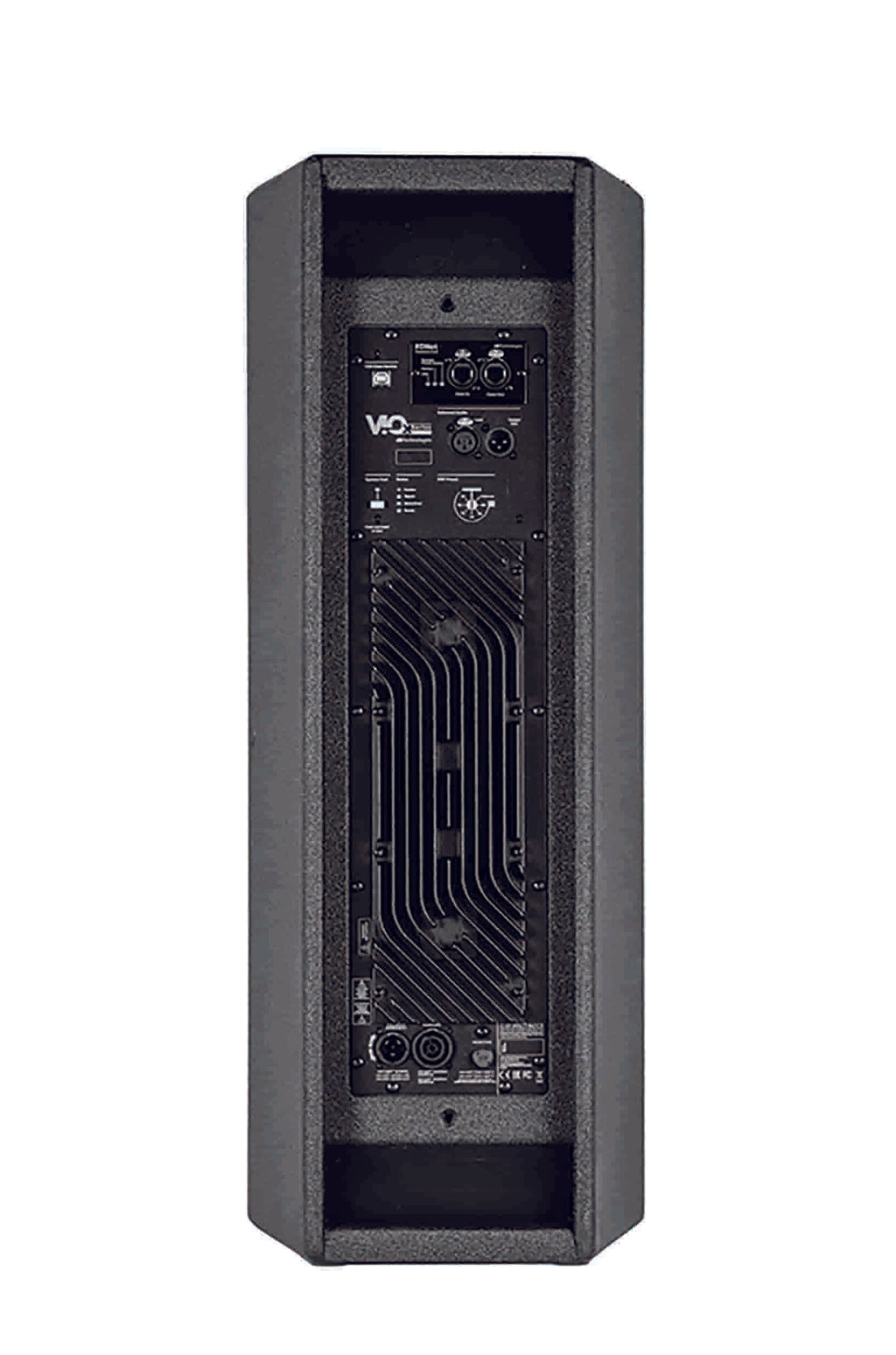

Modern Tour requirements include a very reliable design and extended use of technology to adapt the PA to any venue: VIO X300 series takes advantages of the entire range of available upgrades derived from the VIO series development in the last years. The series is equipped with a 1400W RMS Class-D Digipro G4 power amplifier, a 4-channel amplifier able to drive each component individually, with dedicated FIR filters enabled sound processing for low, mid and high frequencies. This amp has been specially designed for VIO X300 series and allows for complete networkability via Aurora Net thanks to RDNet ports. A modular card slot is ready for future I/O and remote-control upgrades.

A Power Factor Corrections enabled PSU ensures extreme adaptability to any environment while an integrated System Test checks for any possible transducer failure during the show. Also, a frontal LED light will always allow to determine the position of any remote controlled VIO X3 enclosure at any time via Aurora Net Software, the same suite used to access the speakers’ advanced processing instances, such as delay up to 560ms and up to 16 EQ filters. VIO X300 makes the most of the acoustic design, delivering an astounding SPL and allowing for full bandwidth capabilities. All of the above great advantages come with the ease of use of any other conventional active point source speaker. Thanks to specific brackets and M10 threads, VIO X300 series can be utilized as fills in larger setups, such as a full range under balcony or delay system in fixed installations. Equally VIO X300 can be deployed as a compact, complete standalone 3-way system for any audience. Lastly, VIO X300 can cover large, open air sound reinforcement setups, serving as high SPL fills, or powerful standalone PAs for the most demanding applications.

Product Specification:

Technical Data

Speaker Type 3 Way Active Loudspeaker

Acoustical data

Usable bandwidth [-10dB] 53 - 19.800 Hz

Frequency Response [-6dB] 57 - 19.200 Hz

Max SPL 138 dB

HF/MF 1x 1.4”, 4"- 2.5" v.c. Coaxial Neo

LF 2x 10”, 2.5" v.c Neo

Directivity 90° x 40° [H x V]


Amplifier 1400 W RMS Class-D Digipro G4

Cooling Convection

Power Supply Full range SMPS with PFC


Controller DSP 32 bit

AD/DA Converter 24 bit/96 kHz

Limiter Peak, RMS, Thermal

Processing FIR Linear Phase Filters

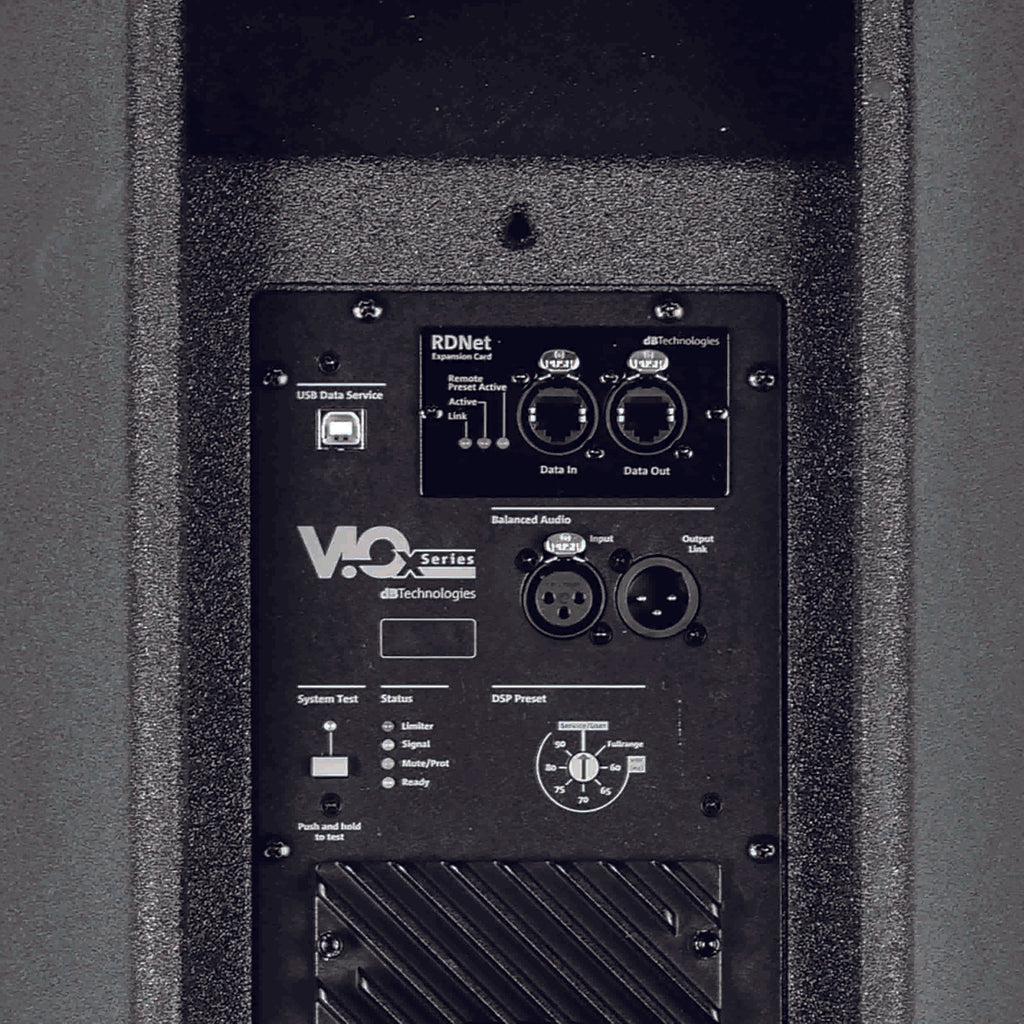

Signal Input 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)

Signal Output 1x XLR balanced, 1 x RJ45 Link (RDNet)

Power Socket 1x PowerCON TRUE1 In

1x Power CON TRUE1 Out

Controls 1x input Rotary Encoder (8x presets)

1x Ready LED

1x Mute/Prot LED

1x Signal LED

1x Limiter LED

1x Frontal LED

1x Button and 1x LED System Test


Housing Wooden Cabinet

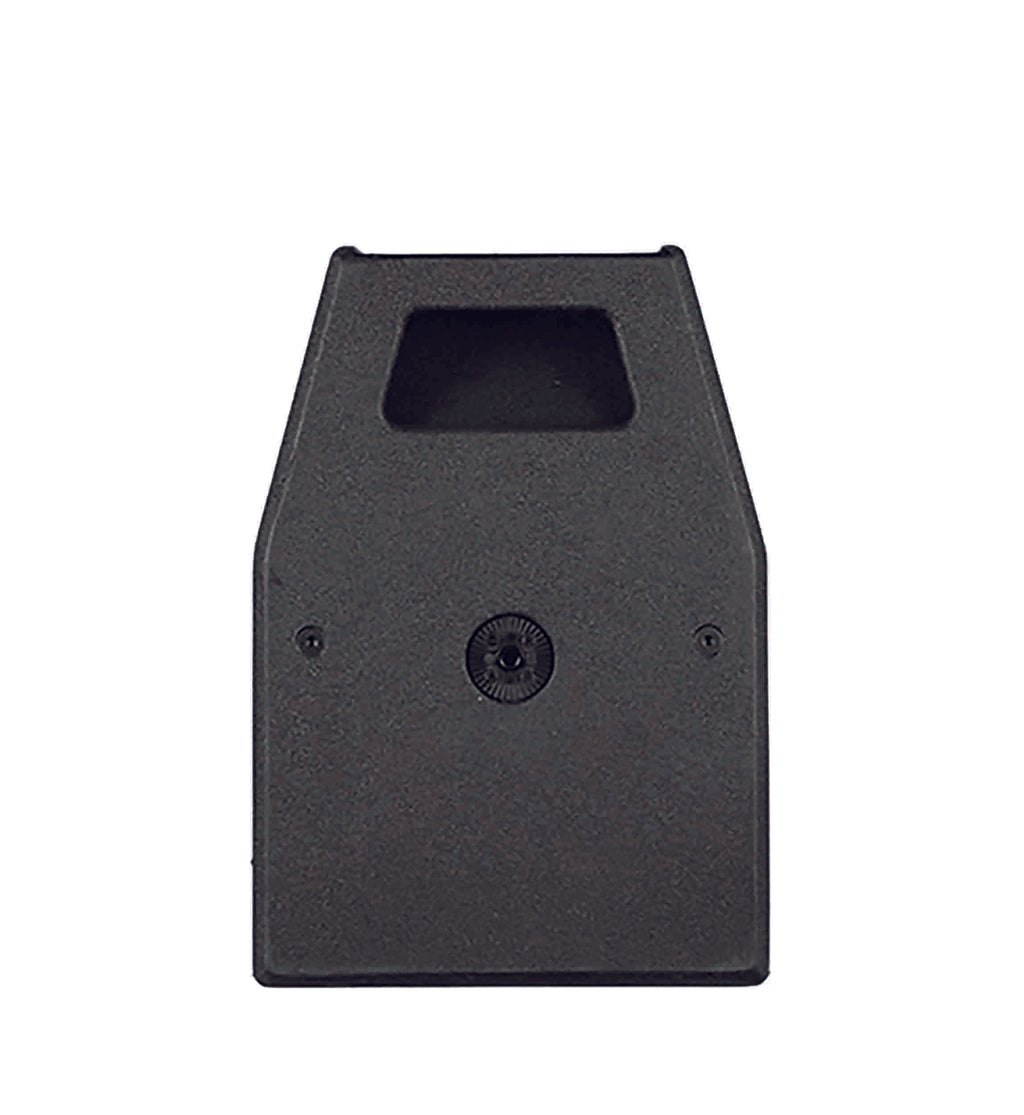

Handles 1x on top / 1x on bottom

Rigging points flyable with bracket

Width 300 mm (11.8 in)

Height 780 mm (30.7 in)

Depth 430 mm (16.9 in)

Weight 28 kg (61.5 lbs)
