Description

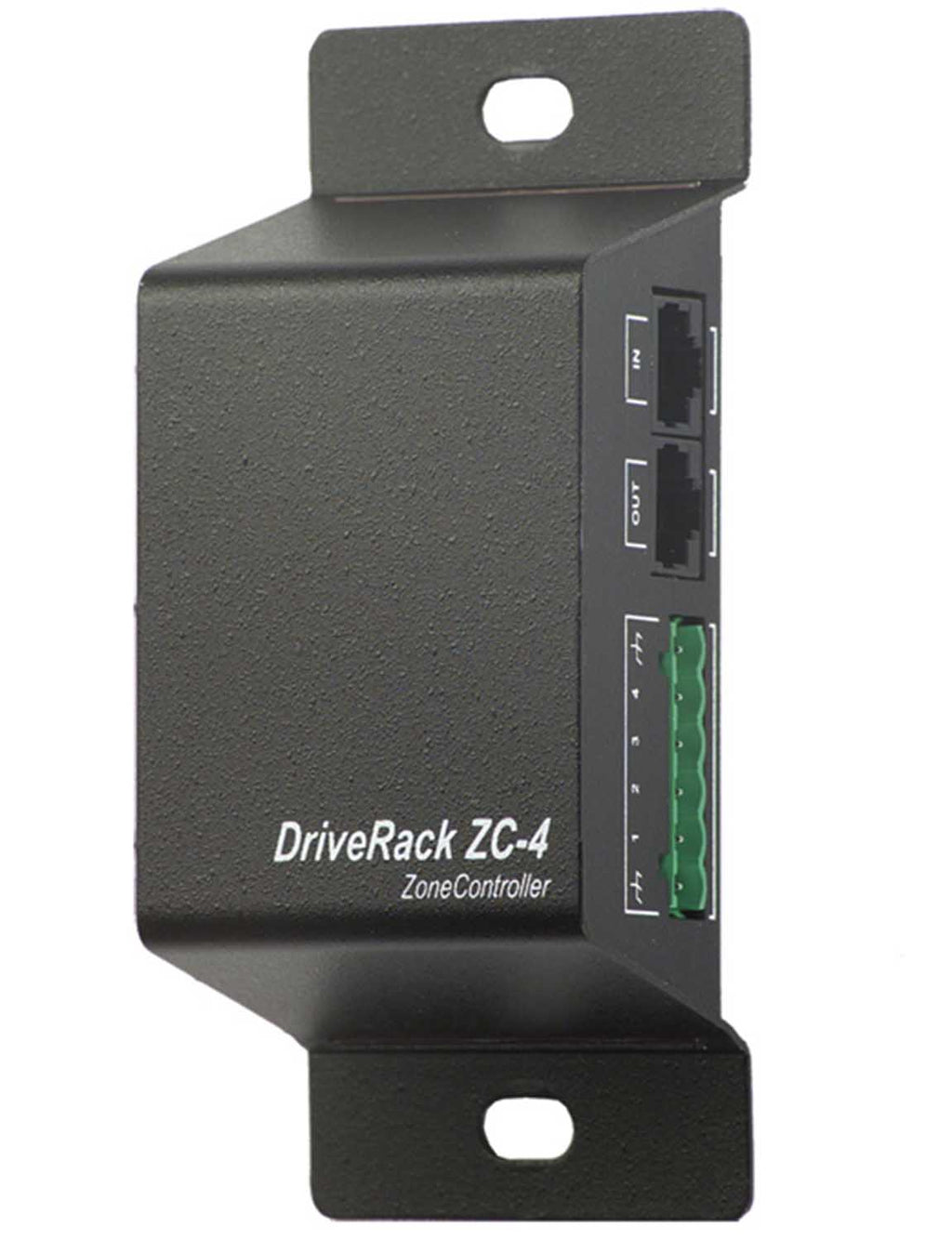

The DBX ZC-4 Wall-Mounted Zone Controller offers extended utility to the Drive Rack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
The ZC-4 from DBX provides programmable program selection for Drive Rack 260 and 220i devices via contact closures. It also provides contact closure programmable source selection, program selection, scene selection, or page assignment for ZonePro devices. The ZC-4 has two RJ-45 jacks and a 6-pin phoenix terminal for device connection.
Product Specification:
Connectors: (2) RJ-45
Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Eg,3
Zone Controllers: 600 ft. Six Zone Controllers: 300 ft
Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft
Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher
Package Weight: 0.8 lb
Box Dimensions (LxWxH): 6.8 x 5.5 x 3.4
