Description

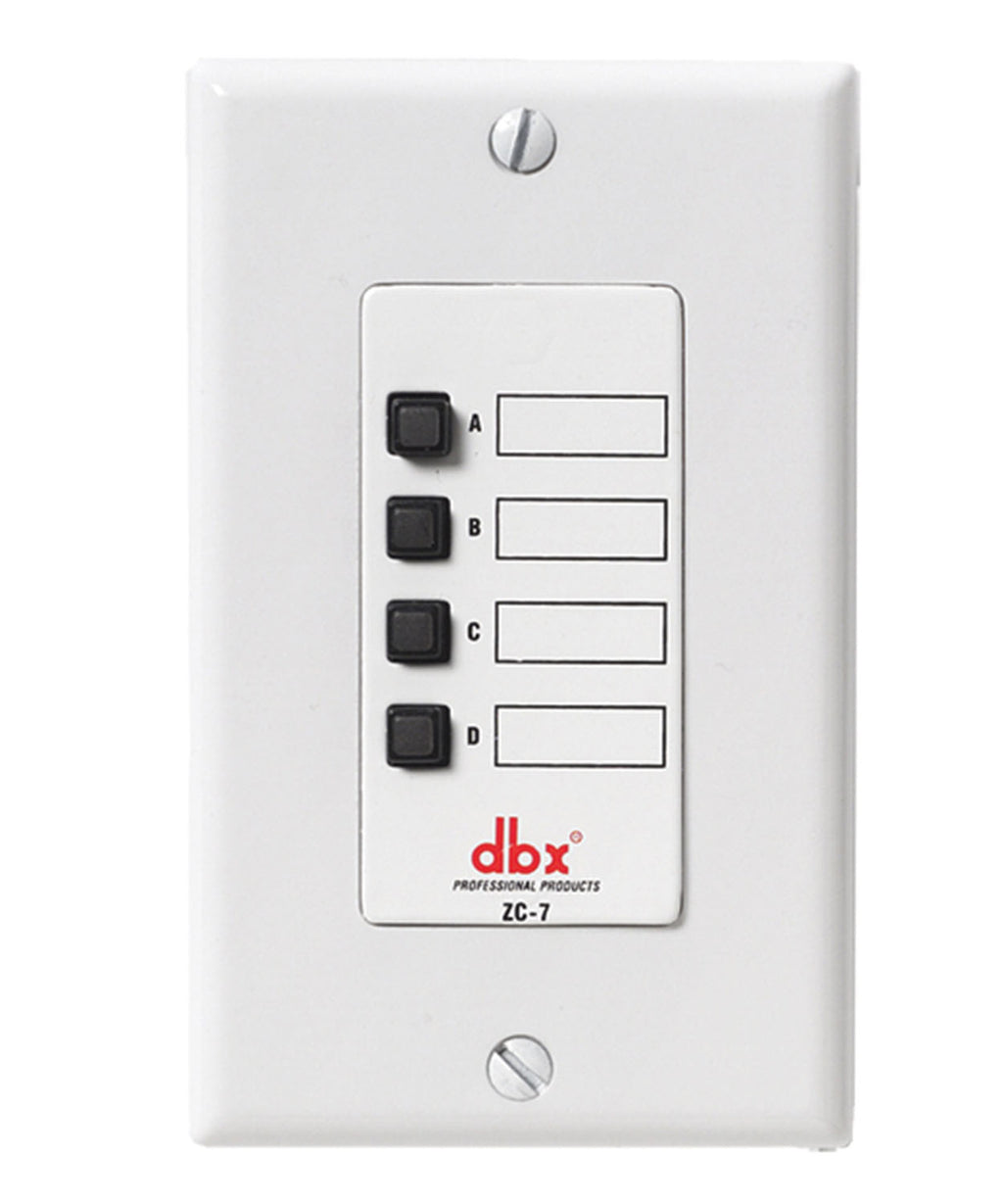

The DBX ZC-7 Wall-Mounted Zone Controller is a wall-mount programmable push-to-talk page assignment controller for use with ZonePro devices. It features four push-buttons with room on the side for labelling. The ZC-7 has two RJ-45 jacks for connection via standard CAT5 cables.
The Zone Controllers offer extended utility to the Drive Rack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.
Product Specification:
Connectors: (2) RJ-45
Series Wiring: Maximum Cable Length varies with number of Zone Controllers. For Eg-3 Controllers: 600 ft. Six Zone Controllers: 300 ft.
Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Package Weight: 0.45 lb
Box Dimensions (LxWxH): 6.9 x 5.6 x 3.5"
