Description

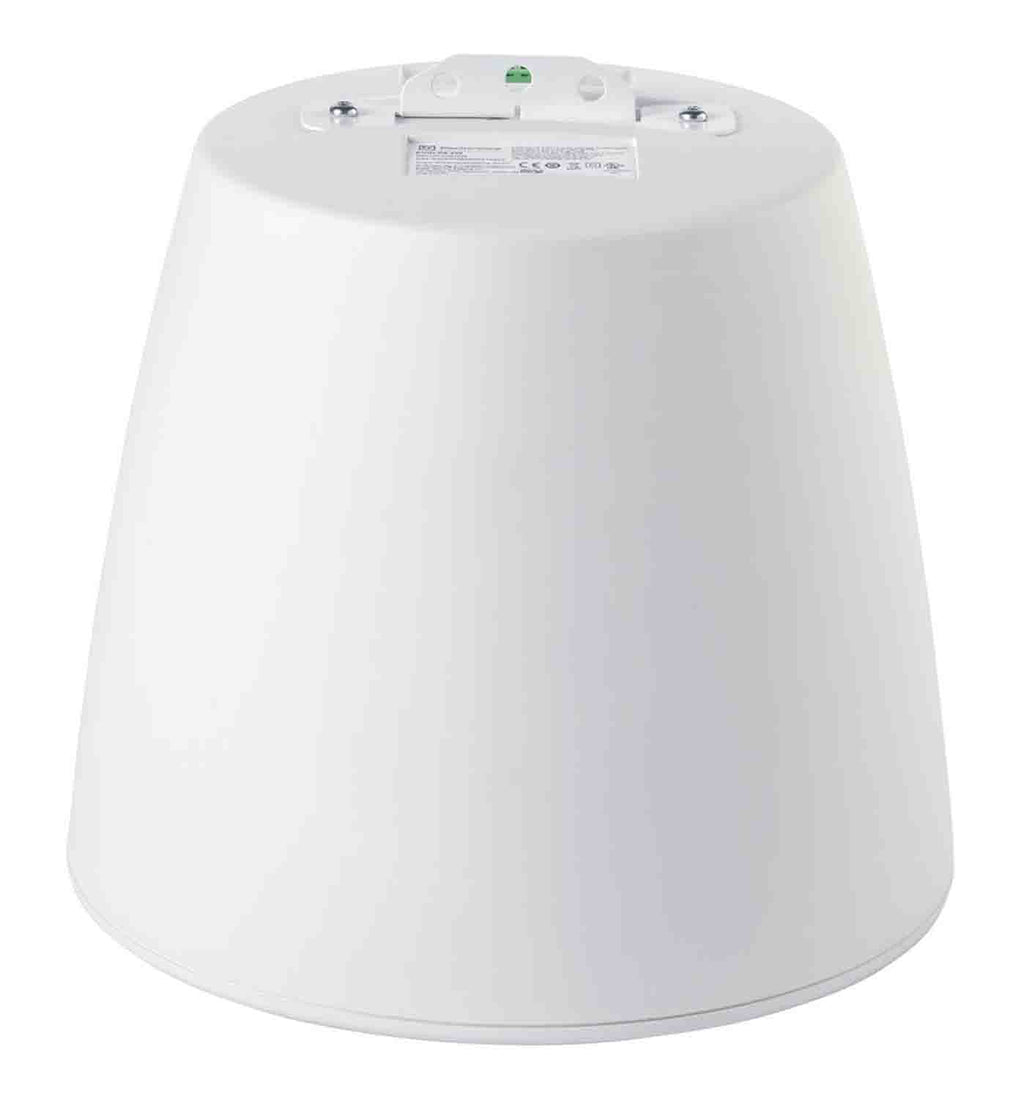

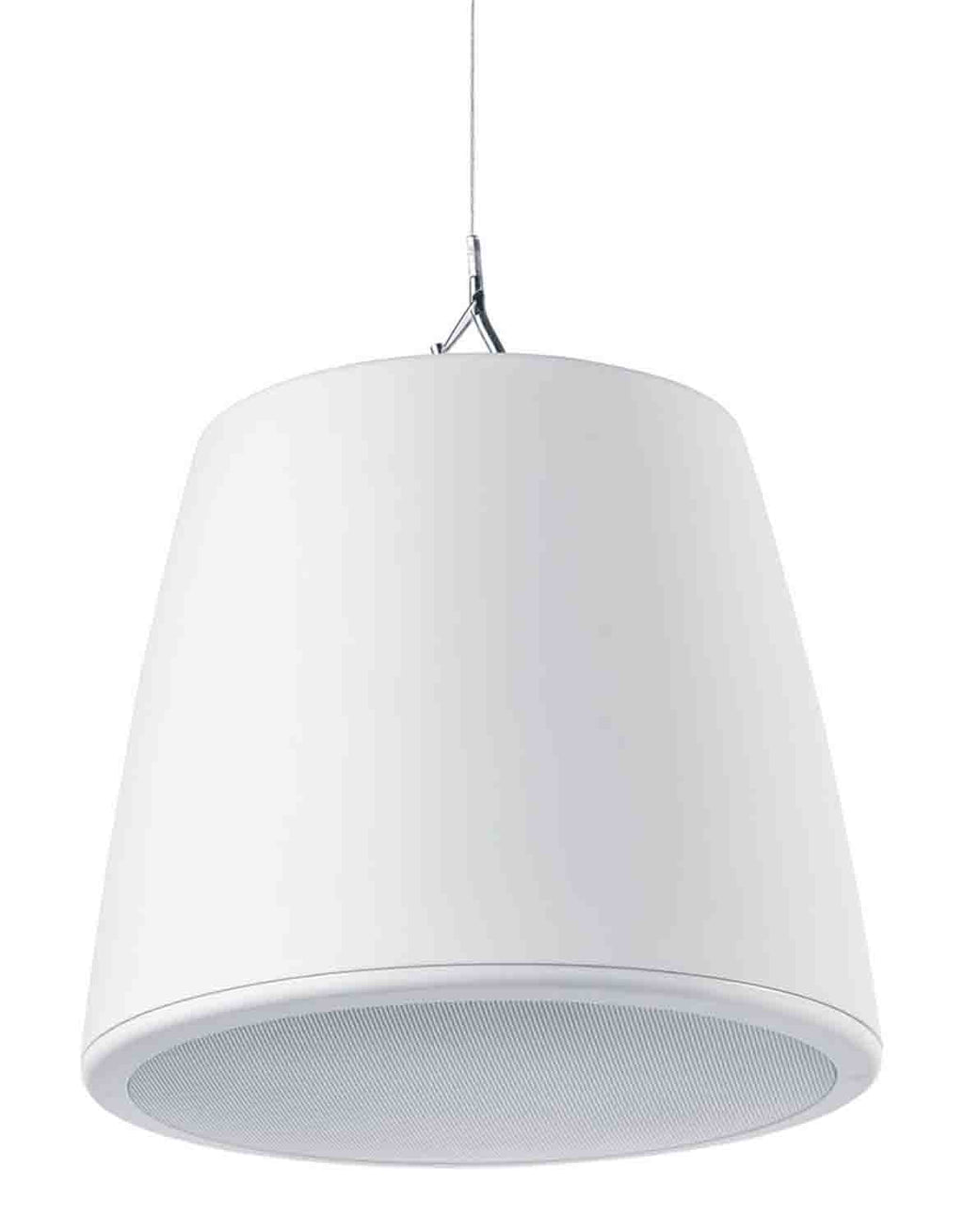

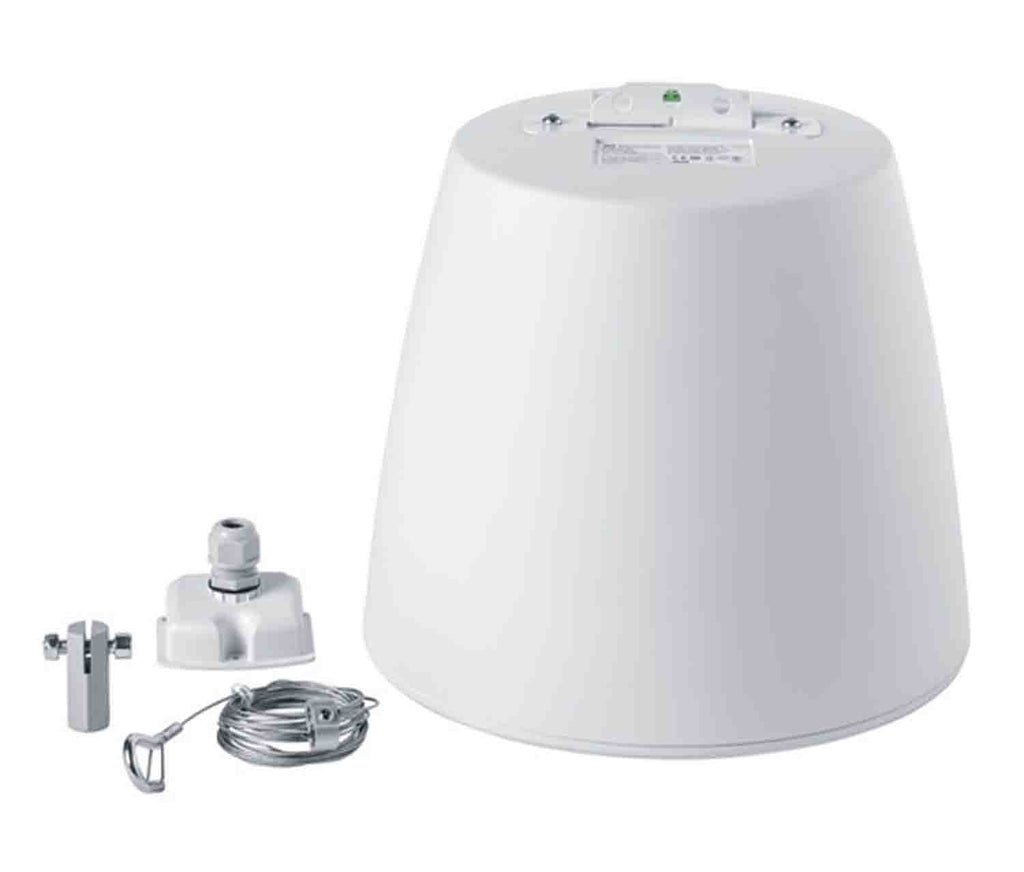

The Electro-Voice EVID-P6.2W is a 6.5" Pendant-Mount Speaker in White. The Electro-Voice EVID-P6.2 loudspeaker system is a complete two-way pendant loudspeaker. The package consists of a bezel assembly, magnetic grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a titanium dome tweeter. The EVID-P6.2 loudspeaker utilizes a 2nd order crossover network with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-P6.2 loudspeaker utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75W, 7.5W, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8-ohm bypass. Selection is via a convenient switch on the front baffle, easily accessible by removing the magnetic grille.

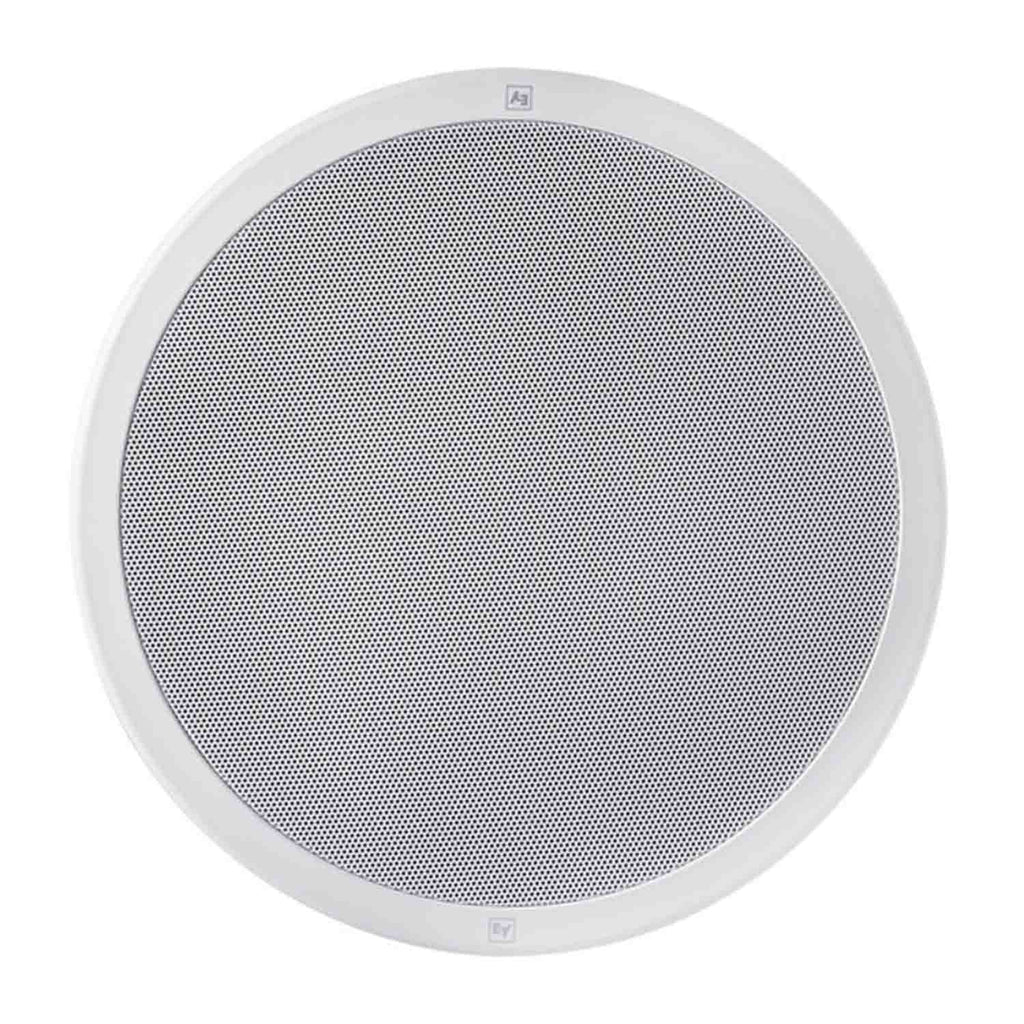

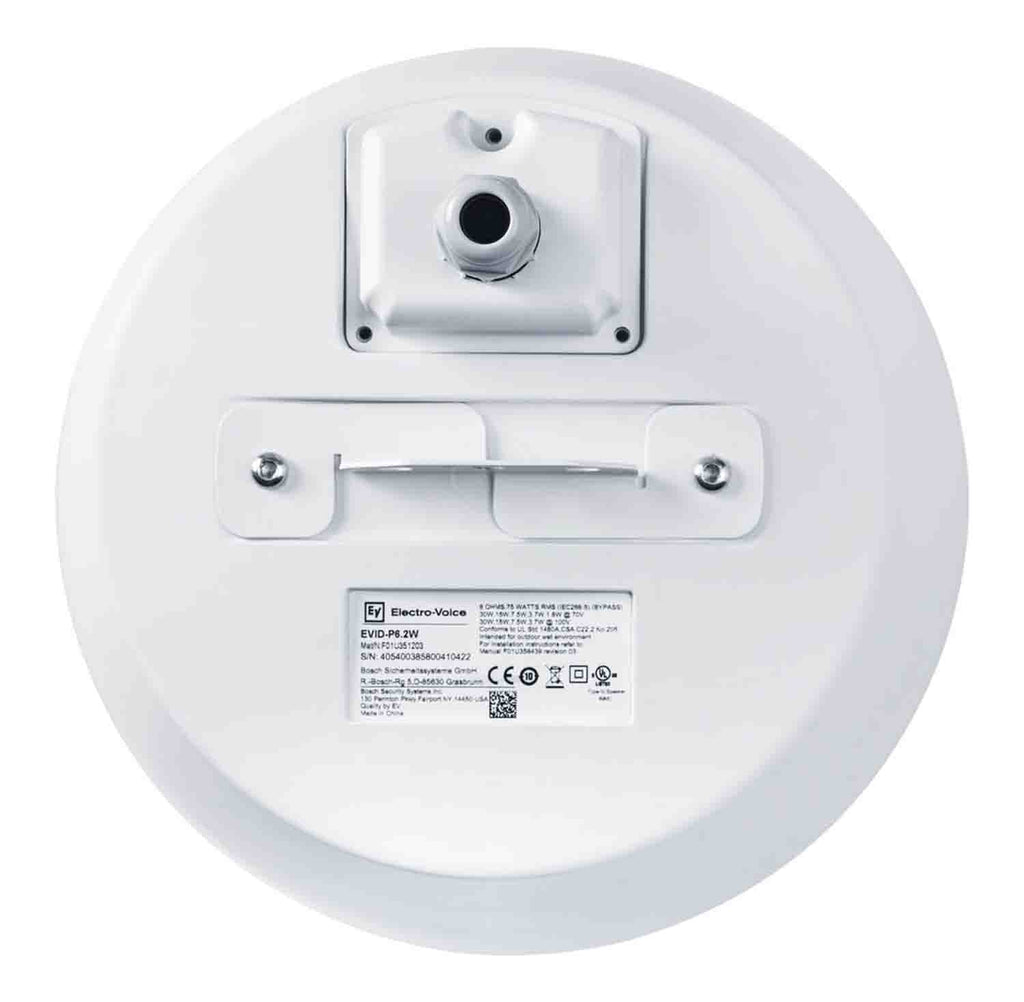

The perforated grille is finished in semi-gloss black or white powder-coated enamel. The baffle, bezel, and rear enclosure are constructed from UL 94V-0 rated ABS. The connections on the rear provide access to a 4-pin terminal block that allows direct connection to the speaker with 12-gauge wire and provides a passthrough to additional speakers. The EVID line of speakers has been designed to work together as a complete system in a wide range of different constructions. The pendant and ceiling loudspeakers provide wide dispersion, high efficiency, high-maximum output, ease of installation, and wide range reproduction of music or voice.
Product Specifications:
Frequency Response: 60 Hz to 20 kHz
Sensitivity: 87 dB (SPL 1 W/1 m)
Coverage: 115° Conical
Power Handling: 75 W at 8 Ohms (with Overload Protection)
Rated Impedance: 8 Ohms
High Pass Filter: 60 Hz
Configuration Options: Input Configuration: 8 Ohms, 70 V/100 V
Power Taps: 70 V/100 V Power Taps: 1.8 (70 V Only), 3.7, 7.5, 15, 30 W
Approvals: CE, UL 1480A, CSA 22.2
Cabinet Construction: UL94V-0 Rated Enclosure and Baffle
Grille: Powder-Coated Steel
Color: White
