Description

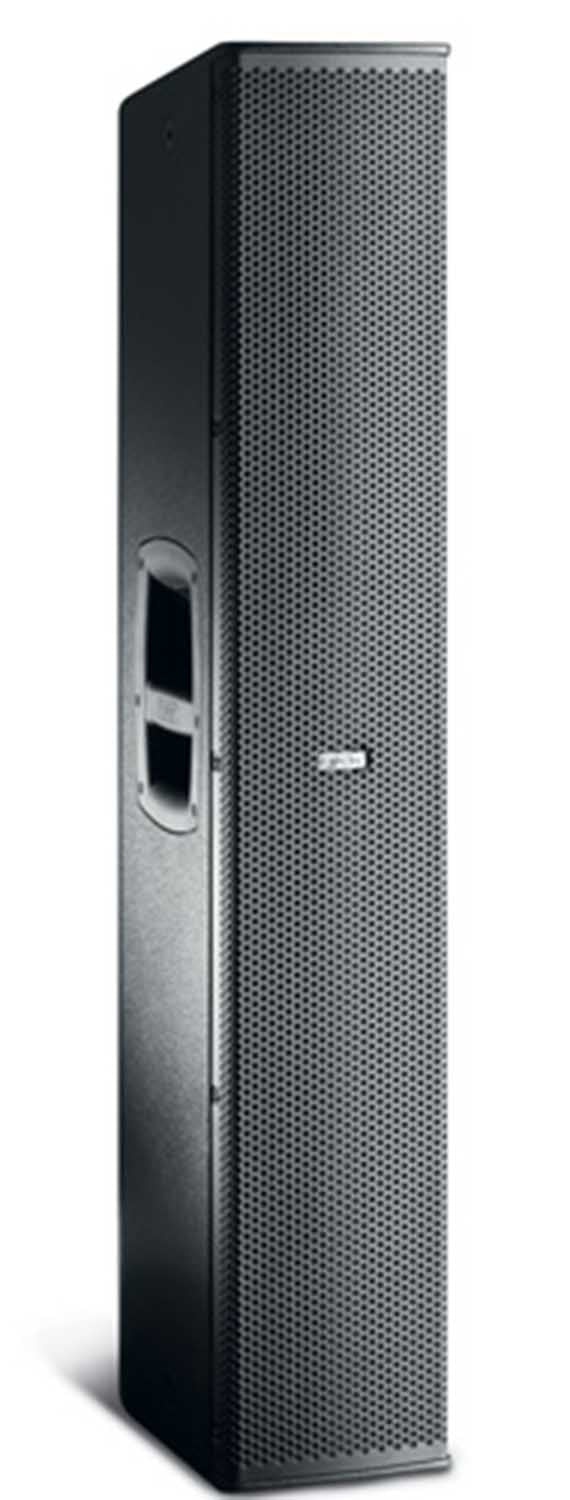

The FBT CLA 406.2 A Active Column Line Array demand for an easy to set-up, sonically superior portable sound reinforcement system has prompted FBT to introduce a new version of the renowned VERTUS CLA460A active column array. Boasting the same impeccable audio performance as the original but with new features designed to aid mobile users, the new VERTUS CLA 406.2A and VERTUS CLA 206A active columns are receiving their official launch at Frankfurt Pro Light + Sound 2018.
The launch of the new VERTUS columns follows a steep rise in the use of the VERTUS CLA406A for mobile sound reinforcement applications – a trend spurred on by the column’s depth of versatility and performance. Now making life easier for those on the road, both the CLA406.2A and more compact CLA206A have been designed with portability in mind, from the rugged hardware to new accessories which make set-up both extremely quick and highly intuitive.
Included within the extended accessories range is a fly bar for easy system suspension (users simply add a clamp for tubular coupling), plus a foldable floor stand offering a choice of angles from 0-10, and a bracket for coupling two enclosures at angles of 0- 20. The accessories connect to the cabinets using supplied M10 screws for fixed installation, or via quick release pins (optional) for mobile use. In terms of hardware, the enclosures now offer four lateral inserts which can accept both the quick release pins and M10 screws, while M6 rear suspension points have been added for additional installation flexibility.
The FBTVERTUS CLA406A two-way bi-amplified speaker system incorporates 4 x 6,5” custom woofer with 1,5” voice coil and 1 x 1,4" B&C HF neodymium driver with 2,5 voice coils. The internal Class D amplifier module constructed in die-cast aluminum delivers 600W for LF, 300W for HF and DSP processor with 8 equalization presets provide unexpected dynamics in a system of these dimensions. The FBT VERTUS CLA 406A shall meet the following performance criteria: frequency response from 65Hz to 20kHz, maximum SPL of 133dB. The FBT VERTUS CLA 406A feature a 0,47" birch plywood with internal metal bracing and the front shall be protected by a heavy-duty metal grille. The control panel provides Level control, HF level, Preset, HPfilter, Gnd lift, 3 status led (on, peak, prt/limit ), XLR input & link and Neutrik Powercon Cable Duplex for power supply. Via optional hardware it is possible to couple two systems with angles of 0, 10, 20 and additional accessories are available for system suspension. It can be integrated elegantly and with minimal intrusion into any environment; it is ideal for live applications, assisted by sub CLA118SA, which for fixed installations.
Product Specification:
System Type: 2 way bi- biamplified
Built in Amplifiers LF/LH: max.: 600W RMS / 300W RMS/max. peak.: 1200W / 600W
Frequency Response: 65Hz - 20kHz
Input Impedance: 22kOhm
Maximum SPL: 133dB
Dispersion: 100° H x 25° V
Crossover Frequency: 1.2 kHz
AC Power Requirement: 640 VA
Low Frequency Woofer: 4 x 6,5" - 1,5" coil
High Frequency Woofer: 1 x 1,4" - 2,5" coil
Input Connectors: XLR with loop
Net Dimensions: 7,48" x 44,88" x 11,41"
Shipping Dimensions: 48,22" x 16,53" x 12,40"
Net Weight: 61,72 lbs / 28 kg
Shipping Weight: 69,44 lbs / 31,5 kg
Enclosure Material: 0,47" birch plywood
Power Cord: 16,40 ft / 5 mt
