Description

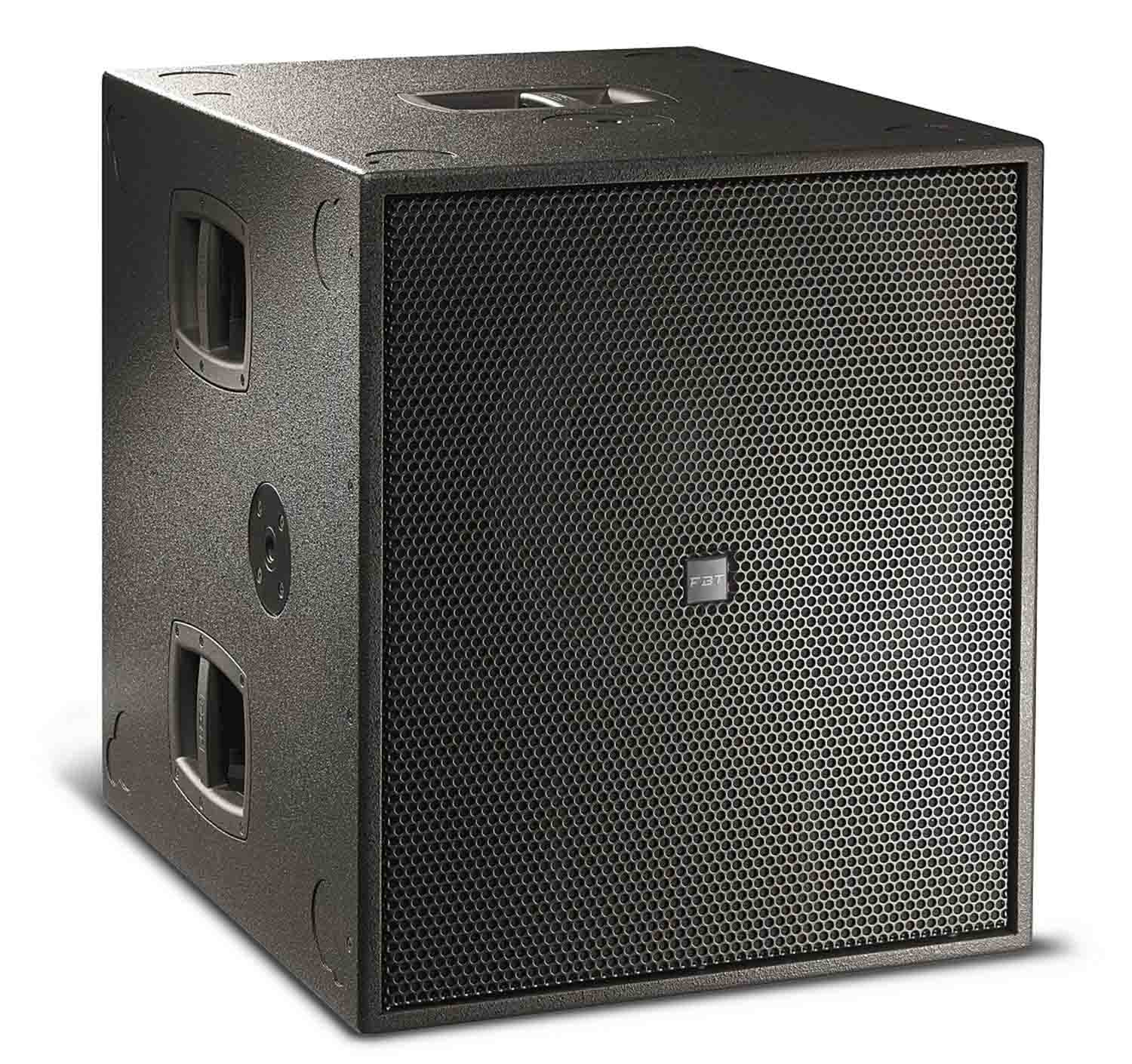

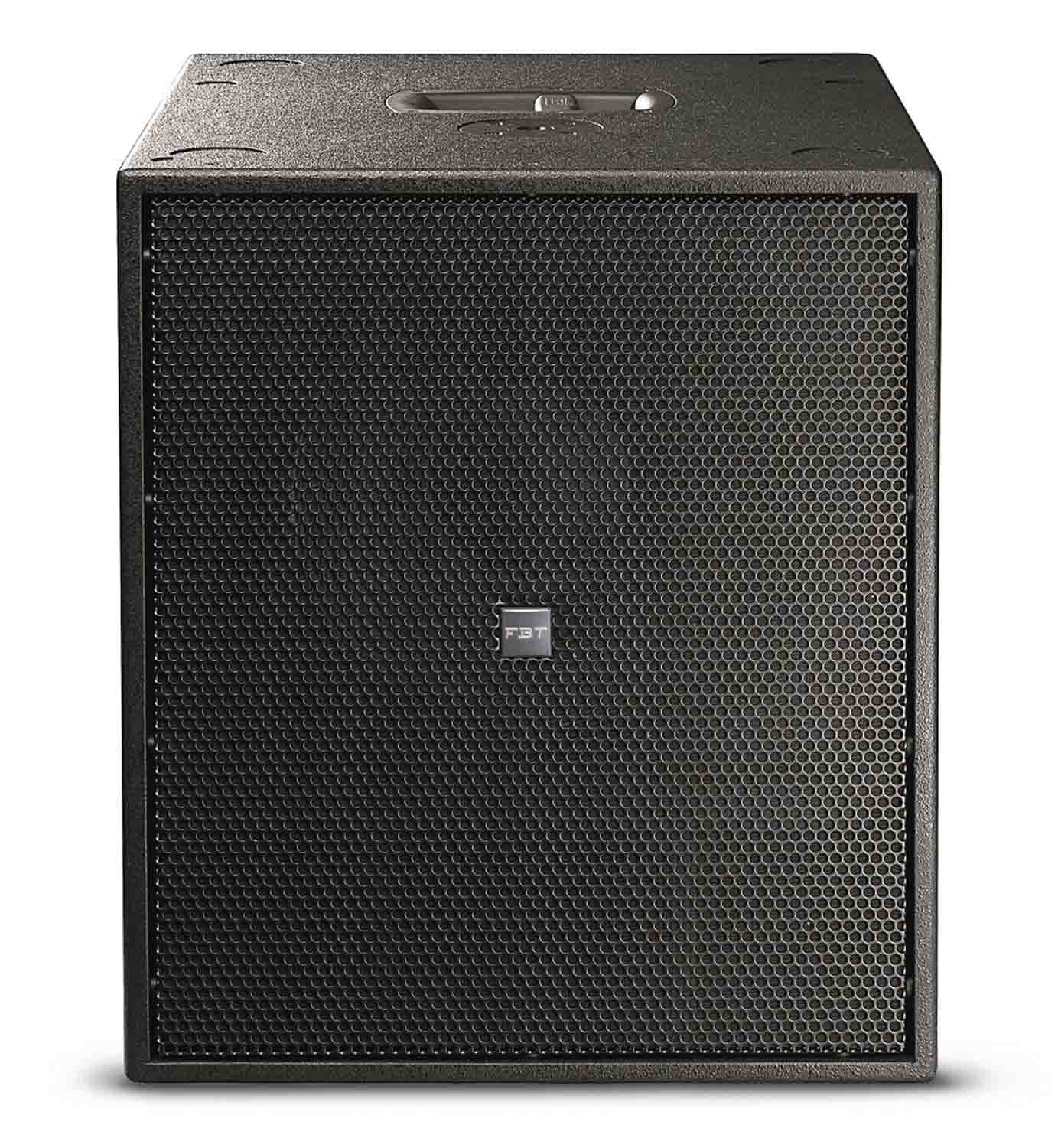

The FBT VHA 118 SA Processed Active Subwoofer is an active subwoofer in bass reflex configuration equipped with a Class D amplifier capable of delivering a power of 2500W and with a 18" B&C woofer with 4" voice coil. The system achieves considerable sound pressure level for long periods of time, guaranteeing extremely clean, precise sound reproduction with reduced noise level thanks to a wide laminar air flow chord. FBT HORIZON VHA 118SA offers the possibility to choose between 6 completely rewritten pre-defined algorithms, which also include "Infra" and cardioid applications.
The controls and connections panel has: Neutrik powercon connector for power supply with input and output, balanced input/output XLR connectors, delay control, 6 preset selector, signal level control, "VHA 112SA" switch that allows a perfect alignment in phase when in the configuration there is also the subwoofer VHA 112SA, three status leds (protection/limiter, peak and ON).

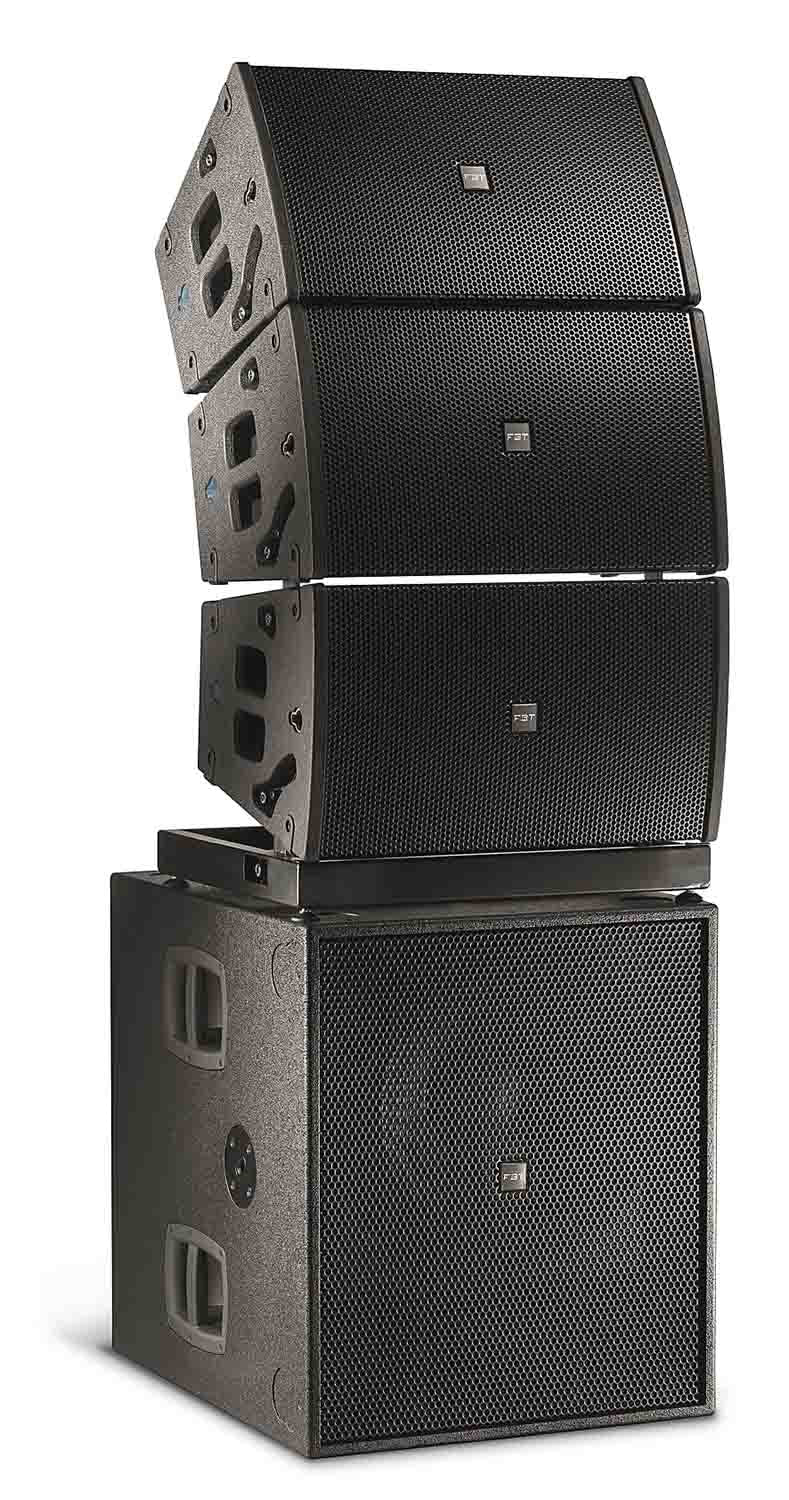

The construction materials of FBT HORIZON VHA118SAmeet the highest professional standards to ensure maximum reliability; the cabinet is in birch plywood of 0,70" (18mm) with anti-scratch varnish, has six aluminum handles, predisposition for 4 wheels of 3,93" (100mm), two M20 stand sockets for horizontal or vertical use of the system and 4 support points set up to accommodate accessories in ground-stack configuration in conjunction with VHA 406A and VHA 112SA models. Ideal for extending and reinforcing low frequencies in combination with the VHA line array system.
Product Specification:
Low Frequency Woofer: 1 x 18" - 4" coil
Input Connectors: XLR with loop
Net Dimensions (W, H, D): 23,85" x 27,55" x 28,34"
Shipping Dimensions (W, H, D): 27,55" x 35,31" x 31,49"
Net Weight: 143 lbs / 65 kg
Shipping Weight: 165 lbs / 75 kg
Enclosure Material: 0,70" birch plywood
Power Cord: 16,40 ft / 5 mt
System Type: 1way reflex active subwoofer
Built-in Amplifiers: max.: 2500W RMS/max. peak.: 5000W
Frequency Response: 30Hz - preset dependent
Input Impedance: 22kOhm
Maximum SPL: 137/143dB half space
Dispersion: omnidirectional
Crossover Frequency: preset dependant
AC Power Requirement: 650 W (1/4 max power)
