Description

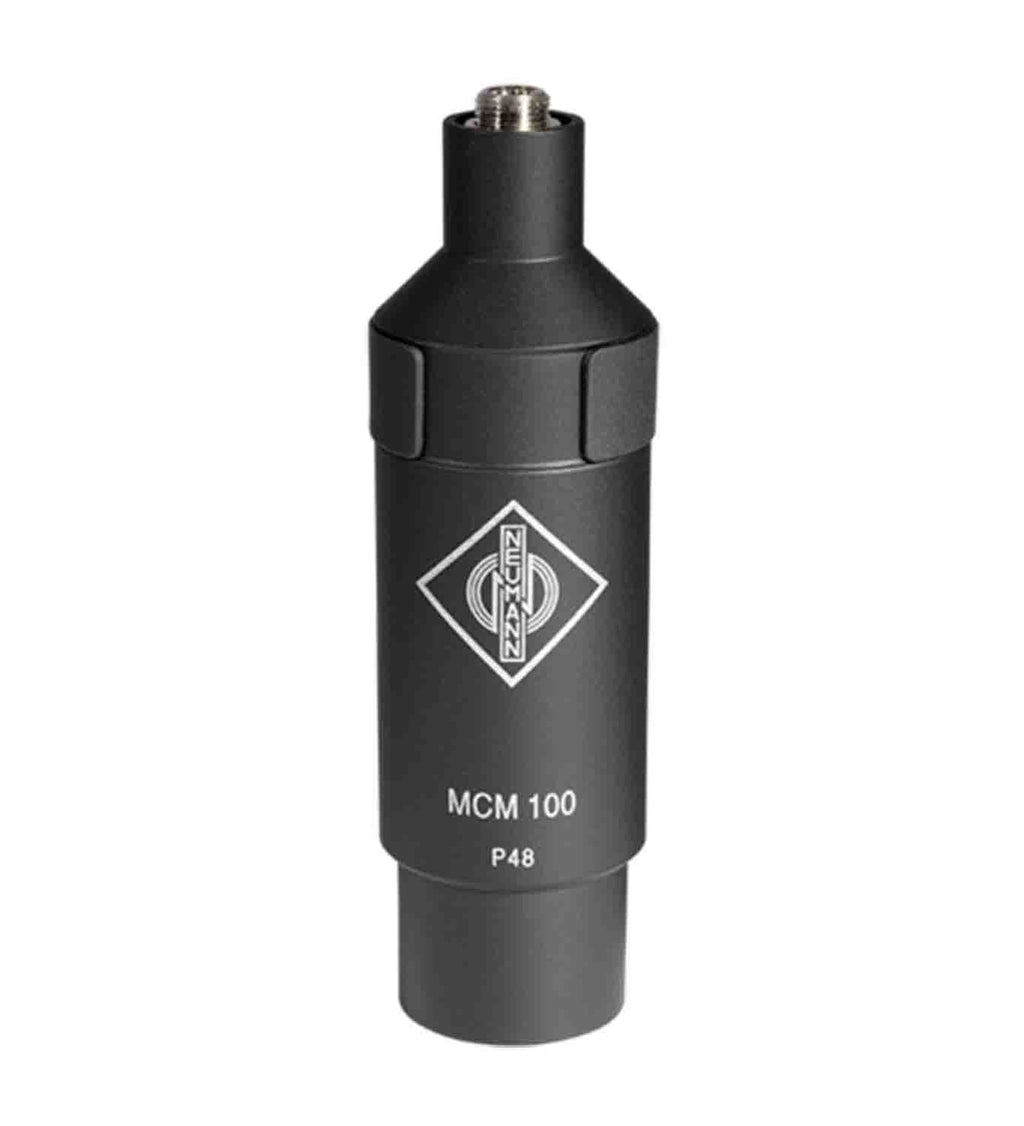

The Neumann MCM 100 XLR Output Stage Module for MCM Microphone System is an in-line output stage module for the KK 14 capsule. It enables you to run the capsule on +48V phantom power from a traditional mic preamp when plugging the mic into a mixing board via a balanced XLR cable. The MCM 100 is equipped with a 3.5mm TRS female input connector and a 3-pin XLR male output connector. The AC 31 cable (available separately) is required to connect the KK 14 capsule to the output stage module.
Product Specifications
Connector 1: Input: 1/8" / 3.5 mm TRS Female, Locking
Connector 2: Output: 3-Pin XLR Female
Rated Impedance: 50 Ohms
Rated Load Impedance: 1000 Ohms
Power Supply: 48 V, ±4 V (P48, IEC 61938), Phantom Power
Current Consumption: 3.5 mA
Package Weight: 1 lbs
Box Dimensions (LxWxH): 5 x 4 x 2"
