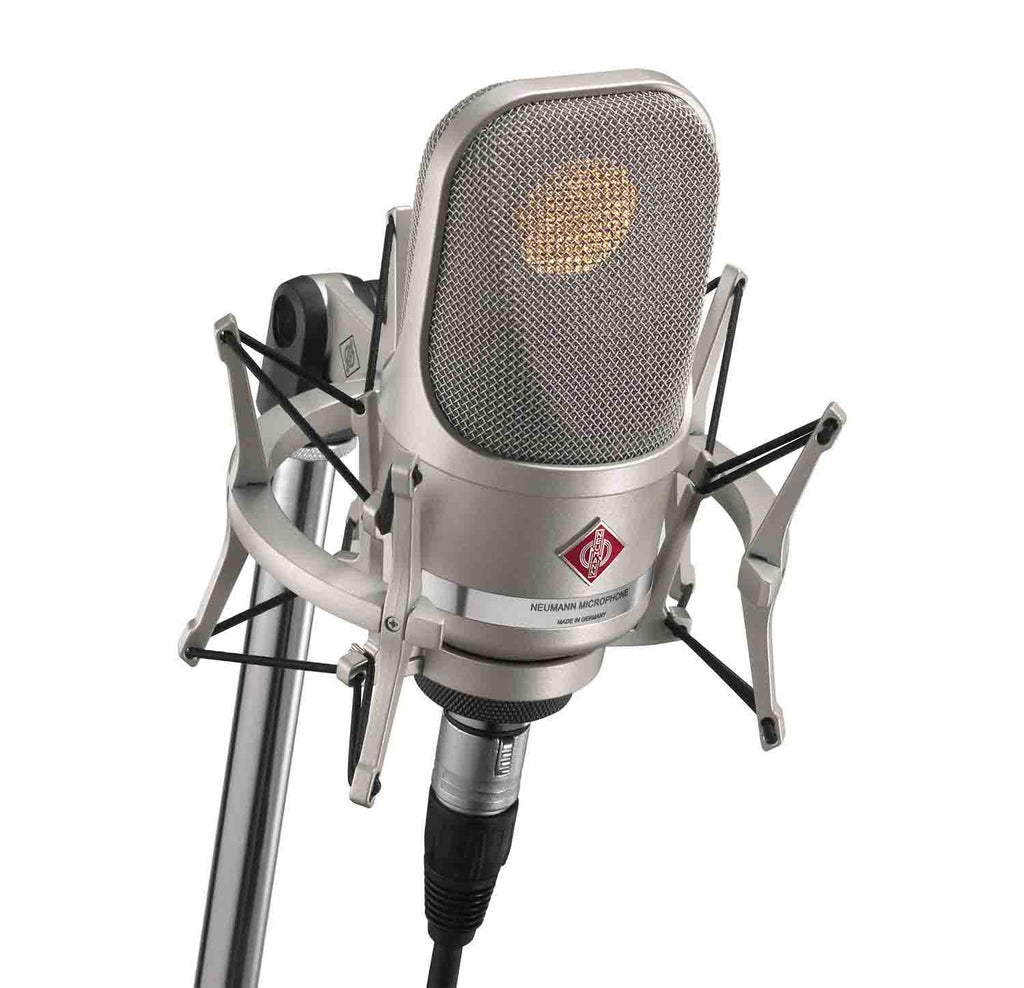

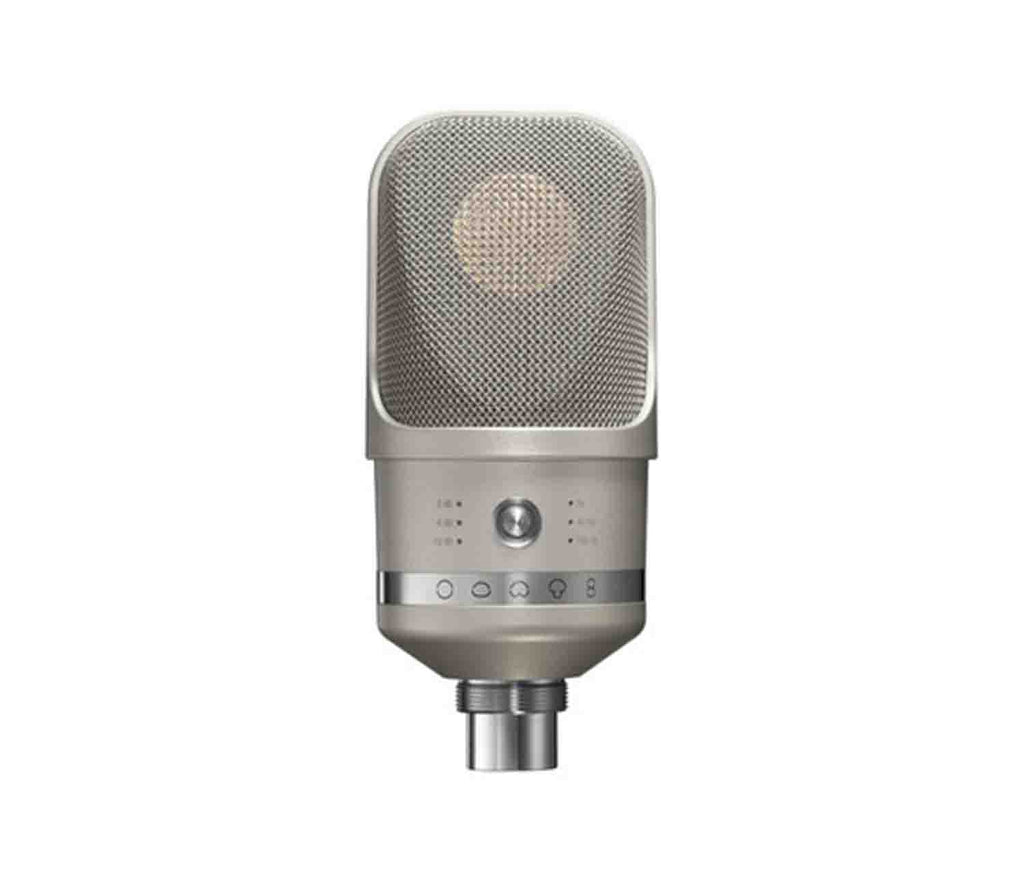

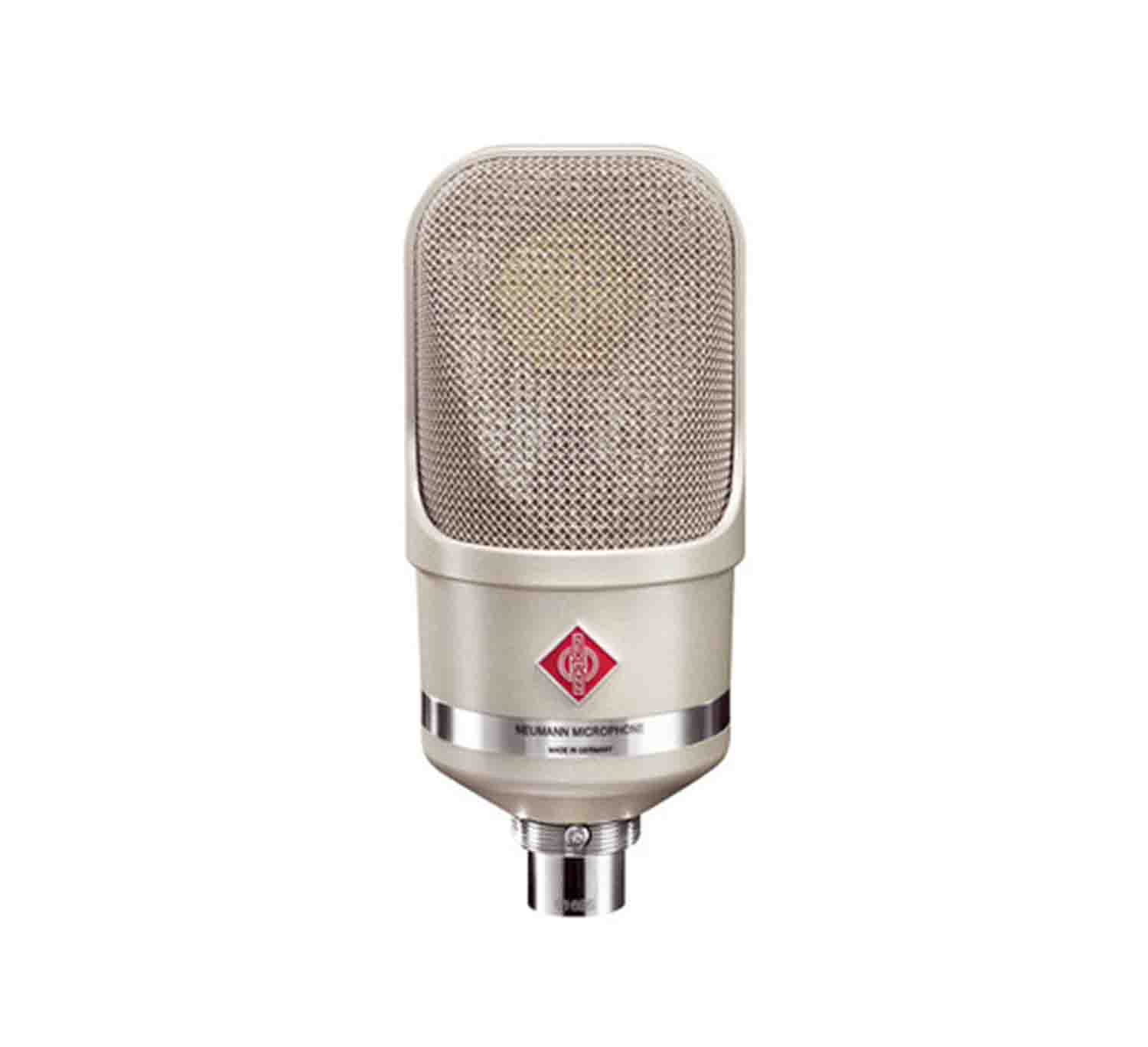

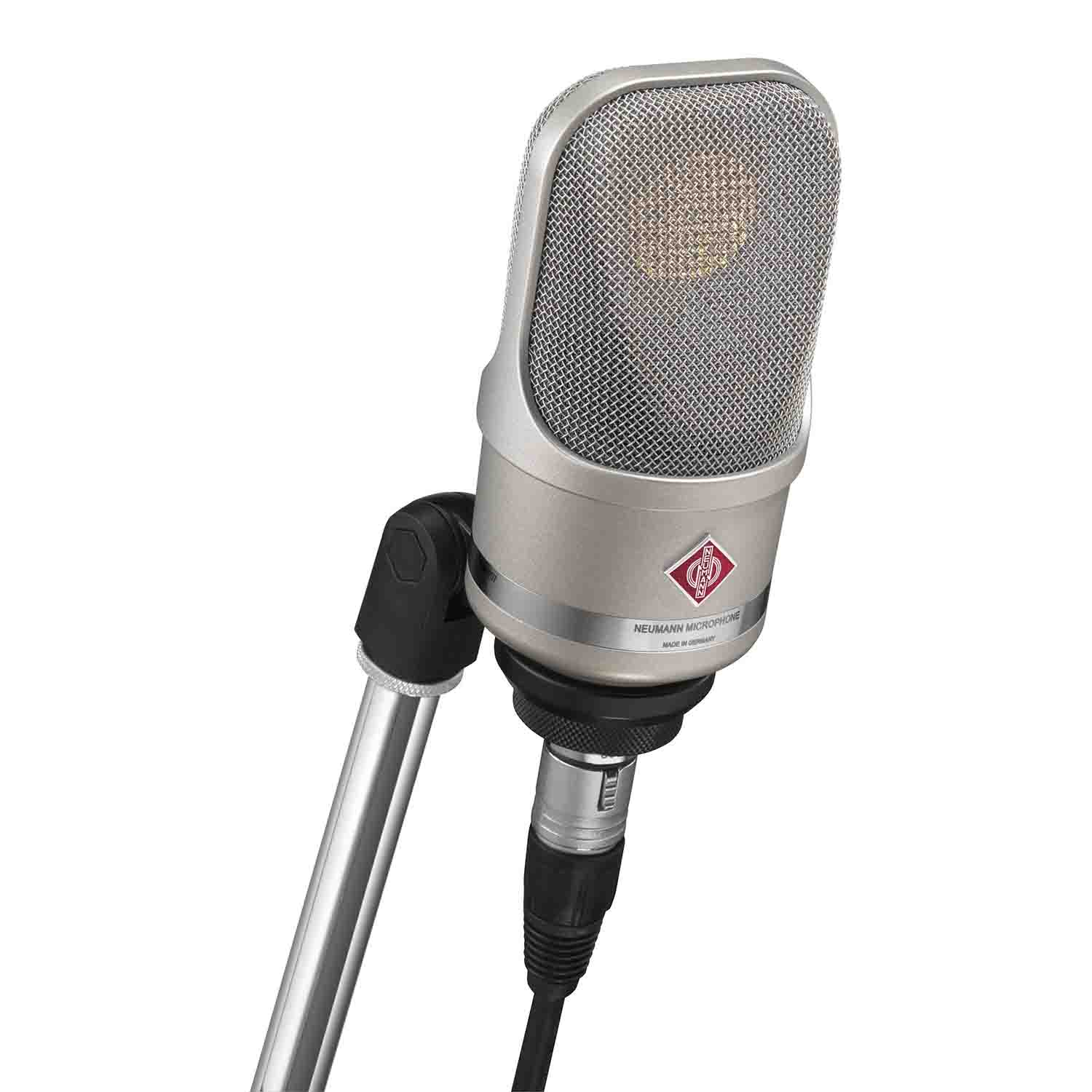

Neumann TLM 107 Large-Diaphragm Multipattern Condenser Microphone - Nickel

The Neumann TLM 107 Large-Diaphragm Multipattern Condenser Microphone - Nickel is a reference class microphone for vocals and instruments with breathtaking realism. Five polar patterns plus variable pad and low-cut settings make the TLM 107 exceptionally flexible. And with a dynamic range of 131 dB the TLM 107 captures anything from a slight whisper to massive drums without unwanted noise or distortion.

21st Century Microphone

The TLM 107 offers true high definition sound quality at an affordable price. Neumann developed this microphone for project and home studio users who prefer to capture an uncolored sound image, true to the original source, in order to retain all options for post processing and mixing. The TLM 107, in turn, offers all the flexibility required to make a high-quality recording of any source in any situation.

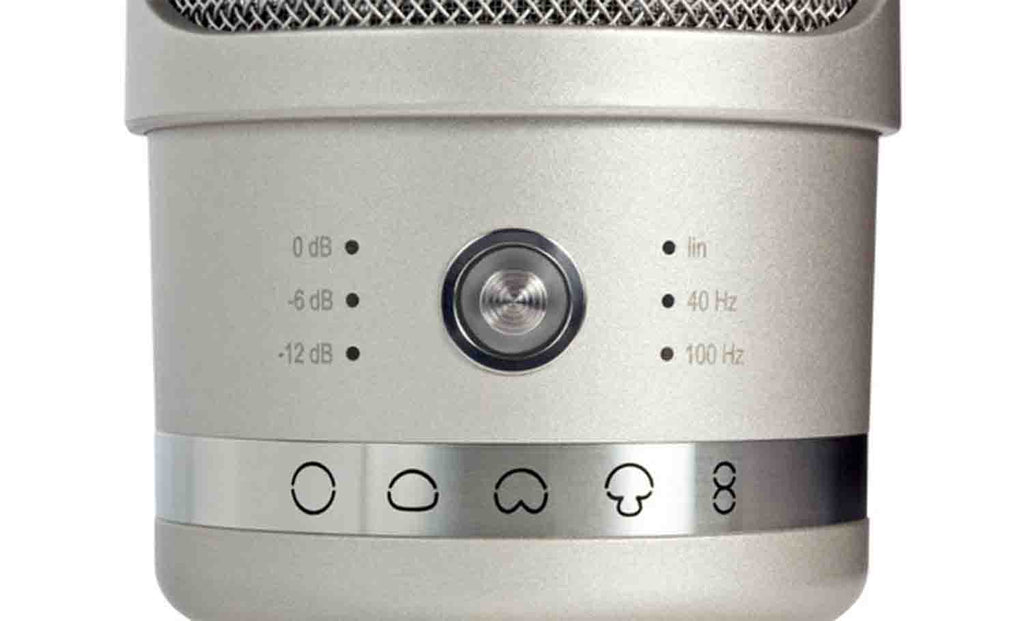

Neumann decided to give the TLM 107 a modern look, although the large tapered head grille does echo the iconic design of such Neumann classics as the M 49 tube microphone. The stylish navigation toggle on the back of the microphone is a joy to use as it controls all settings in one place: pad (0/–6 /–12 dB), low cut (lin/40 Hz/100 Hz) and polar patterns (omni/wide cardioid/-cardioid/ hyper cardioid/¬figure-8).

The newly developed dual diaphragm condenser capsule is specially designed for the TLM 107 to offer outstanding transient response and an extended, carefully balanced frequency response for all polar patterns. This means, you can adjust the directional pattern according to the recording situation without affecting the overall sound balance. Which is quite extraordinary for a large diaphragm microphone! And, needless to say, the TLM 107 offers true Neumann quality in any setting.

Neumann Engineering

As a member of our TLM series, the TLM 107 operates with a transformer less circuit ensuring an open, transparent sound and a full, unrestricted bass transmission, even at highest levels. Two low cut settings are available to reduce rumble and compensate for the proximity effect in close miking situations. Even without engaging the two pad settings, the TLM 107 can handle enormous sound pressure levels of up to 141 dB without clipping (up to 153 dB with preattention). The TLM 107 has a self-noise of only 10 dB-A, which is much lower than the ambient noise in a very quiet recording studio. In other words, the TLM 107 will add neither noise nor unwanted distortion to your recordings.

The TLM 107 is primarily designed for small studios but due to its no-compromise sound quality can also be used for high-end professional applications including broadcast and classical recordings. Not only is the TLM 107 an extremely versatile workhorse microphone for a wide range of instruments, such as acoustic and electric guitar, piano, upright bass, drums and percussion; it is also an outstanding vocal microphone.

Product Specifications

Form Factor: Large Diaphragm Mic / Stand/Boom Mount

Intended Sound Sources: Vocals, Instrument

Sound Field: Mono

Operating Principle: Pressure Gradient

Capsule: Condenser

Tone Adjustment: None

Gain Adjustment: None

Windscreen: None

Frequency Range: 20 Hz to 20 kHz

Impedance: 50 Ohms

Load Impedance: 1000 Ohms (Rated)

Sensitivity: 11 mV/Pa at 1 kHz into 1 Kilohm

Operating Voltage: 48 V (Phantom Power)

Operating Current Consumption: 3.2 mA

Color: Nickel

Mounting: Mic Clip/Stand Adapter (Included)

Included Case: Hard Case

Included Filters: None

Operating Temperature: 32 to 158°F / 0 to 70°C

Operating Humidity: 0 to 90%

Storage Temperature: -4 to 158°F / -20 to 70°C

Package Weight: 3 lbs

Box Dimensions (LxWxH): 10 x 5 x 4"
