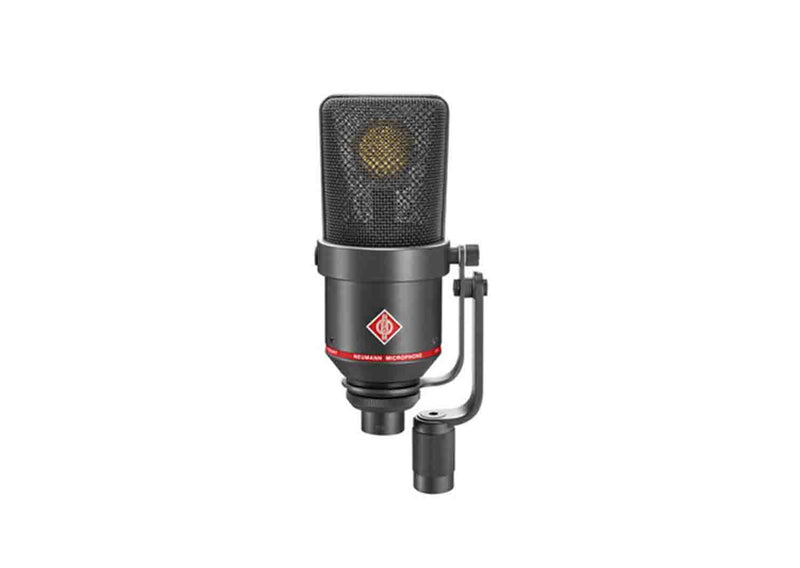

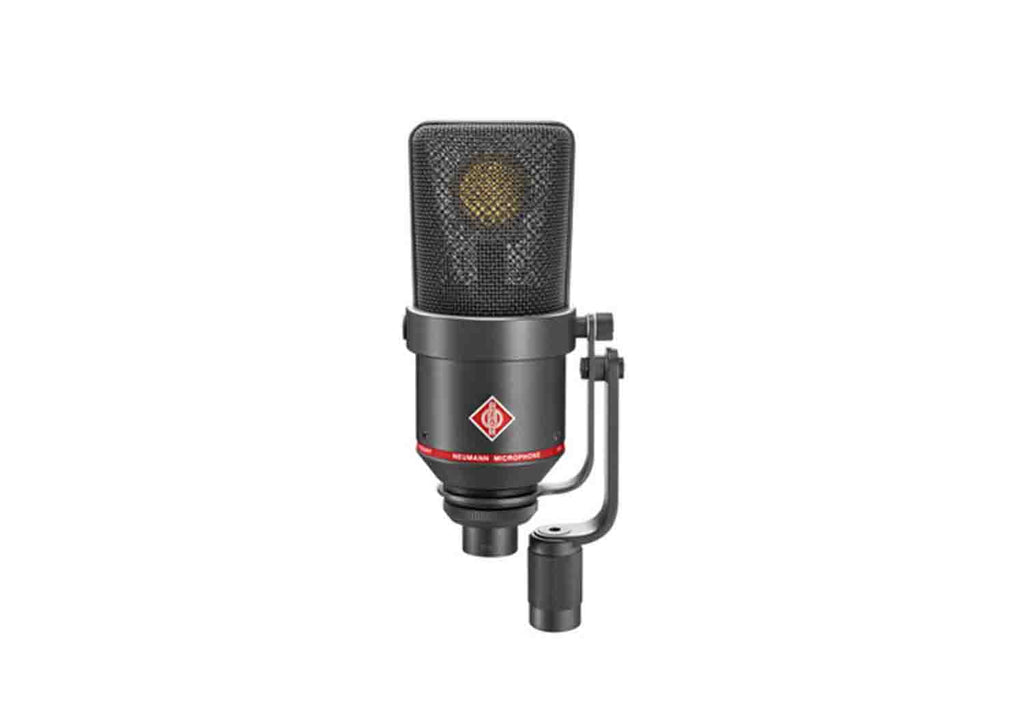

Neumann TLM 170 R MT Large-Diaphragm Multipattern Condenser Microphone - Black

The Neumann TLM 170 R MT Large-Diaphragm Multipattern Condenser Microphone - Black is a truly universal microphone for even the most demanding recording situations. It combines technical excellence with the smoothness and flexibility of a large diaphragm capsule. The TLM 170 R offers an exceptionally even response in five directional patterns. The latter may be remote controlled via the optional N248 PSU.

A Milestone in Modern Recording

The TLM 170 R may be our most universal microphone. Over an enormous dynamic range, it offers a remarkably linear frequency response, both on- and off-axis, in each of its five polar patterns. Thus, the TLM 170 R is able to capture the natural sound of any source, including its room ambience, without imparting a sonic imprint of its own. Additionally, the microphone’s directionality may be remote controlled via the optional N248 PSU.

Ahead of Its Time

The TLM 170 R was conceived with high resolution in mind. As early as 1983 it achieved an enormous dynamic range of 130 db. It was the first microphone to use Neumann’s feet 100 technology with a transformer less output stage ensuring sonic transparency and powerful bass transmission, even at highest signal levels.

Its sonic transducer is no less impressive. The K89 dual diaphragm capsule offers high linearity in every sense: smooth frequency response, fast transient response, and frequency independent polar patterns. Even the diffuse field response remains uncolored for all polar patterns, which is crucial in reverberant environments.

Truly Universal

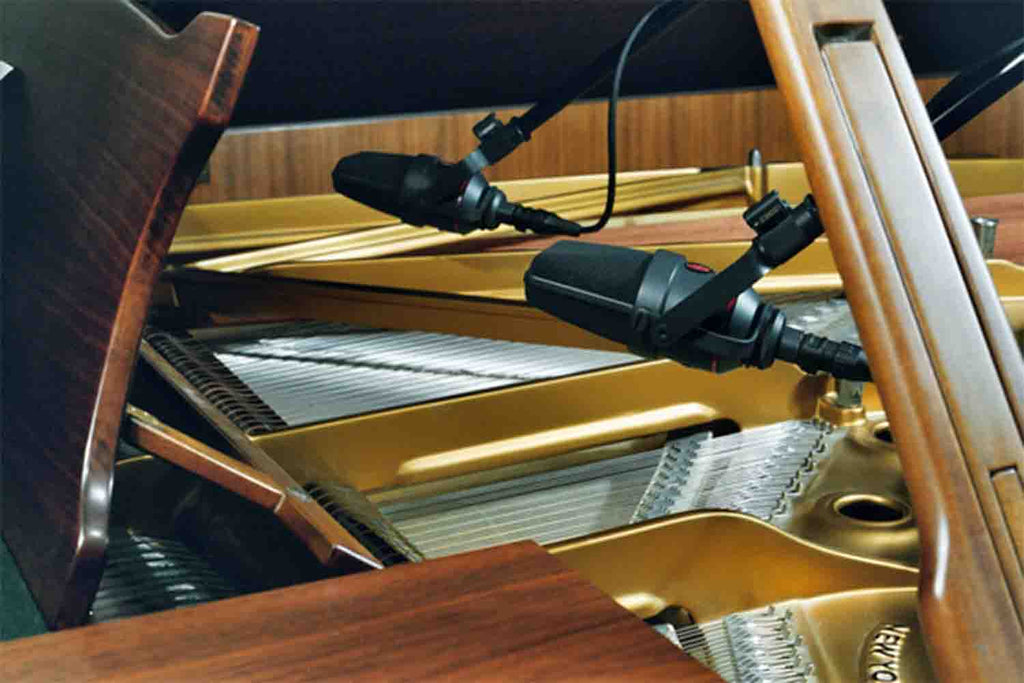

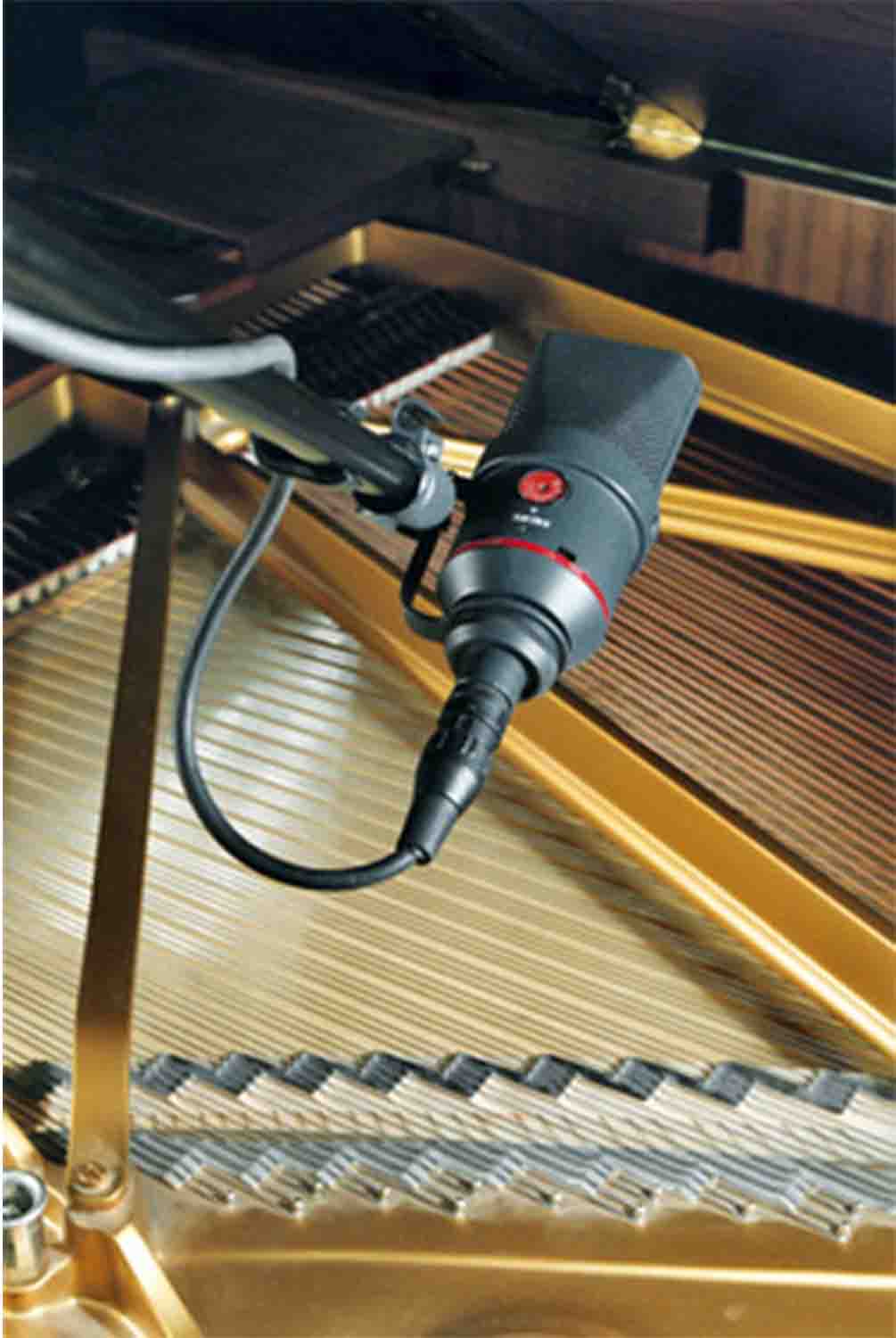

The TLM 170 R is an excellent microphone for orchestral recordings and may be used both as a main microphone and as a spot mic. At the same time, the TLM 170 R is a superb microphone for vocals and speech, capturing the human voice in its natural beauty.

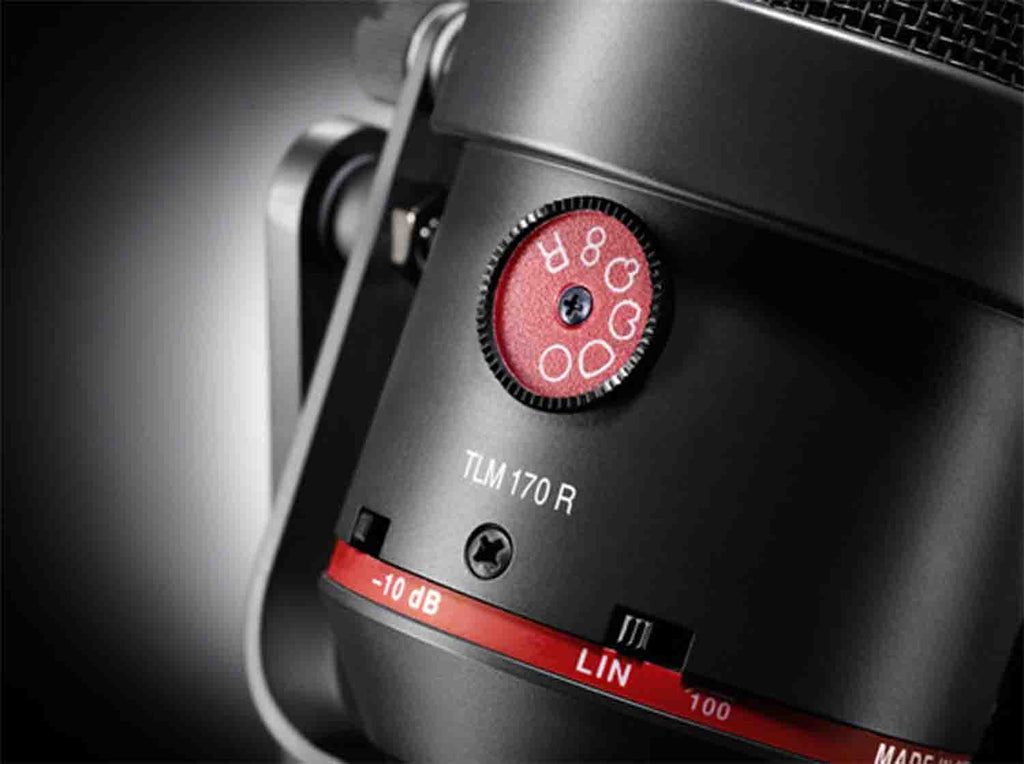

With a self-noise of only 14 dB, the TLM 170 R can be used for delicate sounds without adding unwanted hiss. At the same time, it can handle extremely loud sources of 154 dB SPL using the –10 dB preattention switch. A second switch activates a 100 Hz low cut. Five polar patterns may be selected via a rotary switch: omni, wide cardioid, cardioid, hyper cardioid, and figure-8.

In the sixth position, patterns may be remote controlled from the optional N248 PSU. No special cables are required as pattern control works via Neumann’s voltage sensing scheme: The phantom voltage is varied within the permissible ±4 V range of the P48 standard. The TLM 170 R sets its pattern according to the absolute voltage, while other microphones remain unaffected. There may be no such thing as a perfect microphone, but the TLM 170 R comes fairly close: It combines the sonic precision and linearity of a small diaphragm microphone with the smoothness and flexible pattern control of a classic large diaphragm microphone.

Product Specifications

Form Factor: Large Diaphragm Mic / Stand/Boom Mount

Intended Sound Sources: Vocals, Speech/Voice Over, Instrument, Orchestra

Sound Field: Mono

Operating Principle: Pressure Gradient

Capsule: Condenser

Tone Adjustment: None

Gain Adjustment: None

Indicators: None

Windscreen: None

Frequency Range: 20 Hz to 20 kHz

Impedance: 50 Ohms

Load Impedance: 1000 Ohms (Rated)

Sensitivity: 8 mV/Pa at 1 kHz into 1 Kilohm

Output Level: 10 dBu (Max)

Dynamic Range: 130 dB

Headphone Connector: None

Bus Power: None

Operating Voltage: 48 V ± 4 V (Phantom Power)

Operating Current Consumption: 3 mA

Color: Black

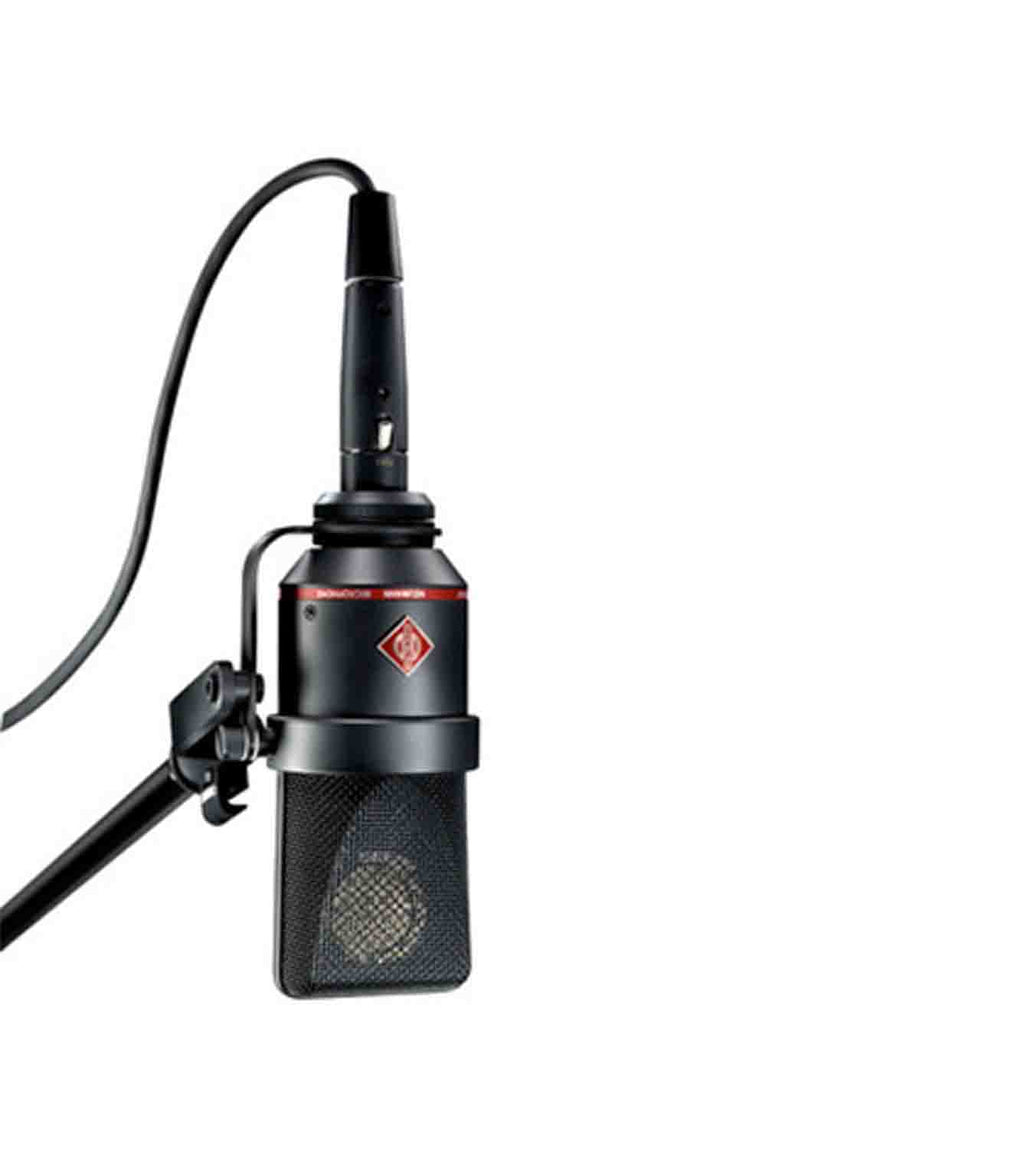

Mounting: Mic Clip/Stand Adapter (Included)

Included Case: Hard Case

Included Filters: None

Package Weight: 3 lb

Box Dimensions (LxWxH): 10 x 5 x 4"
