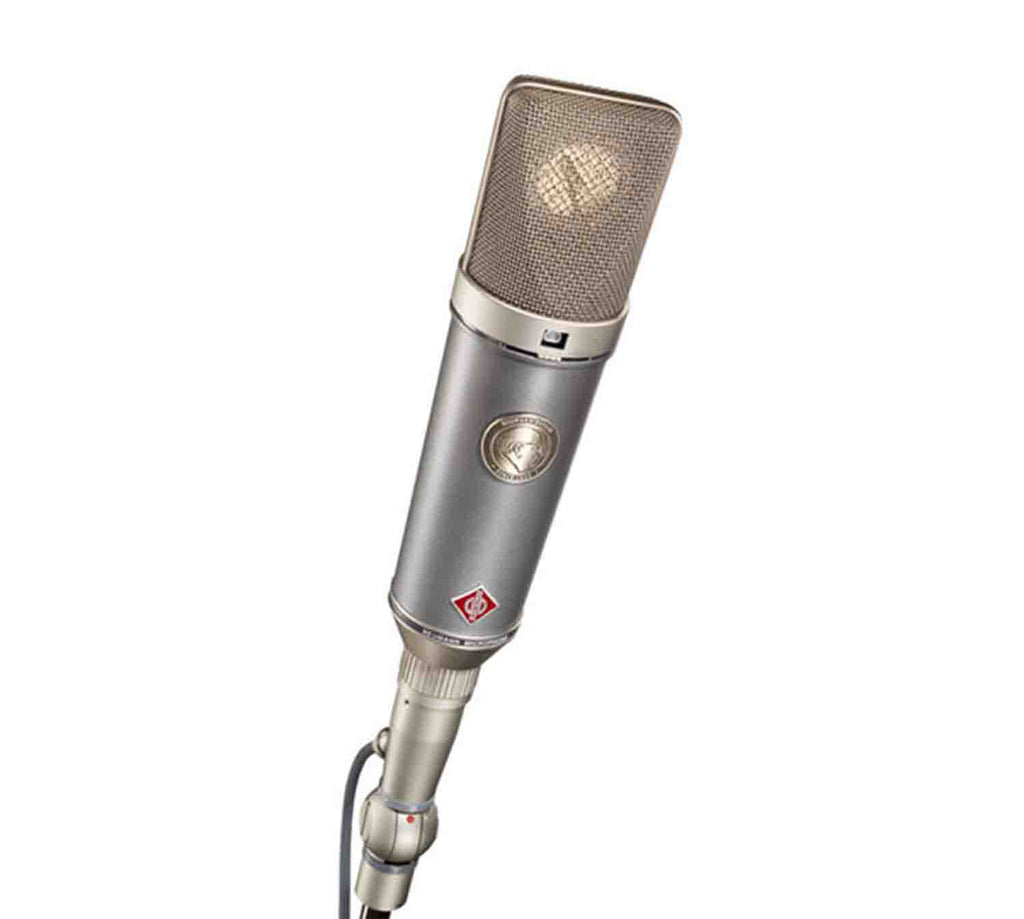

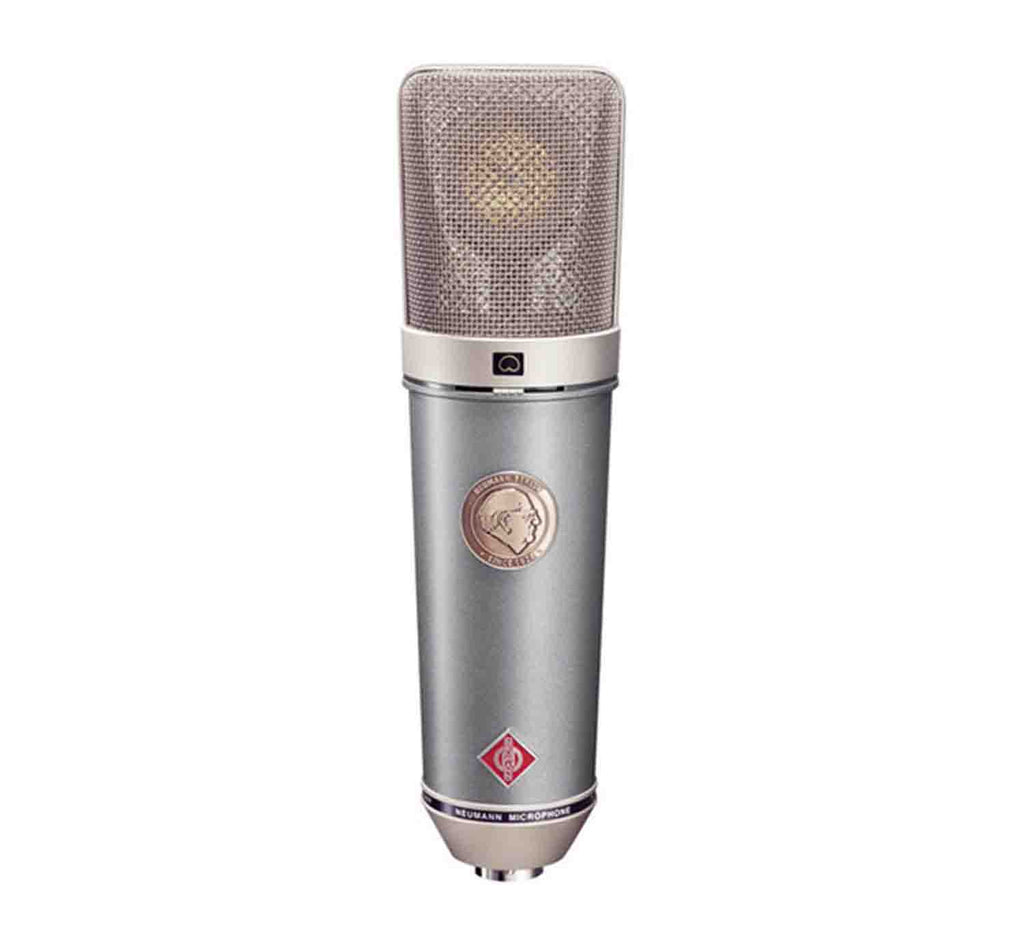

Neumann TLM 67 SET Z Large-Diaphragm Multipattern Condenser Microphone with Accessories

The Neumann TLM 67 SET Z Large-Diaphragm Multipattern Condenser Microphone with Accessories provides the warm sonic signature of the heralded U 67 tube mic along with reliable, low-noise FET circuitry and a clean, transformer less output. By combining "old" sound with new technology, the TLM 67 serves as an ideal choice for vocalists, broadcasters, musicians, producers, and engineers who need a vintage tone they can depend on.

By incorporating the U 67's classic K 67 capsule, the TLM 67 is able to offer a linear frequency response with tube-like midrange as well as three selectable polar patterns omnidirectional, figure-8, and cardioid for versatility in the studio. Additionally, it features switchable pad and low-cut filter options to allow further signal optimization at the mic. As the mic receives high SPLs over 105 dB (in cardioid), it is designed to exude gentle saturation in the same way tube circuits do. The TLM 67 Set Z includes a wooden box, spider-style Shockmount, foam windscreen, and microphone cable.

Classic Sound with Updated Convenience

Today's concept of the studio microphone is still very much defined by Neumann's classic U 67. Introduced in 1960, it offered an essentially linear frequency response in three polar patterns as well as pad and low-cut options for then-new close-miking techniques. The U 67 was (and still is) a true studio workhorse, and many top engineers consider it their "desert island" microphone. However, vintage originals come at collectors' prices, out of reach for young engineers and musicians. The TLM 67 is an attractively priced alternative.

U 67 for the New Age

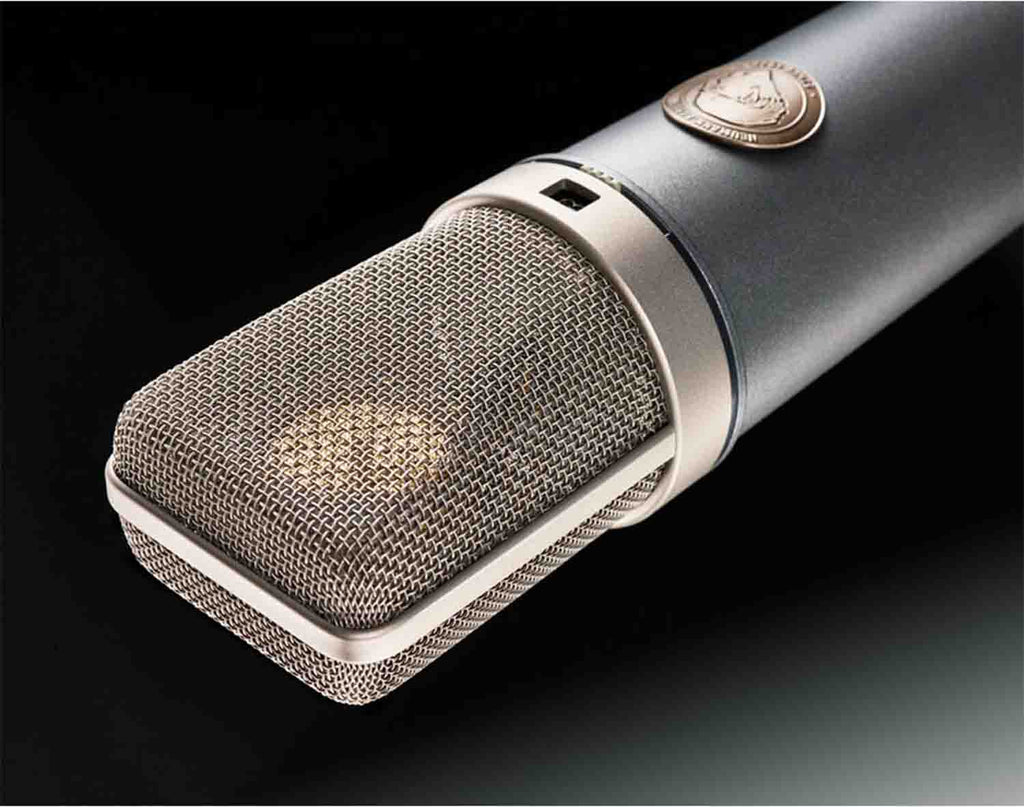

The TLM 67 shares many of the U 67's key features, including its elegant shape and the famous tapered head grille, which has since become iconic for the Neumann brand. What's more, the TLM 67 uses the same large-diaphragm capsule as its legendary predecessor, the classic K 67 capsule, also used in the Neumann U 87 A.

Reimagining the Sound of the '60s

Instead of the U 67's tube electronics, the TLM 67 has a transformer less head amplifier, built with highly reliable, 21st-century, solid-state technology, yet with a retro twist. The TLM 67's circuit may be modern, but it meticulously reproduces the sound of the 1960s. This results in a seemingly low max SPL figure of 105 dB (in cardioid mode) for 0.5% THD, but, like in a tube circuit, distortion rises gently to 5% THD for 125 dB SPL. The TLM 67 thus captures the sound character and dynamic behavior of its famous predecessor without the use of tubes and without the inconvenience of a clunky PSU box and multipin cables.

Special Color Scheme

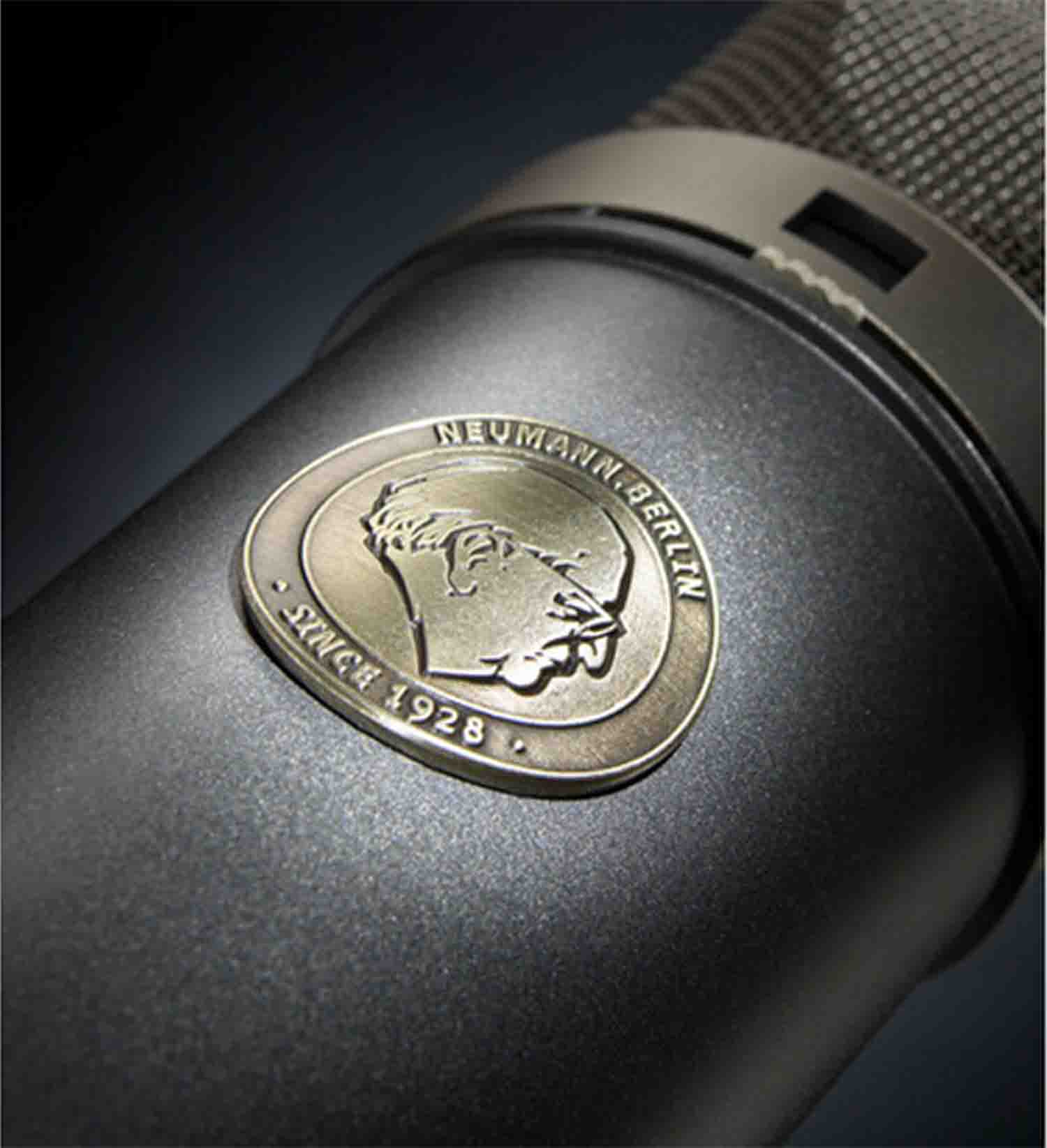

Visually, too, the TLM 67 has a retro touch with a special dual-color scheme, combining a capsule head in classic satin nickel with a stylish pearl-gray body. Released in 2008, the TLM 67's front is graced by a metal emblem of the company's founder, Georg Neumann, commemorating the company's 80th anniversary.

Versatile Applications

Just like its legendary precursor, the TLM 67 is a universal studio microphone with three directional patterns—omni, figure-8, and cardioid as well as low-cut and pad options. Its tube-like midrange character makes the TLM 67 is an excellent microphone for vocals and spoken word. Thanks to its essentially linear frequency response, it is also a versatile microphone for a wide range of instruments, such as acoustic and electric guitar, piano, percussion, drums overheads, and much more.

Includes Accessories

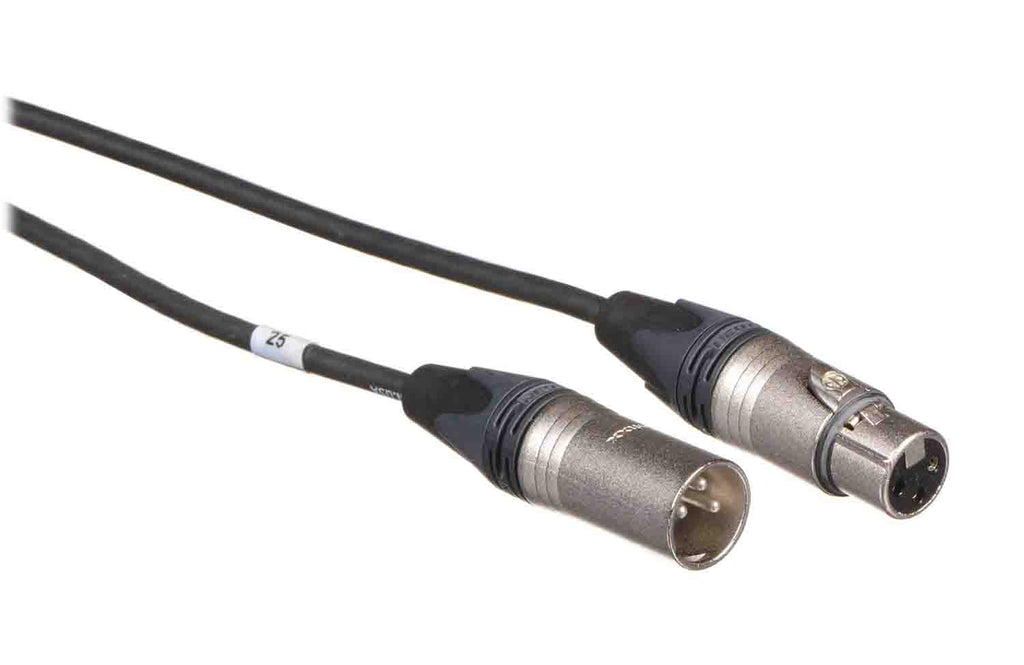

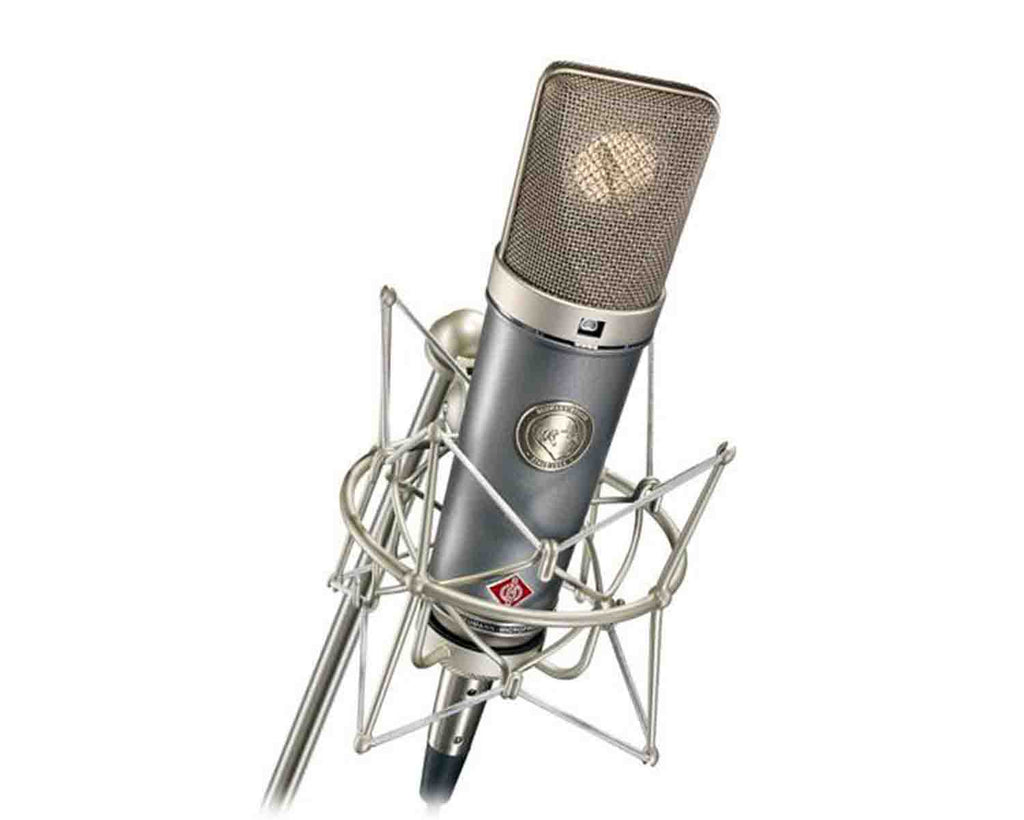

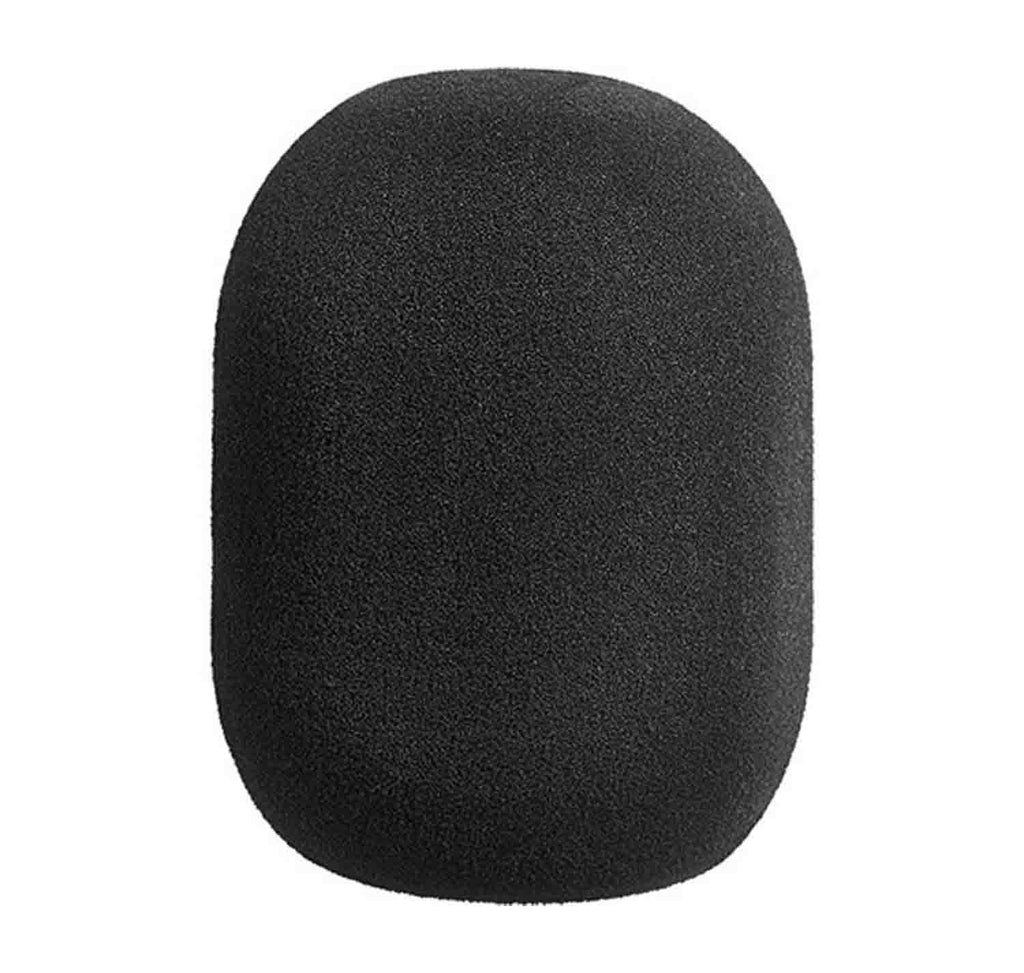

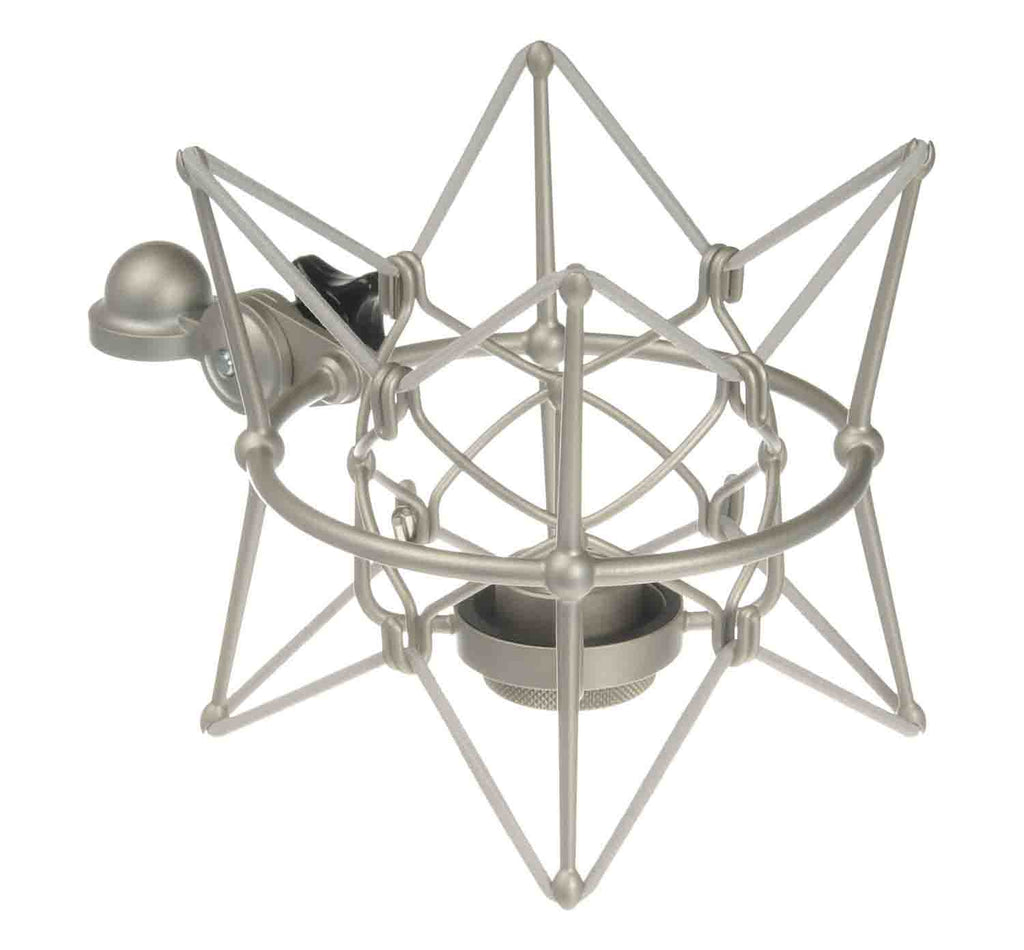

The TLM 67 Set Z comes with the EA 87 spider-style Shockmount to isolate the mic from stand-borne vibration, the WS 87 foam windscreen, a 25' XLR mic cable, and a wooden box, making it a complete setup for the studio.

Product Specifications

Form Factor: Large Diaphragm Mic / Stand/Boom Mount

Intended Sound Sources: Vocals, Speech/Voice Over, Instrument

Sound Field: Mono

Operating Principle: Pressure Gradient

Capsule: Condenser

Polar Pattern: Cardioid, Figure-8, Omnidirectional

Pattern Selection: Switched (Adjustable on Mic)

High-Pass Filter: Yes

Tone Adjustment: None

Indicators: None

Windscreen: Foam (Included)

Frequency Range: 20 Hz to 20 kHz

Impedance: 50 Ohms

Load Impedance: 1000 Ohms

Headphone Connector: None

Cable Length: 25' / 7.6 m

Bus Power: None

Operating Voltage: 48 V (Phantom Power)

Operating Current Consumption: 3 mA

Color: Gray

Mounting: Shockmount (Included)

Included Case: Hard Case

Included Filters: None

Operating Temperature: 32 to 158°F / 0 to 70°C

Operating Humidity: 0 to 90%

Storage Temperature: -4 to 158°F / -20 to 70°C

Package Weight: 5 lbs

Box Dimensions (LxWxH): 12 x 12 x 6"
