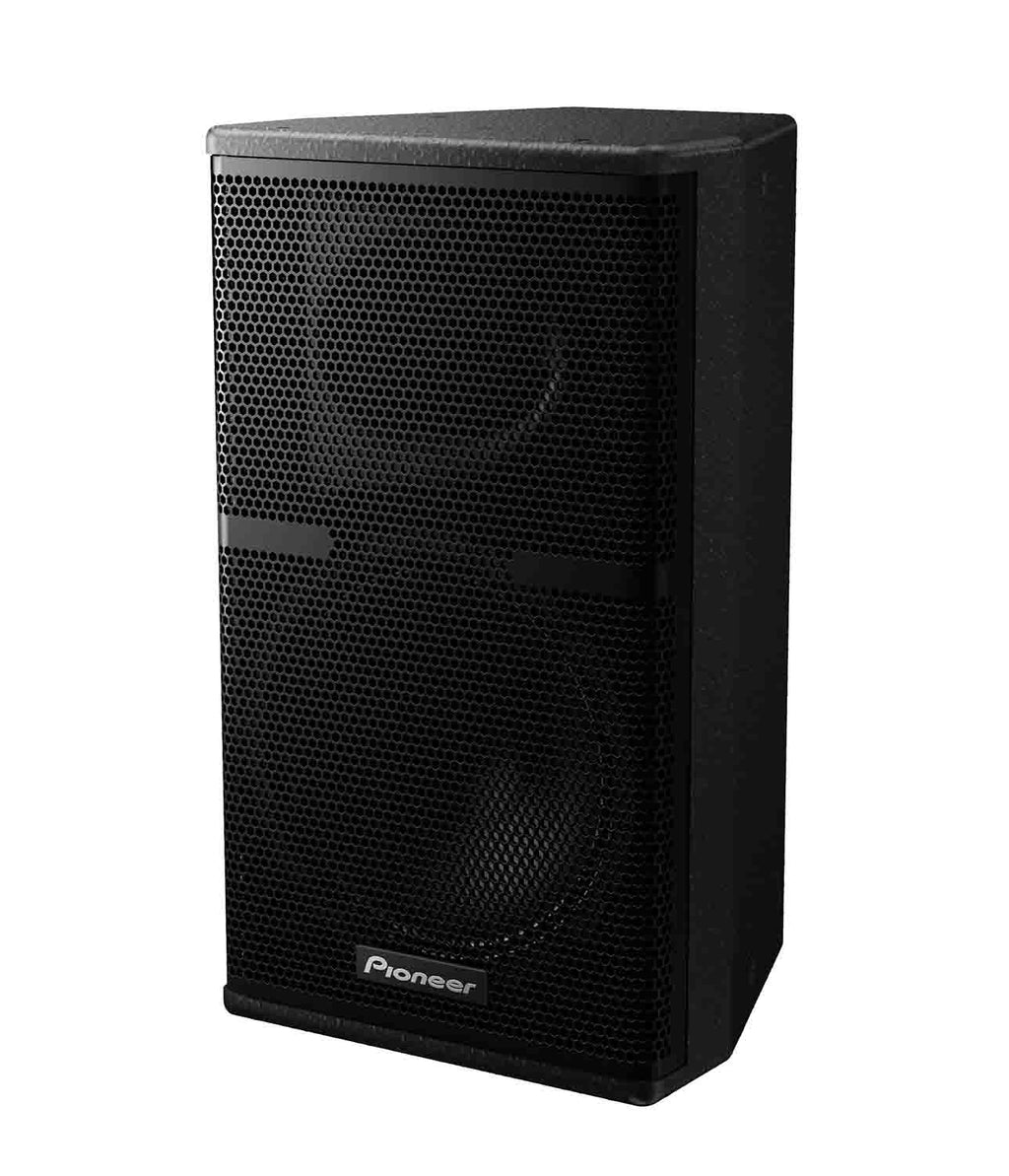

Pioneer Pro XY-101, 10-inch Two Way Full Range Loudspeaker

Save 23%
Pioneer DJSKU: H-PION-XY101

Sale price$2,299.00 Regular price$2,988.70
Re-stocking soon

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.

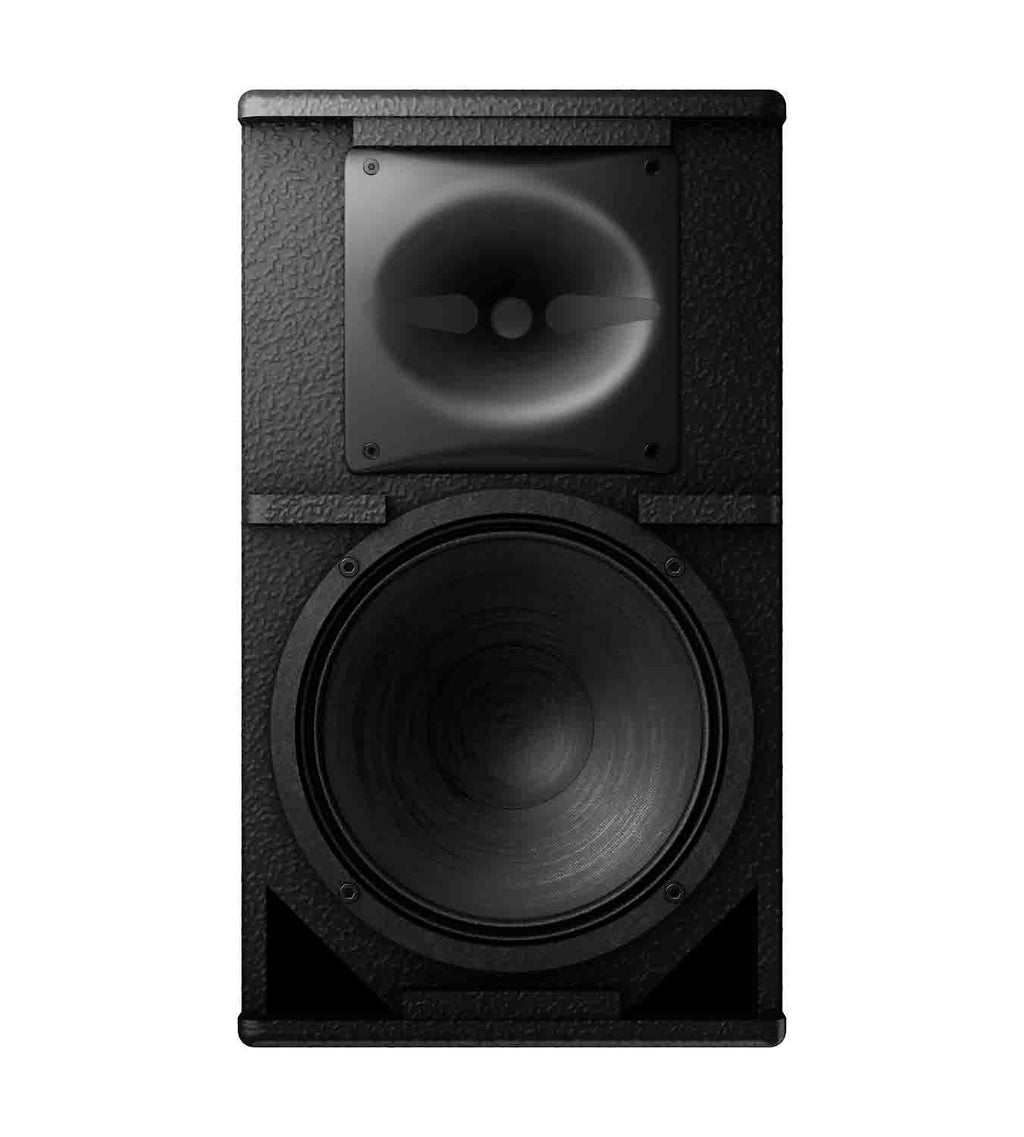

The Pioneer Pro XY-101, 10-inchTwo Way Full Range Loudspeaker LF driver and a 1-inch compression driver. Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments. Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation. Designed for fixed and mobile applications, with a wide array of flying options, NL4 INPUT and LINK OUT connections as standard, Robust enclosure made from premium multi-laminate birch plywood, Impact resistant textured paint finish.

Product Specifications:

Enclosure Type: Two-way passive, reflex-loaded

Rigging and Hardware:

8 × M8 threaded mounting points (4 top/4 bottom),
3 × M8 threaded mounting points on rear,
4 × M8 threaded mounting points on side (2 left/2 right),
4 × M6 threaded points on rear (for wall mount bracket),
1 × flush handle on rear,
1 × 35 mm polemount socket

Grille: Hex punched steel

Enclosure: 15 mm (0.6-inch) birch plywood

Finish: Impact-resistant, Black semi-matt textured

Frequency Response: 70 Hz to 20 kHz

Sensitivity (1W/1m): 94 dB

Nominal Impedance: 8 Ω

Power Handling: 400 W RMS, 800 W Program

Power Handling AES: 120 dB cont., 126 dB peak

Power Handling (RMS/Program): 90 °H × 60 °V, rotatable

Maximum SPL: Asymmetric internal passive crossover

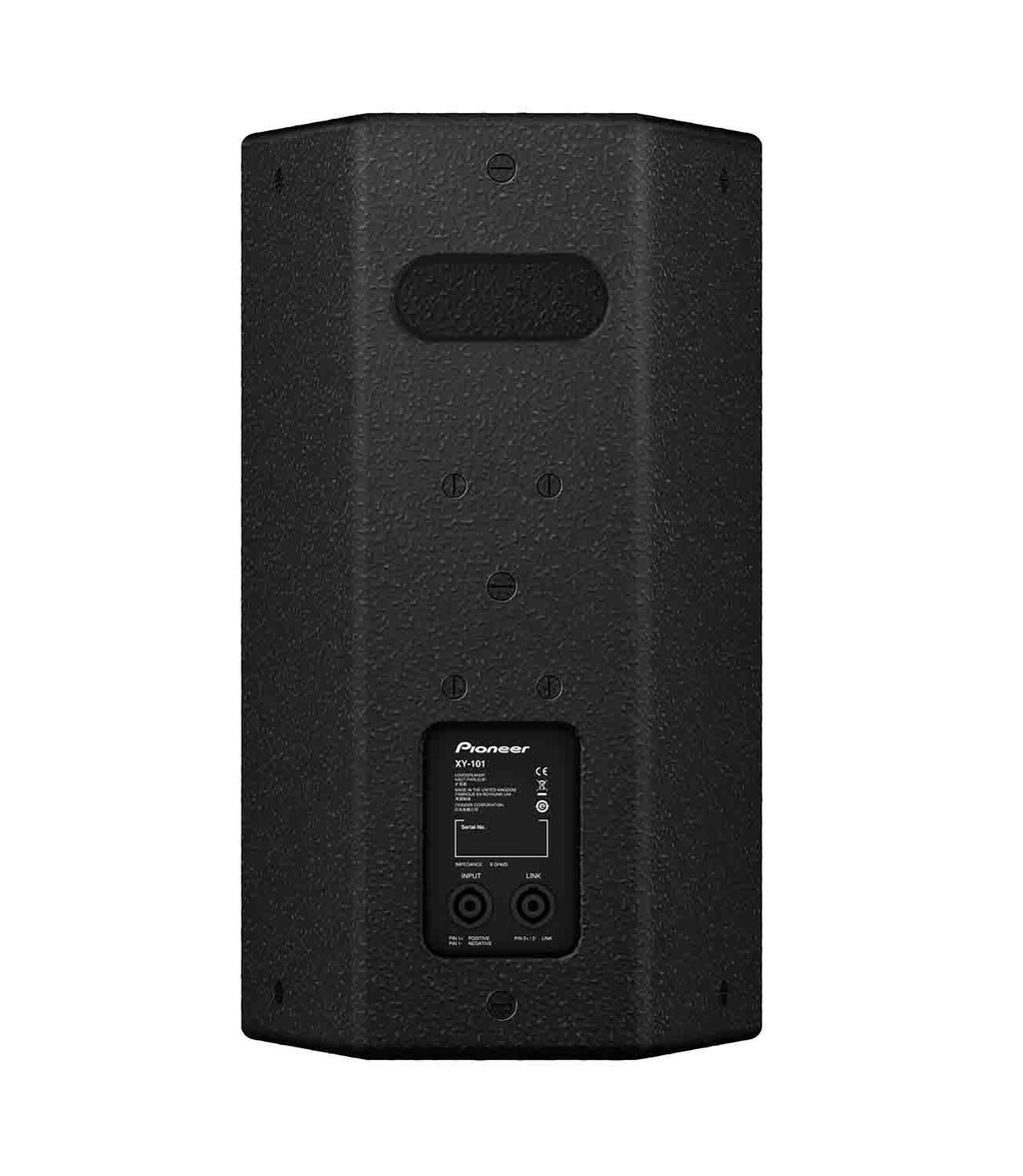

Dispersion: 2 × Neutrik SpeakON NL4

Dimensions ( W x H x D): (11.5 × 20 × 11 inch)

Weight: 14 kg (30.9 lbs)


Suggested Power Amplifier: Recommended K2DSP

Minimum: M30DHDSP
