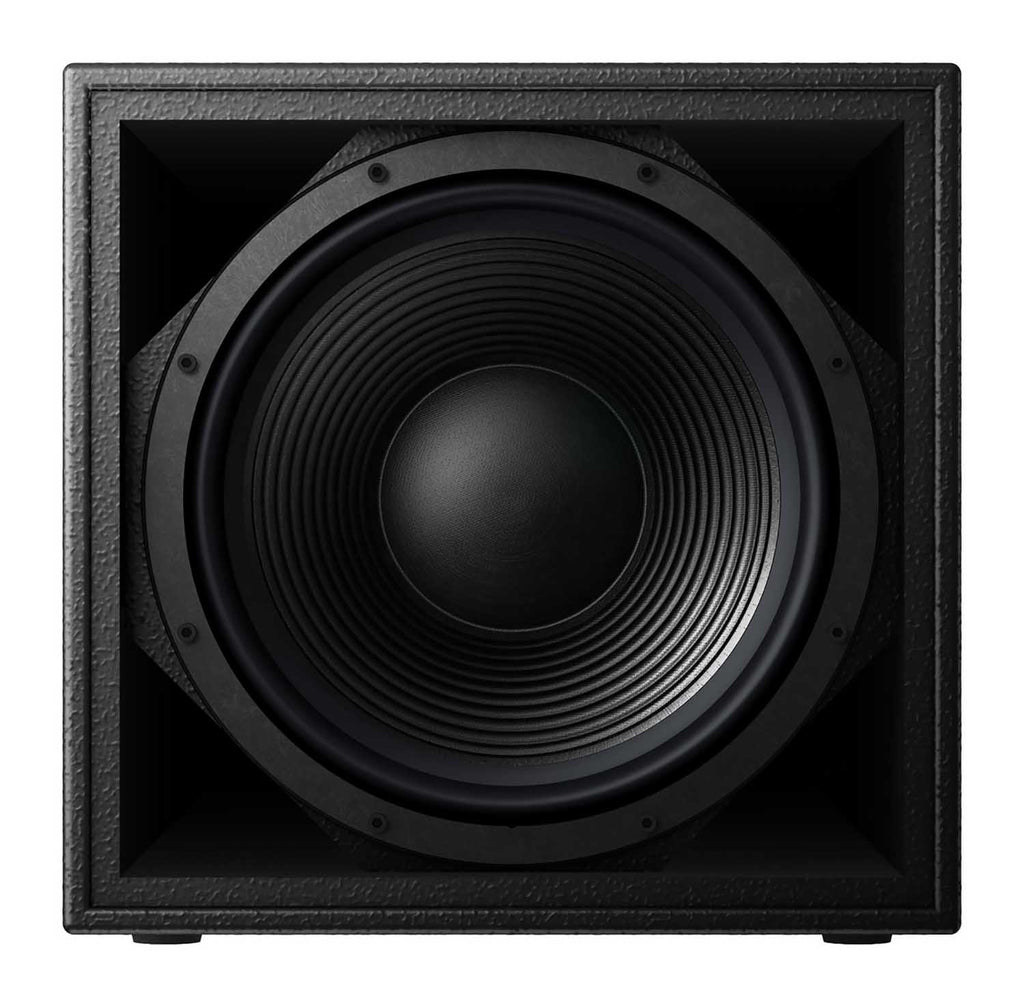

Pioneer Pro XY-115S 15" Bass Reflex Subwoofer

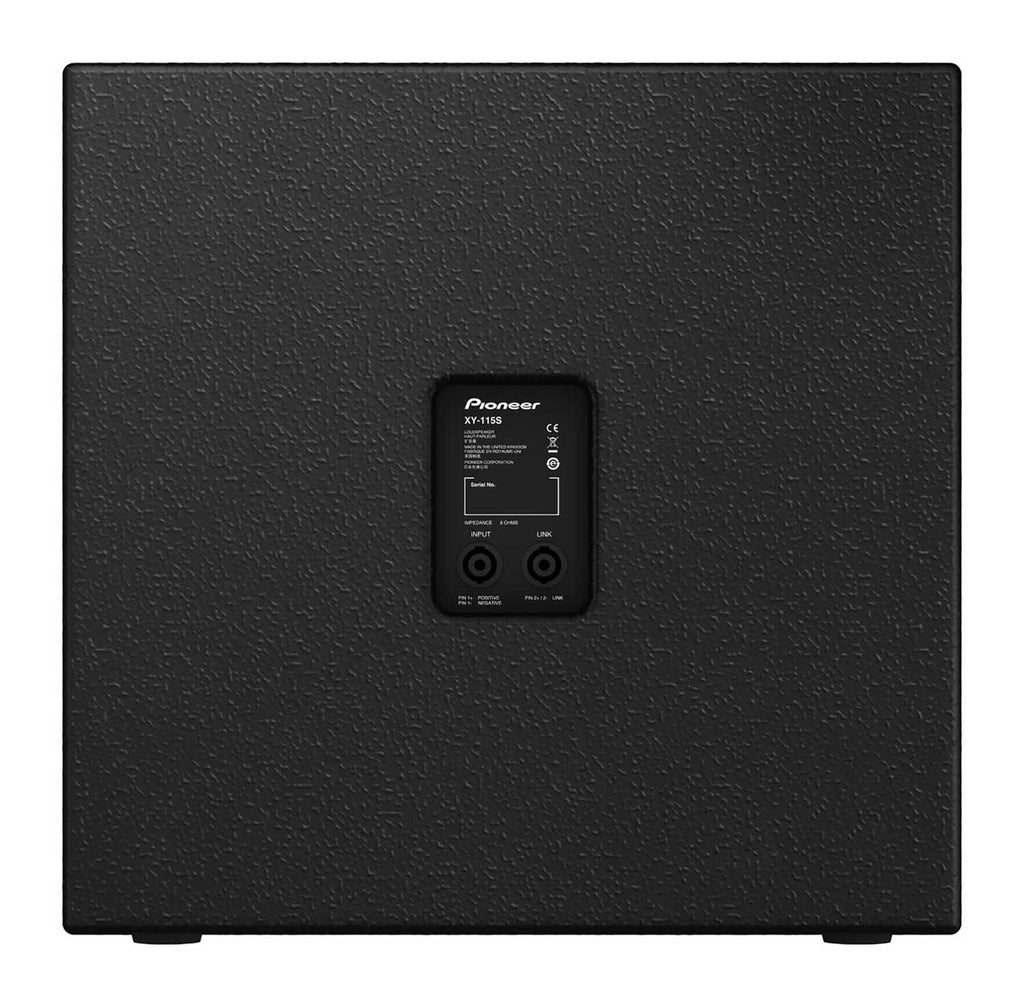

The Pioneer Pro XY-115S High-power subwoofer with an 15-inch, low-frequency driver. Capable of reproducing deep bass as low as 45 Hz without distortion. Strong pillars installed in the cabinet ensure rigidity against the most powerful bass. Requires an active crossover to set the necessary frequency range (presets can be provided from Pioneer for combinations using the Pioneer XY-122,XY-101 and XY-81). NL4 INPUT and LINK OUT connections as standard. Pole mount for quick set-up with other Pioneer products. Robust enclosure made from premium multi-laminate birch plywood.

Product Specification:

Hardware

Enclosure Type

Single driver, reflex-loaded subwoofer

Hardware

Rigging and Hardware

2 × flush handles (1 left/1 right),

1 × M20 polemount socket for mid/high enclosures,

4 × rubber feet (bottom) and 4 ×mating recesses (top)

Grille

Hex punched steel

Enclosure

15 mm (0.6-inch) birch plywood

Finish

Impact-resistant, Black semi-matt textured

System data

Frequency response

45 Hz to 150 Hz

Sensitivity (1W/1m)

96 dB (half space)

Nominal Impedance

8 Ω

Loudspeaker data

Power Handling

700 W RMS, 1400 W Program

Power Handling AES

124 dB cont., 130 dB peak (half space)

Transformer taps

15 inch (380 mm) neodymium LF cone driver

Dispersion

2 × Neutrik SpeakON™ NL4

Dimensions / Weight

Dimensions ( W x H x D)

472 × 466 × 510 mm

(18.6 × 18.3 × 20.1 inch)

Weight

30 kg (66.1 lbs)

Other

Suggested Power Amplifier

Recommended : K3DSP

Accessories

polemount socket cover

(-W model only)
