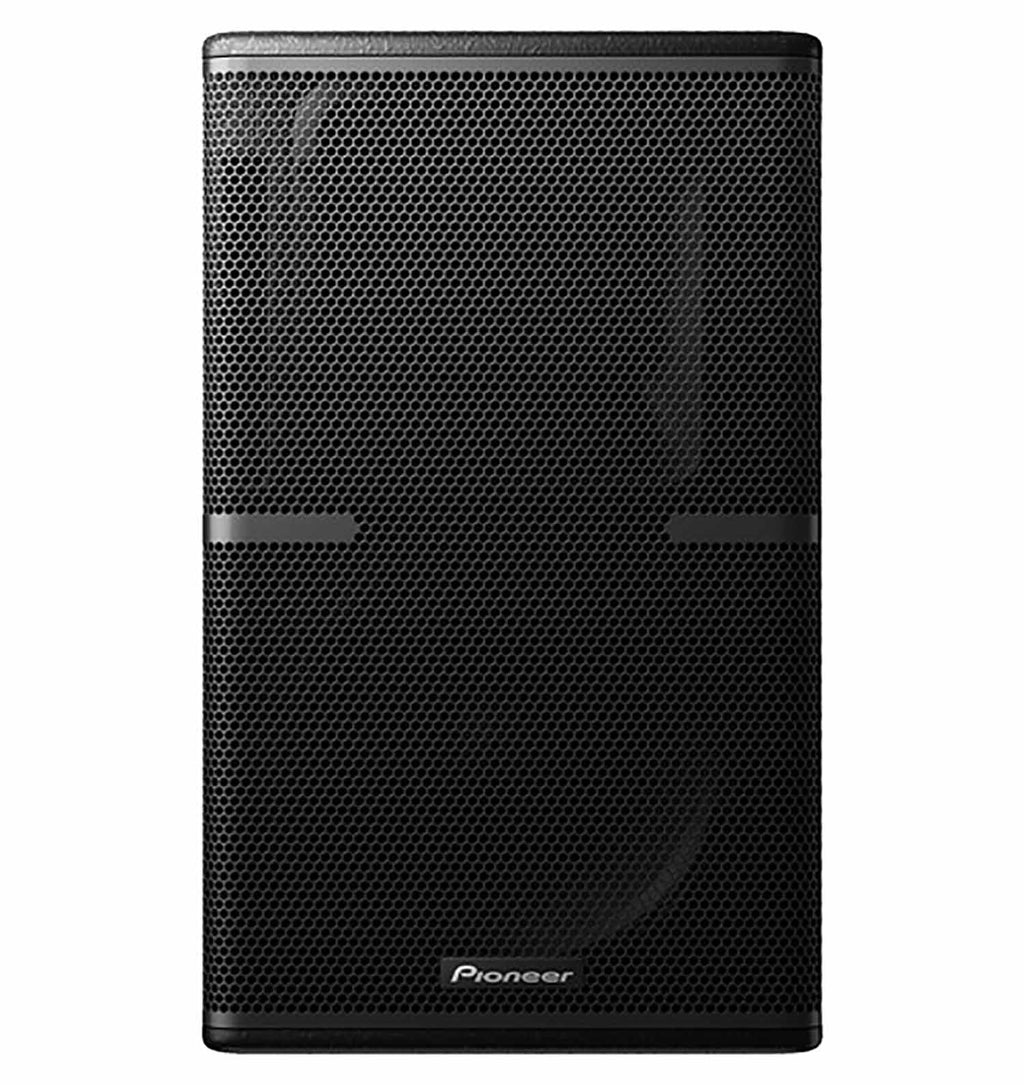

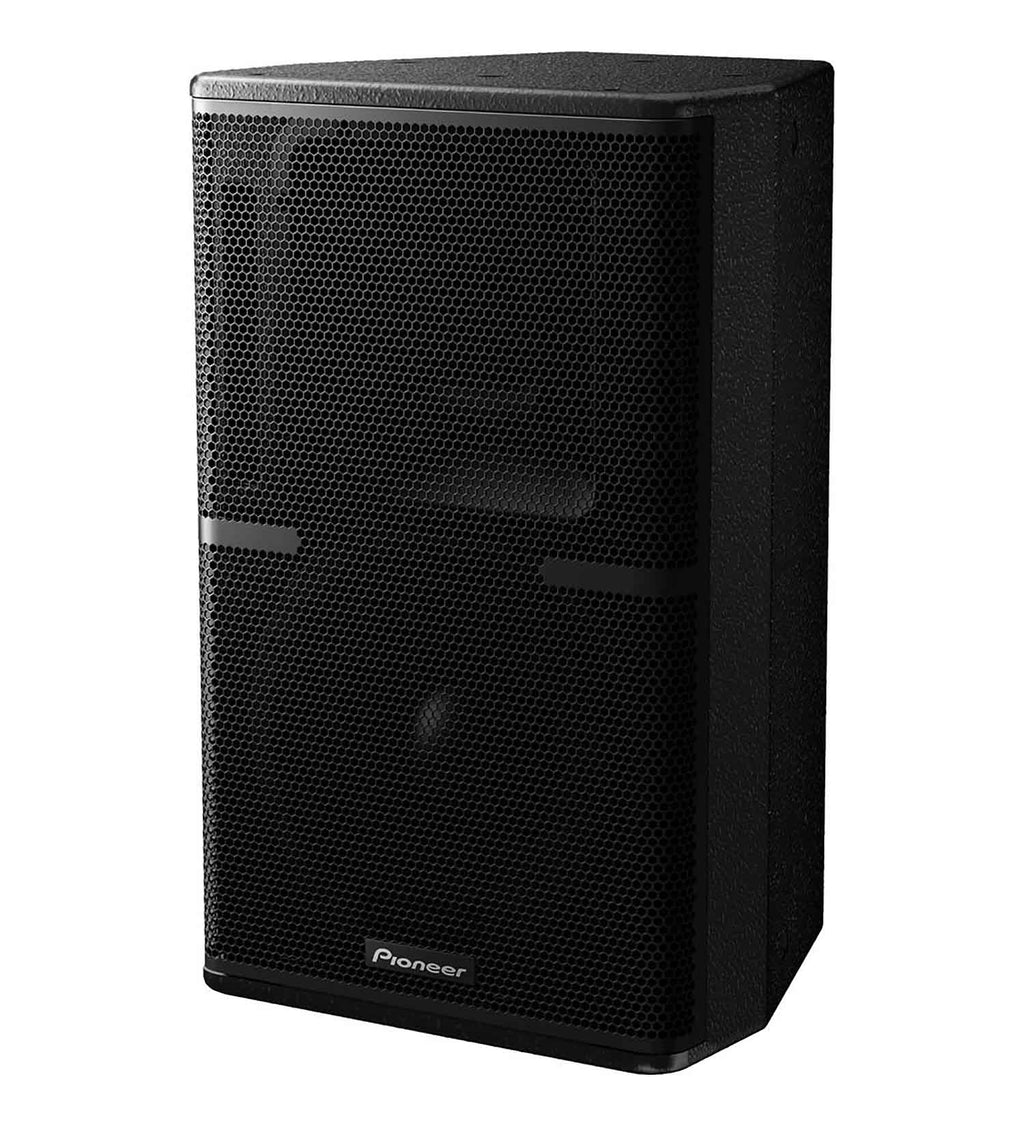

Pioneer Pro XY-122 12" Two Way Full Range Loudspeaker

The Pioneer Pro XY-122 12" Two-way full range speaker with 12-inch LF driver and a 1.4-inch compression driver. Passive crossover board features separate cooling zones to ensure safe and continuous operations in the toughest environments. Wide dispersion of 90 × 60 degrees, with rotatable horn for horizontal installation. Designed for fixed and mobile applications, with a wide array of flying options. Features top hats for quick set-up. NL4 INPUT and LINK OUT connections as standard. Robust enclosure made from premium multi-laminate birch plywood. Impact resistant textured paint finish.

Product Specification:

Hardware

Enclosure Type

Two-way passive, reflex-loaded

Rigging and Hardware

8 × M10 threaded mounting points (4 top/4 bottom),

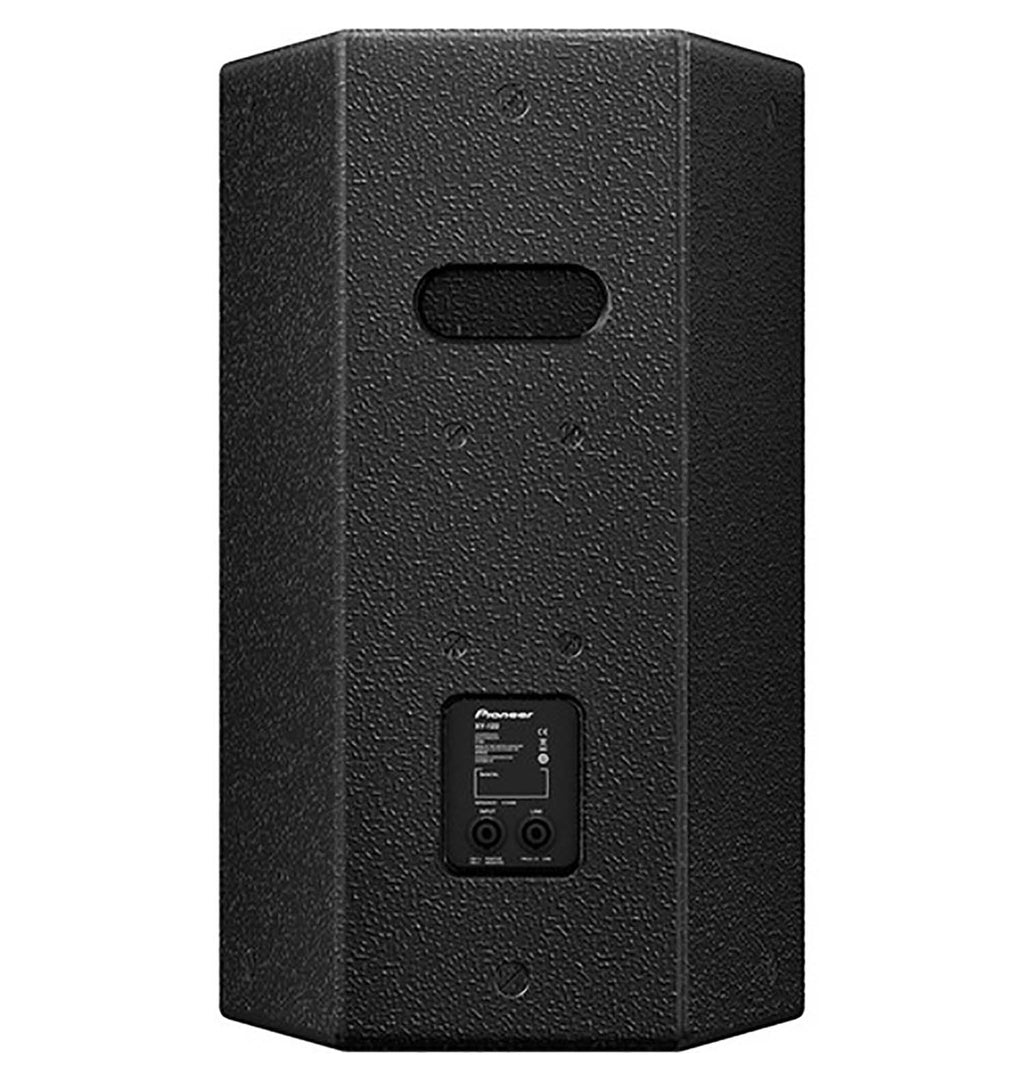

2 × M10 threaded mounting points on rear,

4 × M10 threaded mounting points on side (2 left/2 right),

4 × M8 threaded points on rear (for wall mount bracket),

1 × flush handle on rear,

1 × 35 mm polemount socket

Grille

Hex punched steel

Enclosure

15 mm (0.6-inch) birch plywood

Finish

Impact-resistant, Black semi-matt textured

System data

Frequency response

70 Hz to 20 kHz

Sensitivity (1W/1m)

101 dB

Nominal Impedance

8 Ω

Loudspeaker data

Power Handling

400 W RMS, 800 W Program

Power Handling AES

127 dB cont., 133 dB peak

Power Handling (RMS/Program)

90 °H × 60 °V, rotatable

Transformer taps

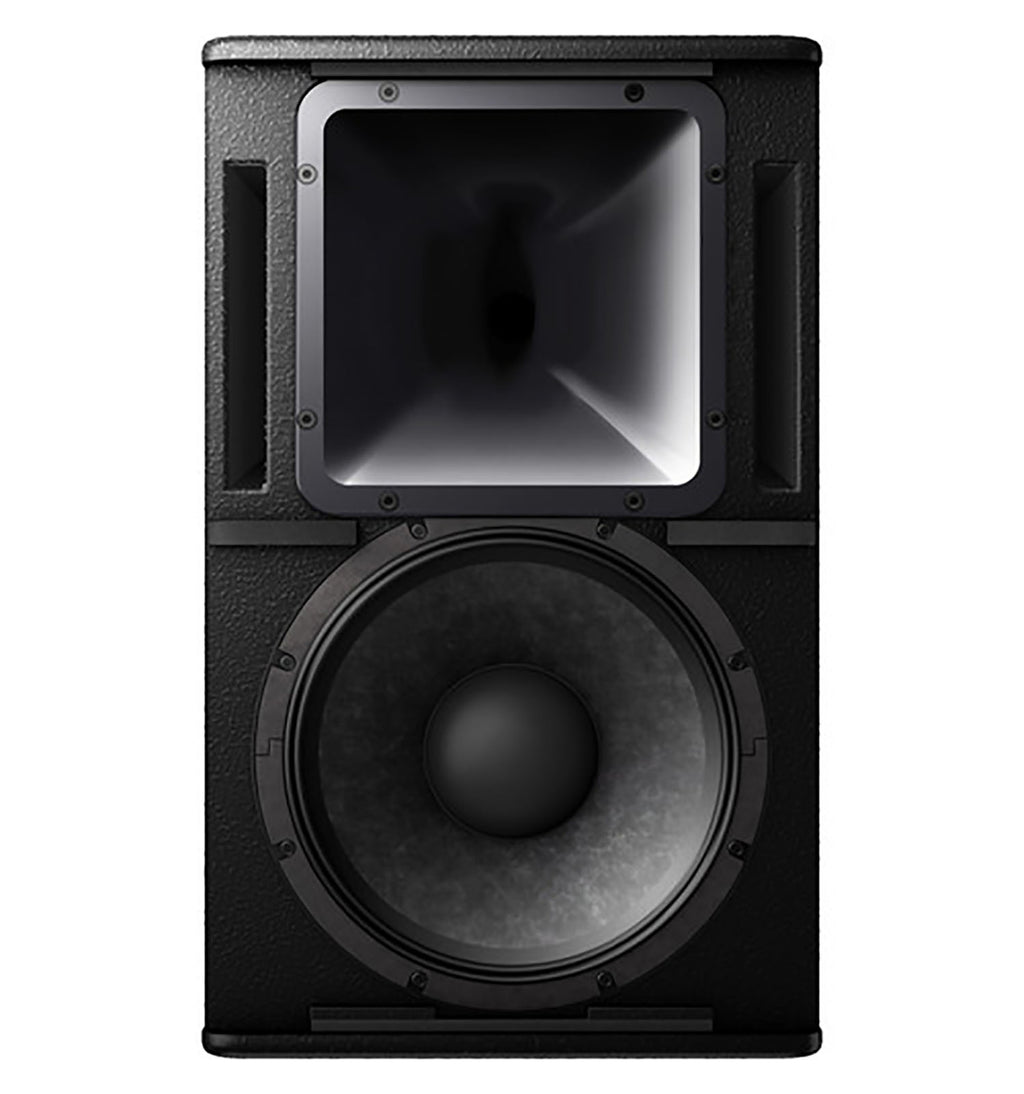

12 inch (320 mm) neodymium LF cone driver,

1.4 inch (36 mm) neodymium HF compression driver

Maximum SPL

Asymmetric internal passive crossover

Dispersion

2 × Neutrik SpeakON™ NL4

Dimensions / Weight

Dimensions ( W x H x D)

380 × 622 × 360 mm

(15 × 24.5 × 14.2-inch)

Weight

23 kg (50.7 lbs)

Other

Suggested Power Amplifier

Recommended : K3DSP

Minimum : M30DHDSP

Accessories

polemount socket cover

(-W model only)
