Description

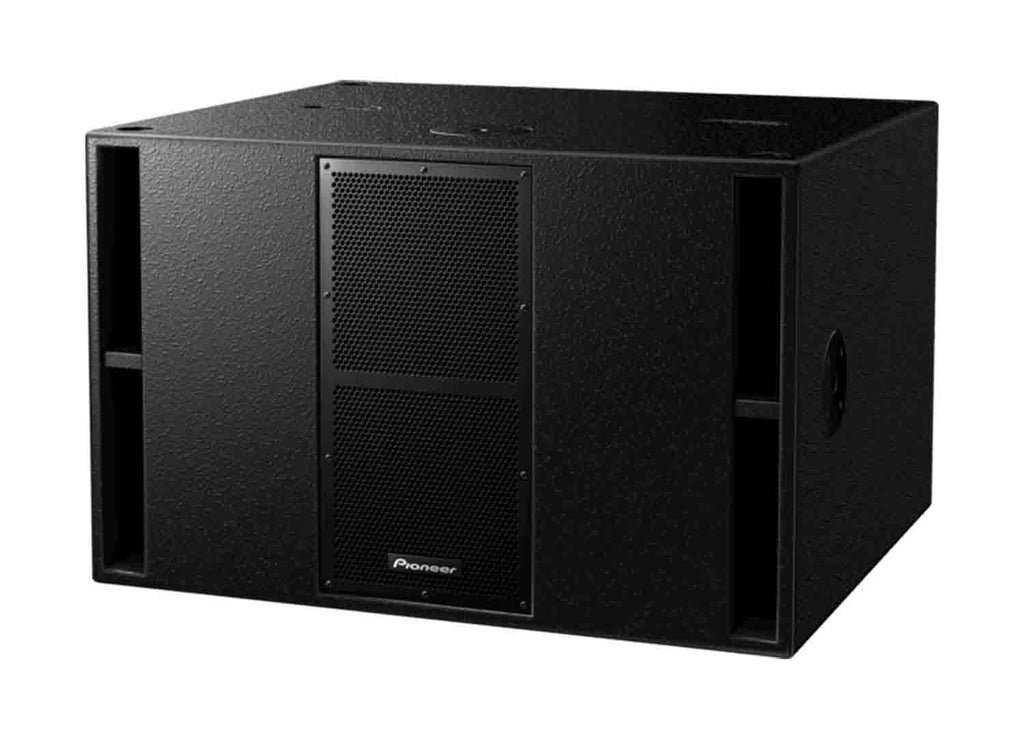

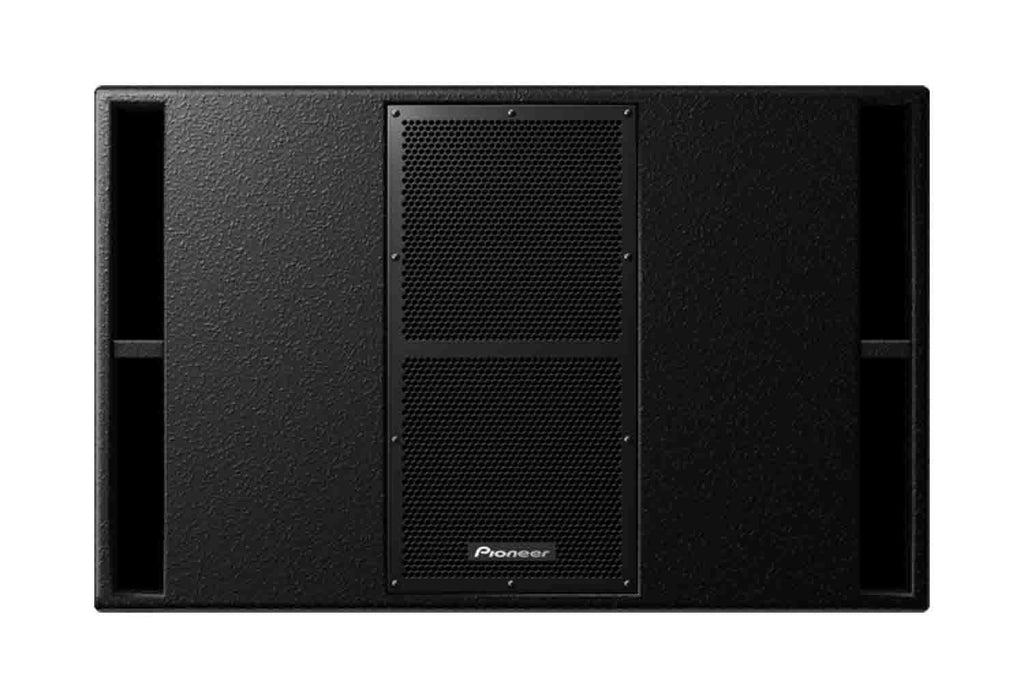

The Pioneer Pro XY-215S Dual 15-Inch Quasi-Bandpass Subwoofer is a dual 15-inch quasi-bandpass subwoofer that delivers high-response deep bass as low as 42 Hz. The two drivers efficiently generate air vibration to boost radiation efficiency, resulting in a tight and punchy kick. The XY-215S requires an active crossover to set the necessary frequency range, but presets can be provided from Pioneer for combinations using the Pioneer XY-152, XY-122, XY-101 and XY-81. The subwoofer features NL4 INPUT and LINK OUT connections as standard, and is housed in a robust enclosure made from premium multi-laminate birch plywood.
Product Specifications
Enclosure Type: Dual driver, quasi-bandpass subwoofer
Rigging and Hardware
4 × flush handles,
2 × M20 pole mount sockets for mid/high enclosures,
8 × rubber feet (bottom and left) and 4 ×mating recesses (top),
16 × M8 holes with pre-inserted bolts for 4 × castors on rear
Grille: Hex punched steel
Enclosure: 18 mm (0.7-inch) birch plywood
Finish: Impact-resistant, Black semi-matt textured
Frequency response: 42 Hz to 160 Hz
Sensitivity (1W/1m): 102 dB (half space)
Nominal Impedance: 4 Ω
Power Handling: 800 W RMS, 1600 W Program
Power Handling AES: 131 dB cont., 137 dB peak (half space)
Transformer taps: 2 × 15-inch (380 mm) LF cone drivers

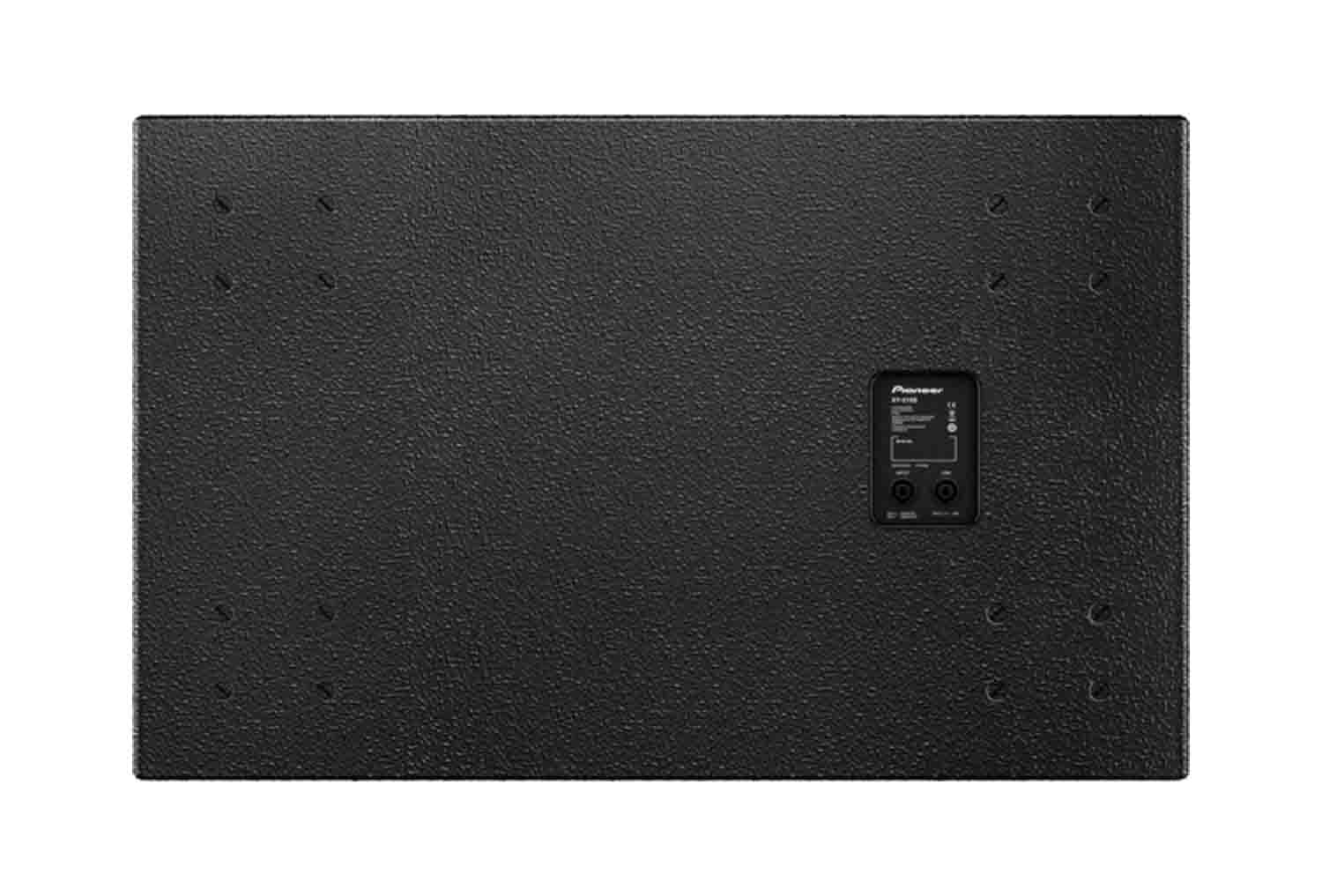

Dispersion: 2 × Neutrik Speak ON NL4
Box Dimensions (W x H x D): (34 × 22 × 28-inch)
Box Weight: 158 lbs
