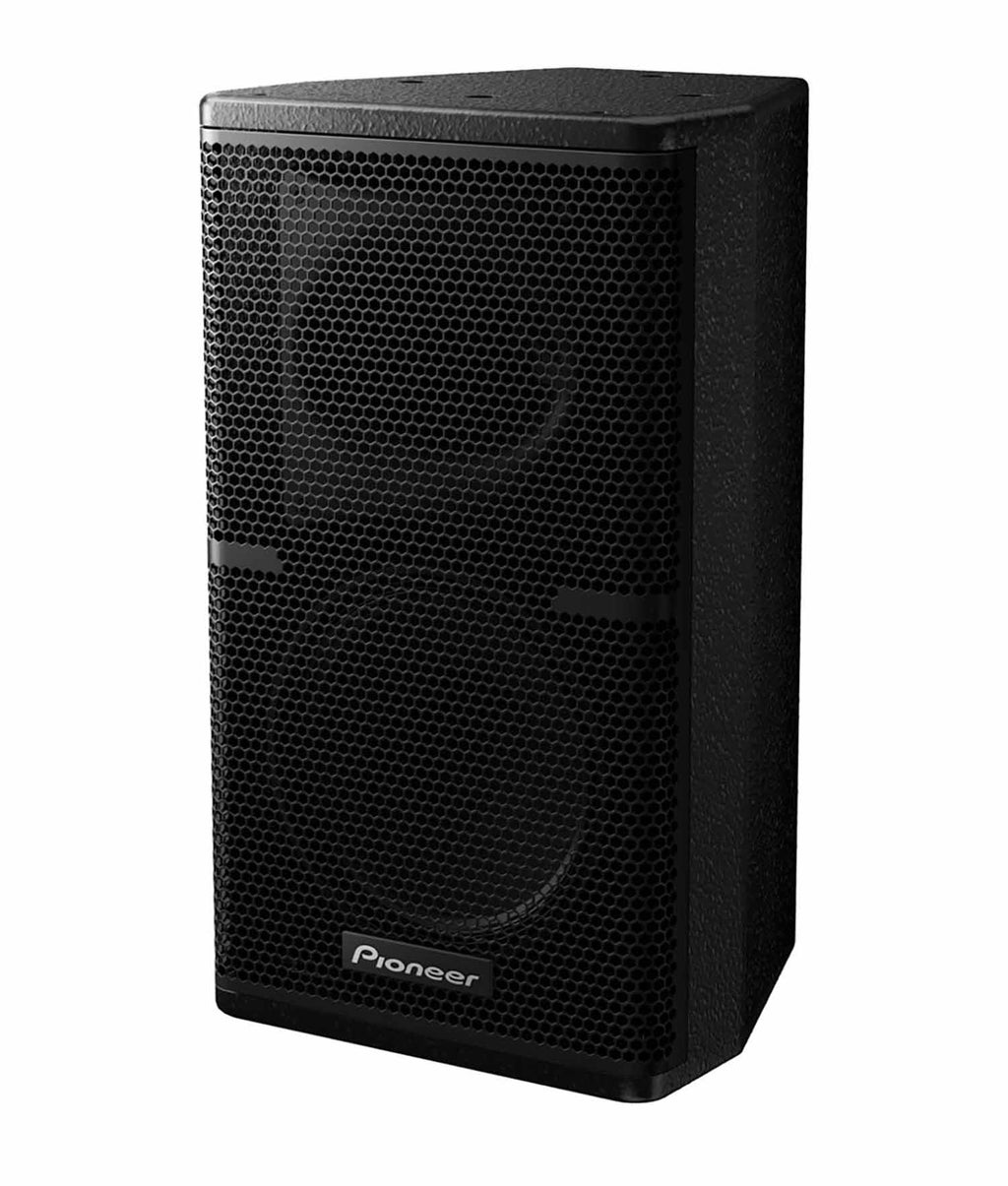

Pioneer Pro XY-81 8" Two Way Full Range Loudspeaker

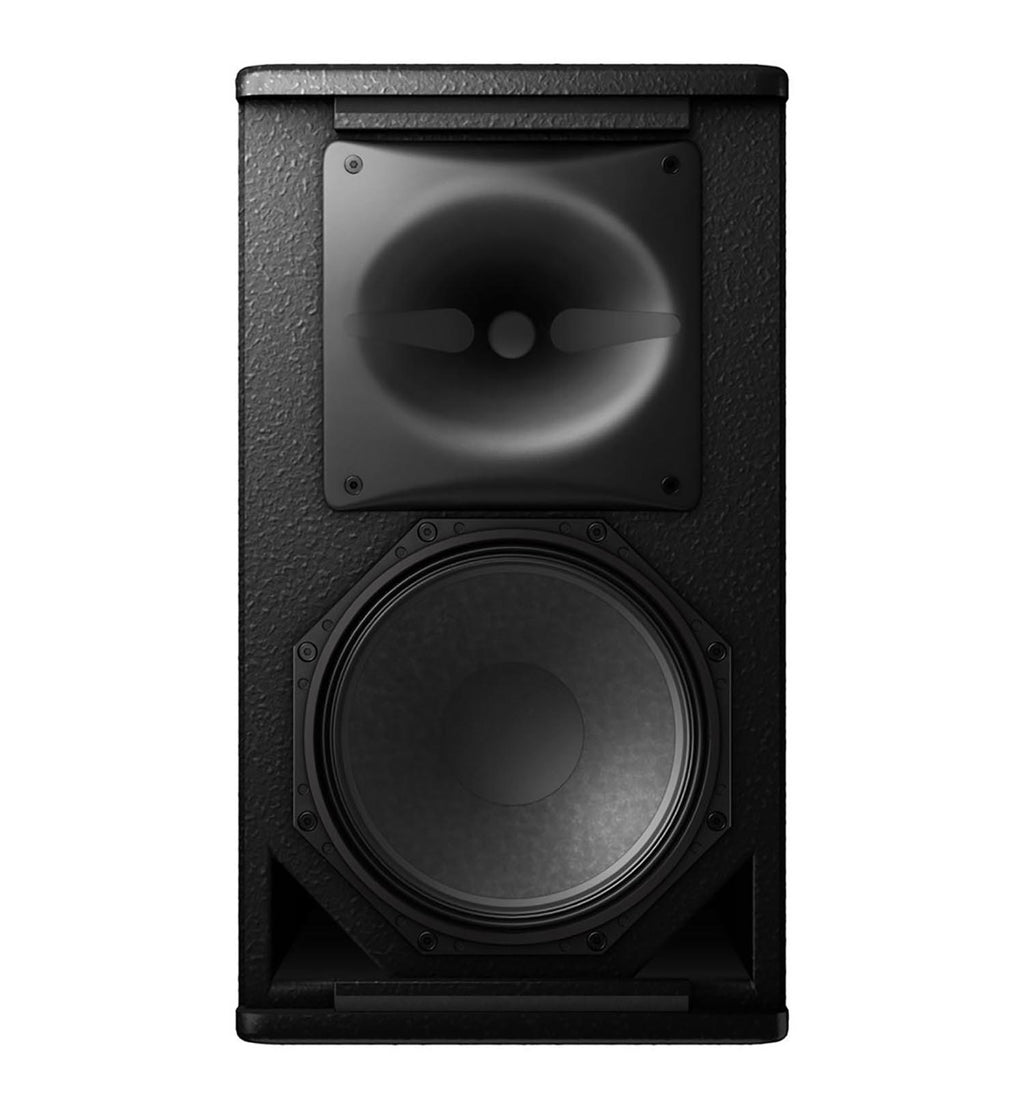

The Pioneer Pro XY-81 is a compact, versatile, passive loudspeaker product designed for a wide variety of compact and discreet sound reinforcement applications. It features a high-power 8″ (203 mm) ferrite LF drive unit in a reflex enclosure, and a 1.7″ (43 mm) diaphragm, 1″ (25 mm) exit neodymium high frequency compression drive unit coupled to a 90 ° × 60 ° rotatable waveguide. These components are matched by an internal passive crossover network for unprecedented sonic quality from a completely passive enclosure. Due to its discreet size and appearance, the XY-81 can be used in a wide variety of applications ranging from fills and delays in nightclub use to compact front of house and DJ booth monitoring duty.

Product Specification:

Hardware

Enclosure Type

Two-way passive, reflex-loaded

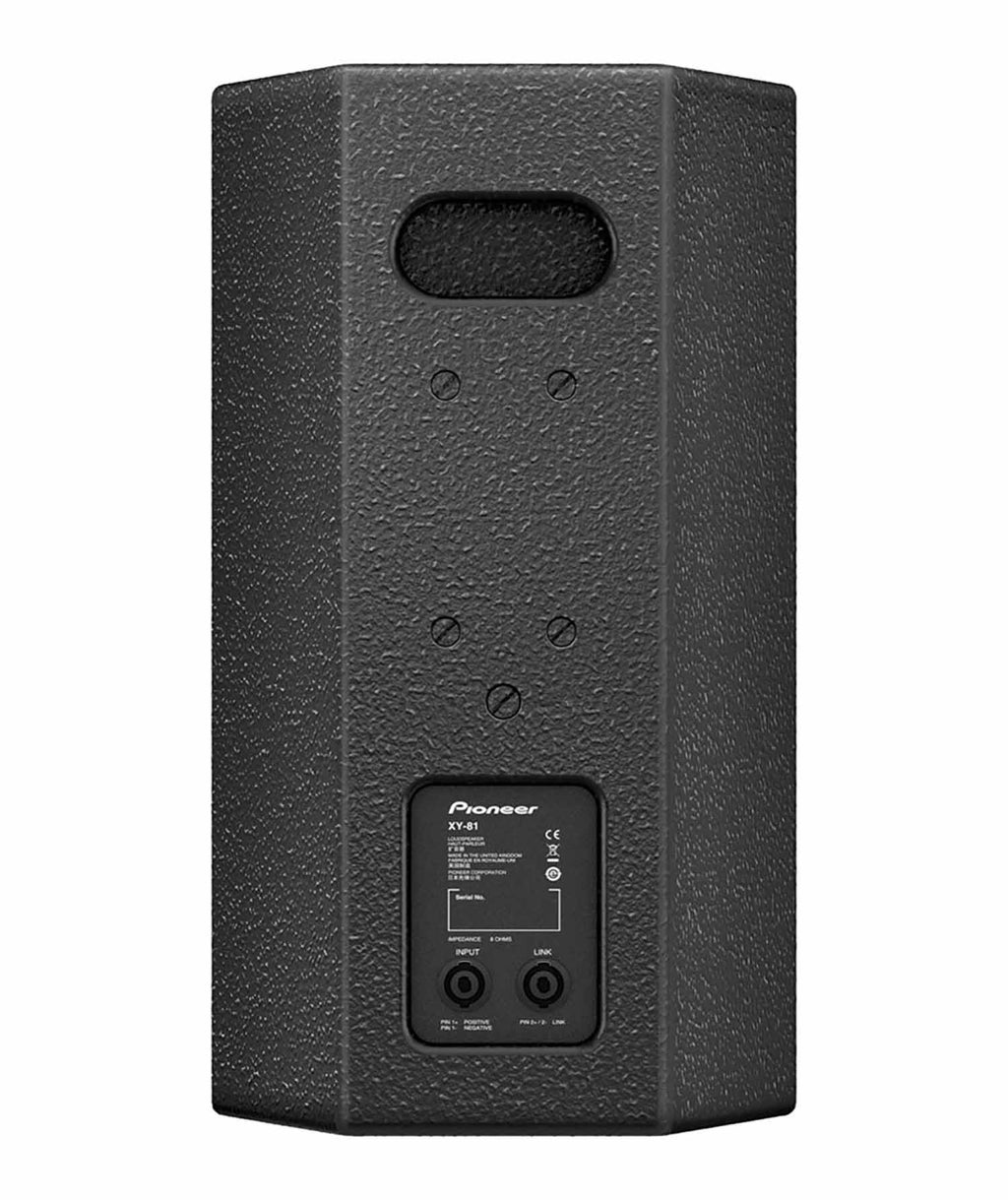

Rigging and Hardware

8 × M8 threaded mounting points (4 top/4 bottom),

1 × M8 threaded mounting points on rear,

4 × M6 threaded points on rear (for wall mount bracket),

1 × flush handle on rear,

1 × 35 mm polemount socket

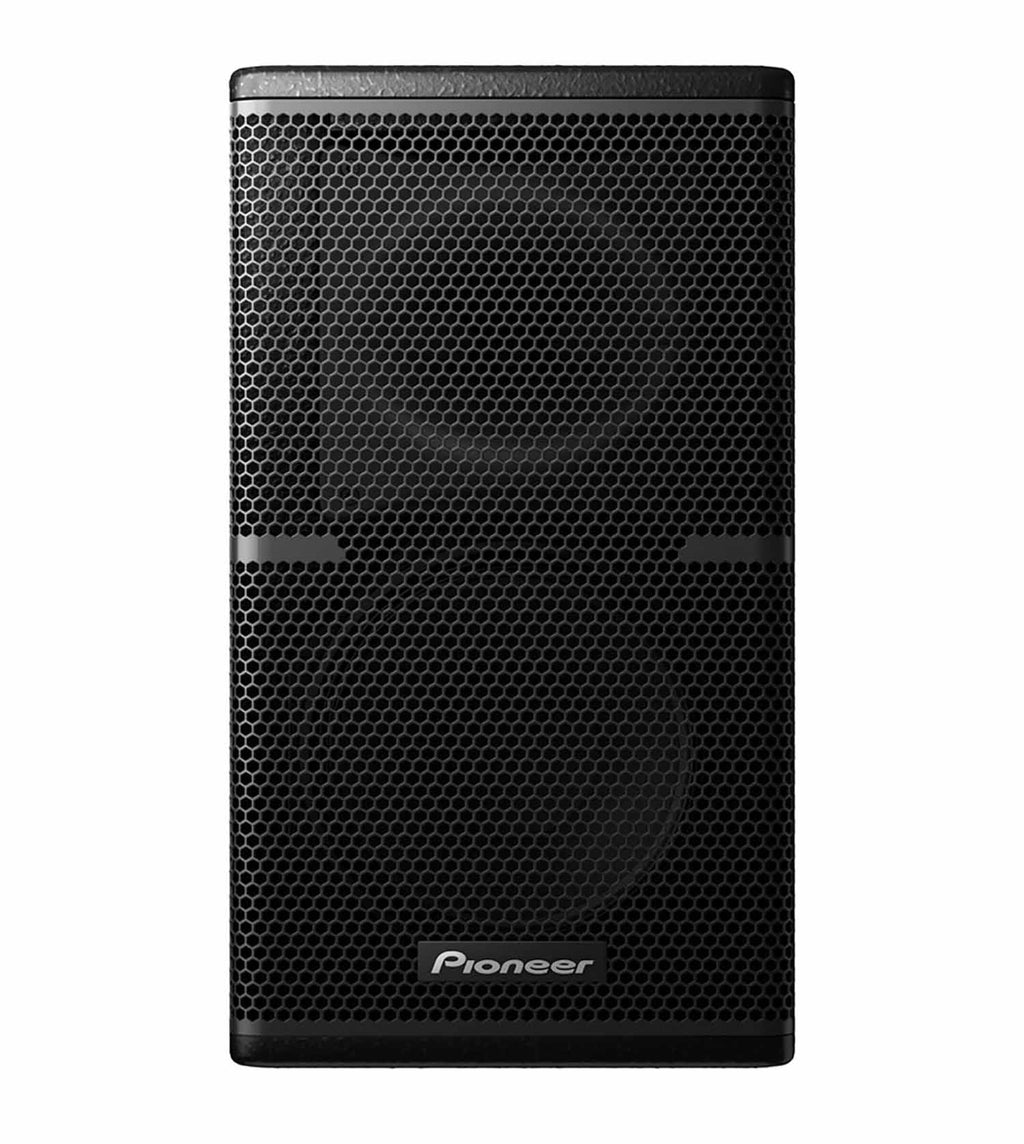

Grille

Hex punched steel

Enclosure

15 mm (0.6-inch) birch plywood

Finish

Impact-resistant, Black semi-matt textured

Frequency response

75 hz to 20 kHz

Sensitivity (1W/1m)

91 dB

Nominal Impedance

8 Ω

Loudspeaker data

Power Handling

350 W RMS, 700 W Program

Power Handling AES

116 dB cont., 122 dB peak

Power Handling (RMS/Program)

90 °H × 60 °V, rotatable

Transformer taps

8 inch (200 mm) LF cone driver,

1-inch (25 mm) exit neodymium HF compression driver

Maximum SPL

Asymmetric internal passive crossover

Dispersion

2 × Neutrik SpeakON™ NL4

Dimensions / Weight

Dimensions ( W x H x D)

262 × 462 × 255 mm

(10.3 × 18.2 × 10-inch)

Weight

12 kg (26.5 lbs)

Other

Suggested Power Amplifier

Recommended : K2DSP

Minimum : M20DHDSP

Accessories

polemount socket cover

(-W model only)
