PreSonus AVB-D16, 16x16 AVB-to-Dante and Back Again

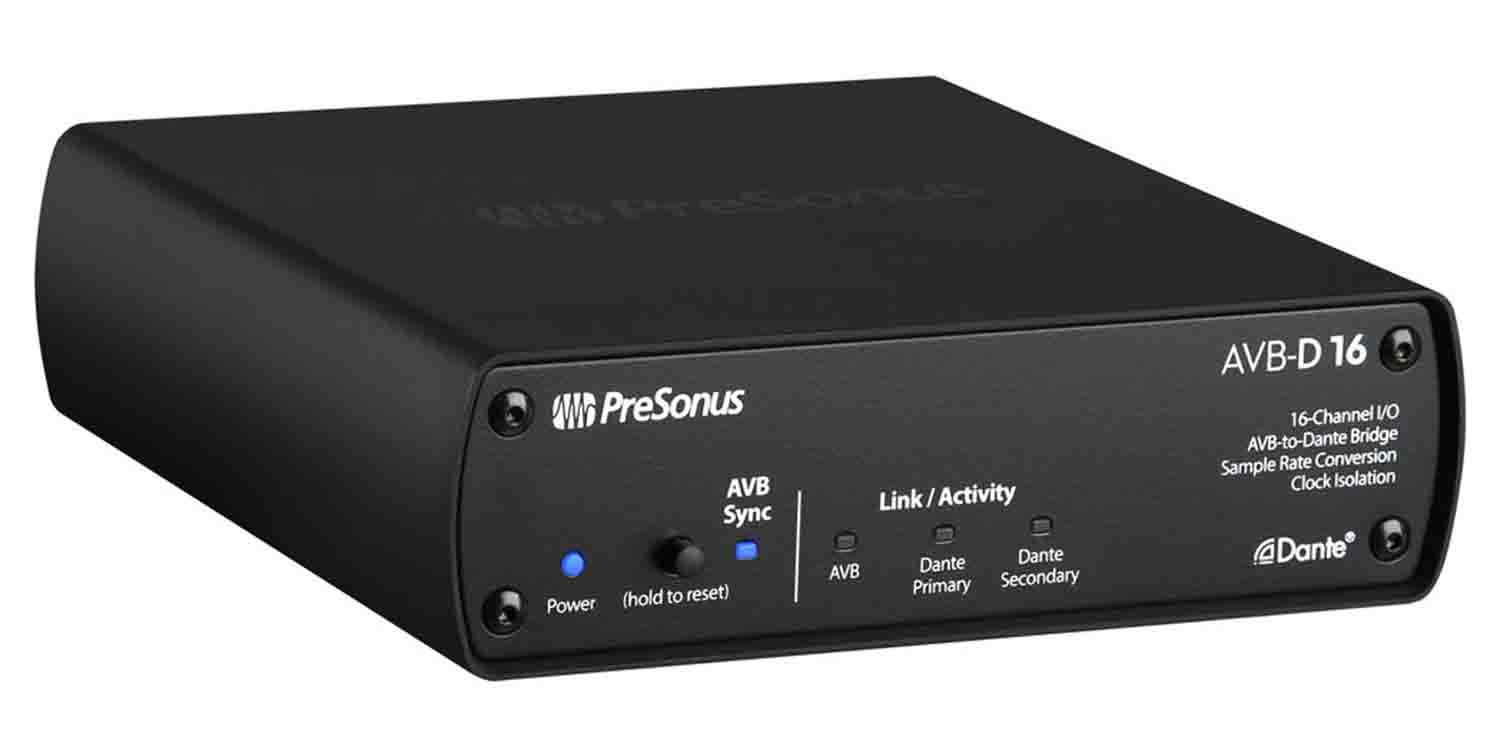

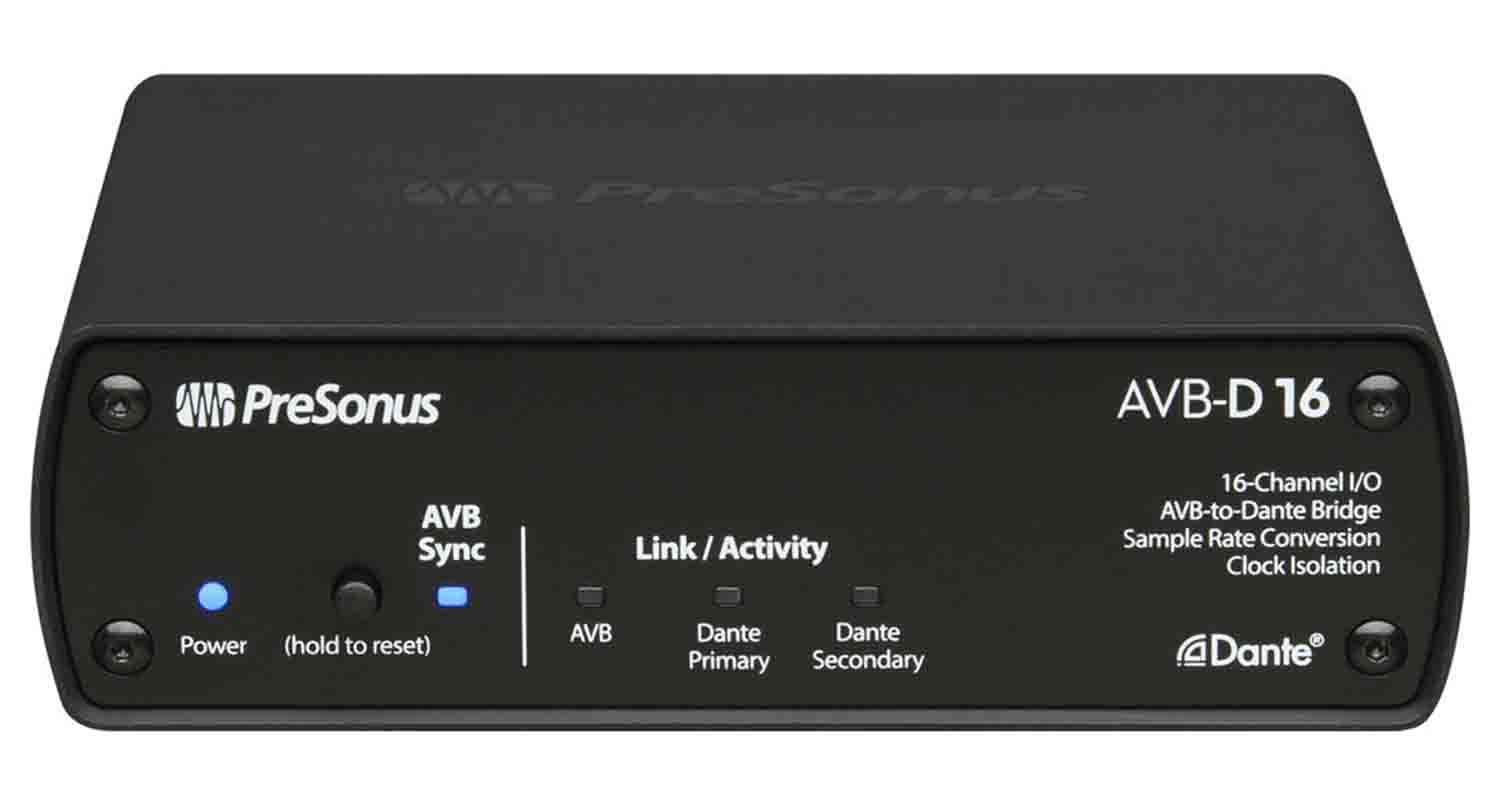

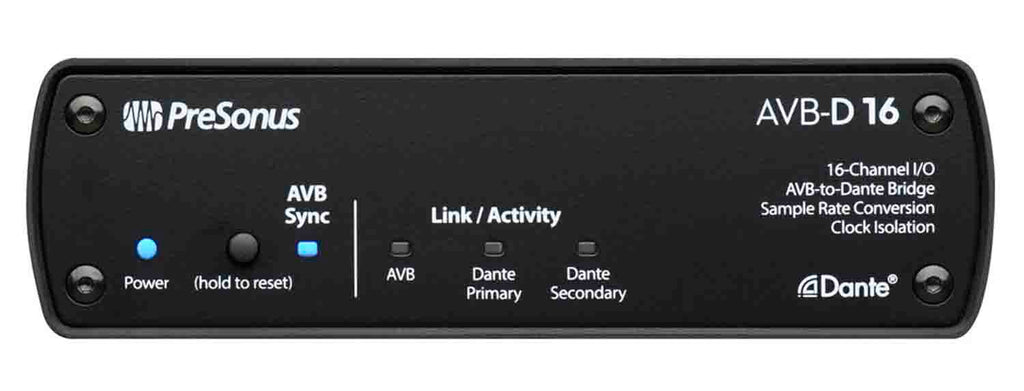

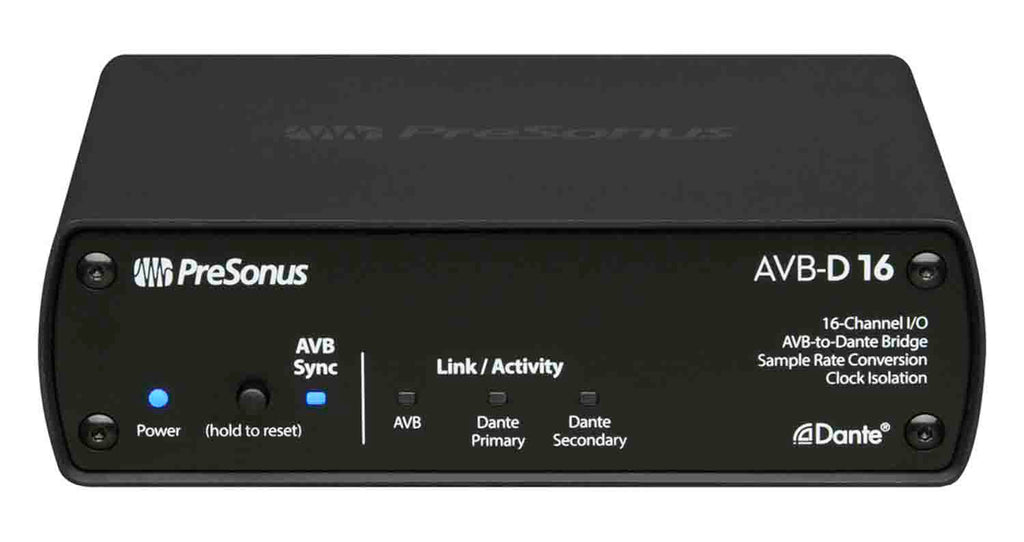

The PreSonus AVB-D16 is a 16x16 AVB-to-Dante and Back Again. The PreSonus AVB-D16 is the first plug-and-play endpoint that bridges AVB and Dante networks. Now you can send and receive up to 16 audio channels between an AVB and Dante network with one simple device, making it the perfect solution to connect your StudioLive Series III AVB ecosystem to your favorite Dante-equipped products, like the PreSonus CDL12 constant-directivity loudspeaker. Built-in asynchronous sample-rate conversion ensures that the AVB-D16 provides precision clock isolation between your AVB and Dante networks for pristine, clear audio with no dropouts or artifacts.

Studiolive Series III Now with Dante

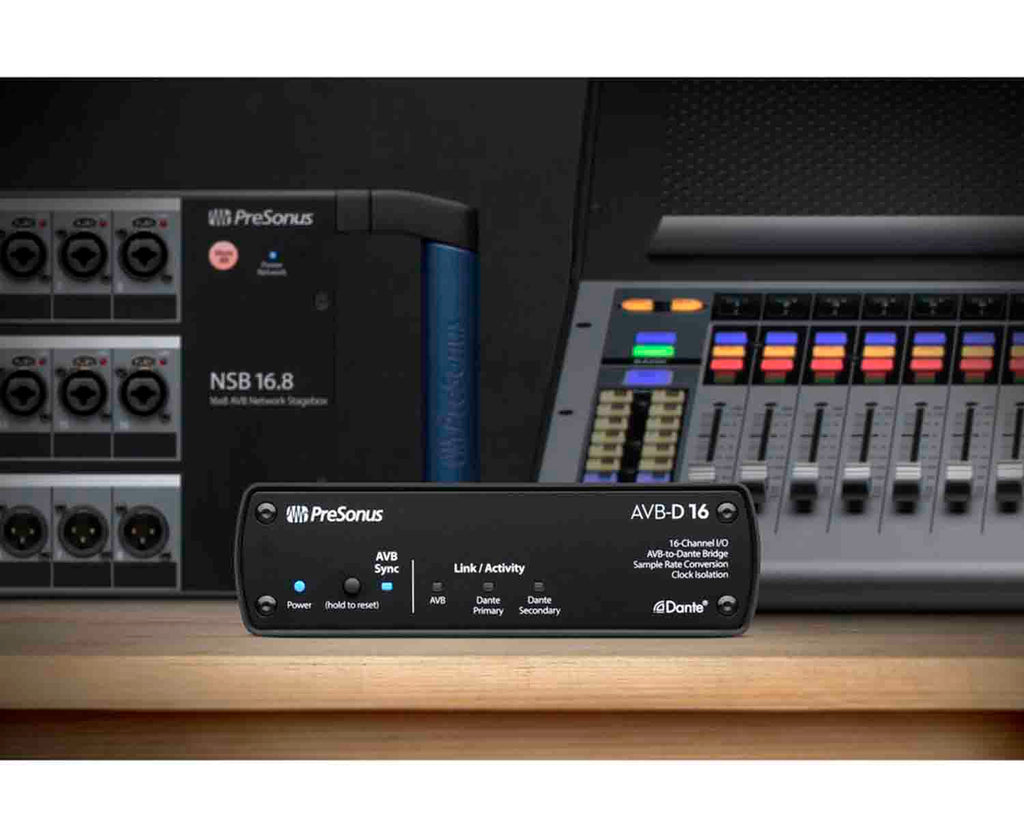

Onboard AVB networking and the AVB-D16 make it possible to add Dante functionality to your StudioLive Series III mixer without the unnecessary hassle of an internal option card. Simply connect one or more AVB-D16 AVB-to-Dante bridges to your existing StudioLive Series III AVB network to add 16 channels of Dante I/O with each bridge. AVB-D16 makes the vision of plug-and-play functionality between audio networks a reality.

One Endpoint, Two Networks

Whether you’re looking at your Dante network setup from Audinate’s Dante Control software or managing your StudioLive Series III AVB ecosystem from UC Surface or a StudioLive Series III console touchscreen, the AVB-D16 presents itself as a simple 16x16 network device.

One Endpoint, Two-Sample Rates

With built-in asynchronous sample-rate conversion, the AVB-D16 provides precision clock isolation between the AVB and Dante networks. This ensures pristine, clear audio with no dropouts or artifacts. It also allows you to run different sample rates on the AVB and Dante networks. So even if you're operating a Dante network at 96 kHz, you can still connect streams between your StudioLive Series III AVB network operating at 48 kHz with total confidence that the audio will be clean and error free.

Product Specifications:

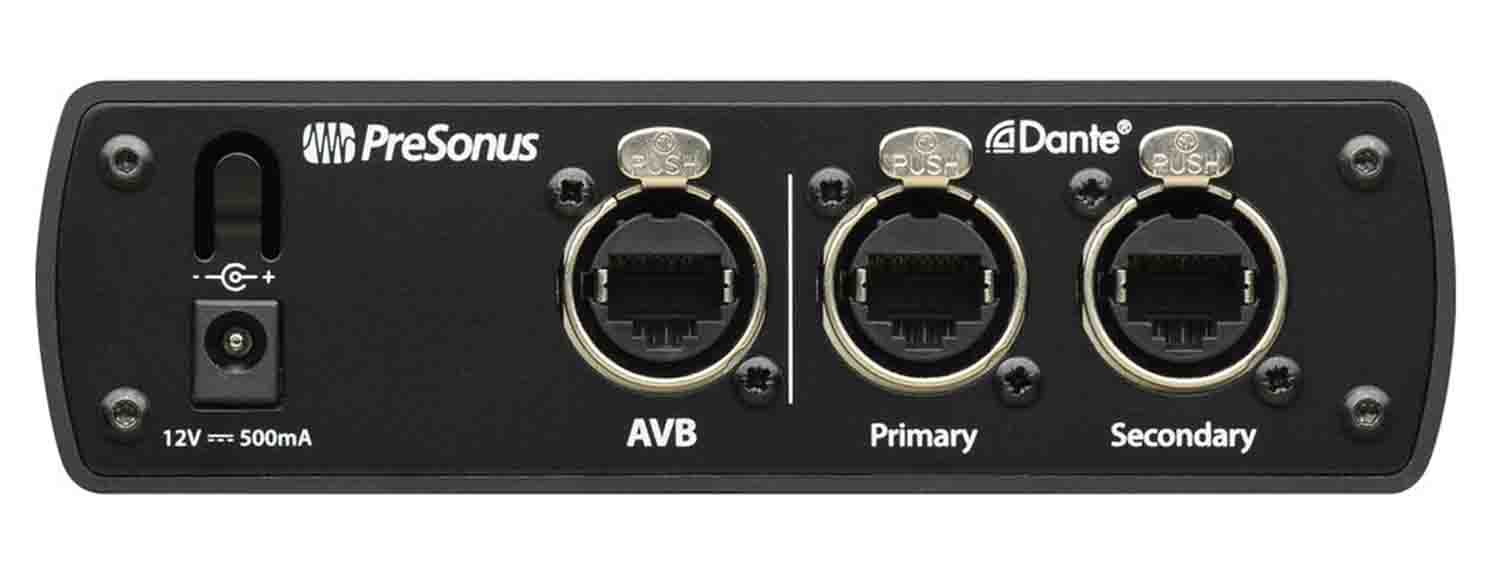

AVB Audio Network Port: etherCON

AVB Audio Sample Rates: 44.1 kHz, 48 kHz

Input Voltage Range: 100-230 VAC (±10%)

Height: 1.68” (43 mm)

Depth: 5.9” (145 mm)

Width: 5.7” (145 mm)

Weight: 1.63 lb. (0.74 kg)
