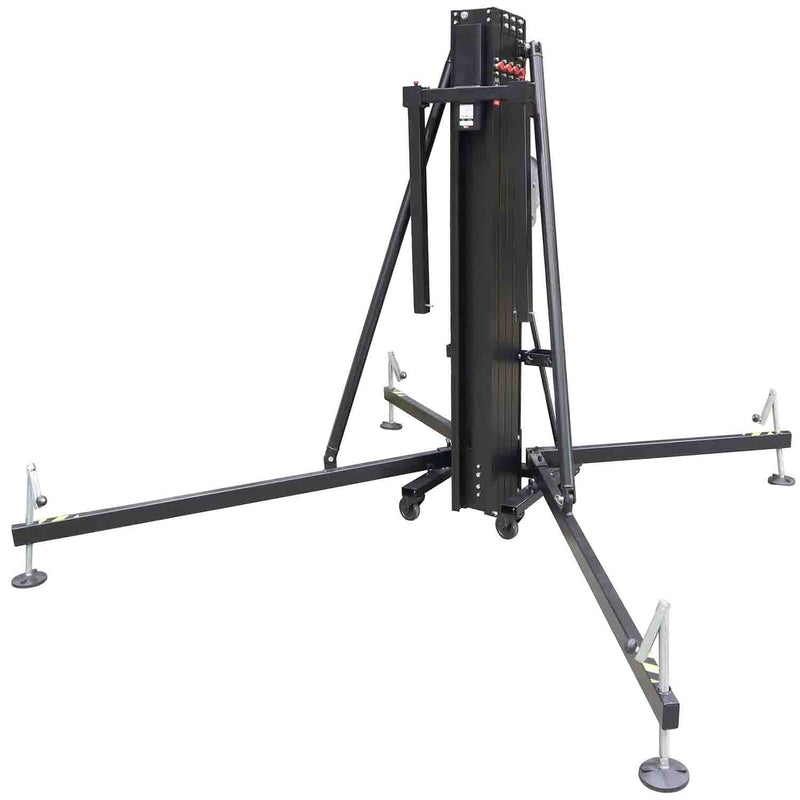

ProX XT-HERCULES 6.5 PLUS Lift Frontal Loading Lifting Tower for Line Array - Black Aluminum

The ProX XT-HERCULES 6.5 PLUS Rigging tower Frontal loading lifting tower allows raising the load from the floor, avoiding any single effort and specially designed for a reliable lifting of Line Array Systems of up to 500kg/1102 lbs to a maximum height of 6.5 meters / 21.30 Ft. This product is perfect to fly line array systems, trusses and LED screens. The compact design with castors gives the XT-HERCULES 6.5 PLUS Rigging tower easy handling and maneuverability, reducing storage space and it is the ideal solution for touring, rental and event production (concerts, events, trade fair stands, stage construction, fitting-out discos, theaters, broadcasting, TV, etc.).

These stacking trusses, manufactured with extruded aluminum (Alloy: EN-AW according to 6082 T6) and TIG welded (continuous cord for a maximum resistance), are specially designed to be piled up, reducing storage space and making it easier to handle.

During lifting, the tower telescopic mechanism lift can stop safely at any of the PLS (Pin Locking System) positions. These pins take the load off the wire rope. The steel base provides great stability when the adjustable screw-jacks are well balanced and the bubble level on the base provides accurate leveling.

Fits: Standard F34 Square Truss Configurations.

XT-SQ SERIES DIMENSIONS:

Height: 11.42in / 290mm

Width: 11.42in / 290mm

Weight: 21lb per 3.28 ft / 9,5kg per meter

Main Tube: 2in / 50mm

Wall Thickness:  .08in / 2mm

Braces: .75in / 20mm

Product Specification:

Weight: 378.00 lbs

Shipping Dimensions: 23.00"L x 20.00"D x 78.00"H

Shipping Weight: 405.00 lbs
