QSC AD-S10T, Acoustic Design Series 10-Inch 2-Way 250W Surface-Mount Loudspeaker

The QSC AD-S10T Acoustic Design Series 10-Inch 2-Way 250W Surface-Mount Loudspeaker is a transformer-equipped 10" surface-mount loudspeaker supplied with the award-winning X-Mount system, making it suitable for 70/100V or 8-ohm operation in a variety of foreground and background music applications, whether installed in horizontal, vertical, wall, or ceiling deployments.

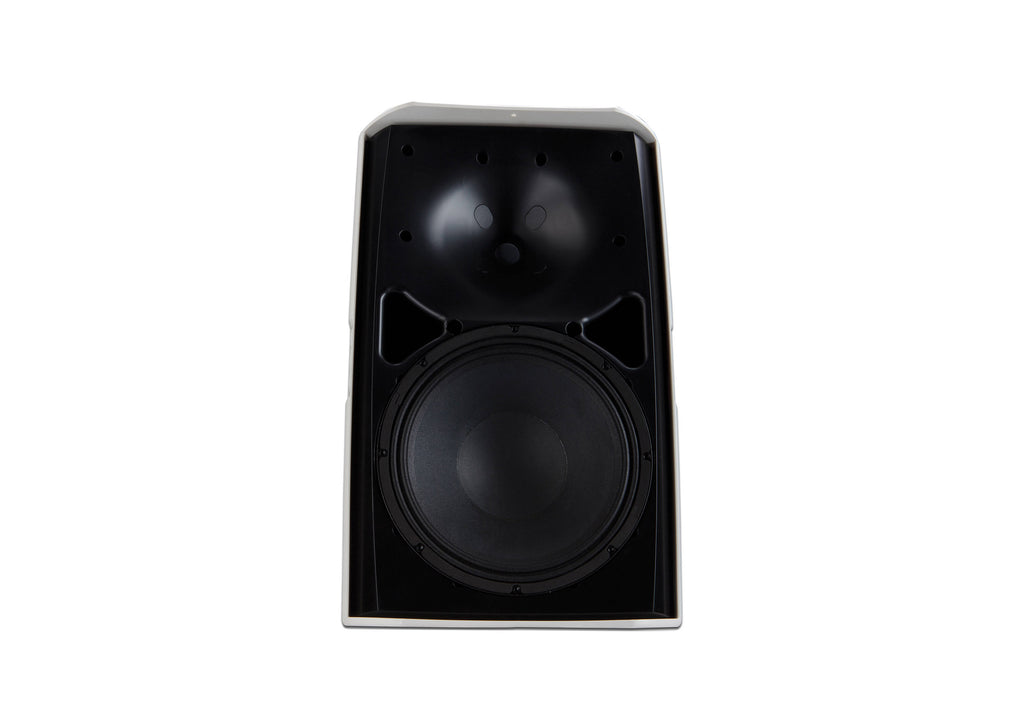

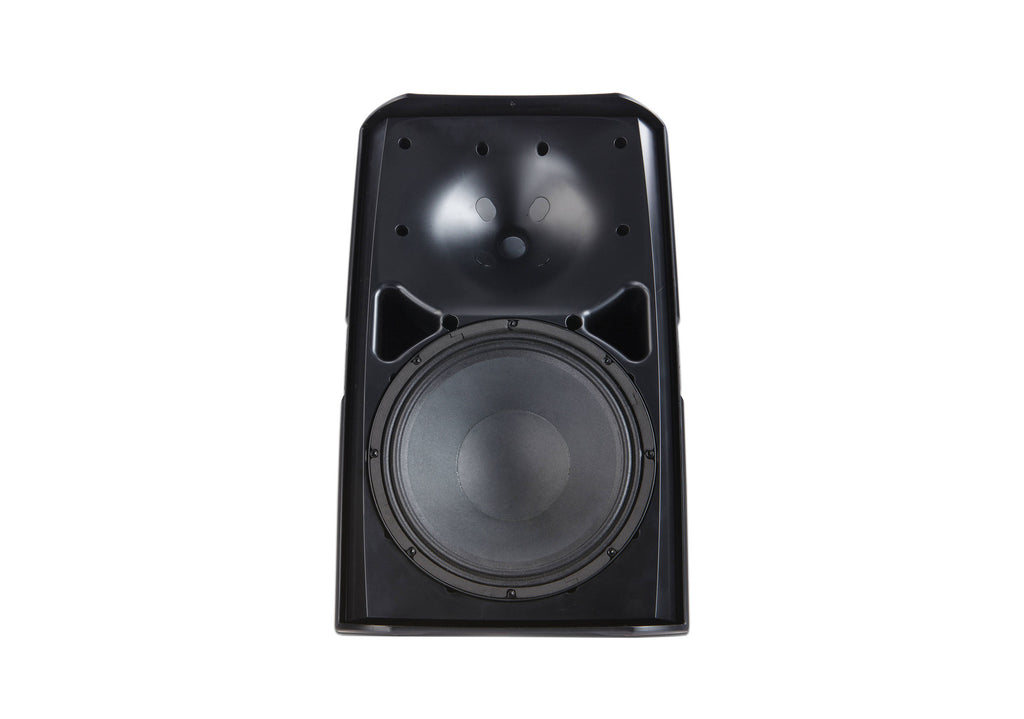

Outfitted with a 10" weather-treated woofer and a 1" exit compression driver with a DMT waveguide, the AD-S10T offers even 90° conical coverage and improved off-axis response while providing a frequency range of 50 Hz to 19 kHz (-10 dB). The speaker is capable of handling 250W RMS and producing a peak maximum SPL of 122 dB.

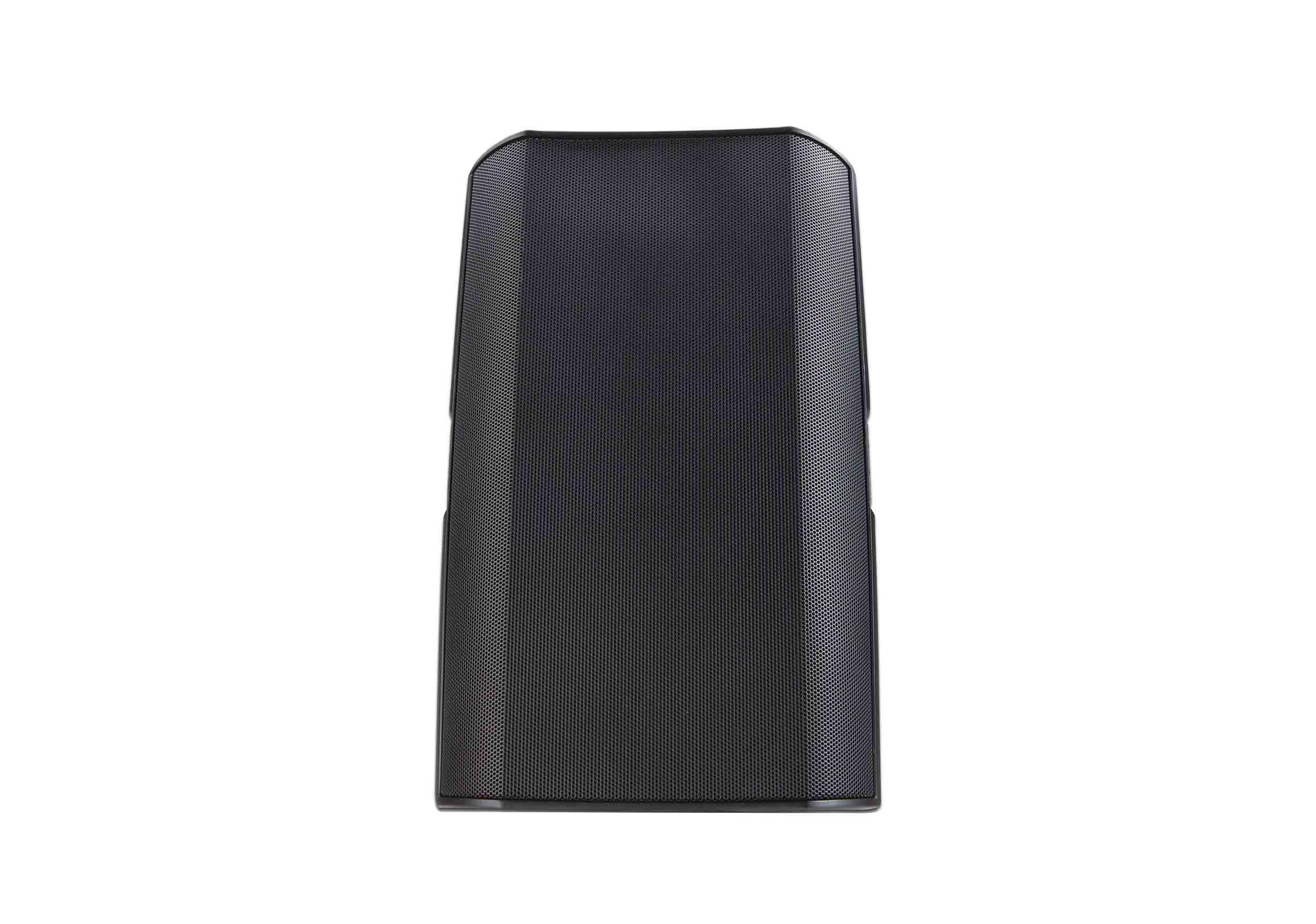

The AD-S10T utilizes a 4-pole Euroblock connector under a sealed input cover for easy wiring and protection from moisture. Featuring a rugged ABS enclosure and a powder coated aluminum grille, the AD-S10T boasts dust and splash resistance beyond IP54 ratings for worry-free operation indoors or outside.

Product Specification:

Active/Passive: Passive

Number of Included Speakers: 1

Speaker Configuration: 2-Way

Power Handling:

For 2 Hours / At Low-Z: 250 W RMS

Recommended Amplifier Power: 500 W

Constant Voltage / Transformer Taps:

70 V: 100 / 50 / 25 / 12.5 W or 8 Ohms Bypass

100 V: 100 / 50 / 25 W or 8 Ohms Bypass

Impedance: 8 Ohms (Transformer Bypassed)

Transformer Wattage: 100 W

Enclosure Type: Sealed

Shielded: No

Drivers:

HF Driver: 1x 1" / 2.54 cm Compression Driver

HF Voice Coil: 1.4" / 3.56 cm

LF Driver: 1x 10" / 25.4 cm Paper Woofer

LF Voice Coil: 2.5" / 6.35 cm

Performance:

Frequency Range: 50 Hz to 19 kHz -10 dB

Maximum SPL:

116 dB (Continuous)

122 dB (Peak)

Sensitivity: 92 dB SPL

Coverage Angle: 90° (Conical)

Directivity:

10 (Directivity/Q Factor)

10 dB (Directivity Index)

Maximum Input Voltage: 45 V RMS

Connectivity:

Inputs/Outputs: 1x Block 4-Pole Speaker Input/Thru (Removable)

Physical:

Environmental Resistance: Dust/Humidity/Water-Resistant (IP54)

Operating Conditions: -4 to 122°F / -20 to 50°C

Mounting:

1x Bracket Point (Rear)

2x M10 Suspension (Bottom)

Construction Material: ABS, Aluminum Grille, Polymer

Dimensions: 20.3 x 12.5 x 11.7" / 51.56 x 31.75 x 29.72 cm

Weight: 31 lb / 14.1 kg

Shipping Weight: 43.6 lbs.

Shipping Dimensions (LxWxH): 32 x 16 x 16 Inches
