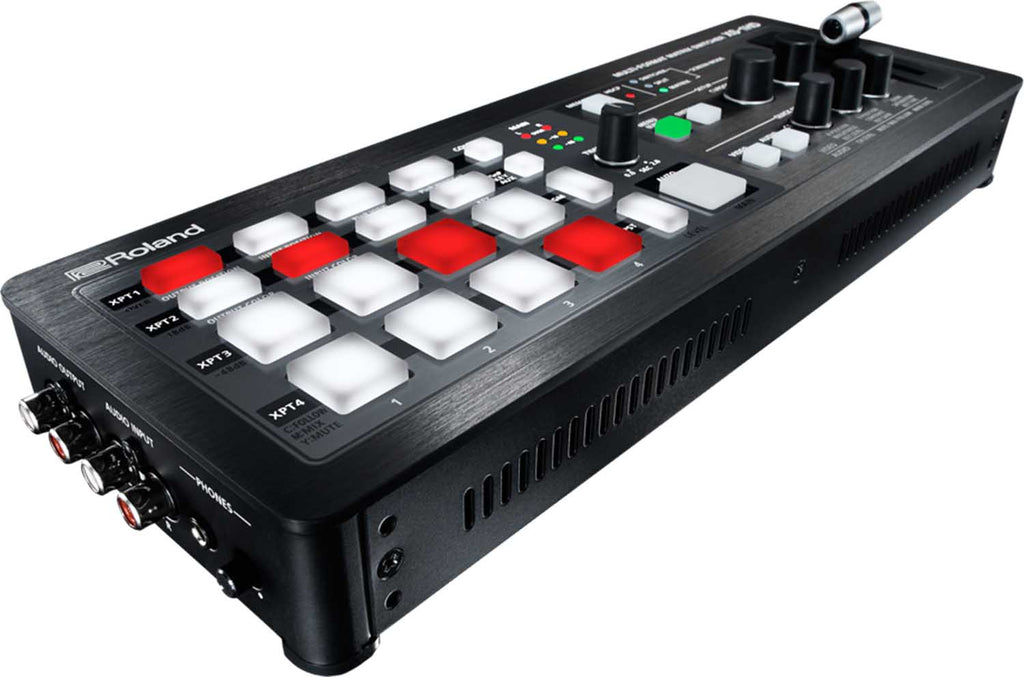

ROLAND XS-1HD Multi-Format Matrix Switcher

The ROLAND XS-1HD Multi-Format Matrix Switcher is ideal for supporting live event productions that involve a variety of video signals. A high-quality scaler is provided on each input, allowing for fast setup. At only the width of a 13” laptop computer, the XS-1HD allows real-time operation in even the most space-limited working environments.

Meeting Room:

The XS-1HD is ideal for banquet venues, halls, theaters, or e-learning studios that use multiple destinations to display video. Complex applications that would otherwise require the integration of video switchers, audio mixers, and control panels can be realized using just the XS-1HD. Since settings can be stored, even complex setups can be recalled instantly. The RS-232 control port makes it easy add a third-party control system to the XS-1HD.

Screen Modes:

The XS-1HD provides three screen modes for a variety of applications. In addition to the matrix switcher mode, there's a Switcher mode that lets you use PinP or key-compositing, dissolve transitions and provides a multi-view output, and a Split mode that can display up to three PinP images.

Functions:

All contained in a compact format, the XS-1HD includes a switcher, scalers, and audio mixer in a single unit. Additionally, high-quality image processing allows output to large high-resolution screens, without any degradation of quality.

High-Quality 4:4:4 10-Bit Processing:

The XS-1HD uses RGB/YPbPr 4:4:4 10-bit signal processing, ensuring that the quality of the video input sources is maintained to the output display especially with data sources. Video that is switched to a large LED display or projector is output with crisp clarity.

Digital Audio Mixer:

This allows the HDMI audio and analog stereo input to be mixed. There's also an "audio follow" function that switches the audio in synchronization with video transitions.

Internal Scalers:

Each video input is equipped with a scaler that can be set individually. The incoming video input resolution will automatically be matched to the output resolution. The output video can be zoomed to a maximum of 1000.0% and down to 10.0% in detailed 0.1% steps, allowing the video to be properly scaled for the display.

Test Pattern Generator:

You can output a test pattern that is convenient for adjusting the video output to a projector or large LED display. A selection of various patterns is provided, including color bars, cross-hatch, and ramp. Also included is an animation function that diagonally scrolls the displayed pattern.

Edid Emulator:

You can prevent connection problems between video devices by specifying the desired format of EDID. This is convenient in situations such as a banquet or hall, where the computer connected to the XS-1HD is changed throughout the event.

Memories:

The current setting of the switcher can be saved into one of sixteen memories. Settings can be saved for specific scenes or configurations, and be easily recalled when needed.

Product Specification:

Processing: 4:4:4 (Y/Pb/Pr, RGB) /10 bits 4:2:2 (Y/Pb/Pr) /10 bits

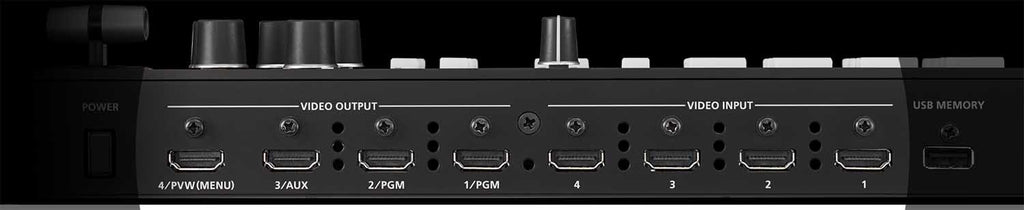

Input Connectors HDMI: HDMI type A x 4 (HDMI INPUT 1--4) HDCP Supported

Output Connectors HDMI: HDMI type A x 4 (HDMI OUTPUT 1--4) HDCP Supported

Sampling Rate:24 bits/48 kHzInput Connectors HDMI: HDMI type A x 4

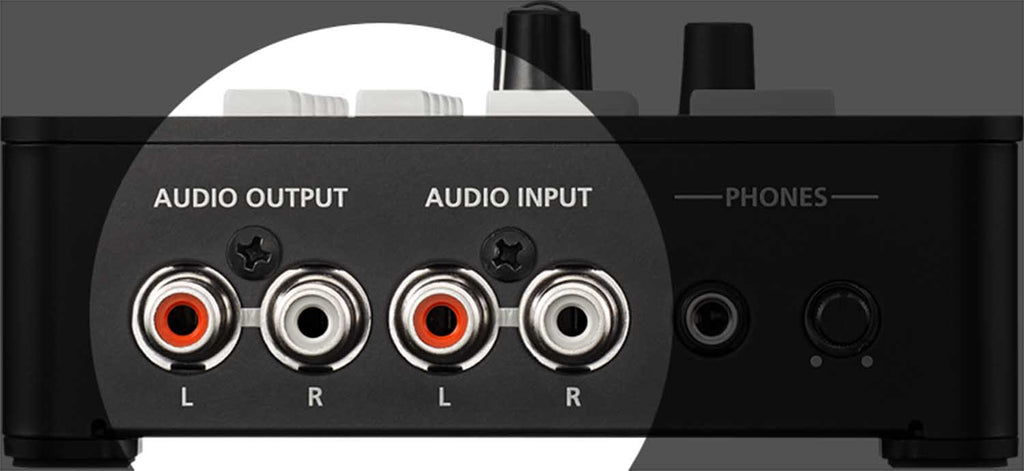

Audio Input: RCA pin type Output Connectors HDMI: HDMI type A x 4

Audio Output: RCA pin type

Phones: Stereo mini type Input Level AUDIO INPUT: -10 dBu (Maximum: +8 dBu) Input

Input: 15 k ohms Output Level AUDIO OUTPUT: -10 dBu (Maximum: +8 dBu)

External Connectors Remote: RS-232 DB-9 type (Male) x 1 for Remote Control

Dimensions: 12.9 x 4.6 x 2.2" / 328.0 x 117.0 x 57.0 mm

Weight: 2.6 lb / 1.2 kg

Package Weight: 4.8 lb

Box Dimensions (LxWxH): 16.4 x 8.6 x 5.3"
