Samson SW77R00 CR-77 Diversity Receiver with AC500 Power Supply

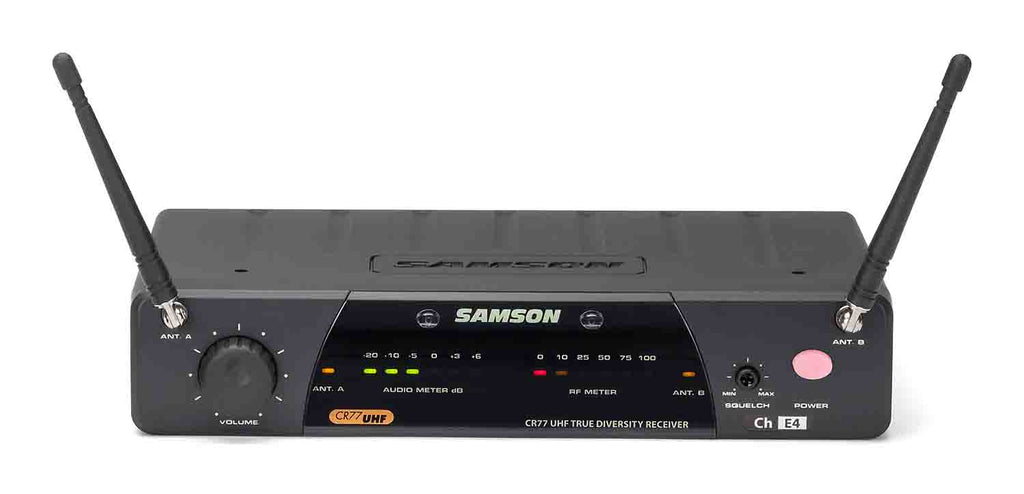

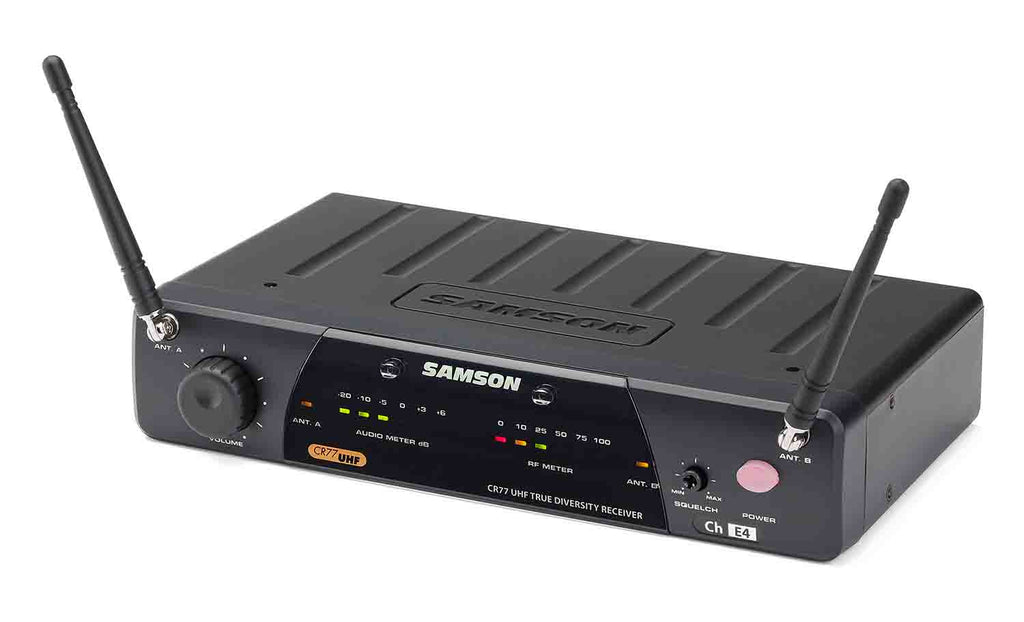

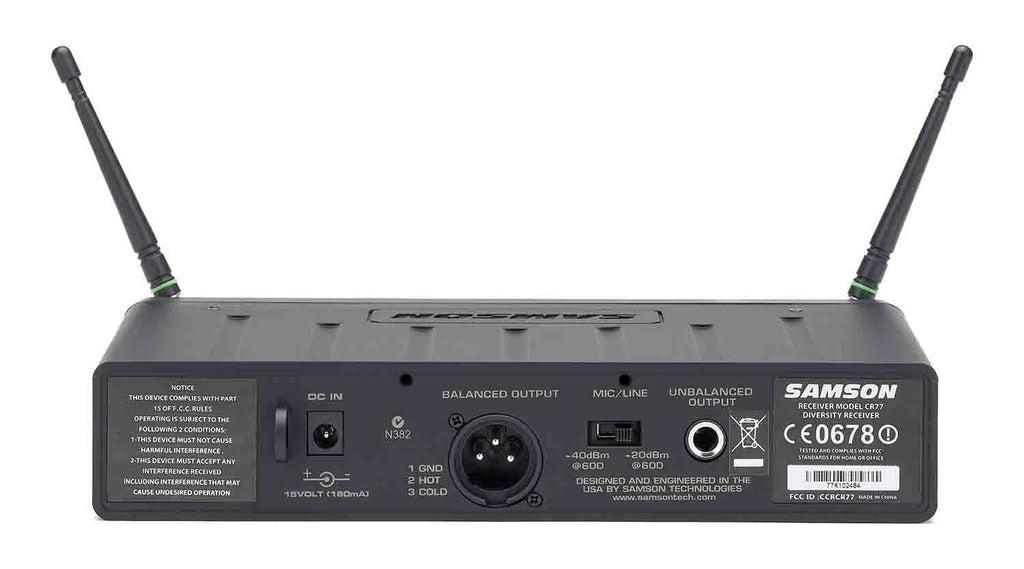

The Samson SW77R00 is a CR-77 Diversity Receiver with AC500 Power Supply. The Samson SW77R00 Concert 77 series true-diversity half-rack UHF receiver is at the core of the Concert 77 system. A synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The receiver features a front panel display with large multi-segment audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. Its rear panel features balanced XLR and unbalanced 1/4-inch outputs allowing flexible connection options. Where two wireless systems are required, two CR77 receivers can be rackmounted together in a single-space rack adapter available as an additional accessory.

Product Specifications:

Wireless Transmission: Digital UHF

Number of RF Channels: 1

Diversity: True Diversity

Max Operating Range: 300' / 91.4 m (Line of Sight)

Max Systems per Setup: 6

Form Factor: Tabletop

Mounting Options: Rackmount (with Optional Hardware)

Rackmount Size: 1 RU (1/2 Rack)

Antenna: 2 x 1/4 Wave Telescopic, Fixed

Number of Audio Channels: 1

Audio I/O:

1 x XLR 3-Pin Male Balanced Line Output

1 x 1/4" TS Male Unbalanced Line Output

Audio Output Level:

1/4" Output: 0 dBV

XLR Output: 20 dBV

XLR Output: 40 dBV

Impedance:

1/4" Output: 5 Kilohms

XLR Output: 600 Ohms

Power Requirements: AC/DC Power Adapter

AC/DC Power Adapter: 12 VDC (Included)

Display and Indicators: 1 x Backlit LED (Data Transmission)

Housing: Metal
