Samson SW9A9SQE-D AirLine 99m Wireless Fitness Headset System with Qe Fitness Mic - D Band (542-566 MHz)

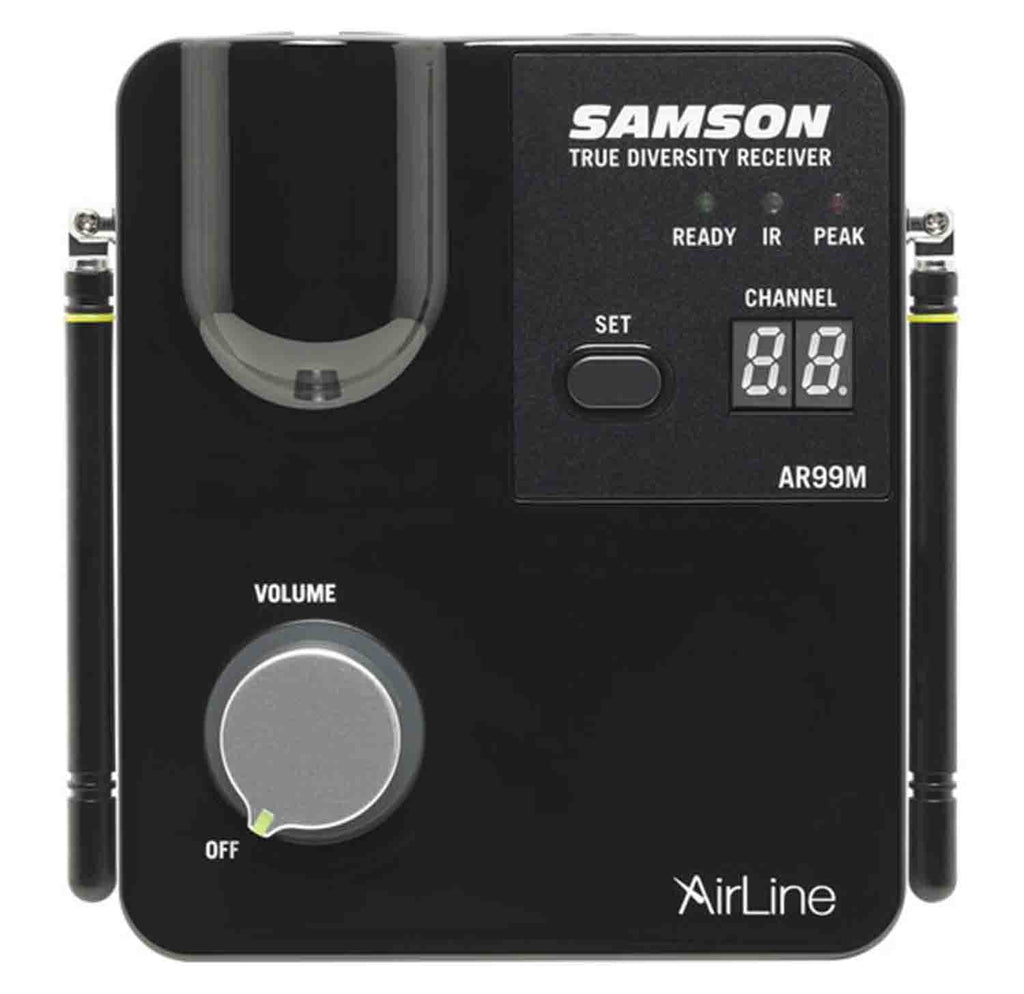

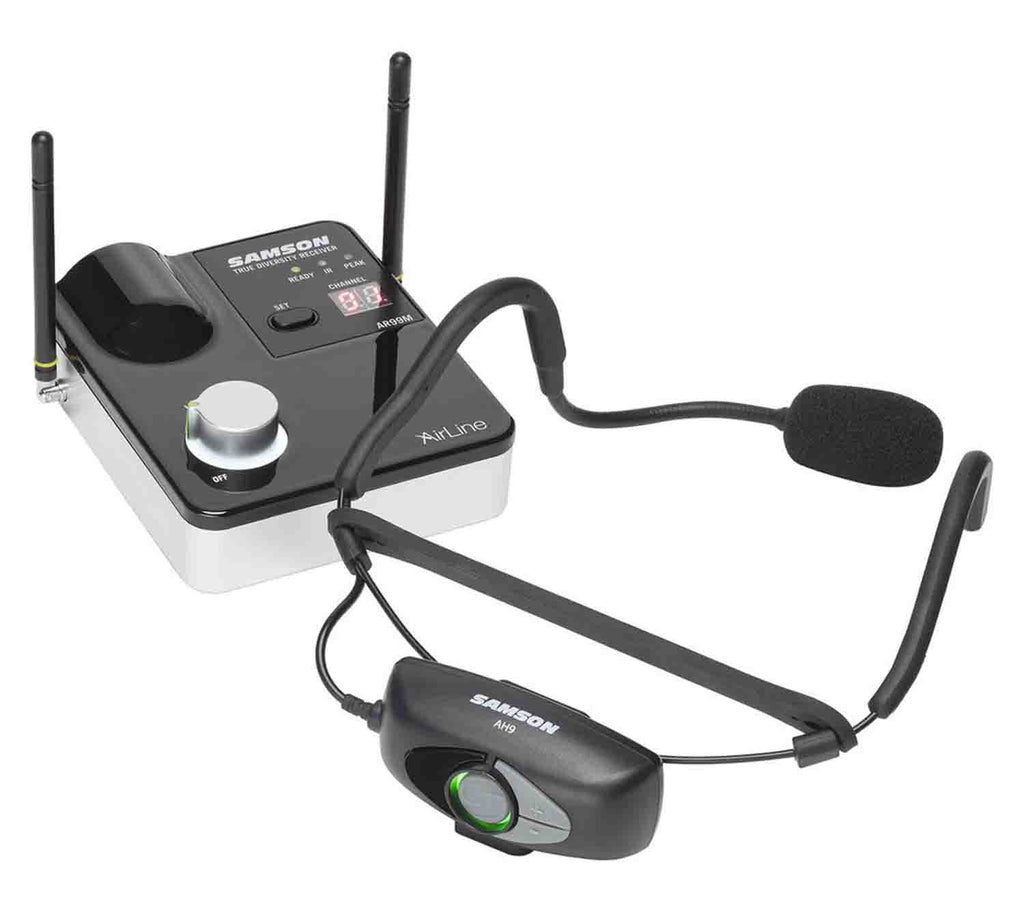

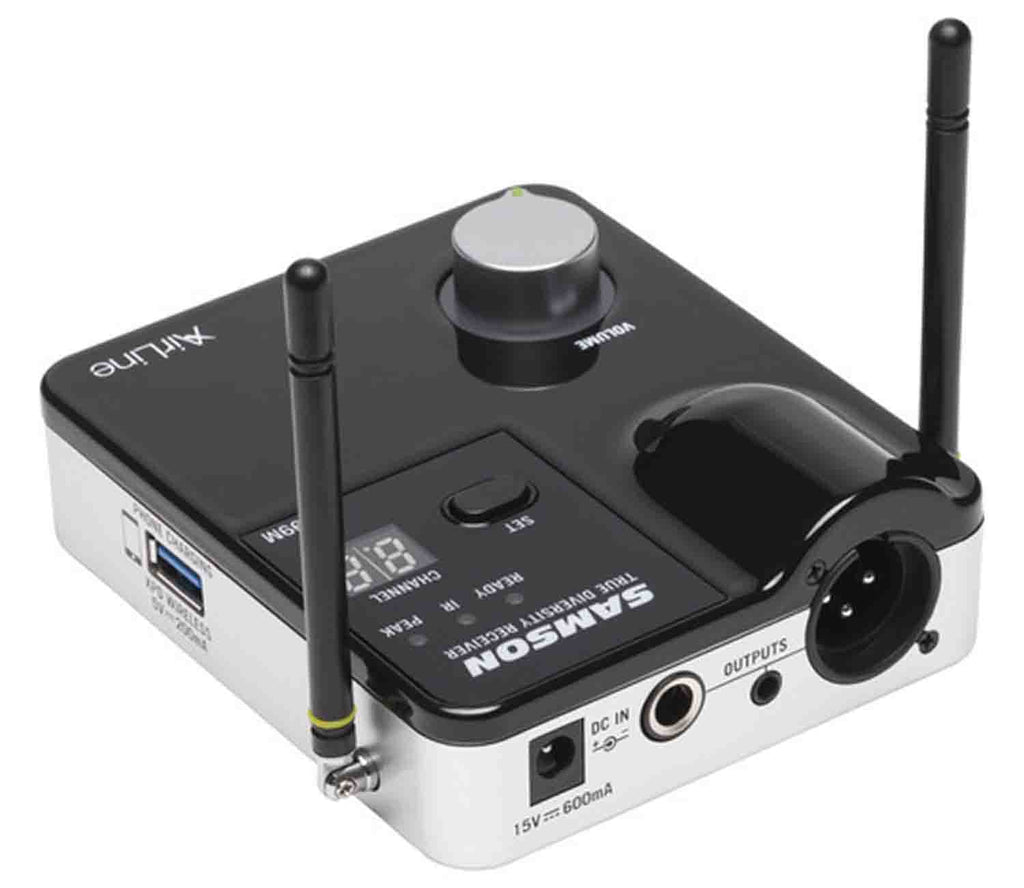

The Samson SW9A9SQE-D AirLine 99m Wireless Fitness Headset System with Qe Fitness Mic - D Band (542-566 MHz) features an AR99m UHF micro receiver and an AH9 micro transmitter attached to a Qe dual-ear fitness headset condenser microphone. The frequency-agile UHF system can be used to capture audio in various environments, and offers up to 300' of reliable performance for singers and other active performer applications.

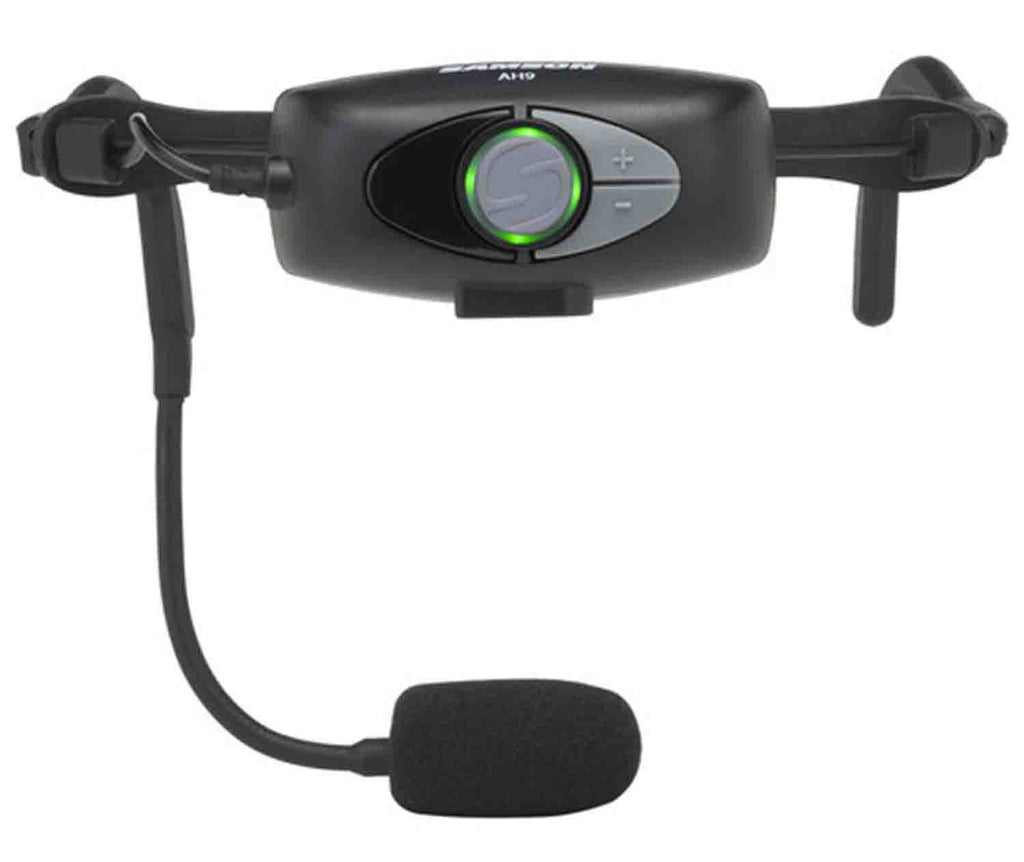

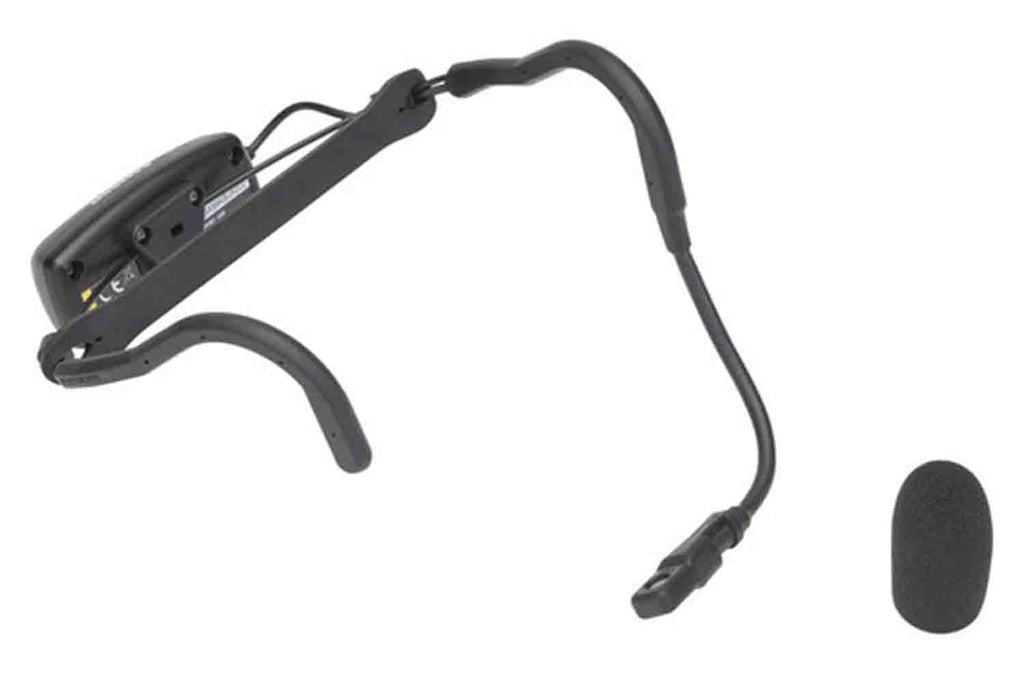

The transmitter is powered by a built-in rechargeable battery and mounted on the Qe bidirectional headset microphone, which provides clear audio reproduction and sound rejection at the sides of the capsule. The AR99m provides 100 selectable channels across 24 MHz, and is equipped with a true RF diversity design that minimizes dropouts.

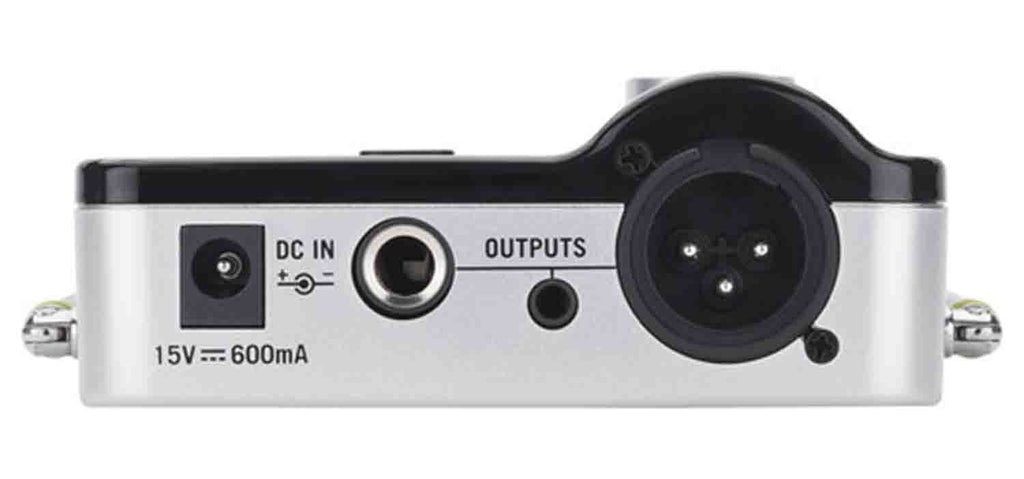

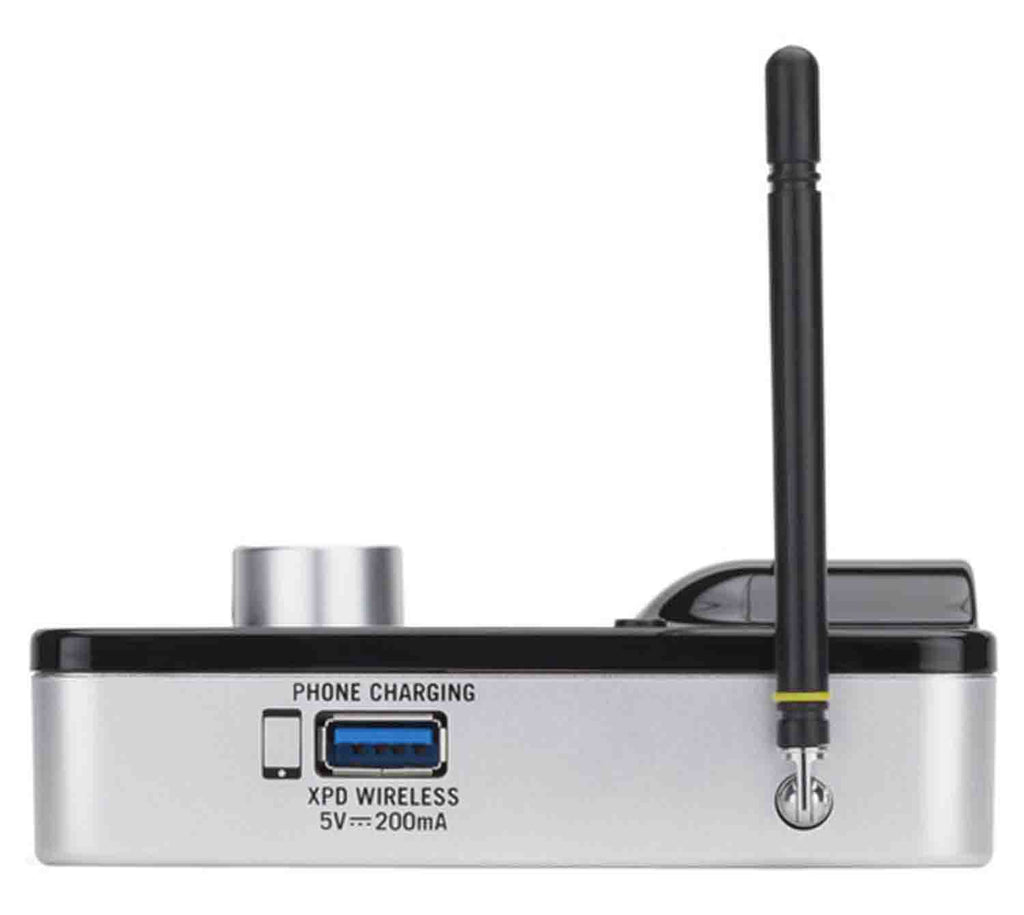

Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range. Its XLR, 3.5mm, and 1/4" outputs ensure compatible connectivity with a variety of mixers and PA systems. Also, a side-panel USB Type-A port allows for convenient charging of the transmitter or a mobile device, or the addition of a Samson XPD wireless system.

Product Specifications:

Wireless Technology: Analog UHF

Number of RF Channel Frequencies: 100

Included Transmitters: 1 x Headworn with Microphone

Diversity: True Diversity

RF Frequency Band: D 542 to 566 MHz

Max Operating Range: 300' / 91.4 m (Line of Sight)

Max Transmitters per Band: 8

Dynamic Range: >100 dBA

Encryption: None

Pilot Tone: 35 kHz

Transmitter Type: Headworn with Microphone

RF Output Power: 10 mW (EIRP)

Signal Processing: None

Frequency Response: 50 Hz to 15 kHz

Microphone Type: Headset

Sound Field: Mono

Operating Principle:  Pressure Gradient

Capsule: Electret Condenser

Polar Pattern: Figure-8

Maximum SPL: 145 dB SPL

Package Weight: 1.8 lb

Box Dimensions (LxWxH): 18.5 x 10.2 x 8.3"
