Description

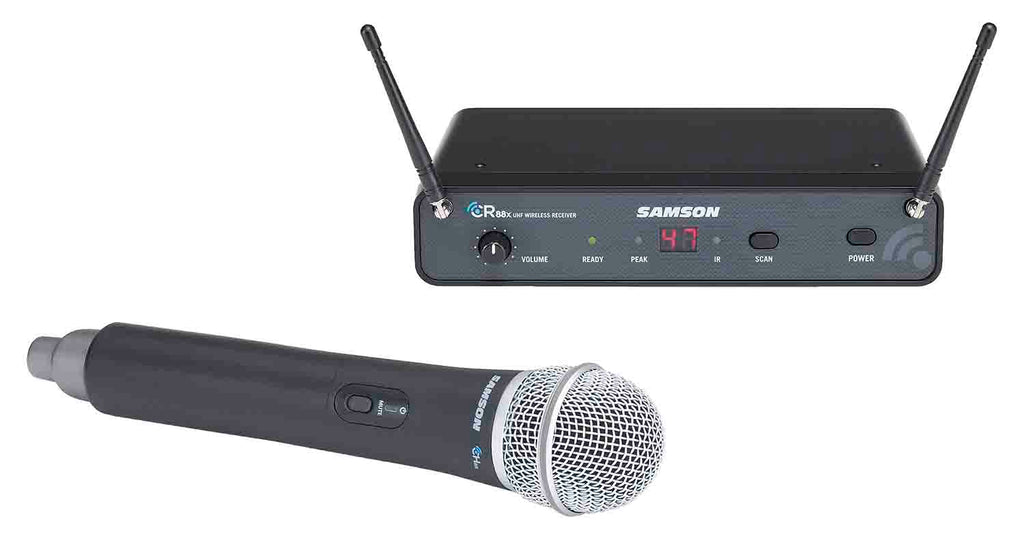

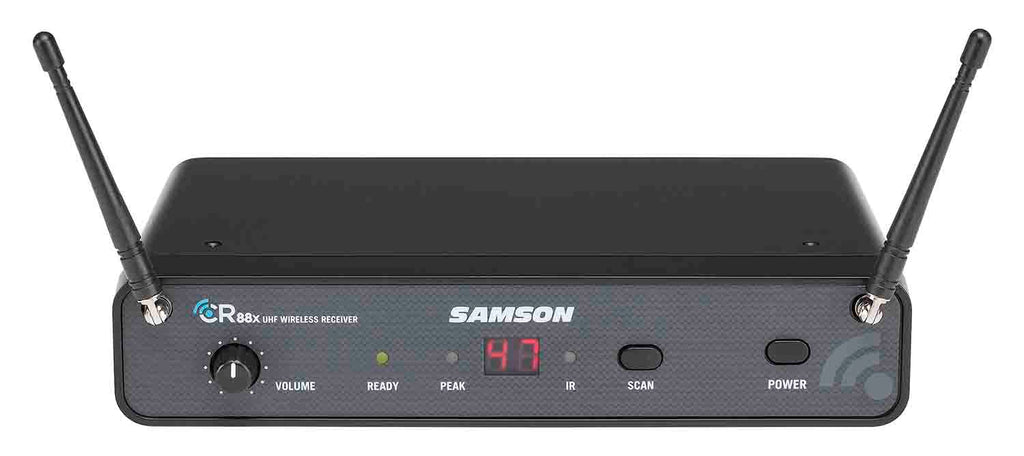

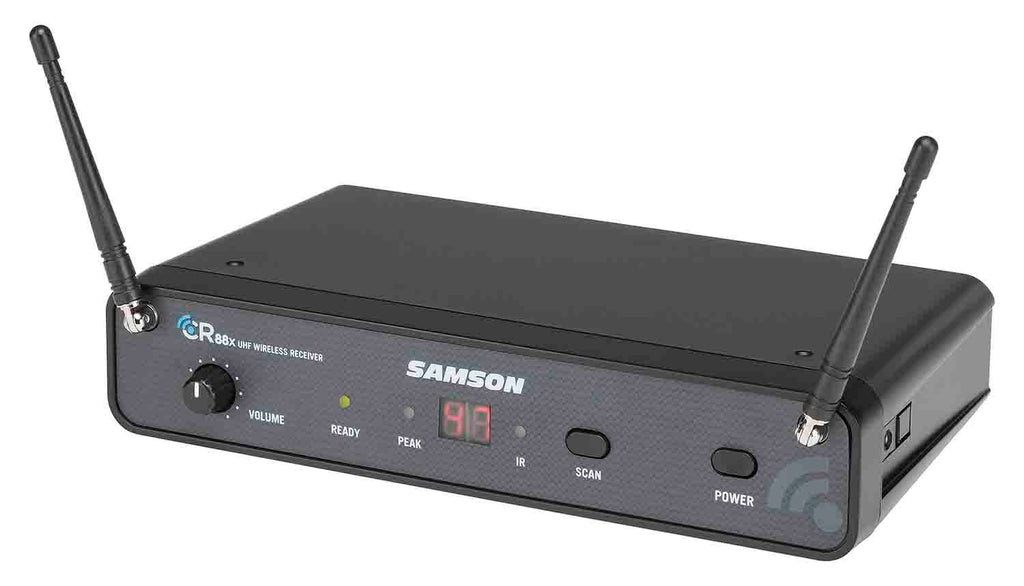

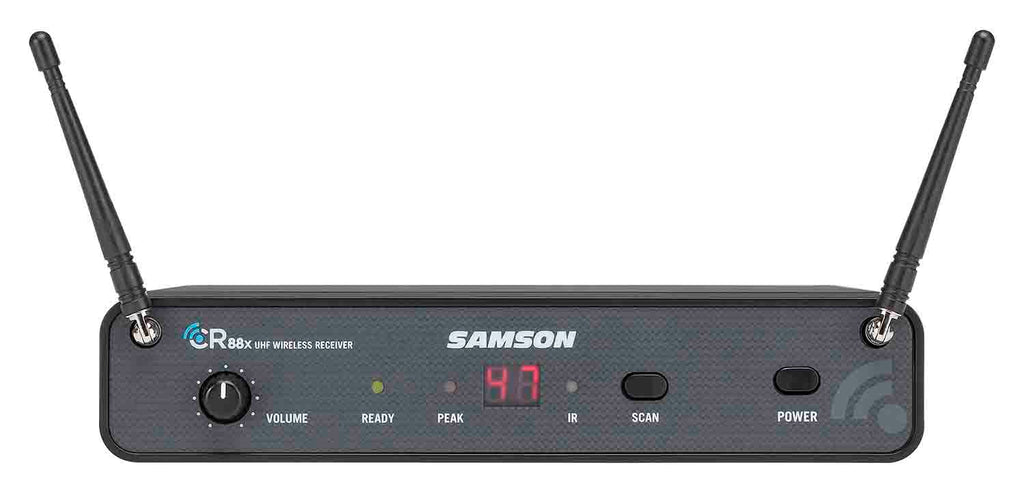

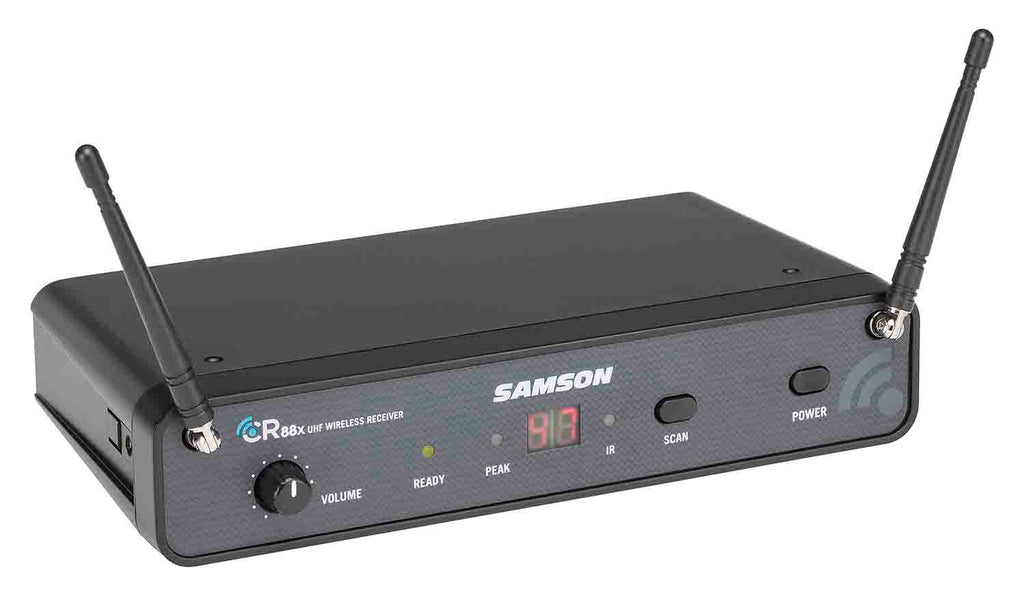

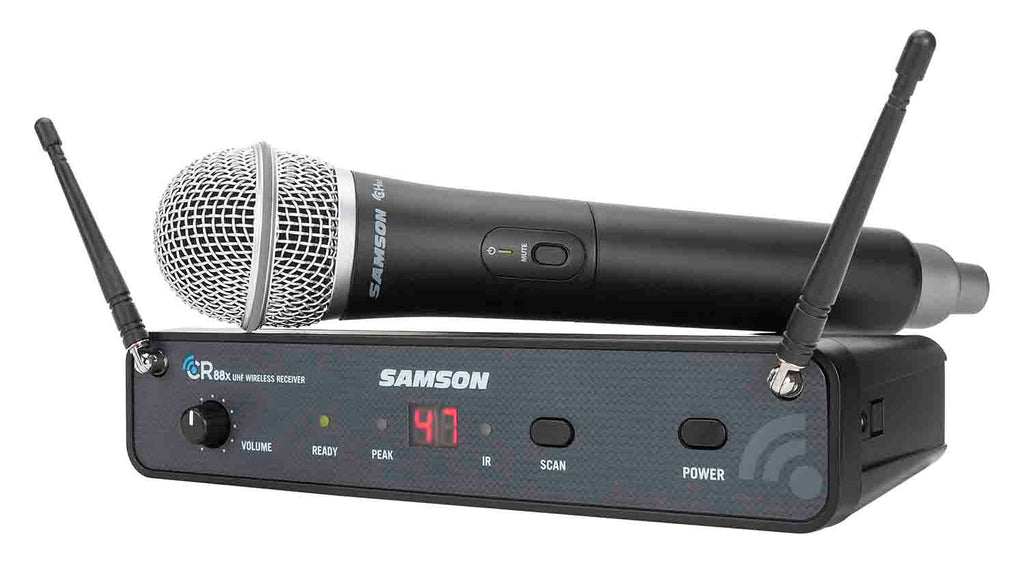

The Samson SWC88XHQ7-K Concert 88x Wireless Handheld Microphone System with Q7 Mic Capsule offers straightforward operation and quality performance. It features a handheld microphone transmitter with a Q7 dynamic capsule that offers an enhanced dynamic range and fast transient response. Its super cardioid pickup pattern provides excellent off-axis rejection, minimizing ambient noise and reducing feedback. The system also come with a tabletop, true-diversity receiver with XLR and 1/4" outputs and a rackmount kit.
With 100 available frequencies, simple syncing via IR, and one-touch automatic frequency scanning, you can quickly get started and find a strong channel. Two AA batteries (available separately) will power the microphone for up to eight hours, and the mic's power switch doubles as a handy mute function. If you move beyond the system's 300' line-of-sight operating range, the integrated tone key and auto mute functions mitigate transmission of undesired noise.
The Concert 88x system is designed for easy setup and reliable operation. It’s true-diversity design minimizes dropouts while tone key and auto mute functions prevent unwanted noise when the transmitter is off or out of range. By operating in the K: 470 to 494 MHz frequency band it avoids interference from Bluetooth and Wi-Fi signals.
Wireless Handheld Microphone
The CH88 handheld transmitter is outfitted with the Q7 professional dynamic microphone capsule. The capsule features a super cardioid polar pattern, which captures up all the nuances of any performance with maximum volume and clarity, while reducing feedback and unwanted signals not originating in front of the mic. The Q7 also offers a smooth frequency response and low-frequency roll-off for providing balanced audio reproduction no matter how close a sound source gets to the capsule. Its neodymium element delivers expanded dynamic range and contributes to its high SPL handling.

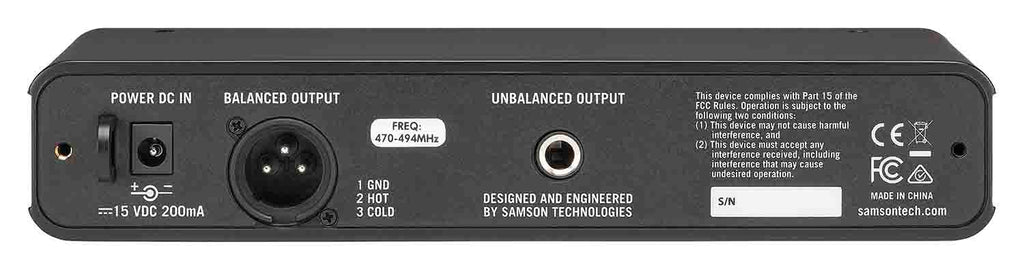

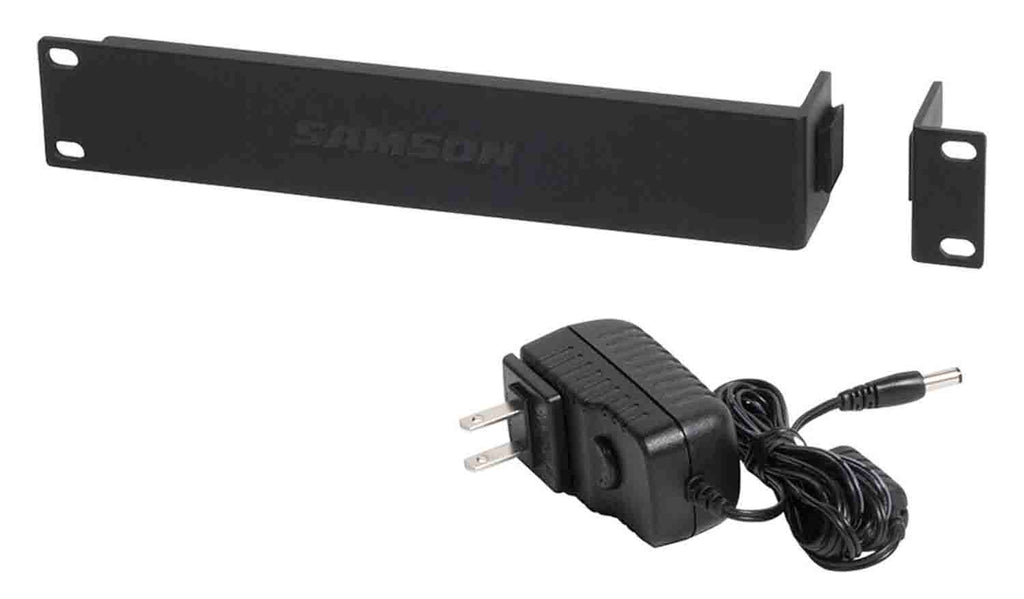

Two AA batteries (available separately) can power the transmitter for up to eight hours of operating time. Use the power switch to mute the mic between performances or turn it off for battery conservation. Beneath the battery cover, you'll find a plastic screwdriver for adjusting the transmitter's input sensitivity. Generally, avoid the maximum gain setting as it can cause distortion when the mic is used on loud sources. The tabletop receiver includes a rackmount kit for easy installation in an equipment rack or road case. Its balanced XLR and unbalanced 1/4" outputs enable proper hookup to mixers, audio recorders, and PA systems.
Product Specification:
Simultaneous Systems Per Band: Up to 16
Analog/Digital: Digital
Frequency Range: 470-494 MHz
Operating Range: 300 ft. Line-of-sight
Frequency Response: 50Hz-15kHz
Microphone Included: Yes, 1 x Q7 Microphone
Channel Selection: Auto
Type: Dynamic
Polar Pattern: Super cardioid
Max SPL: 145dB SPL
Frequency Response: 50Hz-16kHz
Form Factor: Handheld with Mic Capsule
Dynamic Range: 100dB (A-weighted)
Mute Feature: Yes
Battery Type: 2 x AA
Battery Life: 8 hours
Dimensions: 10.23" x 2.1"
Weight: 0.48 lbs.
Signal/Noise Ratio: 90dB (A-weighted)
Type: Rackmount, Table Top
Rackmount able: Yes (kit included)
Rack Spaces: Half-rack
Displays: LED
Outputs: 1 x XLR, 1 x 1/4"
Power Source: 15V DC power supply
Package Weight: 2.89 lb
Box Dimensions (LxWxH): 13.2 x 9.6 x 3.5"
