Description

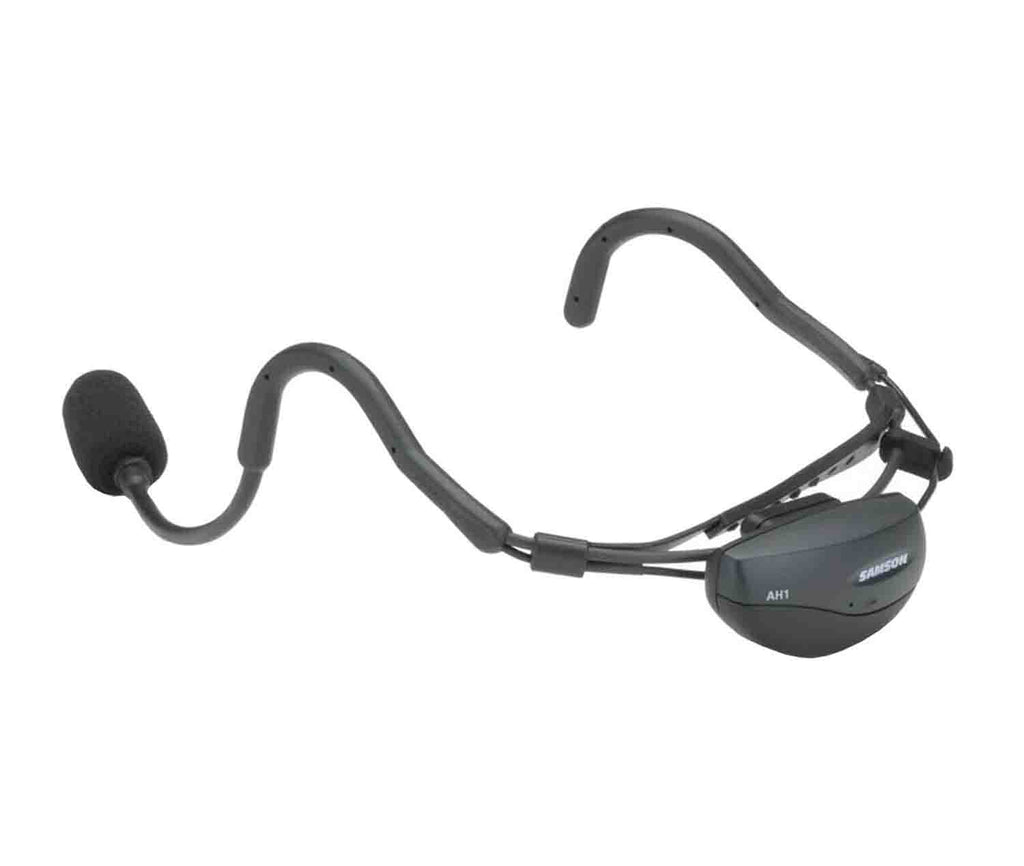

The Samson SWQTCE is a AH1 Transmitter with Headset Microphone. The AH1 Headset Transmitter is designed to go around the back of your head rather than over the top. This allows the transmitter to be attached directly to the headband, out of the way and completely unobtrusive, while being comfortable and secure during performances. The AH1 offers 14 hours of operation on a single AAA battery. For the AirLine 77 AH1 Fitness Headset system, the AH1 Headset Transmitter features Samson's Qe condenser microphone element. The Qe is designed with a unidirectional microphone and cardioid pickup pattern that rejects feedback. It's ideal for group fitness instructors who need a durable headset microphone that will remain in place despite repetitious movement.
Product Specifications:
Operating Power Voltage: 1.5V Typical, 1.05V Minimum, 2V Maximum
Current Consumption: 60mA typical
Battery Life: 14 hours (AAA size battery)
RF Output Power (5mW): -4dB Minimum, +3dB Maximum
Frequency Stability: -40kHz Minimum, 40kHz Maximum
Spurious: 1µW
Modulation Factor: 13kHz Minimum, 15kHz Typical, 17kHz Maximum, Input 1kHz-20dBv
Input Impedance (mic): 2K ohms
THD: < 2% (1 kHz deviation 15kHz)
Audio Frequency Response: 50Hz - 15kHz (±3.5 dB)
Controls: Power switch, mute switch volume
Input: 2.5mm stereo jack
Indicators: Power on (LED flash), low battery (LED on)
