Samson SWSATXHM60-K AWX Wind Instrument Micro Transmitter UHF Wireless System

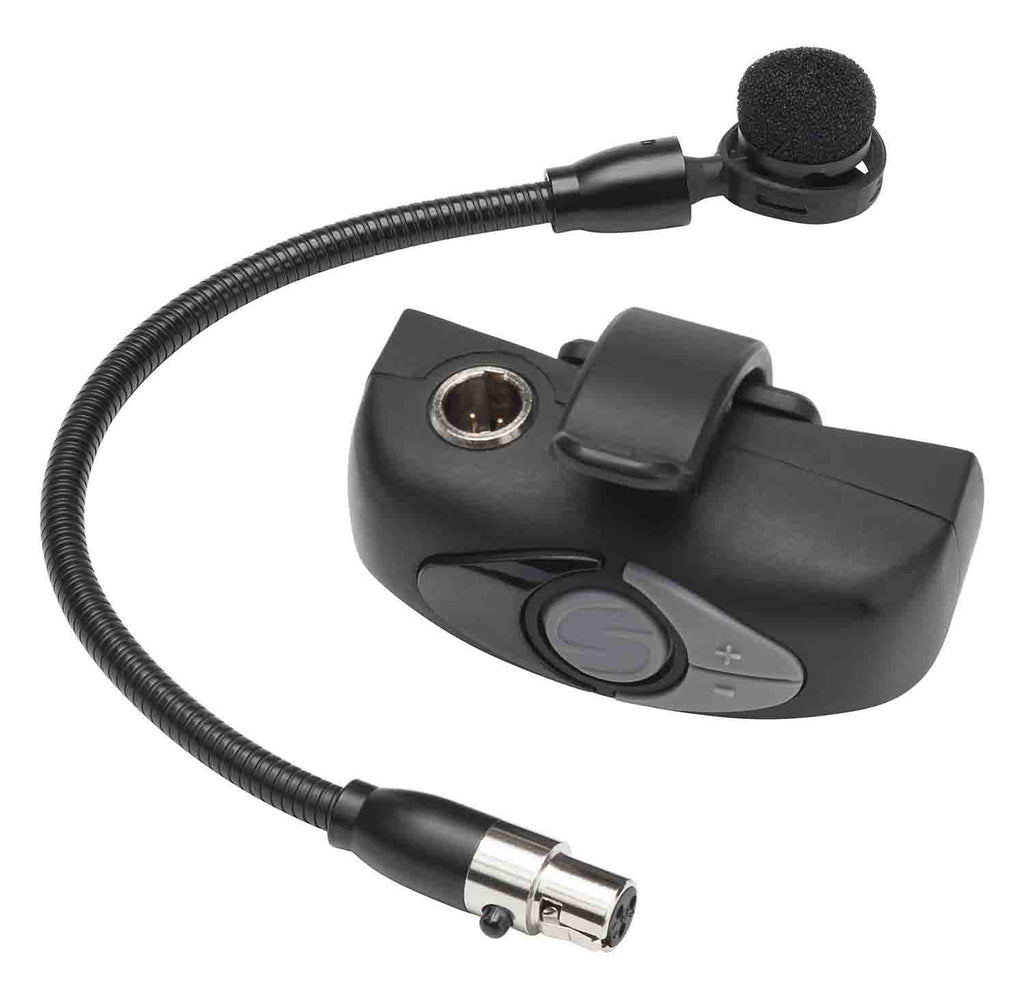

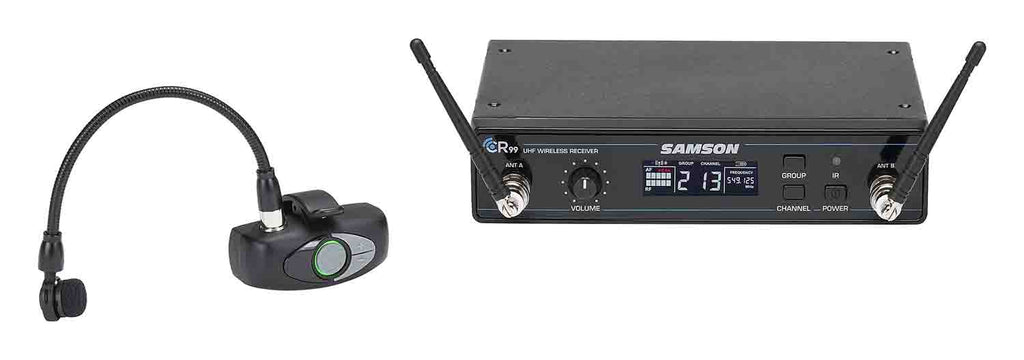

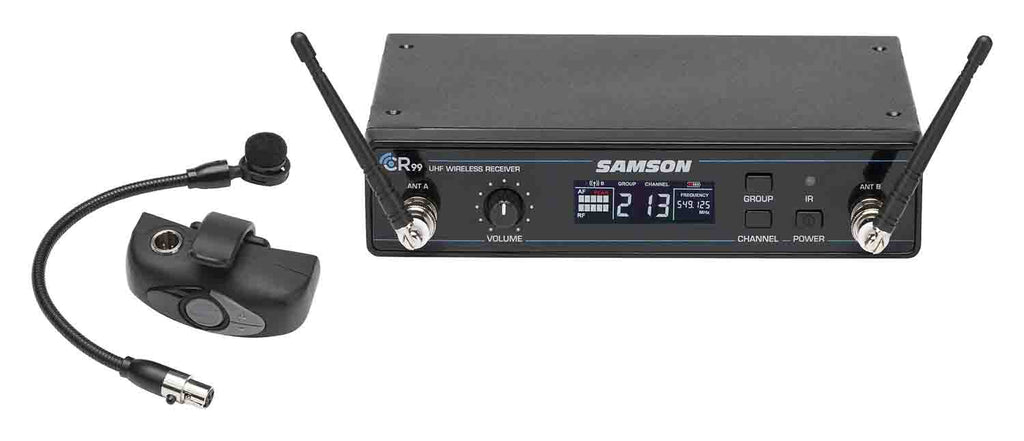

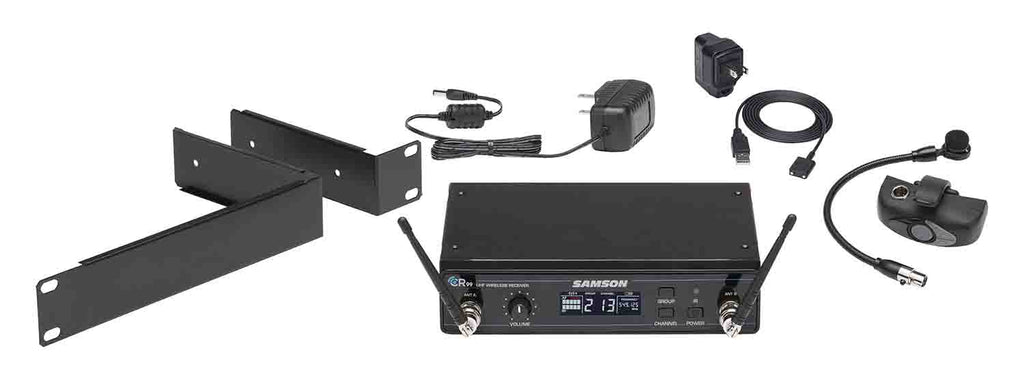

The Samson SWSATXHM60-K AWX Wind Instrument Micro Transmitter UHF Wireless System includes a CR99 wireless receiver, an ATX wireless transmitter, and an HM60 wind instrument microphone with an 8.5" gooseneck for optimal mic placement. This frequency-agile UHF wireless system can be used to capture audio and provide 300' of reliable wireless operation for saxophones, trumpets, trombones, and other wind instruments.

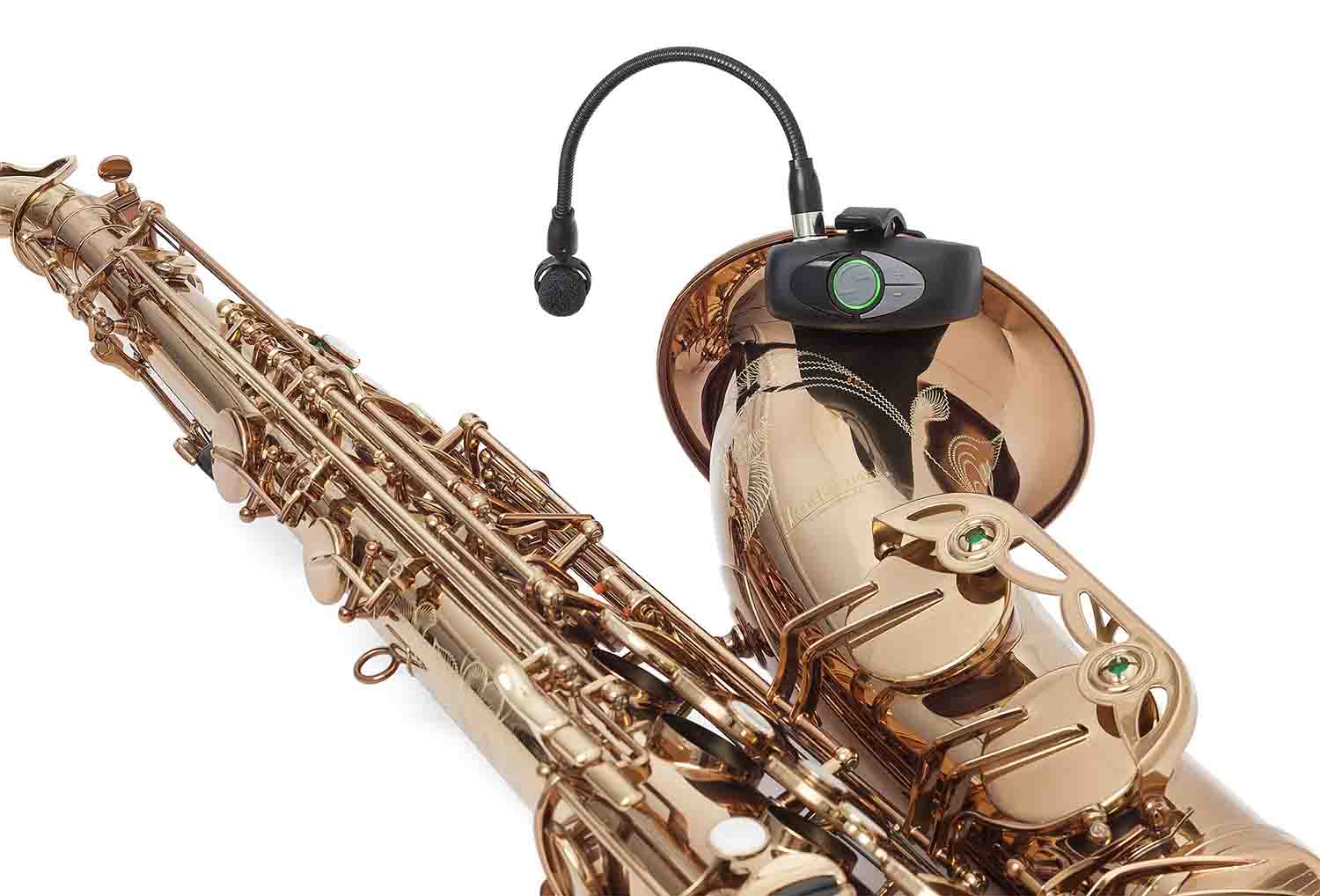

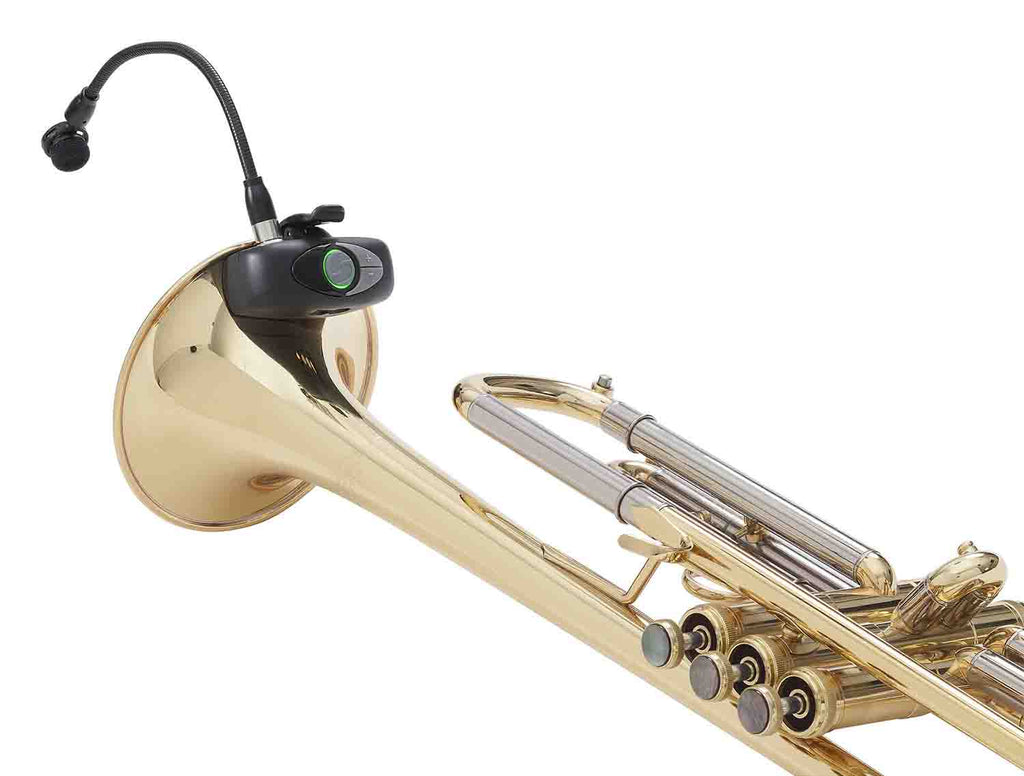

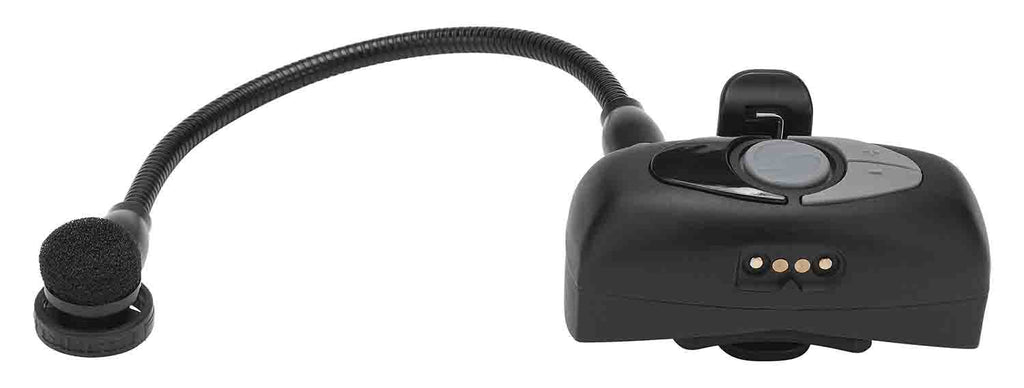

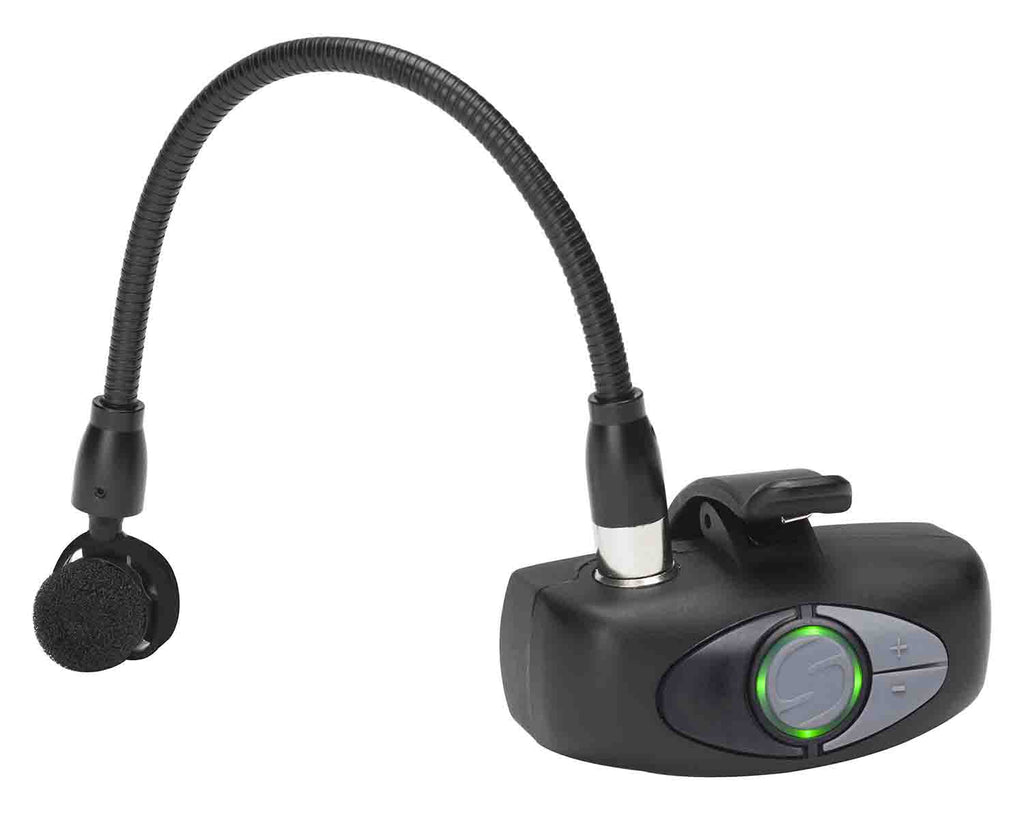

The ATX wireless transmitter clips directly to your instrument's bell with no belt pack or cable necessary and offers 80 operating channels across a 24 MHz band. The transmitter provides infrared sync to wirelessly match the receiver and transmitter frequency, and has easily accessible gain and mute controls, a battery life LED indicator, and an 8-hour rechargeable lithium-ion battery.

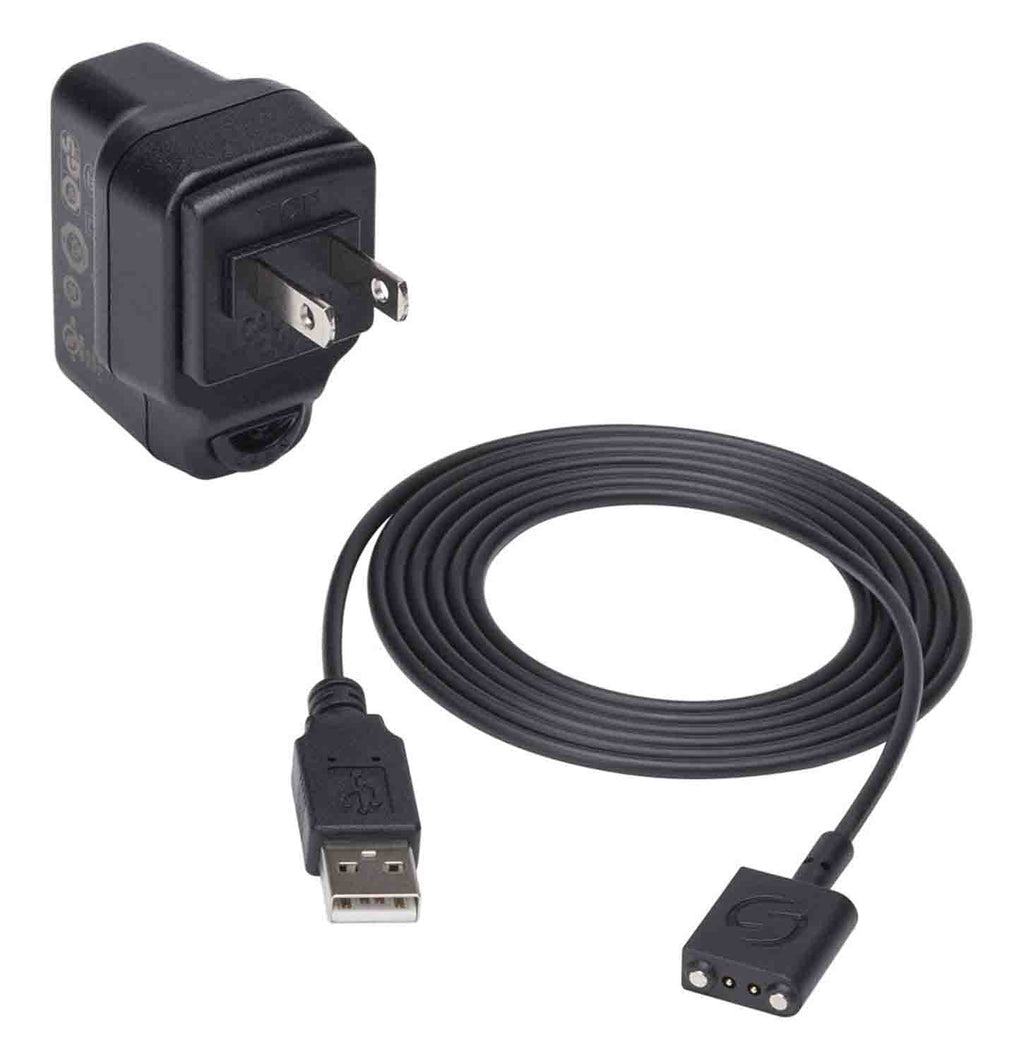

Offering frequency-agile operation, the system's rack-mountable CR99 wireless receiver delivers reliable performance no matter where you are. It is designed with true RF diversity that minimizes dropouts, while tone key technology prevents unwanted noise when your transmitter is off or out of range. In addition, the AWX Wind Instrument Micro Transmitter UHF Wireless System includes an AC adapter and a standard 19" rackmount kit for permanent installations or transporting in a mobile rack.

Product Specification:

Input Connector: Mini-XLR (P3)

Input Impedance: 3 kOhms

Input Gain: 20 dB

RF Power: 10 mW EIRP

Power Requirements: 3.6 V 500 mAH

Battery Life: 6 hours

Dimensions: 5.9 x 6.7 x 3.9" (150 x 170 x 100 mm)

Weight: 0.13 lb (60 g)

Audio Output Level: Unbalanced: +14 dBu

Balanced: +9 dBu

Output Impedance: Unbalanced: 810 Ohms

Balanced: 240 Ohms

Sensitivity: -100 dBm / 30 dB sinad

Image Rejection: >50 dB

Operating Voltage: 15 VDC 200 mA

Dimensions: 7.9 x 5.9 x 1.6" (200 x 150 x 42 mm)

Weight: 2.08 lb (0.95 kg)

Package Weight: 5.5 lb

Box Dimensions (LxWxH): 15 x 14 x 12"
