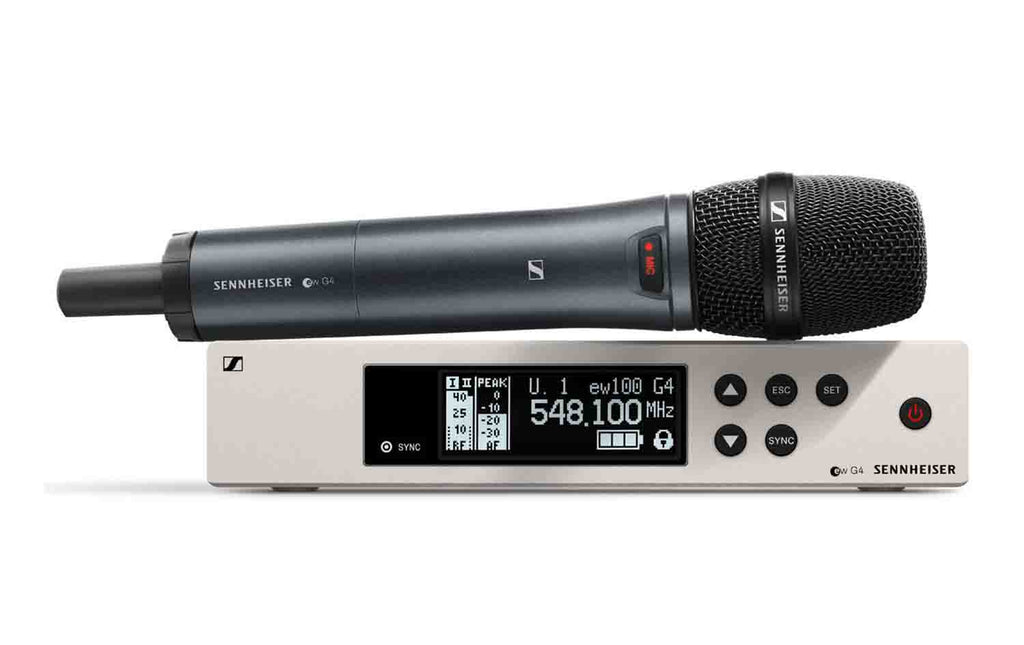

Sennheiser EW 100 G4-945-S-A1 Wireless Handheld Microphone System with MMD 945 Capsule - 470 to 516 MHz

The Sennheiser EW 100 G4-945-S-A1 is a Wireless Handheld Microphone System with MMD 945 Capsule 470 to 516 MHz. Now even more simple, flexible and reliable: The 100 series have become the first choice for both sound designers and occasional users because of its simple operating concept and because the system makes no compromises in terms of live sound. Engineered for professional live sound Rugged all-in-one wireless system for singers and presenters. State-of-the-art live sound featuring Sennheiser ‘s renowned e 835, e 845, e 865, e 935, and e 945 capsules on a lightweight aluminum transmitter with an integrated mute switch. True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control.

Reliability and Performance

Eventually, you’ll get to a level in your career as an engineer or musician when the size stage you’re performing on demands more than an entry-level wireless system. You simply need more reach, more power, and more reliability than what a 2.4 GHz system will allow. Enter the evolution wireless G4 100 Series the next level in your journey as a stage professional.

Feature-Rich and Built to Last

The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it’s easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.

Differences Between the Sets

While the 800 series capsules have an EQ designed to help your vocal cut through the mix, the 900 series capsules offer a more natural sound ideal for large-scale PA systems or performance spaces. The 935 features a cardioid polar pattern that rejects sound from the sides and rear and is ideal for most stages. For louder stages that are susceptible to feedback, the super-cardioid polar pattern of the 945 will come into play, as it provides even more isolation for your vocal performance.

What's in the Box

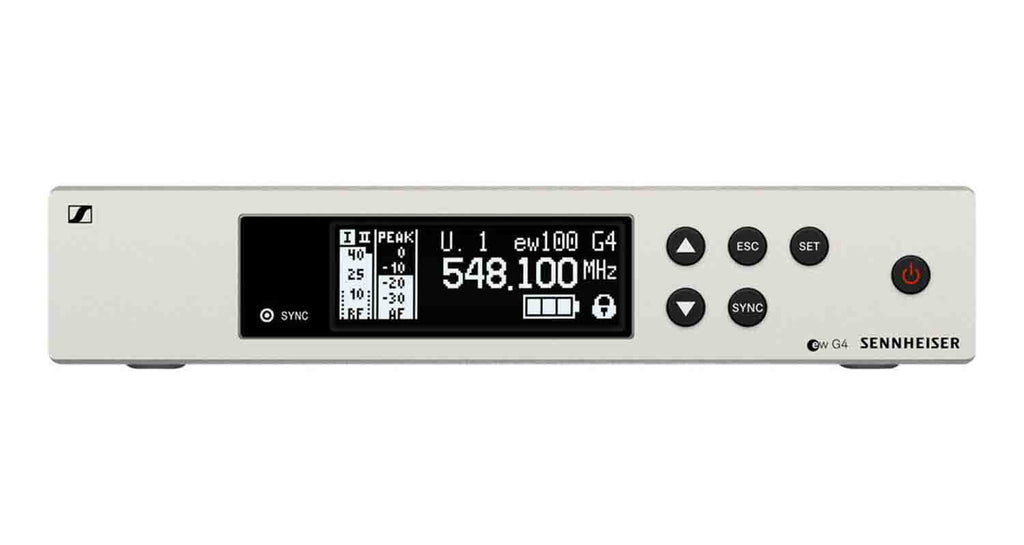

EM 100 G4 true diversity receiver

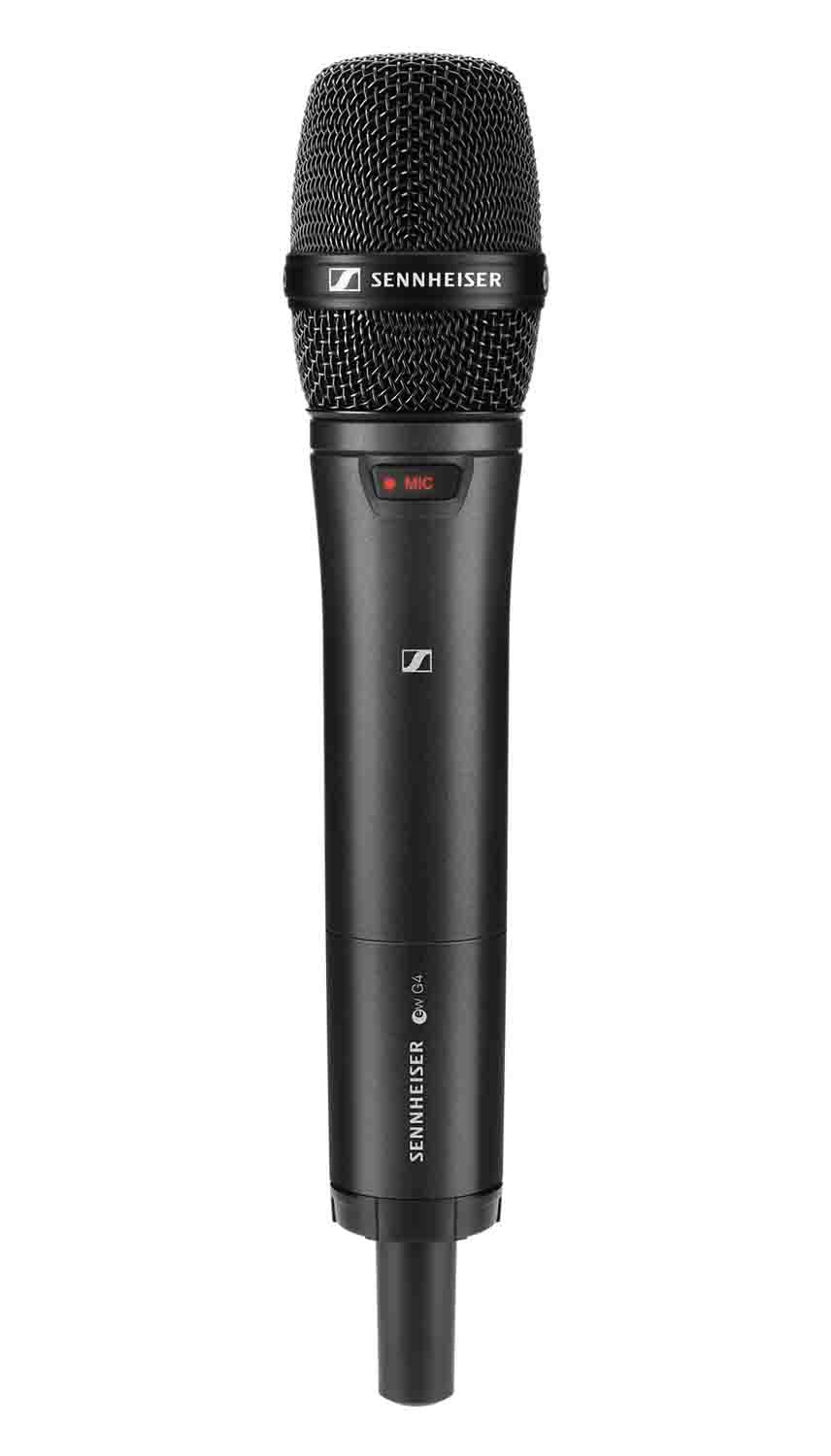

SKM 100 G4-S handheld transmitter

MMD 935-1 microphone head (935-S variants only)

MMD 945-1 microphone head (945-S variants only)

Rackmount set

MZQ 1 microphone clamp

Power supply

2 AA batteries

2-rod antennas

RJ 10 cable

Quick guide

Safety guide

Manufacturer declaration sheet

Frequency supplement sheet

Product Specifications:

Simultaneous Systems Per Band: Up to 12

System Analog/Digital: Analog

System Frequency Range: 470-516 MHz (A1 band)

System Operating Range: 330 ft. Line-of-sight

System Microphone Included: Yes

System Channel Selection: Auto/Manual

Microphone Type: Dynamic

Microphone Polar Pattern: Supercardioid

Microphone Max SPL: 154dB SPL

Microphone Frequency Response: 80Hz-18kHz

Transmitter Form Factor: Handheld with Mic Capsule

Transmitter Mute Feature: Yes

Transmitter Battery Type: 2 x AA

Transmitter Battery Life: 8 hours

Transmitter Dimensions: 7.57" x 1.36" (without capsule)

Transmitter Weight: 0.99 lbs.

Receiver Antenna Type: Detachable

Receiver Signal/Noise Ratio: ≥110dB (A-weighted)

Receiver Type: Rackmount

Receiver Rack Spaces: Half-rack

Receiver Displays: LCD

Receiver Outputs: 1 x XLR, 1 x 1/4"

Receiver Data I/O: 2 x RJ10

Receiver Power Source: 12V DC power supply

Receiver Dimensions: 8.35" x 1.7" x 6.61"

Receiver Weight: 2.16 lbs.
