Description

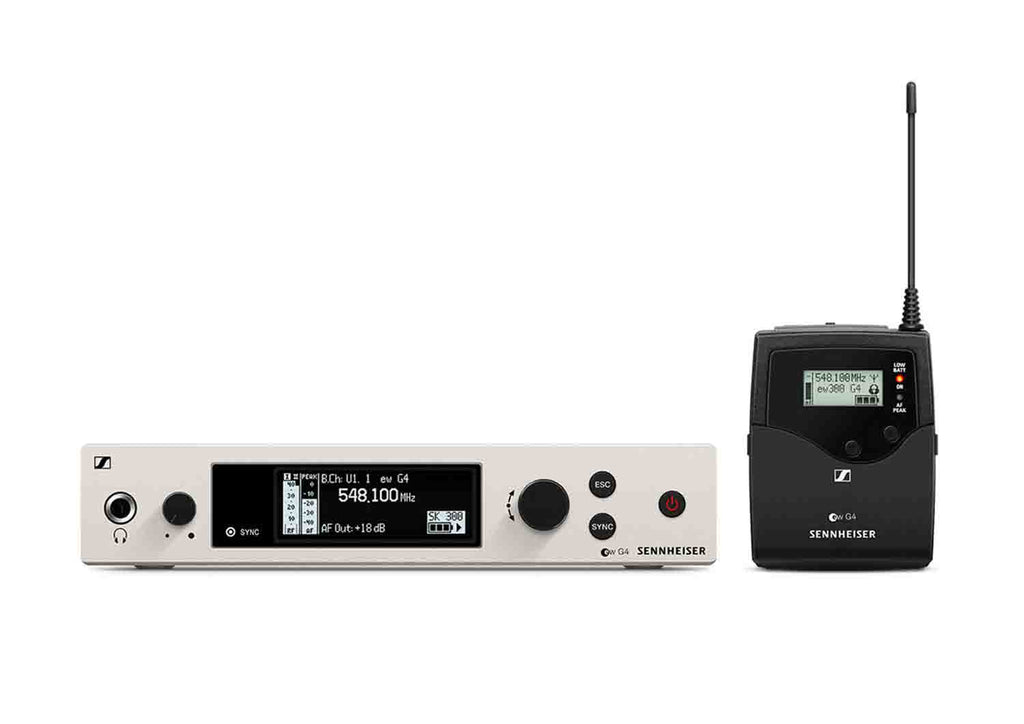

The Sennheiser EW300 G4-BASESKRCAW+ is a Wireless Microphone System with Bodypack. Best choice for your business, top of the class in education. The G4 300 Series uses the power of an increased switching bandwidth of up to 88 MHz. New frequency ranges allow to operation of multi-channel setups with dozens of channels while securing reliable operation - despite digital dividend. The best choice is if you need a bodypack transmitter and maximum flexibility. This base set consists of the stationary receiver as well as a bodypack transmitter. Just add your favorite clip-on or headset microphone.
What's in the Box

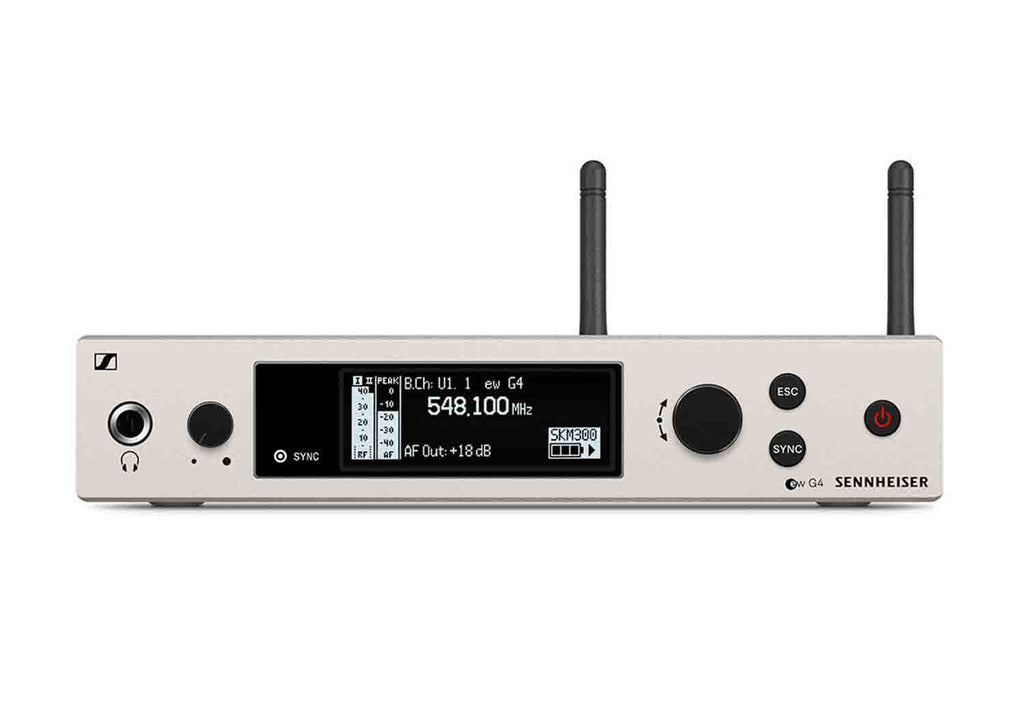

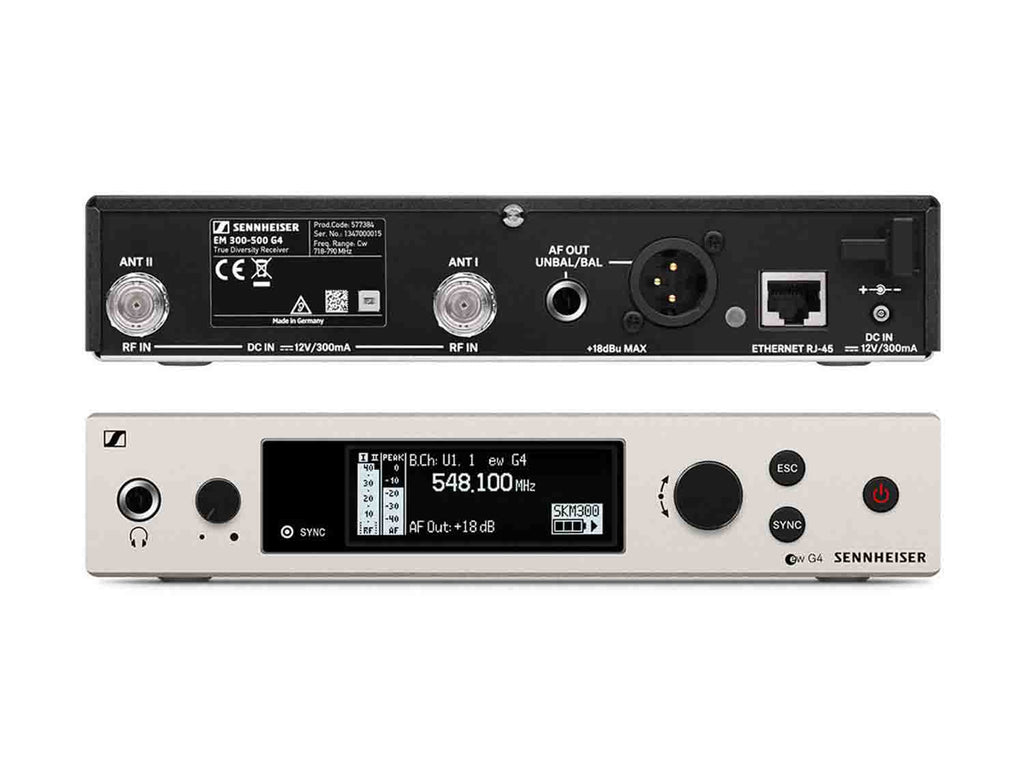

EM 300-500 G4 true diversity receiver

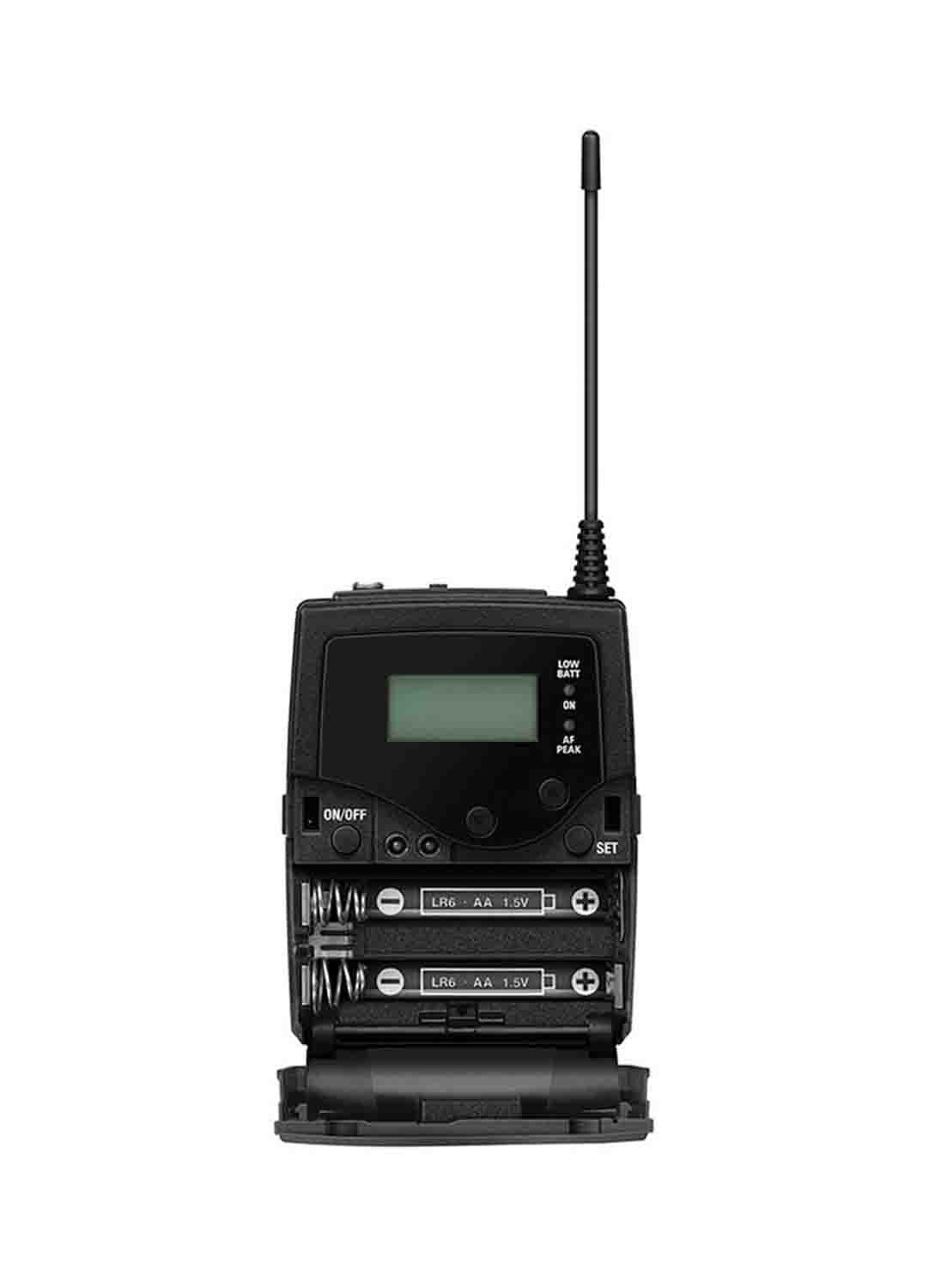

SK 300 G4
GA 3 rackmount set
Power supply
2 AA batteries
2-rod antennas
Quick guide
Safety guide
Manufacturer declaration sheet
Product Specifications:
System
Wireless Technology: Analog UHF
Number of RF Channel Frequencies: 3520
Included Transmitters: 1 x Bodypack
Diversity: True Diversity
RF Frequency Band: AW+: 470 to 558 MHz
RF Bandwidth: 88 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 330' / 100.6 m (Line of Sight)
Max Transmitters per Band: 32
Encryption: None
Deviation: ±48 kHz (Peak)
Modulation: Wideband FM
Receiver
Receiver Type: Tabletop
Mounting Options: Rackmount (with Included Hardware)
Rackmount Size: 1 RU (1/2 Rack)
Antenna: 2 x Rod, Detachable (Rear-Mount)
Number of Audio Channels: 1
Gain Range: 48 dB (3 dB Steps)
Network I/O: 1 x RJ45
Approximate RF Sensitivity: 2.5 µV
Squelch : Adjustable, 5 to 25 dBμV
Adjacent Channel Isolation: >75 dB
Power Requirements: AC/DC Power Adapter
AC/DC Power Adapter: 12 VDC at 300 mA (Included)
AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 0.2 A
Housing: Metal
Operating Temperature: 14 to 131°F / -10 to 55°C
Dimensions: 8.3 x 1.7 x 8" / 212 x 43 x 202 mm
Weight: 2.2 lb / 980 g
Transmitter
Transmitter Type: Bodypack
RF Output Power: 10 / 30 / 50 mW
Audio I/O: 1 x 1/8" / 3.5 mm TRS Female Input (Lockable)
Included Cable Connector: None
Muting: Mute Switch
Audio Input Level: 3 V RMS
Auto-Level Control: No
Gain Range: 60 dB (3 dB Steps)
Frequency Response:
80 Hz to 18 kHz (Mic)
25 Hz to 18 kHz (Line)
