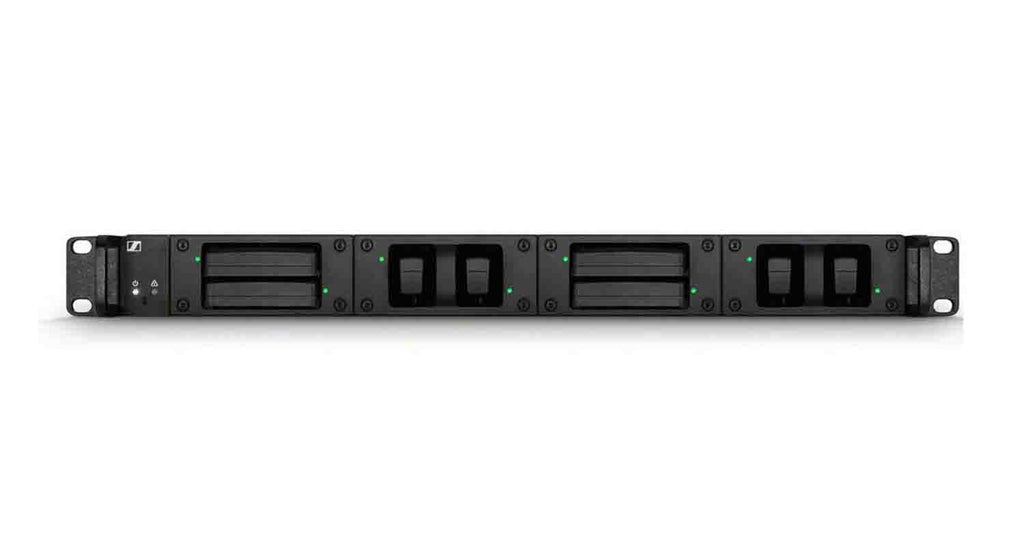

Sennheiser L 6000, Intelligent Charging Station for Digital 6000 and 9000 Series Transmitter Battery Packs

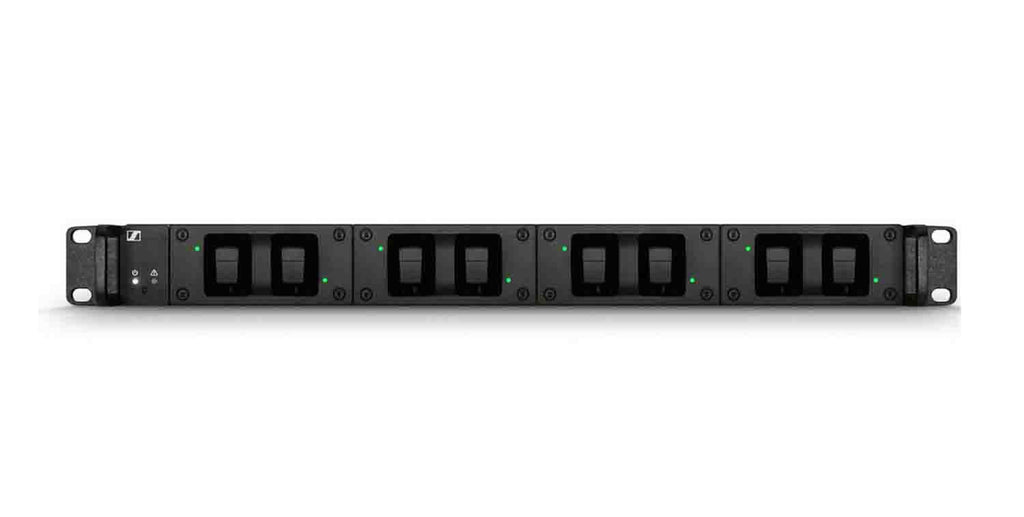

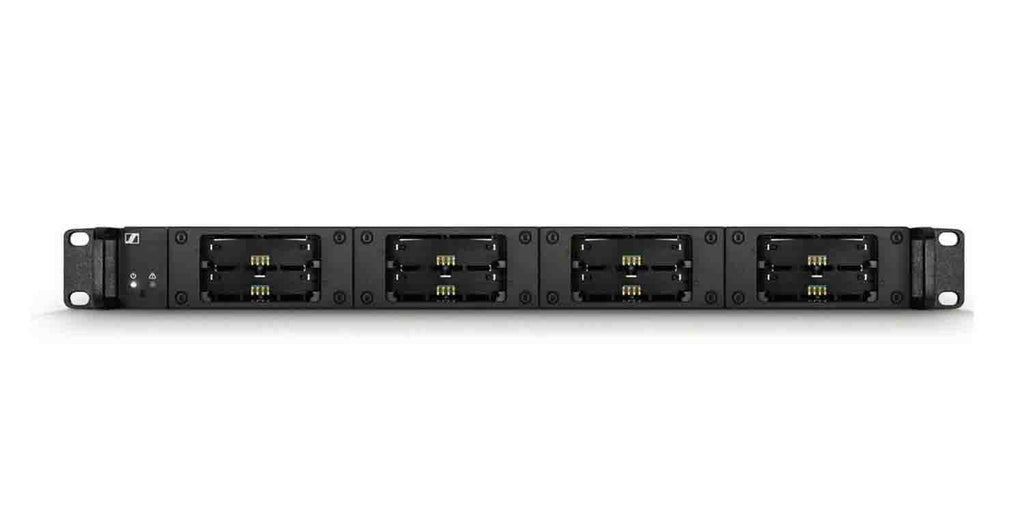

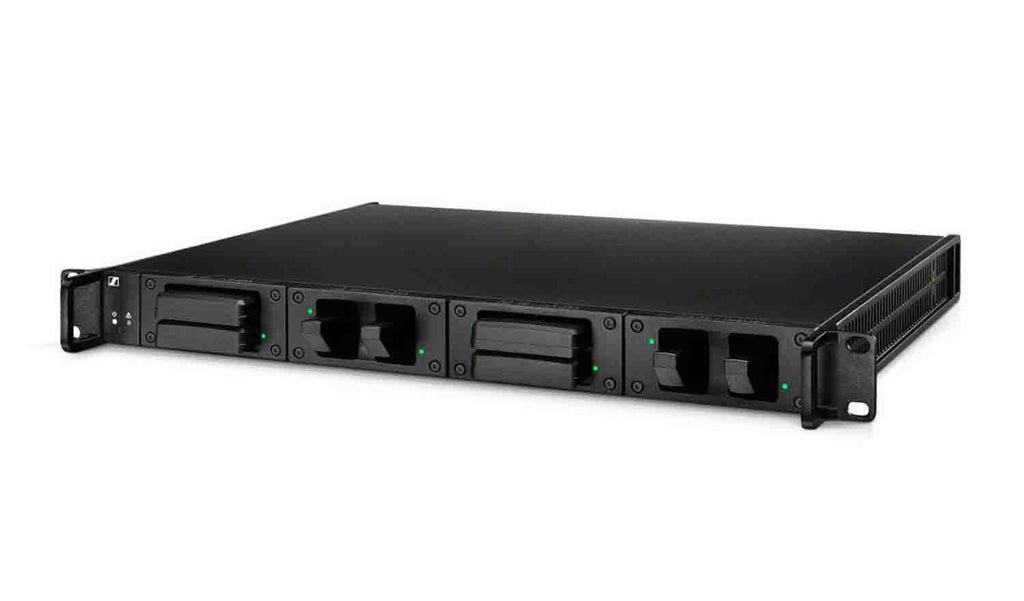

The Sennheiser L 6000 is an Intelligent Charging Station for Digital 6000 and 9000 Series Transmitter Battery Packs. The 19-inch 1 RU L 6000 charging station delivers power centrally and directly in the rack. Up to four freely selectable charging modules can accommodate two bodypack or handheld battery packs each (a total of 8 charging ports for battery packs BA 60, BA 61, or BA 62). Three-color LEDs give a quick overview of the charging status. The intelligent control system prevents heat buildup and also offers a mode that optimally charges the batteries for extended storage periods.

The charging station L 6000 has a modular construction and is futureproof Charging stations for future battery pack types can simply be retrofitted. Extensive details regarding temperature, remaining charging time, run times, charging cycles, and battery quality can be retrieved via the Wireless Systems Manager (WSM).

What's in the Box

1 L 6000

1 Mains Cable (EU, UK, or US plug)

4 Dummy Cover incl. Screws

Quick Guide

Safety Guide

2 Sticker

4 Rubber Feet

Product Specifications:

Power consumption:

Max. 85 W

Min. 1 W

Power supply: 100 - 240 V AC, 50/60 Hz

Operating Relative Humidity: Max. 90 % at 40 °C

Charging Current: 2 A

Display: Multi-colored

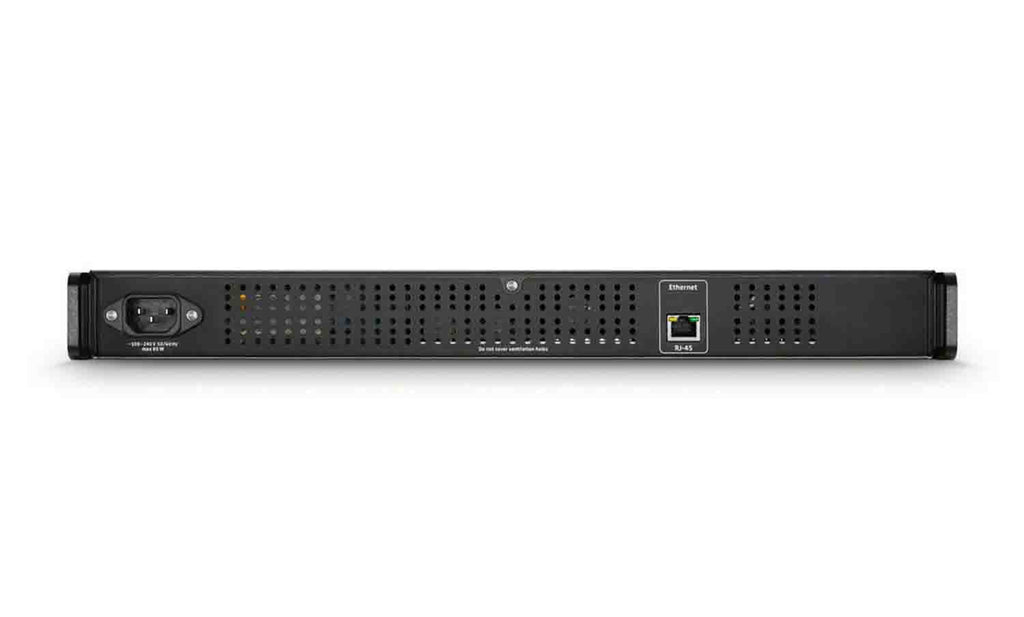

Network protocol: IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection

Temperature Range:

Charging: 0 - 50 °C

Ambient: -10 - 50 °C

Charging voltage: 4.2 V

Power plug: 3-pin, protection class I as per IEC/EN 60320-1

Average discharge current: 0.15 A
