Shure MXC605-FL Flush Mount Conference Unit

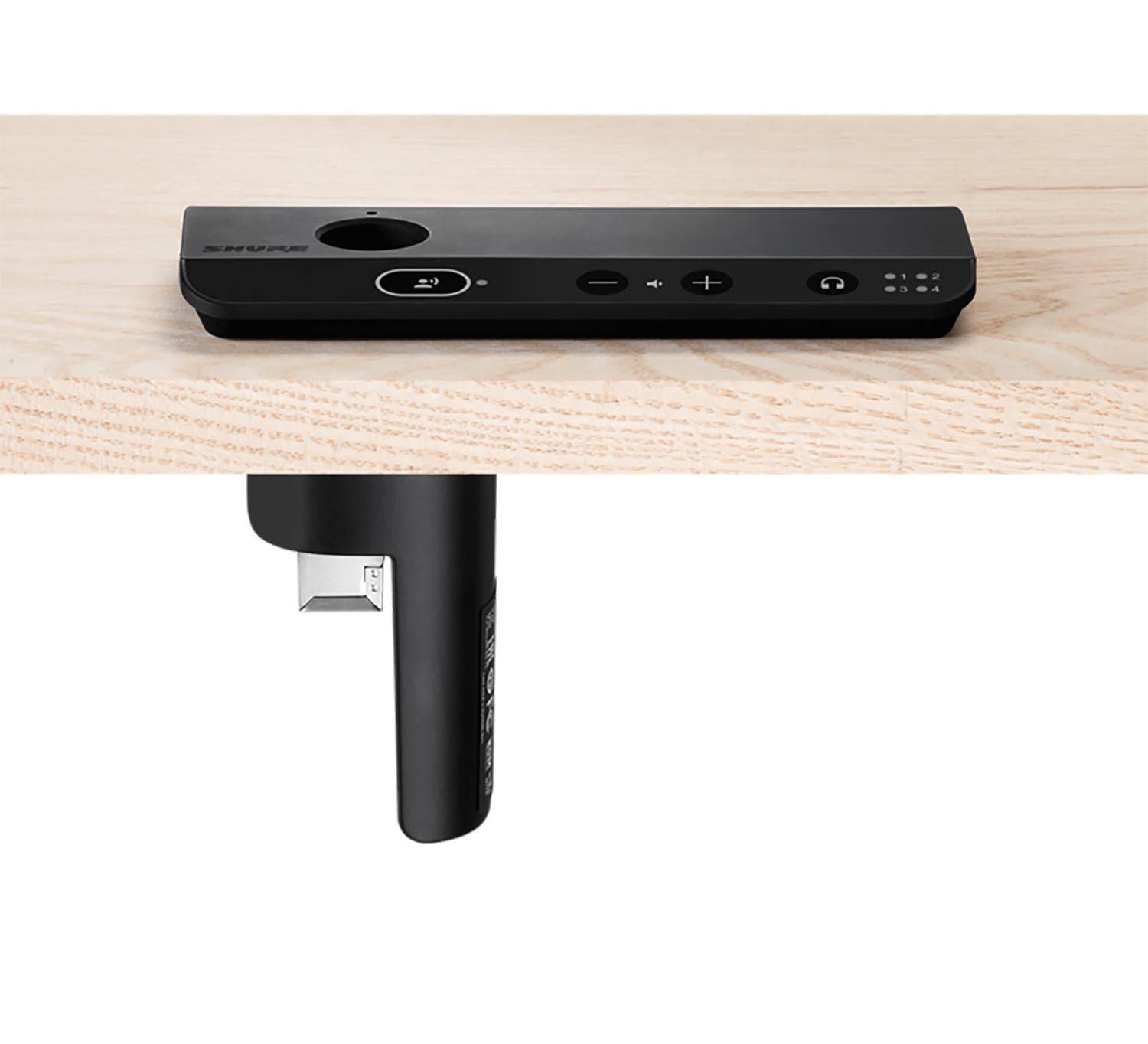

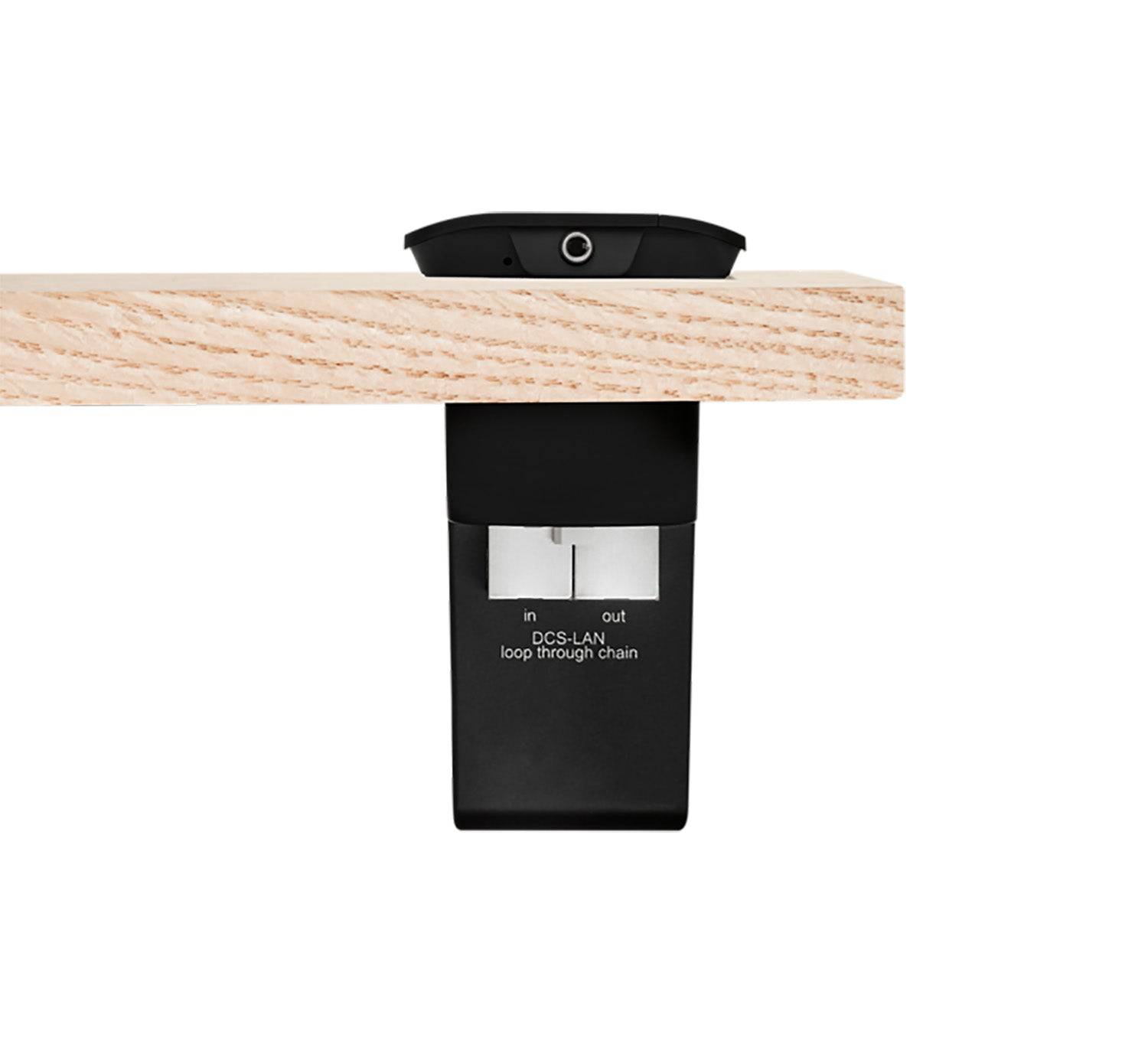

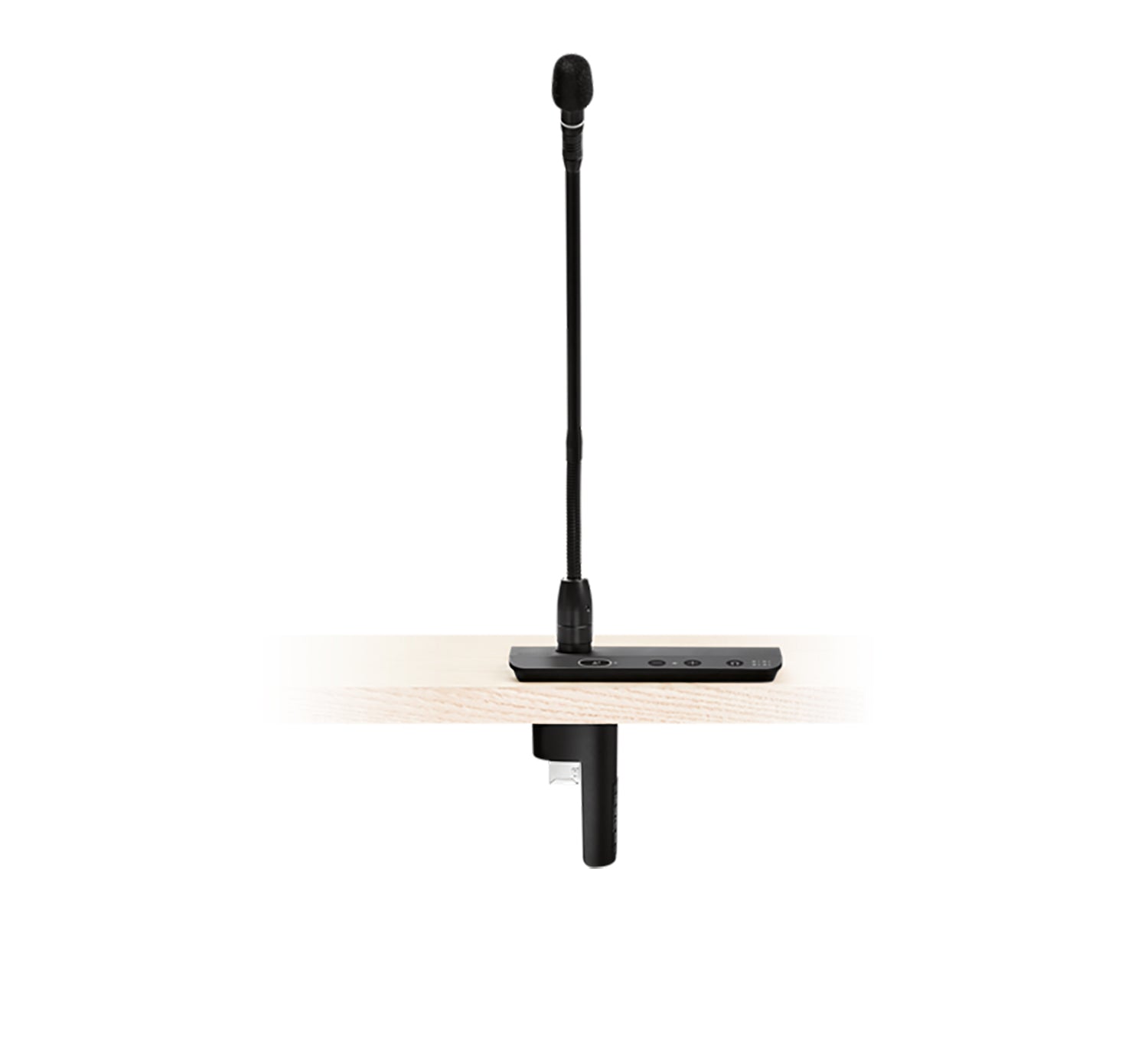

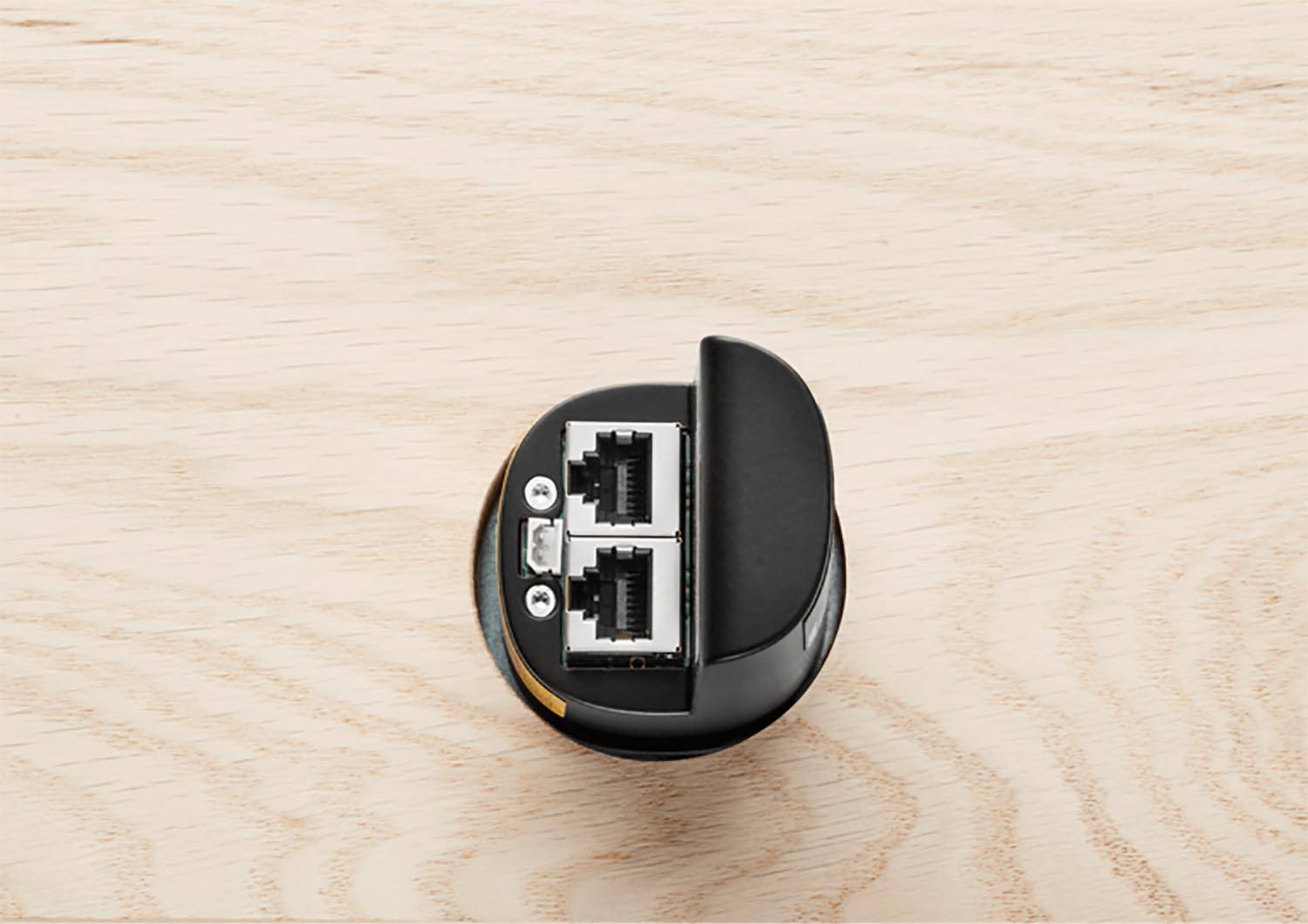

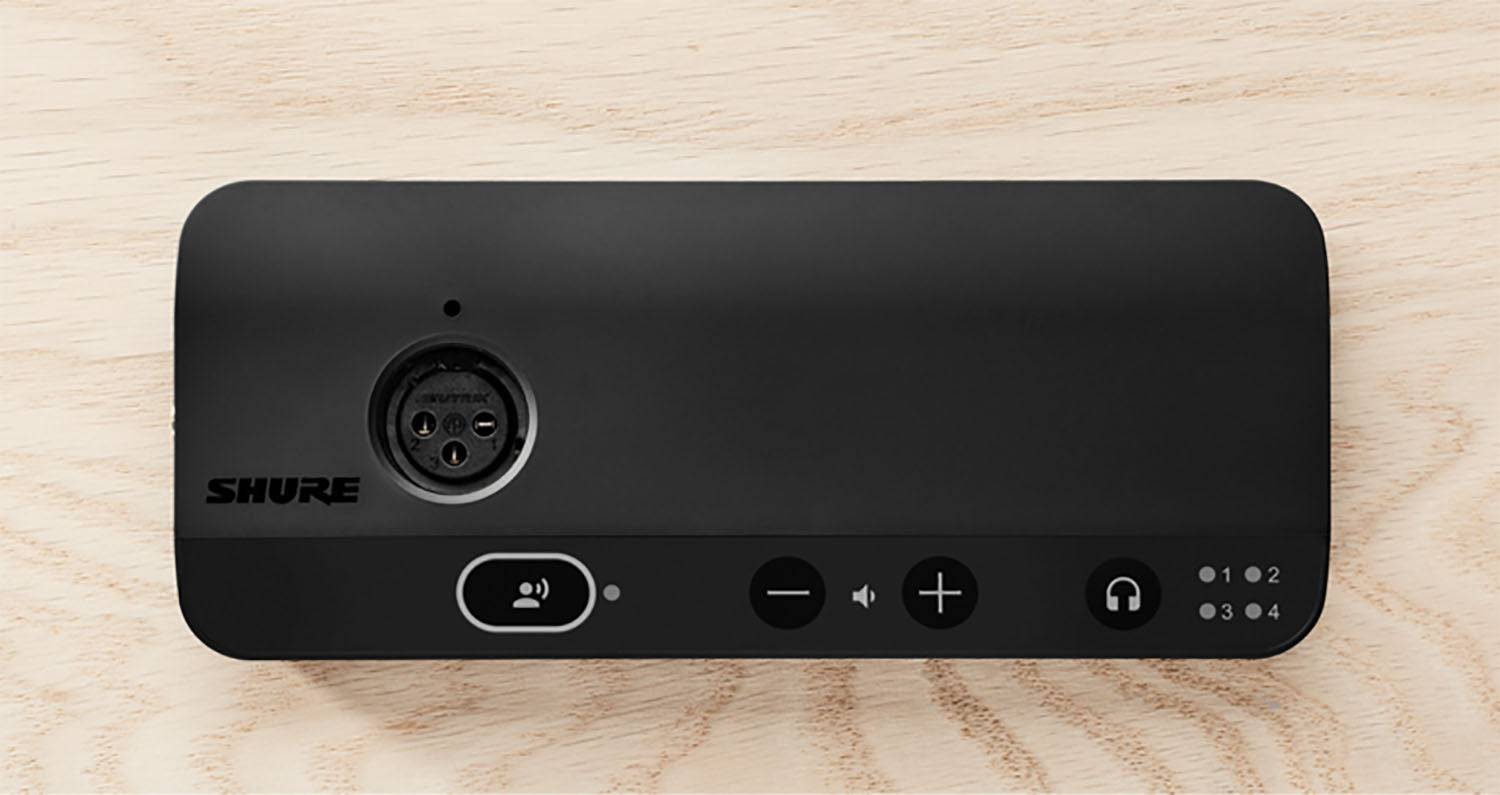

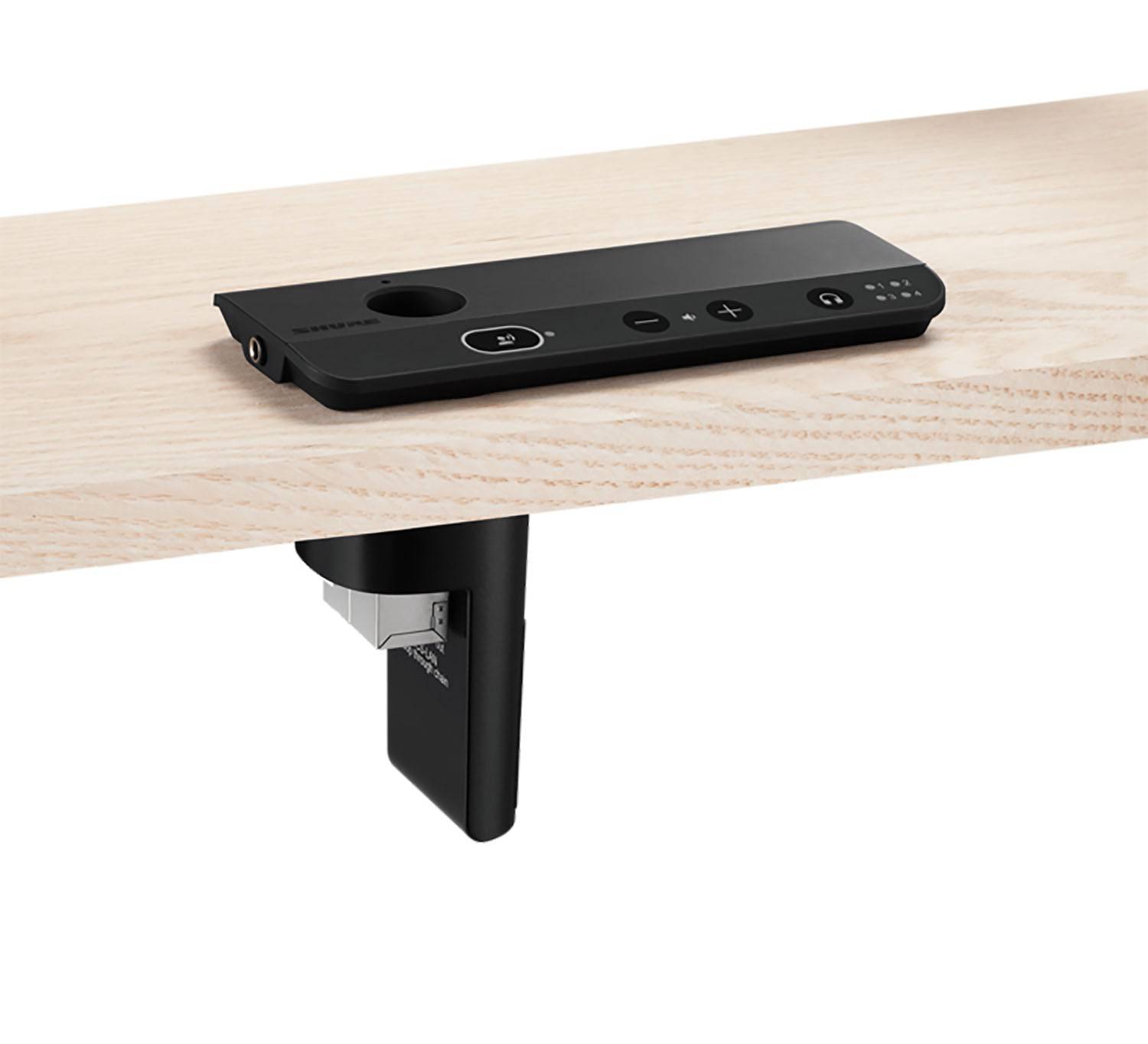

The Shure MXC605-FL is a flush mount conference unit for use with the Microflex® Complete (MXC) digital conference system. This unit can be configured for use by a chairman, a delegate, or as an ambient microphone. The unit features a speak button and function button, a lockable XLR microphone connector, headphone jack with individual volume control, and channel selector. The speak button enables the user to activate/deactivate the microphone directly or to submit a request to speak. An LED on the microphone indicates whether the microphone is on (red) or in request to speak mode (green). The function button can be programmed as a Mute, Mute All, Next On, Reply, or no function through the DIS-CCU central control unit. The headphone jack allows the user to listen to the floor channel or interpretation channels through headphones. The optional MXC605-LS loudspeaker provides sound reinforcement of local talkers and external audio sources except when the microphone is activated. The unit features redundant loop connection to the DIS-CCU.

ALSO, IN THE BOX:

1 - Standard speak + function overlay
