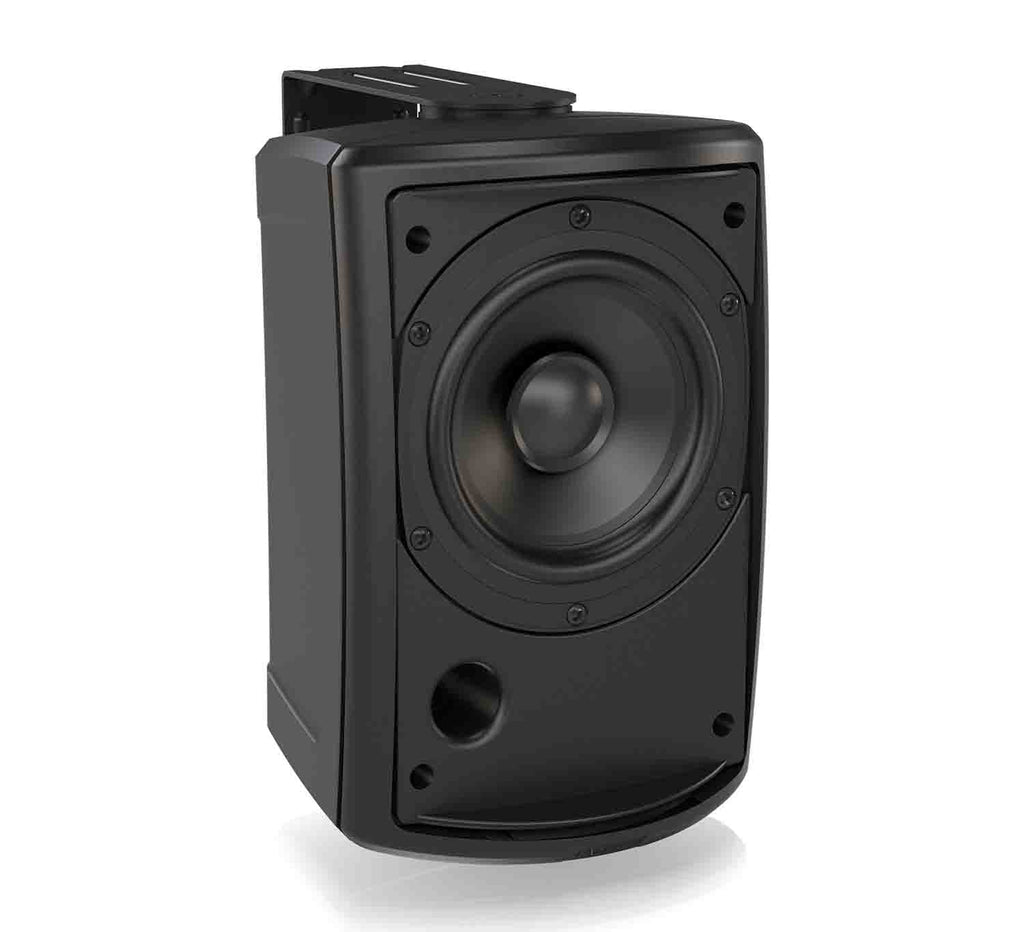

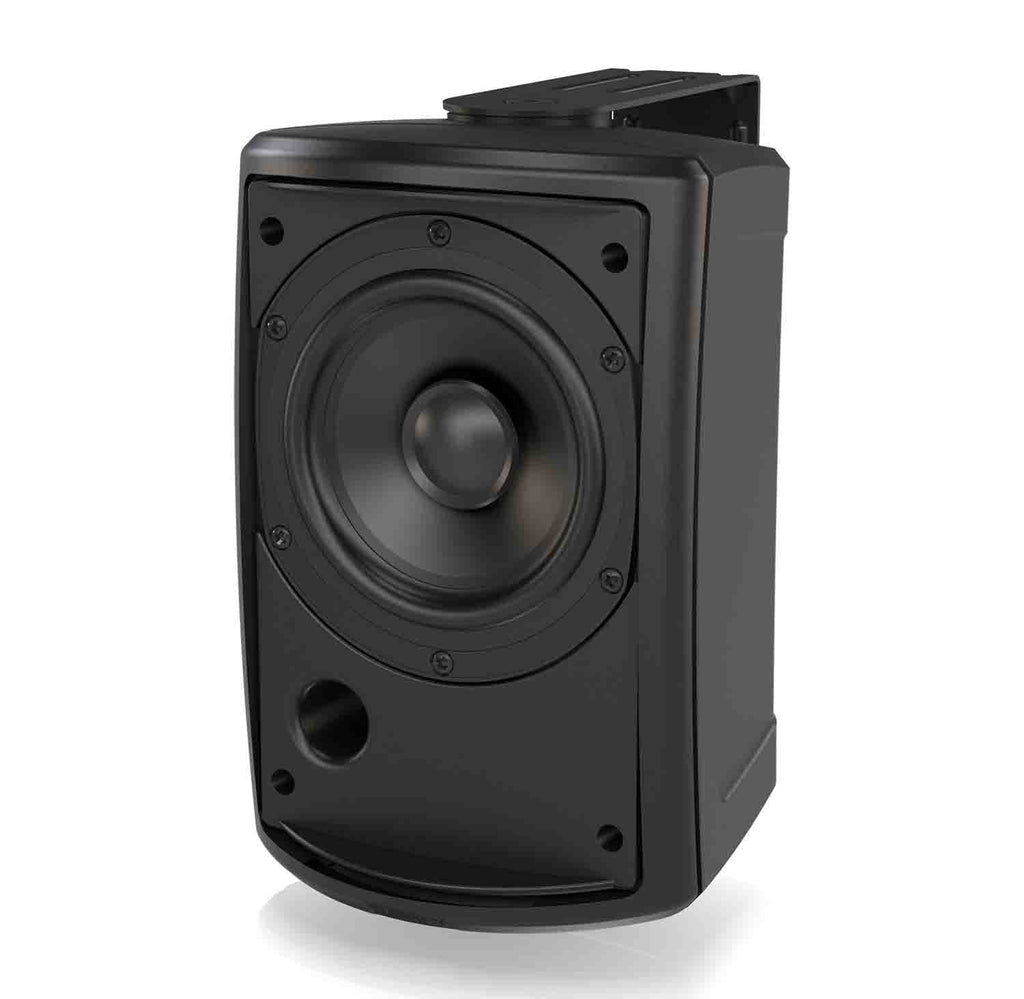

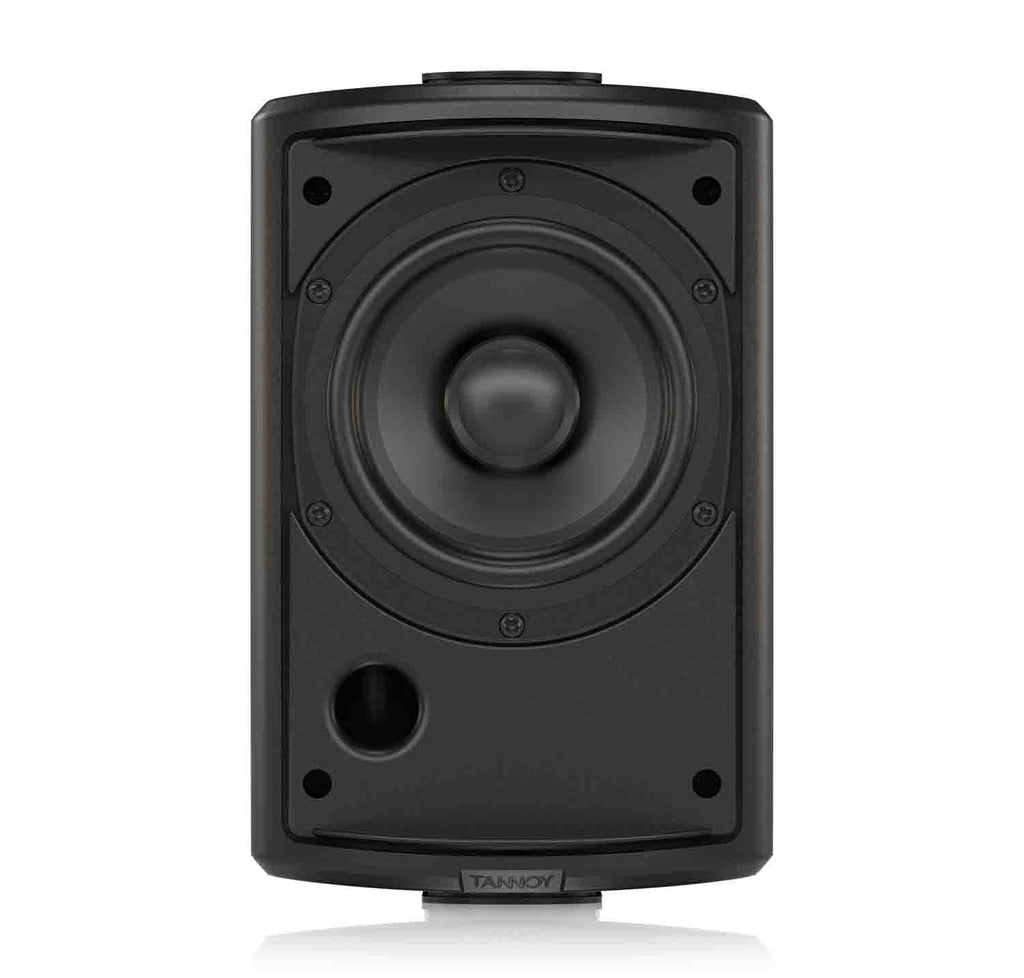

Tannoy AMS 5ICT, 5-Inch Surface Mount Loudspeaker - Black

The Tannoy AMS 5ICT, 5-Inch Surface Mount Loudspeaker - Black is a full bandwidth 200-Watt high sensitivity loudspeaker that utilizes our all-new proprietary 5" ICT (Inductive Coupling Technology) point source driver to deliver consistent broadband directivity and provide exceptional long-term reliability. Thanks to its extended frequency range and 90° controlled conical dispersion pattern, the AMS 5ICT is ideally suited for indoor and outdoor music applications including theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship.

Weather-Resistant Enclosure

The elegantly styled semi matt black molded enclosure blends beautifully into any décor. Additionally, the AMS 5ICT’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

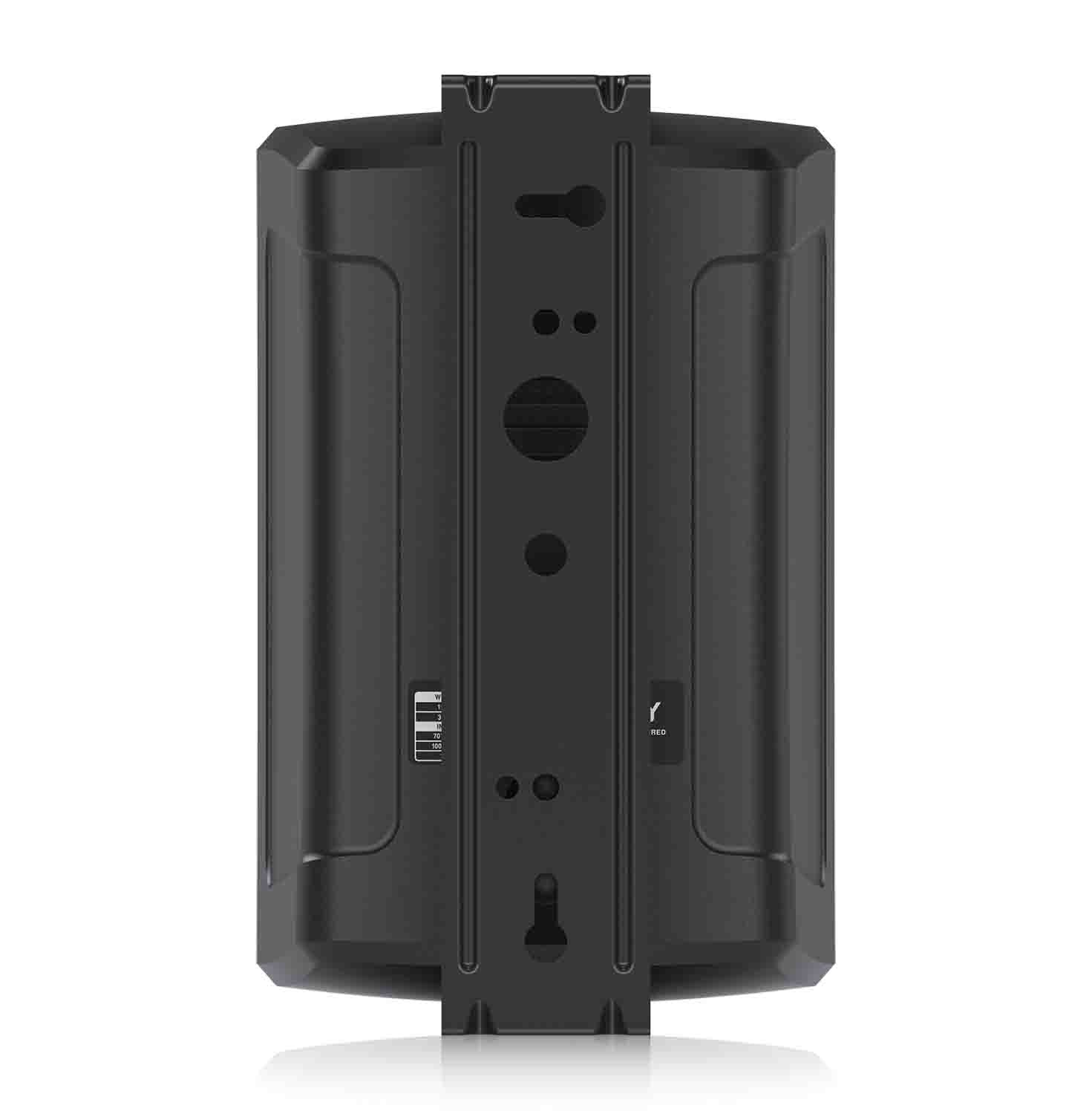

The highly durable and heat resistant ABS enclosure features a black painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included color-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 30 W transformer with convenient tap switching.

LAB GRUPPEN Ready

The AMS 5ICT is optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 AMS Series loudspeakers per channel.

Product Specifications

Frequency Response (-3 dB) (1): 90 Hz - 22 kHz

Frequency Range (-10 dB) (1): 80 Hz - 30 kHz

System Sensitivity (1 W @ 1 m) (2): 88 dB (1 W = 4 V for 16 Ohms)

Nominal Coverage Angle: 90 degrees conical

Power Handling   Average:

50 W

Programme: 100 W

Peak: 200 W

Recommended Amplifier Power: 100 W @ 16 Ohms

Nominal Impedance (Lo, Z): 16 Ohms

Rated Maximum SPL

Average: 105 dB

Peak: 111 dB

Transformer Taps (via front rotary switch)

70 V: 30 W / 15 W / 7.5 W / 3.75 W / OFF & low impedance operation

100 V: 30 W / 15 W / 7.5 W / OFF & low impedance operation

TRANSDUCERS

Low Frequency

1 x 130 mm (5.00") treated multi Fibre pulp cone

High Frequency

ICT

PHYSICAL

Enclosure

ABS

Grille: Steel, plated and painted

Connectors: Removable locking connector with screw terminals

Included Accessories: Yoke bracket

Packed Quantity: 2

Transformer setting: Rotary switch

Dimensions (H x W x D): 10 x 7 x 8"

Net Weight: 8 lbs

Shipping Weight: 9 lbs
