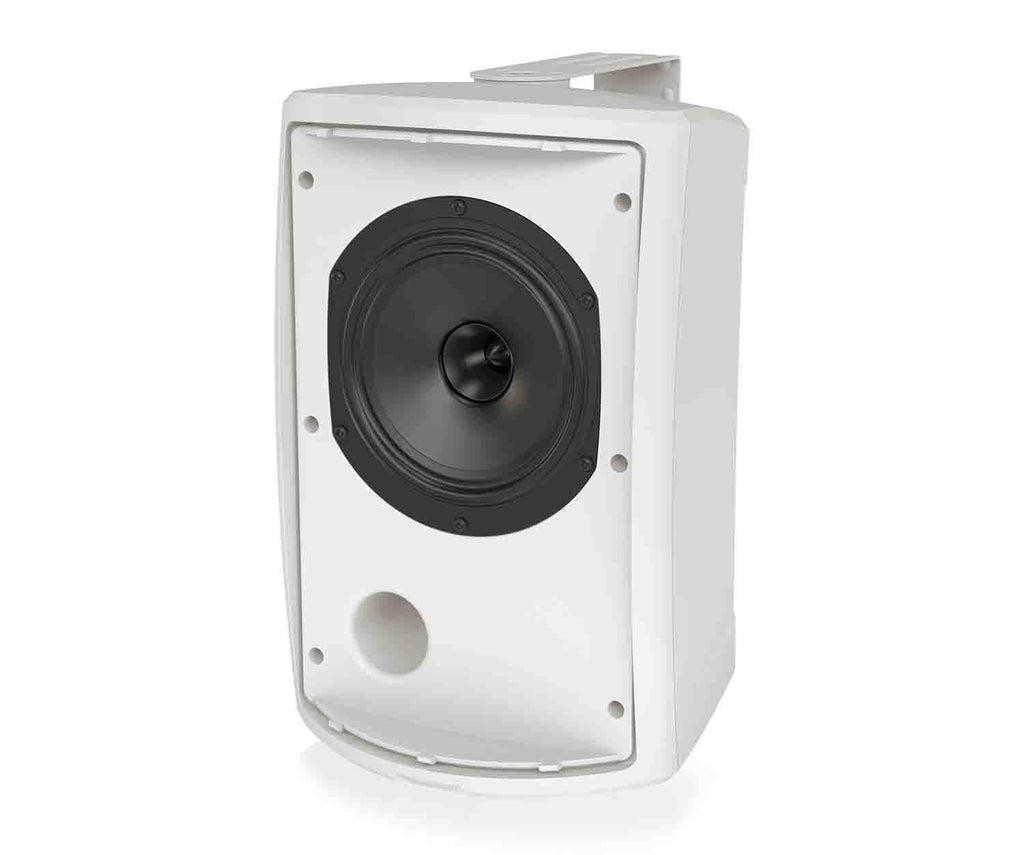

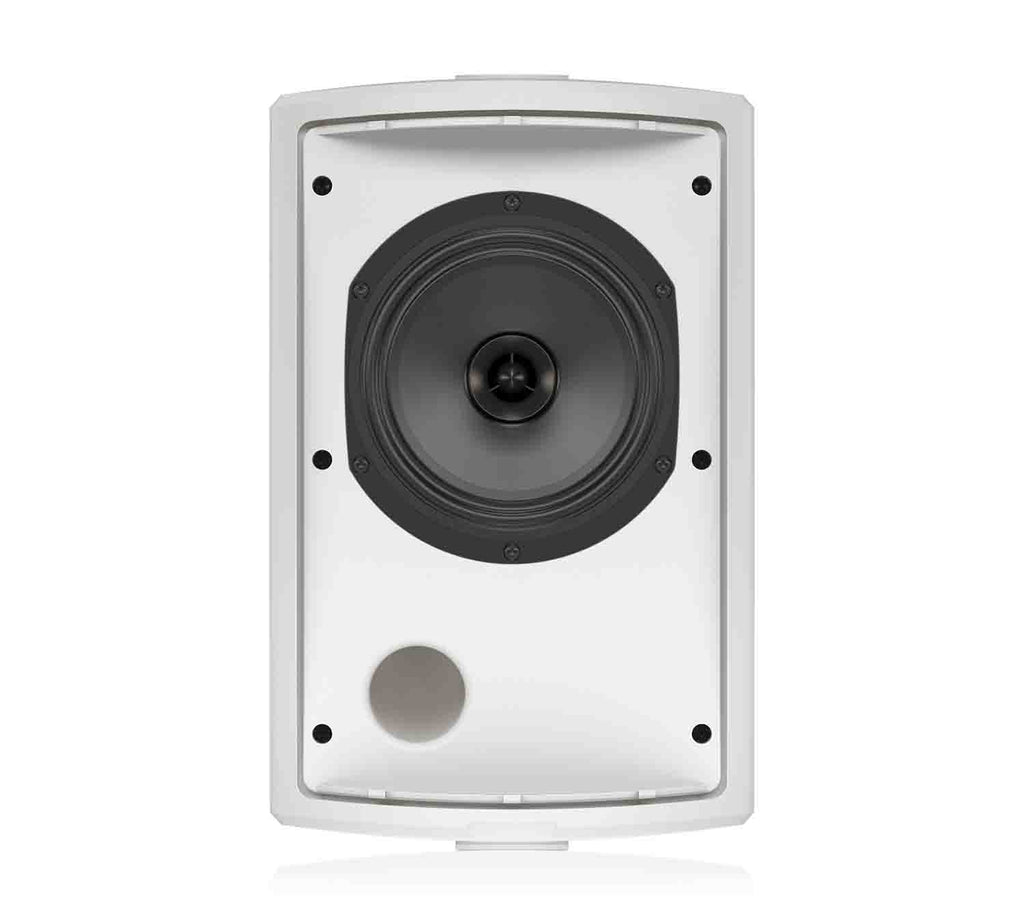

Tannoy AMS 6DC-WH, 6-Inch 2-Way Dual-Concentric Passive Wall-Mount Speaker - White

The Tannoy AMS 6DC-WH, 6-Inch 2-Way Dual-Concentric Passive Wall-Mount Speaker - White is a full bandwidth 320-Watt high sensitivity loudspeaker that utilizes our all-new proprietary 6" Dual Concentric point-source driver with Omni magnet technology on a Torus Ogive Waveguide to deliver wide and consistent broadband directivity with enhanced intelligibility – plus the linear response of our legendary studio monitors. The AMS 6DC-WH is ideally suited for stereo or mono background/foreground music applications in theme parks, hotels, restaurants and bars, retail stores, as well as corporate AV, residential developments, and houses of worship. AMS 6DC-WH loudspeakers provide a seamless sound signature within a multi-zoned environment that benefits from both ceiling and wall mounted TANNOY loudspeakers.

Weather-Resistant Enclosure

The elegantly styled semi matt white molded enclosure blends beautifully into any décor. Additionally, the AMS 6DC-WH’s design and performance has achieving an IP65 rating, making it an exceptional choice for both indoor and outdoor environments such as indoor swimming pools, saunas, or work areas with unusually high levels of dust or moisture, and outdoor applications where weather conditions are moderate.

Attractive and Easy to Install

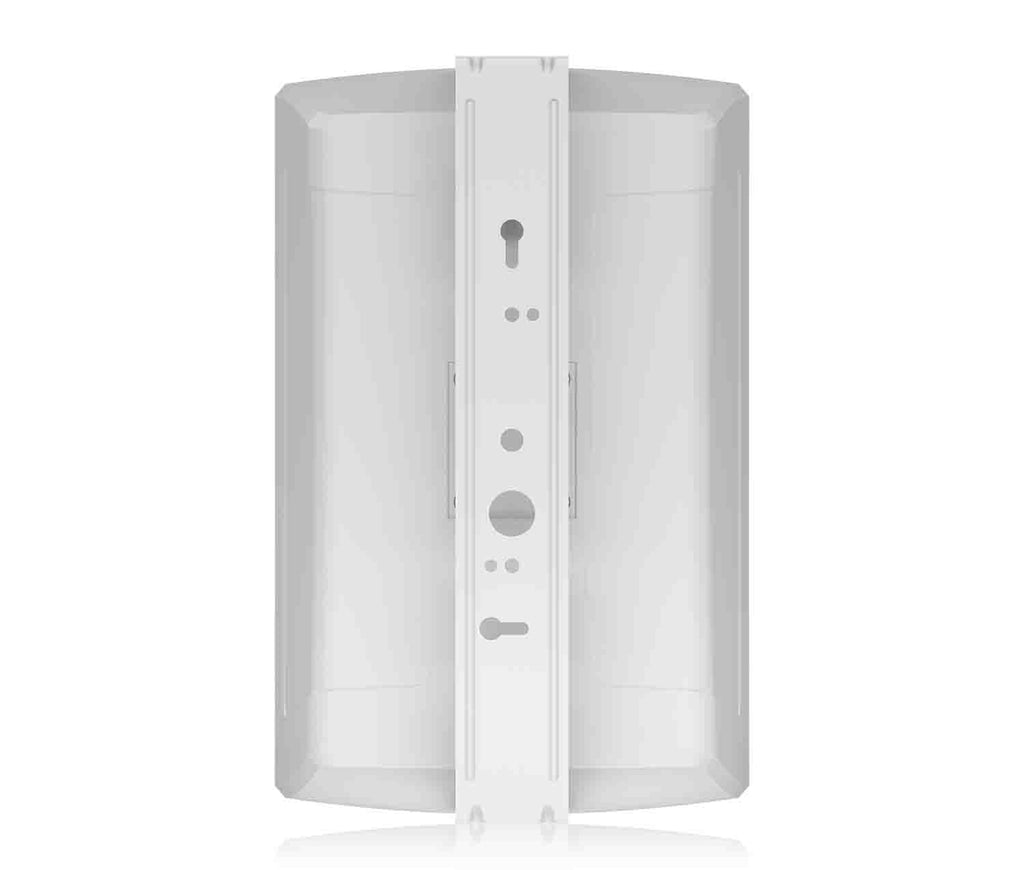

The highly durable and heat resistant ABS enclosure features a white painted finish and comes with an aesthetically pleasing grille. Installation is quick and easy thanks to the included color-matched yoke mounting bracket – and an optional VARIBALL multi-angle bracket is available separately. An included weatherproof cable gland protects the Phoenix input and link output connectors, as well as the integral low-insertion loss 60 W transformer with convenient tap switching.

LAB GRUPPEN Ready

The AMS 6DC-WH is optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 AMS Series loudspeakers per channel.

Product Specifications

Frequency Response (-3 dB) (1)       75 Hz - 30 kHz

Frequency Range (-10 dB) (1)           55 Hz - 40 kHz

System Sensitivity (1 W @ 1 m) (2) 89 dB (1 W = 4 V for 16 Ohms)

Nominal Coverage Angle   90 degrees conical

Power Handling

Average: 80 W

Programme: 160 W

Peak: 320 W

Recommended Amplifier Power     160 W @ 16 Ohms

Rated Maximum SPL

Average: 108 dB

Peak: 114 dB

Transformer Taps (via front rotary switch)

70 V: 60 W / 30 W / 15 W / 7.5 W / OFF & low impedance operation

100 V: 60 W / 30 W / 15 W / OFF & low impedance operation

Low Frequency: 44 mm (1.75"

High Frequency: 25 mm (1.00") PEI dome

PHYSICAL

Enclosure

ABS

Grille: Weather-resistant zinc nickel-plated steel grille

Connectors: Removable locking connector with screw terminals

Transformer setting: Rotary switch

Dimensions (H x W x D): 15 x 10 x 11"

Shipping Weight: 15 lbs
