Description

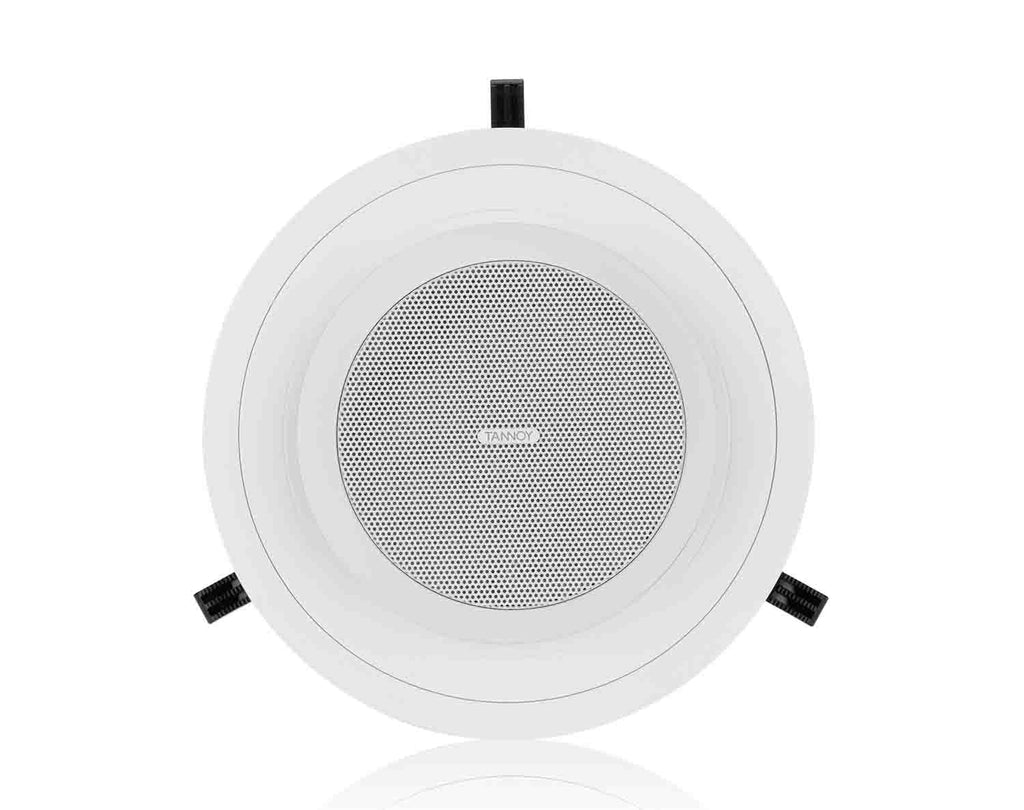

The Tannoy CMS 403ICTE, 4-Inch Full Range Directional Ceiling Loudspeaker with ICT Driver - Blind-Mount is a wide bandwidth 160-Watt high sensitivity loudspeaker that utilizes our third generation Ceiling Monitor System technology (CMS 3.0). Thanks to an all-new proprietary 4" ICT (Inductive Coupling Technology) point source driver with extended frequency range, the CMS 403ICTE delivers consistent broadband directivity with enhanced intelligibility. ICT drivers provide exceptional long-term reliability and are ideal for constant-usage applications.
Adjustable Tilt Angle
Specifically designed with a self-aligning 3-way clamp system for fast, simple and cost-effective installation, the CMS 403ICTE can be angled towards the listener within the fixed ceiling-mounting ring. By discreetly pivoting the loudspeaker towards the desired area of coverage, the challenge of speaker placement in a less than ideal room is easily overcome.
Optimized for Installation
Equipped with a low-insertion loss 30 W transformer with convenient front panel tap switching, CMS 403ICTE features an integral ABS back-can with removable locking screw terminal connector and loop-thru functionality. The paintable powder coated steel mesh grille with dust protection, two tile support rails and one C-ring are all included.
LAB GRUPPEN Ready
The CMS 403ICTE is finished in semi matt white and optimized for use with LAB GRUPPEN LUCIA amplifiers, which accommodate up to 8 CMS Series loudspeakers per channel.
Product Specifications
Frequency response (-3 dB) <sup> (1) </sup>: 110 Hz - 22 kHz
Frequency range (-10 dB) <sup> (1) </sup>: 80 Hz - 24 kHz
System sensitivity (1 W @ 1 m) <sup> (2) </sup>: 88 dB (1 W = 4 V for 16 Ohms)
Nominal Coverage Angle: 90 degrees conical
Coverage Angle (1 kHz to 6 kHz): 120 degrees
Directivity Factor (Q): 5.26 averaged 1 kHz to 6 kHz
Shipping Dimensions: 9 × 9 × 7 in
Shipping Weight: 8 lbs
